- Page 1 User and Service Manual ENGLISH...
- Page 2 See https//:eggmedical.com/patents for details. Disclaimer Egg Medical, Inc. and its affiliates shall not be liable to users or any third parties for any injury, death, or damage suffered by any person, either directly or indirectly, as a result of the unauthorized use or repair of Egg Medical, Inc.
- Page 3 Our goal at Egg Medical is to reduce the scatter radiation exposure of physicians, nurses, technicians and others who use X-Ray imaging to perform life- saving diagnostic and therapeutic procedures for patients. Please contact us at https://eggmedical.com/info email us at info@eggmedical.com.
-
Page 4: Table Of Contents
Installation of the EggNest Complete Shield System......................Step 1: Connect the Complete Shield Adapter to the Boom Support Tube............. Step 2: Connect the EggNest Complete Shield to the Complete Shield Adapter............ Step 3: Install the Complete Shield Handle on the Shield Assembly................ -
Page 5: List Of Symbols
LIST OF SYMBOLS Caution Manufacturer CE Mark Date of Manufacture Part Number Consult Instructions for Use Lot Number Serial Number... -
Page 6: Description Of The Eggnest™ Complete Shield

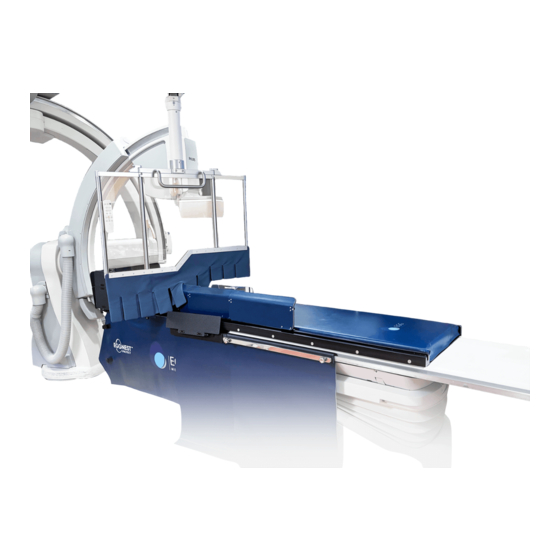

The EggNest Complete Shield is a scatter radiation protection shielding system. The intended purpose of the EggNest Complete Shield is to protect healthcare workers that are behind the shield in the x-ray procedure room from scatter radiation during medical procedures employing imaging in the range of 70-100 keV energy levels [1]. -
Page 7: Components Of The Eggnest Complete Shield
The Shield Fringe is a soft shielding component attached to the lower edge of the Shield Assembly to allow for conformance to patient anatomy. Shield Adapter The Shield Adapter is designed to attach the EggNest Complete Shield to a ceiling-mounted boom arm. This connector is attached to the boom arm using two 8mm shoulder bolts. Shield Handle The Shield Handle is designed to provide a location to grasp the Complete Shield and manipulate it into position. -
Page 8: Installation Of The Eggnest Complete Shield System
Step 2: Connect the EggNest Complete Shield to the Complete Shield Adapter The EggNest Complete Shield is lifted into place with the Adapter over the mating slot in the Complete Shield upper rail. Attach the Shield to the Adapter using the two included M6 stainless steel shoulder bolts with the included Loctite thread locking compound on the bolt threads. -
Page 9: Step 3: Install The Complete Shield Handle On The Shield Assembly
Step 3: Install the Complete Shield Handle on the Shield Assembly The Complete Shield Handle is attached to the Shield assembly using the two included M8 flat head screws, with the screws placed so that the heads are flush with the face of the assembly. Use the included Loctite thread locking compound on the bolt threads. -
Page 10: Use Of The Eggnest Complete Shield
Loading the Patient Prepare the EggNest Complete for patient loading as follows: Move the EggNest Complete Shield away from the patient loading area to provide room for the patient to be transferred to the patient table. Position the Shield in an area that is clear of any sterile preparation tables and position it for draping. -
Page 11: Precautions
Contact with the X-Ray System If the EggNest Complete Shield comes into contact with the x-ray tube housing or detector, do not push or otherwise force the system. Instead, move the table or x-ray gantry in order to disengage the system or move the Complete Shield away from the x-ray unit. -
Page 12: Care And Maintenance
Be sure to clean all surfaces in order to prevent transmission of infectious agents or biohazardous materials to staff or between patients. Product Disposal If the EggNest Complete is to be removed from service at the end of useful life, it must be returned to Egg Medical for disposal. -
Page 13: Egg Medical Product Warranty
What the Warranty Does Not Cover Egg Medical products are intended to be used in high flow areas of the hospital. We do not warranty defects that arise from repetitive use and normal “wear and tear.” This includes cosmetic defects,...
