Page 1

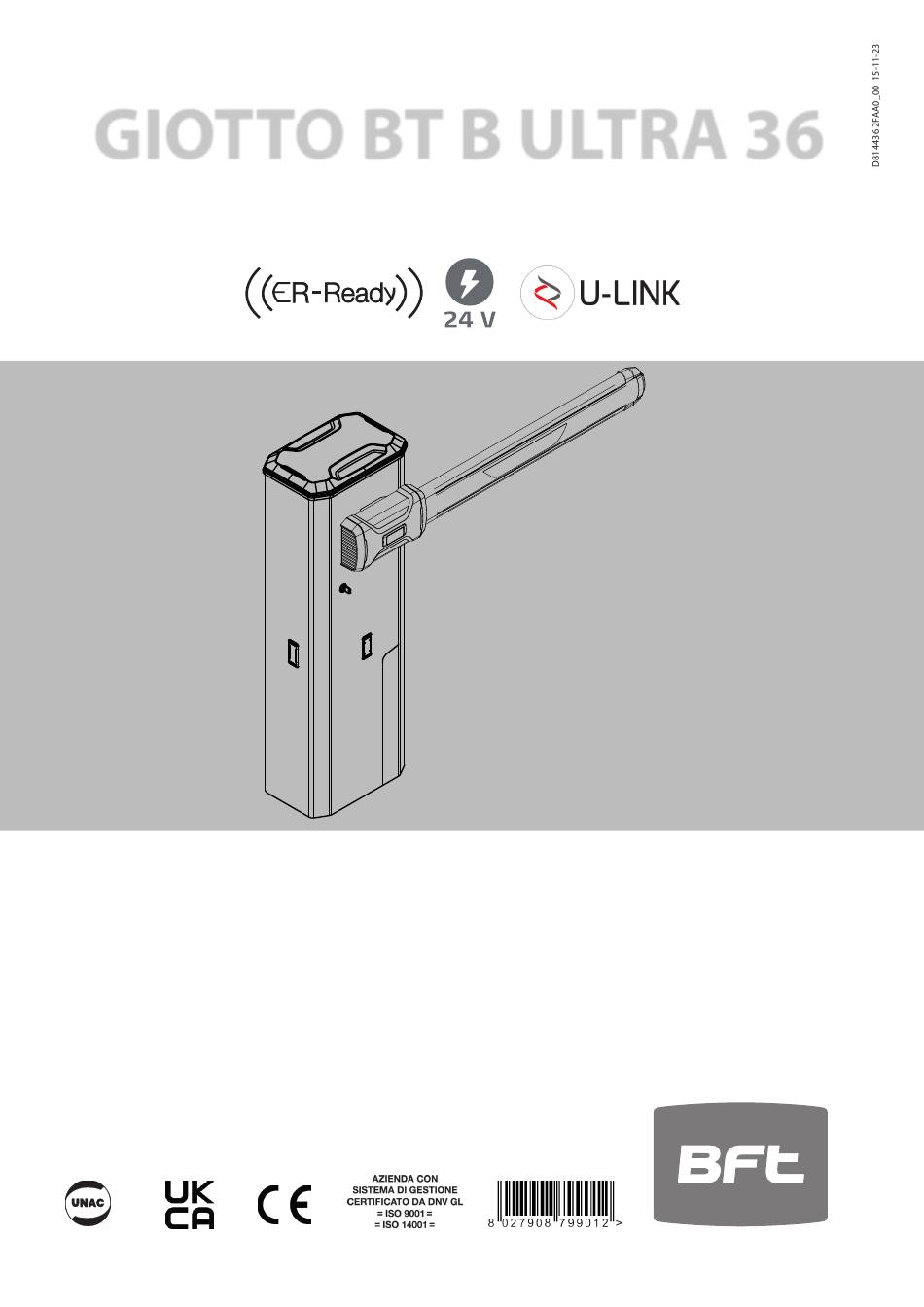

GIOTTO BT B ULTRA 36 INSTALLATION AND USER’S MANUAL ELECTROMECHANICAL CONTROL DEVICE FOR VEHICULAR BARRIERS Caution! Read “Warnings” inside carefully!
Page 2
- Separate inputs for safety devices - Configurable command inputs - Built-in radio receiver rolling code with transmitter cloning. The board has a terminal strip of the removable kind to make maintenance or replacement easier. - GIOTTO BT B ULTRA 36...
Page 3
Achtung! Bitte lesen Sie aufmerksam die „Hinweise“ im Inneren! ¡Atención¡ Let op! Lees de “Waarschuwingen” aan de binnenkant zorgvuldig! Ø10 M12x35 Boom mounting Ø12 Boom For installation with fixing template (optional) Spring (see “spring configuration”) Rubber EQUIPMENT Ø10 Wall - GIOTTO BT B ULTRA 36...
Page 4
1mm of additional insulation. Wires must be secured with additional fastening near the terminals, using devices such as cable clamps. All connecting cables must be kept far enough away from dissipaters. GIOTTO BT B ULTRA 36 -...
Page 9
KIT ML65-L KIT ML81-H GREASE RIGHT SPRING ASSEMBLY RH barrier KIT ML65-L KIT ML81-H GREASE - GIOTTO BT B ULTRA 36...
Page 10
KIT ML65-L KIT ML81-H 45° 30° Recommended speeds for various boom lengths Boom length (m) Open/close time (s) 20-45 20-45 20-45 45-60 45-60 Parameter MOTOR TYPE Max. SPEED parameter Parameter DECELERATION DISTANCE Parameter ACCELERATION GIOTTO BT B ULTRA 36 -...
Page 11
CONTROL UNIT CONNECTIONS For connections refer to the I paragraph - GIOTTO BT B ULTRA 36...
Page 12
AUX 3 = 13 AUX 0 = 13 AUX 3 = 14 AUX 0 = 14 26 27 Connection To Car-park Management System AUX 3 = 12 AUX 3 = 12 26 27 26 27 GIOTTO BT B ULTRA 36 -...
Page 13
10 11 20 2126 27 41 42 43 50 51 52 60 61 6 OPEN 10 11 20 2126 27 41 42 43 50 51 52 60 61 62 70 71 72 73 74 75 OPEN STOP CLOSE CLOSE STOP - GIOTTO BT B ULTRA 36...
Page 14
Step-by-step movement semiautomatic Pre-alarm operation, Deadman commercial Block pulses during opening dead man operation re otes hidden button release desidered button O 01 Scroll up Scroll down Con rm/Switch on display Exit Menù - GIOTTO BT B ULTRA 36...
Page 15
[45] clos calib. default P1 + PRG ok [45] op. speed default P1 + PRG ok [45] cl. speed default P1 + PRG ok [55] DIST. decel. default P1 + PRG ok accel default GIOTTO BT B ULTRA 36 -...
Page 16
70 71 72 73 74 75 STOP START SAFE 1 = 1 SAFE 2 = 7 (≥6) SAFE 2 SLAVE = SAFE 2 MASTER TO CONNECT SEVERAL PHOTOCELLS, REFER TO FIG. P - <3s 8888 rst8 STOP 8888 - GIOTTO BT B ULTRA 36...
Page 17
Bar 2 Bar 4 Bar 4 BAR 8K2 BAR 8K2 SAFETY EDGE SAFETY EDGE SAFETY EDGE SAFETY EDGE 8,2Kohm 5% 8,2Kohm 5% Maximum number of tested devices: 6 (but no more than 4 per type) GIOTTO BT B ULTRA 36 -...
Page 18
Check if the SAFE inputs are correctly set; during the Error in setting the SAFE inputs operation of opposed barriers, SAFE2 must be set up ERf3 as safety edge. Fig. L * X = 0,1,…,9,A,B,C,D,E,F 0--- 10-- 150- 1520 password GIOTTO BT B ULTRA 36 -...
Page 19
Refer to the “Command input configuration” table. Configurable command input 2 (N.O.) - Default CLOSE. IC 2 START E / START I / OPEN / CLOSE / TIMER / OPEN Refer to the “Command input configuration” table. - GIOTTO BT B ULTRA 36...
Page 20
SAFE logic= 8 - Input configured as Bar 8k2 (fig.N, ref.5). Input for resistive edge 8K2. The command reverses movement for 2 sec. * (If “D” type devices are installed (as defined by EN12453), connect in unverified mode, foresee mandatory maintenance at least every six months. GIOTTO BT B ULTRA 36 -...
Page 21
Force exerted by the barrier while closing. WARNING: It affects impact force directly: make sure that Leaf force during closing CLS. F ORCE current safety requirements are met with the set value (*). Install anti-crush safety devices where necessary (**). - GIOTTO BT B ULTRA 36...
Page 22
Input configured as Phot cl test (tested photocell active during closing only). Configuration of safety input SAFE 2. Input configured as Bar, safety edge. SAFE 2 Input configured as Bar, tested safety edge. Input configured as Bar 8k2. GIOTTO BT B ULTRA 36 -...
Page 23
MASTER opposite booms in local network: the control unit is the master in an opposite booms network with no smart module (fig.L) Identifies board address from 0 to 119 in a local BFT net wor k connec tion. [ ___ ] Address ...
Page 24
ON = Enables remote programming of cards via a previously memorized W LINK transmitter. It remains enabled for 3 minutes from the time the W LINK transmitter is last pressed. OFF= W LINK programming disabled. GIOTTO BT B ULTRA 36 -...
Page 26
DETECTOR DE VEHÍCULOS DE LAZO INDUCTIVO LUSDETECTOR VOERTUIGEN COMPACTA A20-180 FOTOCELLULA PHOTOCELL PHOTOCELLULE LICHTSCHRANKE FOTOCÉLULA FOTOCEL Non in dotazione, Not supplied, Ne sont pas fournis, Nicht im lieferum, No asignadas en el equipamiento base, Niet meegeleverd GIOTTO BT B ULTRA 36 -...
