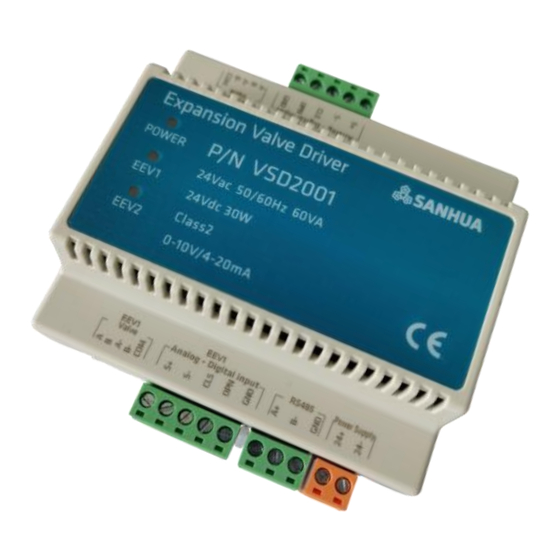

VSD2001 EEV Driver (one-driven-two)
Quick Reference Guide

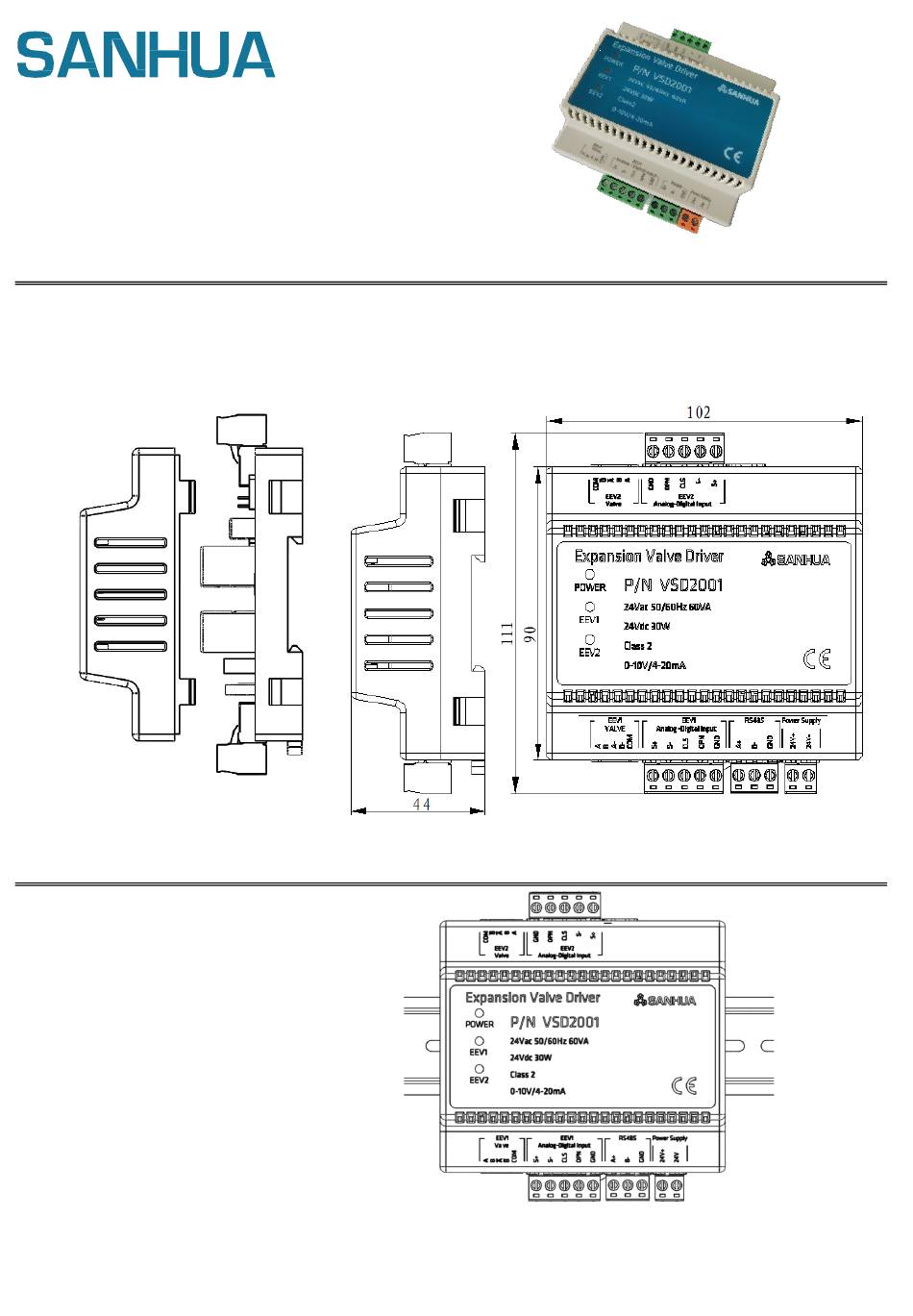

1.Dimension
fig.1
2. Installation
Slide rail mounting
Mounting VSD1002 to DIN35
slide rail through the buckle
on shell. Please install in a
control cabinet to avoid
moisture and dust.
IIS-VSD2001-EN-R2207
fig.2
fig.3
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sanhua VSD2001
Summary of Contents for Sanhua VSD2001
- Page 1 VSD2001 EEV Driver (one-driven-two) Quick Reference Guide 1.Dimension fig.2 fig.1 2. Installation Slide rail mounting Mounting VSD1002 to DIN35 slide rail through the buckle on shell. Please install in a control cabinet to avoid moisture and dust. fig.3 IIS-VSD2001-EN-R2207...
- Page 2 1： Squeezes the larger buckle on the side, and lift the upper panel up until buckle separated. step 2： Repeat step 1 on smaller buckle, pull out the connected XHP terminal, The upper and below panels are separated. IIS-VSD2001-EN-R2207...
- Page 3 1-2 bipolar 1-2 bipolar Valve type P1、P4 2-3 unipolar 2-3 unipolar Analog voltage P1(0-10V) P2(0-10V) Analog current P4(4-20mA) P3(4-20mA) fig.4 ）and 0-10V status. In default mode, EEV1 and EEV2 jumper SW all under 1-2（ bipolar fig.5 fig.6 fig.8 fig.7 IIS-VSD2001-EN-R2207...
- Page 4 EBV - 2800 pulse 100PPS EBV - 3500 pulse 200PPS EBV - 2800 pulse 200PPS EBV - 3500 pulse 300PPS EBV - 3500 pulse 80PPS EBV 9600 pulse 200PPS DPF(O) series - 2000 pulse 100PPS EBV - 1050 pulse 200PPS Customize IIS-VSD2001-EN-R2207...
- Page 5 GND Power 24V + 24VAC or 24VDC Force open form a switch with GND Power 24V - Analog ground Connect with OPN and CLS fig. 9 EEV2 Bipolar wire fig.10 Unipolar wire fig.11 EEV1 Bipolar wire IIS-VSD2001-EN-R2207...
- Page 6 2.Pay attention to avoid EEV1 and EEV2 misconnection. For example, connecting EEV1 to the EEV2 port or connecting the EEV2 to EEV1 port will cause the valve work abnormal as expected. 3.Do not connect 24- wire and GND wire together. 4.Adaptive wire models:Y02B、Y08B、Y02A+Y02C、Y08A+Y02C. IIS-VSD2001-EN-R2207...
