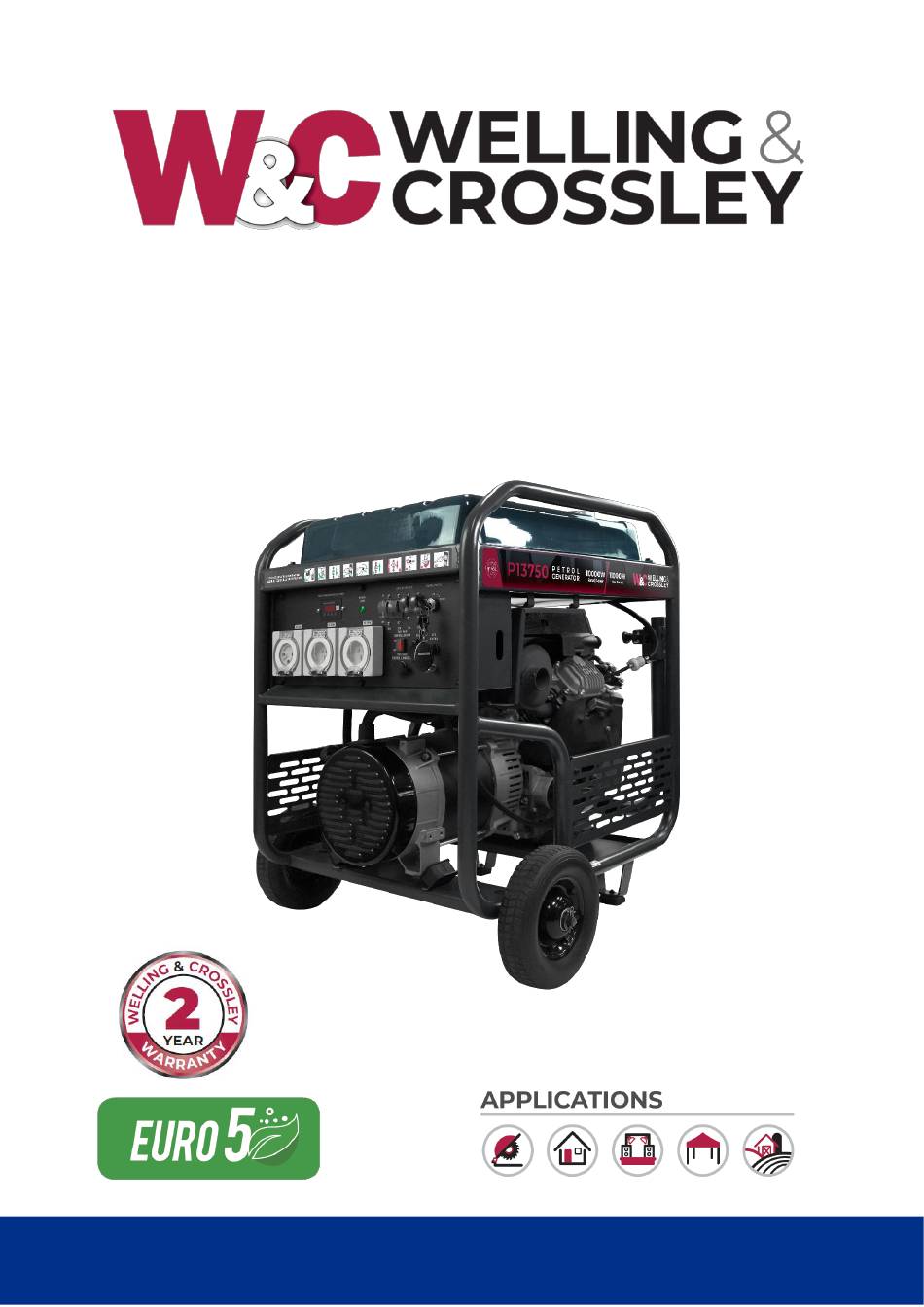

- Page 1 Open Frame AVR Operation Manual WC-P13750 • 811987 Welling & Crossley WC-P13750 Generator Operators Manual...
-
Page 2: Introduction
Includes environmental condition warnings. Warning / Caution: - Indicates a hazardous situation which, if not strictly complied with, may result in property damage. Read carefully. This important information will simplify operation and aid understanding. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 3: Table Of Contents
....................16 15b. Spark Plugs ....................16 15c. Cleaning ....................17 15d. Oil Changes ....................17 15e. Valve Clearance ..................18 16. Storage and Transportation ................18 17. Trouble Shooting Guide ..................19 18. Warranties – Terms and Conditions ..............21 Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 4: Know Your Generator
Handle lock Fuel Filter Spark Plug Air Cleaner Alternator Fuel Tap Rubber mount Heat Sheild Muffler with heat shield Spark plug Oil Drain Fan Cover Oil Filler Handle with lock Oil dip stick Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 5: Circuit Breakers
In addition, there is a master circuit breaker rated for the generator maximum rated output. Whenever a circuit breaker activates, turn off and disconnect the device from its outlet, before pressing the circuit breaker to reset. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 6: Connecting Electrical Devices
Such connections must comply with local electrical laws and codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers. Avoid the use of RCD’s between the generator and the building switchboard. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 7: Generator Specifications
790 x 620 x 790mm Electric starter Engine Starting Starter key, Wireless start, 2 wire control 2 x IP44, 15 Amp 3 pin socket Electrical Outlets (230V) 1 x IP66 32 Amp socket Battery 12V 32Ah Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 8: Warnings
▪ DO NOT operate generator with covers, shrouds, or guards removed. ▪ DO NOT wear loose-fitting clothing, dangling drawstrings or items that could become caught. Tie up long hair and remove jewellery. Welling & Crossley WC-P13750 Generator Operators Manual... - Page 9 ▪ DO NOT operate the generator while directly exposed to wet weather. Keep the generator dry. ▪ DO NOT handle generator or electrical cords while standing in water, while barefoot, or while hands or feet are wet. Welling & Crossley WC-P13750 Generator Operators Manual...
-
Page 10: Operators Checklist
• DO NOT move or tip the generator during operation. Use generator only for intended uses. If you have questions about intended use, ask your local dealer. DANGER: Failing to correct problem(s) before operation could result in property damage, serious injury or DEATH. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 11: Getting Started
NEVER fill the fuel tank to the very top. Petrol will expand and spill during use, even with the fuel cap in place. Leave 6mm or greater air gap at the top of the tank • Reinstall fuel cap and wipe clean any spilled petrol with a dry cloth. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 12: 14C. Safe Fuel Handling
Make sure there is sufficient fuel in the tank. Add fuel if necessary Starter Key (Electric Start) 1. Twist the fuel tap ON. 2. Ensure nothing is connected 3. Fit the ignition key and turn clockwise to start Remote Start (Electric Start) Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 13: Stopping The Generator
If this approach is frequently taken, make sure to drain your carburettor before any long storage periods. Important: Always ensure that the fuel tap and the engine switch are in the “OFF” position when the engine is not in use. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 14: 14F. Maximum Electrical Capacity
Factoring in 30% more output than you expect to use is good practice to ensure the generator is not stressed. This will ensure longevity. AC OVERLOAD RESET If the AC power outlet is overloaded, the circuit breaker will cut out the power to the device. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 15: Maintenance
Tampering with the factory set governor will void your warranty. NEVER alter the governed speed. Any unapproved adjustment will damage your engine and/or your electrical devices and void your warranty. Consult your local authorised service agent for advice. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 16: 15A. Air Filter
Thread the plug into the engine by hand. Once the spark plug is seated, tighten to the recommended torque the attach the spark plug cap to the plug. Replace the spark plug yearly. The engine will start easier and run better Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 17: 15C. Cleaning
Reinstall the oil cap. The oil will drain more freely if the engine is warm Take care not to overfill with oil or the engine may be difficult to start or may not start at all Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 18: 15E. Valve Clearance
Use the recoil starter to crank the engine slowly to distribute the oil and lubricate the cylinder. • Reattach the spark plug Store the unit in a clean, dry area out of direct sunlight. Welling & Crossley WC-P13750 Generator Operators Manual... -
Page 19: Trouble Shooting Guide
Ground the spark plug thread to the motor body, pull the recoil starter to see if sparks jump across the gap. • If there is no spark, replace the plug. Consult a Customer Service Agent if necessary. Welling & Crossley WC-P13750 Generator Operators Manual... - Page 20 If the power cord is equipped with an working RCD, check that it hasn’t tripped The fault may be with the Check any power cords for damage and power cords. continuity. Appliance may be defective Try another appliance Welling & Crossley WC-P13750 Generator Operators Manual...
-
Page 21: Warranties - Terms And Conditions
Proof of purchase is required before consideration under warranty is given. Record your date of purchase in the space below and retain this copy for your records. Date of Purchase ..........Model Purchased ..........Welling & Crossley WC-P13750 Generator Operators Manual... - Page 22 For any queries regarding use of the contained information please feel free to contact White International Pty Ltd. Welling & Crossley WC-P13750 Generator Operators Manual...
