Installation Instructions
Installation of wall mount for awning poles
Code
Description
4200033623 Kit for supports and mounting plates H.240 for pole D. 60
4200033914 Kit for supports and mounting plates H.240 for pole D. 80
1
Introduction to installation of wall mount for awning pole
2
Procedure for installing the wall mount for the awning pole
7
Template for installing the wall mount for the awning pole
Installation with safety attachments
Advertisement
Related Manuals for MODENATECH Compositi 4200033623
Summary of Contents for MODENATECH Compositi 4200033623
- Page 1 Installation Instructions Installation of wall mount for awning poles Code Description 4200033623 Kit for supports and mounting plates H.240 for pole D. 60 4200033914 Kit for supports and mounting plates H.240 for pole D. 80 Standard Installation Installation with safety attachments...
- Page 2 Installation of wall mount for awning pole: 4200033164, 4200033623, 4200033164, 4200033892, 4200033141 D:60 D:80 D:80 4200033913 4200034136 4200033914 Attention: carefully read all instructions before installation and use of these products Necessary for installation: Drill Hole saw Template Non-acidic degreaser Marine polyurethane sealant...
- Page 3 1. Wall preparation Use the template for positioning the holes to be drilled. See templates on page 07 Drill with 9mm diameter bit 2. Options for fixing plates (materials not included) 2a. Fixing with ≠ 10mm brass reinforcements to be threaded M8. 10 mm ≠...
- Page 4 3. Assembly of plates Step 1: After drilling the fixing holes, assemble the plates (in the order indicated in the figure) and fasten them at the four fixing points with M8 countersunk head screws. Step 2: After securing the plates, apply a layer of marine-grade polyurethane sealant on the fixing flange (marked in red in the figure).

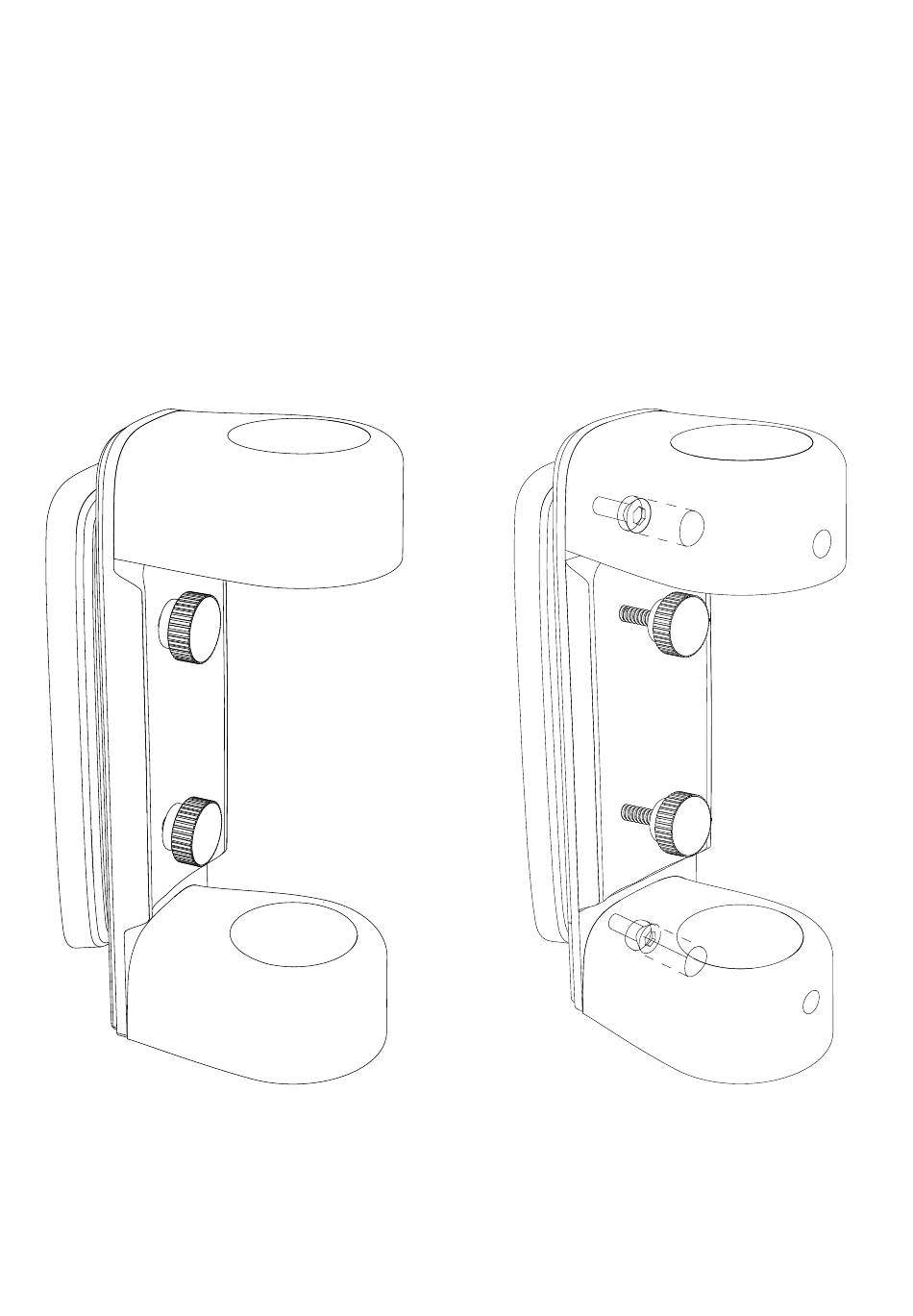

- Page 5 3. Standard support fixing Step 1: Screw the knobs of the support to allow the screw heads to fit into the slot inside the support plate (located within the cover). Step 2: To fix the support, turn the knobs counterclockwise until they lock securely. Step 3: Insert the pole into the support and secure it by rotating it 1/4 turn counterclockwise.
- Page 6 Drilling template for mounting wall support fixing plates at a 1:1 scale: 4200033913 - 4200034136 - 4200033914 red dashed line marks the footprint of the cover that will be positioned over the plates. Dimensions of the carbon ber cover Dimensions of the steel plates footprint Scala 1 : 1 info@modenatech.it...
