1. Overview
AM107 is a compact indoor air quality sensor used for temperature, humidity, CO
monitoring. It is a battery powered device and is designed to be wall mounted.
Sensor data are transmitted in real-time using standard LoRaWAN
encrypted radio transmissions over long distance while consuming very little power.

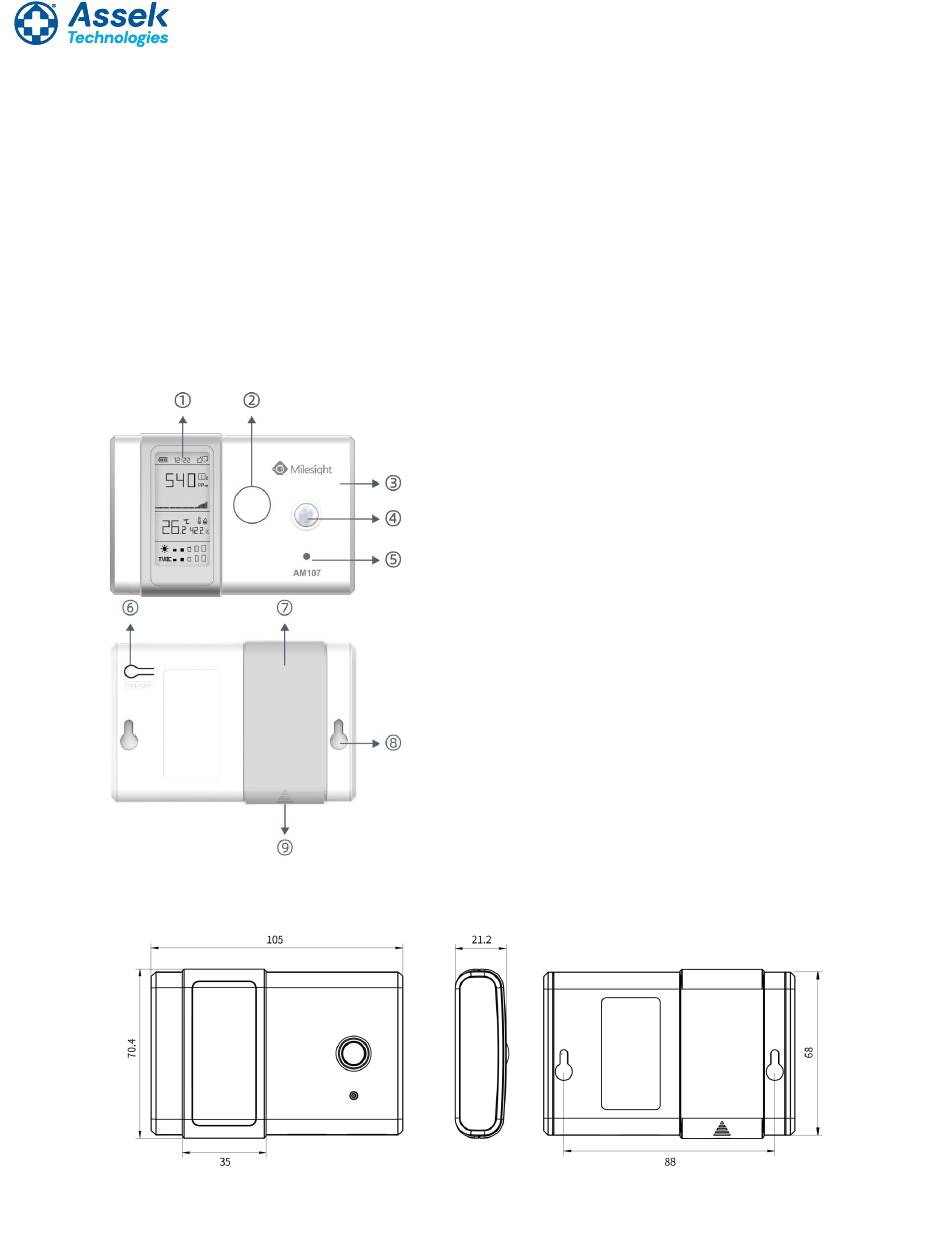

2. Hardware Overview
3. Dimensions
The following dimensions are in millimeters:
User guide
Indoor air quality sensor (AM107AT)
protocol. LoRaWAN
®
Front Panel:
① E-ink screen
② NFC Area
③ LoRa Antenna
(Internal)
Back Panel:
⑥ Power button
⑦ Battery Cover
⑧ Mounting Holes
AM107AT
and motion
2
enables
®
REV2024-02-02
Advertisement
Summary of Contents for ASSEK AM107AT
- Page 1 AM107AT User guide Indoor air quality sensor (AM107AT) 1. Overview AM107 is a compact indoor air quality sensor used for temperature, humidity, CO and motion monitoring. It is a battery powered device and is designed to be wall mounted. Sensor data are transmitted in real-time using standard LoRaWAN protocol.
- Page 2 AM107AT 4. E-Ink Screen The indoor air quality monitor provides 3 types of display modes: To learn what an icon means, find it below. Screen Icon Description Update Battery level 24 hours The device joins the network. According to join status The device fails to join the network.
- Page 3 AM107AT Press and hold the power button for more than 3 Turn On seconds until the screen changes state. Press and hold the power button for more than 3 Turn Off seconds until the screen changes state. Press and hold the power button for more than 10 Reset seconds.
- Page 4 When it is not possible to achieve a configuration where all sensors are within range of a gateway, it may be necessary to install an additional gateway. If necessary, contact Assek Technologie by writing to support@assek.ca...
- Page 5 AM107AT 2. Drill two mounting holes with a 6 mm drill bit according to the sticker’s mark. Note: Be sure to follow applicable standards if you drill into materials that contains asbestos. 3. Remove the mounting sticker from the wall.
