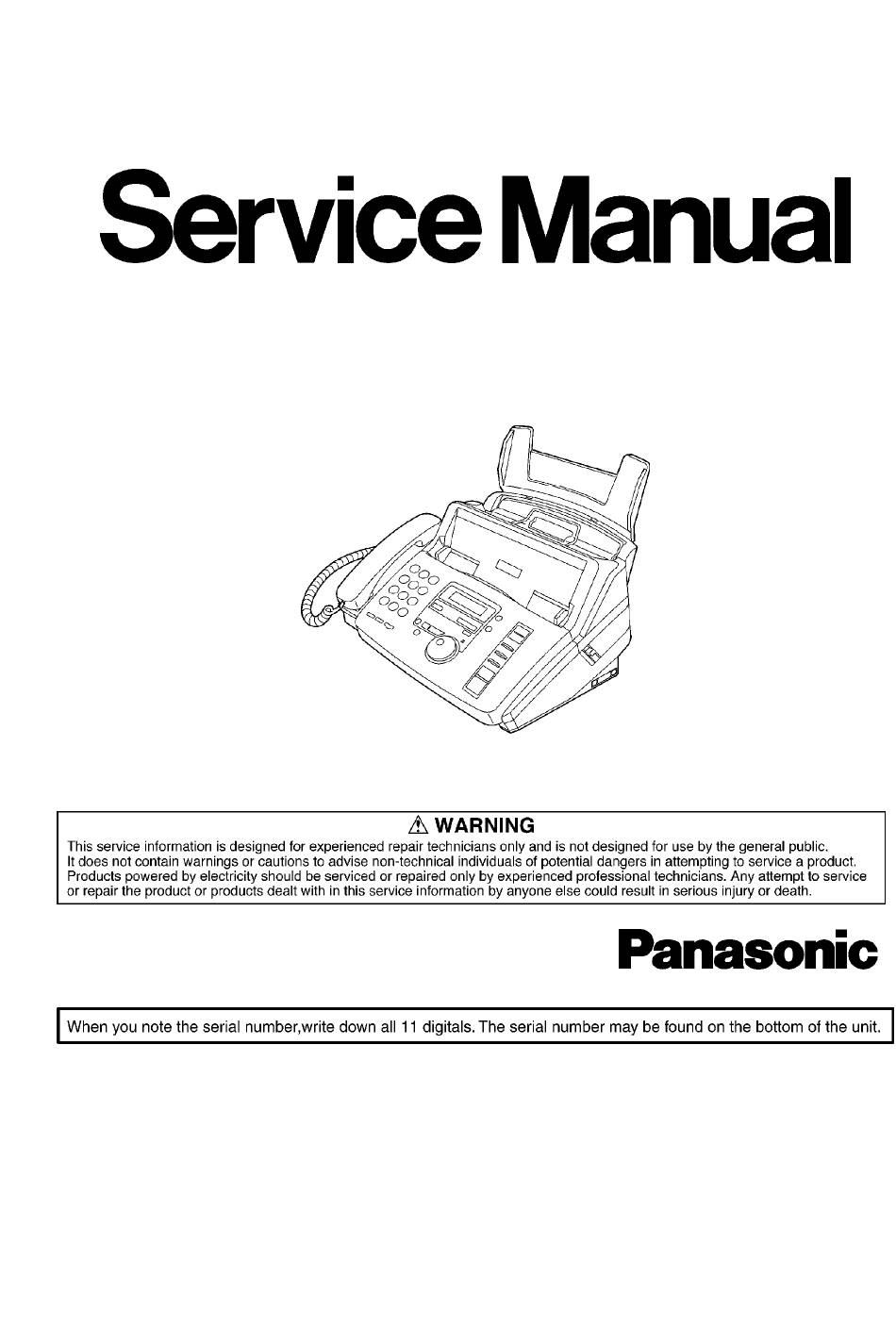

Page 1 ORDER NO. KMF0012475C2 Multi-Function Plain Paper Facsimile KX-FM189BL / KX-FM189S (for Belgium) (for Sweden) 1. INTRODUCTION 1.1. TRANSLATION LISTS 1.1.1. LCD MESSAGES (for KX-FM189S)
Page 2 1.1.2. ERROR CODE TABLE (for KX-FM189S)
Page 3 1.1.3. BUTTON NAME (for KX-FM189S) 1.2. SAFETY PRECAUTIONS 1. Before servicing, unplug the AC power cord to prevent an electric...
Page 4 shock. 2. When replacing parts, use only the manufacturer's recommended components. 3. Check the condition of the power cord. Replace if wear or damage is evident. 4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc. 5.
Page 5 1.4. FOR SERVICE TECHNICIANS ICs and LSIs are vulnerable to static electricity. When repairing, the following precautions will help prevent recurring malfunctions. 1. Cover the plastic part's boxes with aluminum foil. 2. Ground the soldering irons. 3. Use a conductive mat on the worktable. 4.
Page 6 should have a mechanism in place to account for their ultimate disposition. This is a good practice for all types of commercial or industrial waste. Recommend Type Number: CR2032 (BAT501) Manufactured by MATSUSHITA CR2032 (BAT501) Manufactured by SONY 1.6. AC CAUTION For safety, before closing the lower cabinet, please make sure of the following precautions.
Page 7 1.7.2. LIVE ELECTRICAL SECTIONS All the electrical sections of the unit supplied with AC power by the AC power cord are live. Never disassemble the unit for service with the AC power supply plugged in. CAUTION: AC voltage is supplied to the primary side of the power supply unit. Therefore, always unplug the AC power cord before disassembling for service.
Page 8 - Help function Please refer to WHEN YOU DON'T KNOW HOW TO OPERATE THE UNIT, USE THE HELP FUNCTION.() to print below features. 1. SEND GUIDE (KX-FM189BL only) 2. QUICK SET UP 3. FEATURE LIST 4. EASY DIAL 5. TAD OPERATION 6.
Page 9 - A4, G3 compatible - Automatic document feeder (10 sheets) - Fax pager call - Quick scan - Resolution: Standard/Fine/Super fine/Half tone (64 level) - Broad cast with Easy Dial - 50-sheet paper capacity (20 lb.) - Automatic fax/phone switching * The 8 second speed is based upon the ITU-T No.
Page 10 Printer function - 200x400dpi printer capability - Windows 95/98-ready printer driver PC fax - Send and Receive Faxes from your PC. - 500-name address book Scaner - 200x400dpi scanning capability - Easy to use document viewer Note: Windows is a registered trademark of Microsoft Corpporation in the United States and other countries.
Page 11 8 pels/mm (203 pels/inch) Vertical: 3.85 lines/mm (98 lines/inch)—STANDARD mode 7.7 lines/mm (196 lines/inch)—FINE/HALF TONE mode 15.4 lines/mm (392 lines/inch)—SUPER FINE Mode Halftone Level: 64-level Scanner Type: Contact Image Sensor (CIS) Printer Type: Thermal Transfer on Plain Paper Data Compression System: Modified Huffman (MH), Modified READ (MR), Modified Modified READ (MMR) Modem Speed:...
Page 12 Fax memory: Approx. 28 pages memory reception Approx. 25 pages memory transmission (Based on ITU-T No. 1 Test Chart in standard resolution without using the Error Connection Mode.) * Transmission speed depends upon the contents of the pages, resolution, telephone line conditions and capability of the other party’s machine.
Page 13 1.12.2. ITU-T No.2 TEST CHART...
Page 14 1.13. LOCATION OF CONTROLS 1.13.1. OVERVIEW...
Page 15 Note: - The document will be ejected from the front of the unit. Install the unit on a desk or floor with a smooth surface and do not place anything in front of the unit. 1.13.2. CONTROL PANEL 1.13.2.1. KX-FM189BL...
Page 16 1.13.2.2. KX-FM189S...
Page 17 1.14. CONNECTIONS 1.14.1. CONNECTIONS (1) Connect the handset cord. (2) Connect the telephone line cord. (3) Connect the power cord. - When the power is turned on for the first time, the unit will print some basic information.
Page 18 Note: - When you operate this product, the power outlet should be near the product and easily accessible. 1.14.2. CONNECTING TO A COMPUTER 1.14.2.1. IF YOUR PC HAS A 9 PIN COM PORT: 1.14.2.2. IF YOUR PC HAS A 25 PIN COM PORT:...
Page 19 Note: A RS232C cable less than 3 meters long (DB9 Female/DB25 Male) is required to connect to a personal computer. Please purchase at any computer supply store. 1.15. INSTALLATION 1.15.1. INSTALLATION SPACE The space required to install the unit is shown below. The dimensions given are necessary for the unit to operate efficiently.
Page 20 - Avoid excessive heat or humidity. - Use the unit within the following ranges of temperature and humidity. - Ambient temperature: 5°C to 35°C - Relative humidity: 20% to 80% (without condensation) - Power cord length should be less than 5 meters (16.4 feet). Using a longer cord may reduce the voltage or cause malfunctions.
Page 21 2. Pull the tension bar forward and hold open while inserting the paper. - The paper should not be over the tab. - If the paper is not inserted correctly, readjust the paper or the paper may jam. Note for recording paper: - Avoid paper with a cotton and/or fiber content that is over 20%,...
Page 22 such as letterhead paper or paper used for resumes. - Do not use different types or thicknesses of paper at the same time. This may cause a paper jam. - Avoid extremely smooth or shiny paper that is highly textured. - Avoid paper that is coated, damaged or wrinkled.
Page 23 Note: - Remove chips, staples or other similar fastening objects. - Check that ink, paste or correction fluid has dried. - Do not send the following types of documents. Use copies for fax transmission. — Chemically treated paper such as carbon or carbon less duplicating paper —...
Page 24 4. Enter your logo, up to 30 characters, by using the dial keypad. Example: Bill A. Press twice. B. Press six times. C. Press six times. D. Press to move the cursor to the next space and press times. 5. Press 6.
Page 25 To delete a character 2. Press (Insert) to insert a space and enter Move the cursor to the character you want to delete and press 1.15.7. TO SELECT CHARACTERS WITH THE DIAL KEYPAD Refer to BUTTON NAME (for KX-FM189S)(). (for KX-FM189BL)
Page 26 (for KX-FM189S) 1.15.8. TO SELECT CHARACTERS USING THE EASY DIAL Instead of pressing the dial keys, you can select characters using the EASY DIAL. Refer to BUTTON NAME (for KX-FM189S)().
Page 27 1. Rotate until the desired character is displayed. 2. Press to move the cursor to the next space. - The character displayed in step 1 is inserted. 3. Return to step 1 to enter the next character. Display order of characters 1.15.9.
Page 28 2. Push the back cover open button ( ) and open the back cover ( ). 3. Pull up the blue gear side and remove the used ink film. Remove...
Page 29 the used core. 4. Remove the stoppers and tags from the new ink film. Find the “T” shaped gear (blue). 5. Insert the blue core of the front ink film roll into the right slot of...
Page 30 the unit ( ). Insert the “T” shaped gear (blue) into the left slot of the unit ( ). / Insert the back ink film roll ( ). 6. If the ink film is slack, tighten it by winding the gear.
Page 31 7. Close the back cover securely by pushing down on the dotted area at both ends ( ). / Close the front cover securely ( ). - The following message will be displayed while the unit is checking that there is no slack on the ink film. Display: Refer to LCD MESSAGES (for KX-FM189S)().
Page 32 1.16. MAINTENANCE ITEMS AND COMPONENT LOCATIONS 1.16.1. OUTLINE MAINTENANCE AND REPAIRS ARE PERFORMED USING THE FOLLOWING STEPS. 1. Periodic maintenance Inspect the equipment periodically and if necessary, clean any contaminated parts. 2. Check for breakdowns Look for problems and consider how they arose. If the equipment can be still used, perform copying, self testing or communication testing.
Page 33 measures at this stage to ensure that the problem will not recur. 6. Confirm normal operation of the equipment After completing the repairs, conduct copying, self testing and communication testing to confirm that the equipment operates normally. 7. Record keeping Make a record of the measures taken to rectify the problem for future reference.
Page 34 OPERATION CHECK REMARKS Document Path Remove any foreign matter such as paper. — Rollers If the roller is dirty, clean it with a damp cloth then Refer to MAINTENANCE dry thoroughly. Platen Roller If the platen is dirty, clean it with a damp cloth —...
Page 35 If misfeeding occurs frequently or if dirty patterns or bands appear on a transmitted document or on the original of a copied document, clean the document feeder. 1. Disconnect the power cord and the telephone line cord. 2. Open the front cover by pulling up the center part. 3.
Page 36 1.16.3.2. CLEANING THE THERMAL HEAD AND BLACK BAR If dirty patterns or black or white bands appear on a copied or received document, clean the thermal head.
Page 37 1. Disconnect the power cord and the telephone line cord. 2. Open the front cover by pulling up the center part. 3. Open the back cover by pushing the back cover open button. 4. Clean the thermal head with a cloth moistened with isopropyl rubbing alcohol, and let it dry thoroughly.
Page 38 After confirming the problem by asking the user, troubleshoot according to the instructions and observe the following precautions. 2.1.2. PRECAUTIONS 1. If there is a problem with the print quality or the paper feed, first check if the installation space and the print paper meets the specifications, the paper selection lever/paper thickness lever is set correctly, and the paper is set correctly without any slack.
Page 39 Note: The explanations given in the [ ] are for servicemen only. Refer to LCD MESSAGES (for KX-FM189S)(). CROSS REFERENCE: DOCUMENT JAMS() ADJUSTMENTS()
Page 40 Note: The explanations given in the [ ] are for servicemen only. Refer to LCD MESSAGES (for KX-FM189S)(). CROSS REFERENCE: DOCUMENT JAMS() RECORDING PAPER JAMS() 2.2.1. DOCUMENT JAMS If the unit does not release the document during feeding, remove the jammed document as follows.
Page 41 Note: - Do not pull out the jammed paper forcibly before opening the front cover.
Page 42 2.2.2. RECORDING PAPER JAMS If the unit does not eject any recording paper during reception or copying, the recording paper has jammed and the display will show the following massage.When paper has jammed under the film cartridge. Display: Refer to LCD MESSAGES (for KX-FM189S)().
Page 43 2. Push the back cover open button ( ) and open the back cover ( ). 3. Remove the jammed recording paper.
Page 44 4. If the ink film is slack, tighten it by winding the gears. 5. Close the back cover securely by pushing down on the dotted area at both ends ( ). / Close the front cover securely ( ).
Page 45 2.3. TROUBLESHOOTING DETAILS 2.3.1. OUTLINE Troubleshooting is for recovering quality and reliability by determining the broken component and replacing, adjusting or cleaning it as required. First, determine the problem then decide the troubleshooting method. If you have difficulty finding the broken part, determine which board is broken.
Page 46 CROSS REFERENCE: USER RECOVERABLE ERRORS() SIMPLE CHECK LIST() DIGITAL BOARD SECTION() POWER SUPPLY BOARD SECTION() 2.3.3. TROUBLESHOOTING ITEMS TABLE...
Page 47 CROSS REFERENCE: ADF (Auto Document Feed) SECTION() COMMUNICATION SECTION() ANALOG BOARD SECTION() OPERATION PANEL SECTION() SENSOR SECTION() 2.3.3.1. SIMPLE CHECK LIST...
Page 48 Note: Check according to the service code referring to TEST FUNCTIONS() 2.3.4. ADF (Auto Document Feed) SECTION 2.3.4.1. NO DOCUMENT FEED...
Page 49 CROSS REFERENCE: DIGITAL BOARD SECTION() POWER SUPPLY BOARD SECTION() SENSOR SECTION() TEST FUNCTIONS() ADJUSTMENTS() DISASSEMBLY INSTRUCTIONS() STEPPING MOTOR DRIVE CIRCUIT() Note: When using thin paper etc., sometimes the document will not feed. Refer to ADJUSTING THE FEEDER PRESSURE().
Page 50 2.3.4.2. DOCUMENT JAM CROSS REFERENCE: SENSOR SECTION() TEST FUNCTIONS() DISASSEMBLY INSTRUCTIONS() 2.3.4.3. MULTIPLE FEED - When using thick paper etc., sometimes the document will not be fed. Refer to ADJUSTING THE FEEDER PRESSURE().
Page 51 Fig. B...
Page 52 CROSS REFERENCE: MAINTENANCE() DISASSEMBLY INSTRUCTIONS() Note: When confirming if the characters are extended or distorted, or if the feed problem is occurred, use this test chart format (Fig. B).
Page 53 2.3.4.4. SKEW * We recommend making a copy of the Fig. B document in MULTIPLE FEED () and using it. CROSS REFERENCE: MAINTENANCE CHECK ITEMS/COMPONENT LOCATIONS() DISASSEMBLY INSTRUCTIONS() 2.3.4.5. THE RECORDING PAPER DOES NOT FEED...
Page 54 * We recommend making a copy of the Fig. B document in MULTIPLE FEED ()and using it. CROSS REFERENCE: INSTALLING THE RECORDING PAPER() DIGITAL BOARD SECTION() POWER SUPPLY BOARD SECTION() SENSOR SECTION() TEST FUNCTIONS() DISASSEMBLY INSTRUCTIONS() HOW TO REMOVE THE CASSETTE PLATE() BACK COVER SECTION()
Page 55 CROSS REFERENCE: LCD MESSAGES (for KX-FM189S)() SENSOR SECTION() TEST FUNCTIONS() DISASSEMBLY INSTRUCTIONS() SENSORS AND SWITCHES() 2.3.4.7. MULTIPLE FEED AND SKEW...
Page 56 CROSS REFERENCE: DISASSEMBLY INSTRUCTIONS() OPERATION PANEL SECTION() 2.3.4.8. THE SENT FAX DATA IS SKEWED * We recommend making a copy of the Fig. B document in MULTIPLE FEED() and using it. CROSS REFERENCE: SKEW() 2.3.4.9. THE RECEIVED FAX DATA IS SKEWED * We recommend making a copy of the Fig.
Page 57 CROSS REFERENCE: MULTIPLE FEED AND SKEW() 2.3.4.10. RECEIVED OR COPIED DATA IS EXPANDED * We recommend making a copy of the Fig. B document in MULTIPLE FEED() and using it. CROSS REFERENCE: DISASSEMBLY INSTRUCTIONS() 2.3.4.11. A BLANK PAGE IS COPIED...
Page 58 * We recommend making a copy of the Fig. B document in MULTIPLE FEED () and using it. CROSS REFERENCE: A BLANK PAGE IS RECEIVED() TEST FUNCTIONS() DISASSEMBLY INSTRUCTIONS() THERMAL HEAD()
Page 59 Fig. C 2.3.4.12. A BLANK PAGE IS RECEIVED...
Page 60 CROSS REFERENCE: A BLANK PAGE IS COPIED() ANALOG BOARD SECTION() TEST FUNCTIONS() 2.3.4.13. BLACK OR WHITE VERTICAL LINE...
Page 61 * We recommend making a copy of the Fig. B document in MULTIPLE FEED () and using it. CROSS REFERENCE: CLEANING THE THERMAL HEAD AND BLACK BAR() DISASSEMBLY INSTRUCTIONS() 2.3.4.14. BLACK OR WHITE LATERAL LINE ON PRINT OUT...
Page 62 * We recommend making a copy of the Fig. B document in MULTIPLE FEED() and using it. CROSS REFERENCE: A BLANK PAGE IS COPIED() DIGITAL BOARD SECTION() TEST FUNCTIONS() DISASSEMBLY INSTRUCTIONS() 2.3.4.15. AN ABNORMAL IMAGE IS PRINTED...
Page 63 * We recommend making a copy of the Fig. B document in MULTIPLE FEED () and using it. CROSS REFERENCE: ANALOG BOARD SECTION() TEST FUNCTIONS() DISASSEMBLY INSTRUCTIONS() 2.3.5. COMMUNICATION SECTION Find the problem in the table shown below, and refer to the corresponding troubleshooting procedure in DEFECTIVE FACSIMILE SECTION().
Page 64 Symptom Content Possible cause Troubleshooting Problem with the feeding The paper is not fed properly when faxing. mechanism. (Nor in the copy mode.) Troubleshooting Problem with the service The fax usually transmits successfully but line or with the sometimes fails. (The unit can copy receiver's fax.
Page 65 CROSS REFERENCE: LCD MESSAGES (for KX-FM189S)() MAINTENANCE() ADF (Auto Document Feed) SECTION() OPERATION PANEL SECTION() 2.3.5.1.2. SOMETIME THERE IS A TRANSMIT PROBLEM...
Page 66 Note: "596: Transmit level set" represents a service code. (Refer to SERVICE FUNCTION TABLE().) CROSS REFERENCE: LCD MESSAGES (for KX-FM189S)() 2.3.5.1.3. RECEIVE PROBLEM First confirm whether the recording paper is installed properly or not before starting troubleshooting. (Refer to "Remarks".)
Page 67 Note: "596: Transmit level set" represents a service code. (Refer to SERVICE FUNCTION TABLE().) Remarks: Regarding the reception problem, we have investigated the conceivable causes in the flow chart except for the software-related errors. However, some troubles may occur due to the software- related problems such as "OUT OF PAPER"...
Page 68 UNIT OVERHEATED (COVER OPEN, etc.)...Reset the unit. PAPER JAMMED CHECK FILM Please refer to USER RECOVERABLE ERRORS () for the above items. If it turns out to be a hardware deformity, please check each sensor. (Refer to TEST FUNCTIONS ().) 2.3.5.1.4.
Page 69 can respond to CED or DIS.) (According to the ITU-T standard, the communication procedure is cancelled when there is no response from the other party within 35 sec, so that the other party releases the line.) (Cause and Countermeasure) As shown in the chart above, the total handshaking time must be reduced, but because of the long distance connection and linking of several stations, the line connection time cannot be reduced.
Page 70 so that a part of the head of the training signal may drop out. Normal reception by FAX2 may not be possible, and transmission may not be started. (Countermeasure A) When the international line mode is ON in the service mode (code No. 521), a dummy signal is attached to the head of the training signal to prevent this problem.
Page 71 There are some cases (e.g. Mobil comms.) which cause the collision of TX / RX signals due to the delay / echo and noise of the network / terminal. (Countermeasure D) Set additional Pause time (Service mode: code No. 774) in between the original and its repeated signals, to prevent the collision of the signals at both end.
Page 72 mode. Reception Operation: If 80% or more of the reception is incorrect, set the receiving speed to 12000BPS. (Service mode: code No. 718) - Refer to SERVICE FUNCTION TABLE(). 2.3.5.1.7. HOW TO OUTPUT THE JOURNAL REPORT 1. Press the “MEMU“button 2 times. 2.
Page 73 (2) RESULT (3) MODE SYMPTOM Counter CODE measure COMMUNICATION No post message. ERROR COMMUNICATION RTN is transmitted. ERROR COMMUNICATION PIN is transmitted (to PRI-Q). ERROR COMMUNICATION PIN is transmitted. ERROR NO RESPONSE Reception is finished when the T1 TIMER expires. ERROR-NOT YOUR DCN is received after DIS transmission.
Page 75 CROSS REFERENCE: TEST FUNCTIONS()
Page 76 CROSS REFERENCE: TEST FUNCTIONS()
Page 77 CROSS REFERENCE: TEST FUNCTIONS()
Page 78 CROSS REFERENCE: TEST FUNCTIONS()
Page 82 CROSS REFERENCE: TEST FUNCTIONS() 2.3.5.2. REMOTE PROGRAMMING If, after the call is connected, the customer describes the situation and it is determined that the problem can be corrected by making parameter changes, this function makes it possible to change parameters such as the user code and service code from another fax (using DTMF tones).
Page 83 First, in order to check the current status of the service code parameter, print out the setup list (code: 991) and the service list (code: 999) from the customer's fax machine. Based on this, the parameters for the desired codes can be changed. The procedure for changing and listing parameters is described on ENTERING THE REMOTE PROGRAMMING MODE AND CHANGING SERVICE...
Page 84 2.3.5.2.2. PROGRAM MODE TABLE...
Page 85 TEL/FAX ring 1 to 9 rings Set default YES / NO Pause time set 001~600 x 100msec Flash time set (for KX-FM189BL) 01~99 x 10msec Flash time set (for KX-FM189S) 01~99 x 10msec Vox time 1:8sec / 2:6sec / 3:4sec 6sec...
Page 86 Code Function Set Value Default Remote Setting Vox mode 1:ON / 2:OFF CED frequency select 1:2100Hz / 2:1100Hz 2100 International mode select 1:ON / 2:OFF Auto standby select 1:ON / 2:OFF Receive equalizer select 1:0km / 2:1.8km / 3:3.6km / 4: 7.2km Transmission equalizer select 1:0km / 2:1.8km / 3:3.6km / 4:...
Page 87 Code Function Set Value Default Remote Setting Redial tone detect 1:ON / 2:OFF PC-FAX ATD busy tone detect 1:ON / 2:OFF CPC mode 1:ON / 2:OFF Auto disconnect cancel time 1:350ms / 2:1800ms / 3:OFF 350ms Power on film feed 1:ON / 2:OFF CNG detect time for friendly 1:10s / 2:20s / 3:30s...
Page 88 problem may lie in the digital unit (main board). As there are many potential causes in this case (ASIC, DRAM, etc.), it may be difficult to specify what you should check first. If a mistake is made in the order of checks, a normal part may be determined faulty, wasting both time and money.
Page 89 What are the main signals for booting up the unit? Please refer to DIGITAL BLOCK DIAGRAM The ASIC (IC501) controls all the other digital ICs. When the power is turned on, the ASIC retrieves the operation code stored in the ROM (IC502), then follows the instructions for controlling each IC.
Page 90 As long as these signals remain normal, once the power is turned on, each IC can repeatedly output 5V (H) and 0V (L). The following shows NG and normal wave patterns. NG Wave pattern (Refer to NG EXAMPLE) Normal Wave Patterns...
Page 91 Remarks: When you use an oscilloscope to judge whether a signal to be tested is normal or NG, perform the signal check in exactly the same order as in [List 1]. (If the ASIC fails to access the ROM, the ASIC cannot access SRAM or DRAM normally.) The digital circuit actually operates according to the timing combinations of these signals.
Page 92 the I/O Pin No. Diagram.) The signal level should be constantly output at between 5V (H) and 0V (L) as described earlier. Note: Simply check the output level and make sure if the IC repeatedly outputs the signal at between 5V (H) and 0V (L).
Page 93 CROSS REFERENCE: EXAMPLE() CHECK THE STATUS OF THE DIGITAL BOARD() POWER SUPPLY BOARD SECTION()
Page 94 CROSS REFERENCE: CHECK THE STATUS OF THE DIGITAL BOARD() Other NG example while the power is ON and the LCD displays the following. Note: Refer to LCD MESSAGES (for KX-FM189S)(). 2.3.6.2. FLASH MEMORY (IC501) If the unit is working correctly but the VOICE GUIDANCE (voice prompt) is not audible, you should check the Flash Memory.
Page 95 A voice message is pre-recorded in the Flash Memory (IC512). So, when you find an IC512 malfunction and replace it with a new one. You have to pre-record the voice message by using a special ROM. How to Use the Special ROM (Voice Message Recording ROM) 1.
Page 96 6. Replace the special ROM with the regular system ROM. 2.3.6.3. NG EXAMPLE 2.3.6.4. CHECK THE STATUS OF THE DIGITAL BOARD...
Page 97 2.3.7. RS-232C SERIAL COMMUNICATION This model has a communication port designed for RS-232C serial communication. (The EIA standards specify the interface cable type (No. RS232C) and the voltage levels. If you use the TEST CONNECTOR, you can easily check the communication port without a PC. The connector should be wired so that the output signal can return to the input port.
Page 99 The TEST CONNECTOR is provided as an option. / Or you can get a connector available on the market and make the TEST CONNETOR as shown below.
Page 100 2.3.8. ANALOG BOARD SECTION This chapter provides the testing procedures required for the analog parts. A signal route to be tested is determined depending upon purposes. For example, the handset TX route begins at the handset microphone and the signal is output to the telephone line. The signal mainly flowing on this route is analog.
Page 101 Note: { }: Inside the digital board / [ ]: Inside the operation board 2.3.8.2. DEFECTIVE ITS (Integrated Telephone System) SECTION 1. No handset and speakerphone transmission / reception Perform a signal test in the ITS or the NCU section and locate a defective point (where the signal disappears) on each route between the handset microphone and telephone line (sending), or between the telephone line and the handset speaker (receiving), or between the microphone and the telephone line (sending), or between the telephone line and the speaker (receiving).
Page 102 2. No pulse dialing 3. No ring tone (or No bell) CROSS REFERENCE: CHECK SHEET() SECTION() 4. No tone dialing...
Page 103 CROSS REFERENCE: CHECK SHEET() 2.3.9. DIGITAL SPEAKERPHONE The digital speakerphone has different features from the analog speakerphone. The analog speakerphone switches between Tx or Rx. Either Tx or Rx is able to pass through a telephone line or speaker, depending on the Tx and Rx signal (voice) level. The higher-level signal (either TX or RX) can pass through the route.
Page 104 You cannot check the digital speaker phone by the signal route test mentioned in the Analog Board Section because the level is always changing as stated above. Therefore, there is a service function for this troubleshooting. In this service mode, you can set the mute to either Tx or Rx.
Page 105 CROSS REFERENCE: ANALOG BOARD SECTION() 2.3.10. POWER SUPPLY BOARD SECTION 2.3.10.1. KEY COMPONENTS FOR TROUBLESHOOTING Check the following parts first: F101, D101-D104, C106, Q101, PC101 and IC101. This comes from our experience with experimental tests. For example: power supply and lightning surge voltage test, withstanding voltage test, intentional short circuit test, etc.
Page 106 2.3.10.2. TOROUBLESHOOTING FLOW CHART...
Page 109 2.3.10.3. BROKEN PARTS REPAIR DETAILS (D101, D102, D103, D104) Check for a short-circuit in terminal 4. If D101, D102, D103 and D104 are short-circuits, F101 will melt (open). In this case, replace all of the parts (D101, D102, D103, D104, F101). (Q101) The worst case of Q101 is a short-circuit between the Drain and Gate because damage expands to the peripheral circuit of Q101.
Page 110 2.3.11.2. NO LCD INDICATION CROSS REFERENCE: TEST FUNCTIONS() 2.3.12. SENSOR SECTION Refer to SENSORS AND SWITCHES() for the circuit descriptions. The Test Function makes the sensor circuit check easier. (Refer to TEST FUNCTIONS().) / For example, as for "COVER OPEN SENSOR", "CO" is turned ON/OFF on the display when you open or close the front cover.
Page 111 2.3.12.3. CHECK THE COVER OPEN AND THE FILM END SW (SW501)...."COVER OPEN or CHECK FILM" 2.3.12.4. CHECK THE HOOK SWITCH (SW101) 2.3.12.5. CHECK THE PAPER TOP SENSER (PS501)......"PAPER JAMMED" 2.3.13. CIS (Contact Image Sensor) SECTION Refer to SCANNING BLOCK().
Page 112 CROSS REFERENCE: TEST FUNCTIONS()
Page 113 2.3.14. THERMAL HEAD SECTION Refer to THERMAL HEAD().
Page 114 2.3.15. PANA LINK Download If you need the PANALINK software, please download from the Home Page address below. http://www.kme.panasonic.co.jp/telecom/fax/world.htm List of PANA LINK and help instructions To obtain information about the PANA LINK application, use the help function. For help, follow these steps.
Page 115 Applications Functions Introduction PANA LINK Hardware requirements for PANA LINK About Install/Uninstall PANA LINK How to Start and Exit PANA LINK About the PANA LINK Main Panel A List of the Shortcut Keys Printing from a file PRINT Checking the printing status About the Send a Fax panel transmit the faxsimile from the personal...
Page 116 Applications Functions About the Communication Log Communication Log About the Sent Log About the Receiving Log About the Outbox Save the log Print the log Display the image of the facsimile document Send the log as an e-mail message Resend Change the destination of an unsent fax Forward Delete...
Page 117 Applications Functions About Address Book Address Book How to edit the data of the partners How to add a new entry How to update How to delete How to edit the Address Book How to create a new Address Book How to change the name of the Address Book How to delete an Address Book How to change the Address Book...
Page 118 Applications Functions Common problems Troubleshooting Problems with transmission Problems with reception Problems with scan and copy Problems with connection Problems about the display of errors 2.3.15.1. PROBLEMS WITH PC SOFTWARE 2.3.15.1.1. GENERAL PROBLEM CAUSE & REMEDY I cannot open a TIFF file. ~ You must change the compression format of the file.
Page 119 ~ Please verify the following. I cannot print. 1. Driver settings: If you change the driver settings in the Panasonic PANA LINK-S PRINT dialogue may be able to print. 2. Preview window: If the image is not properly displayed in the Preview window, your file may contain errors.
Page 120 PROBLEM CAUSE & REMEDY [Sending a fax failed.] message is ~ Possible causes are as follows. / --- Telephone circuit is displayed. good. --- You received a call-waiting signal. / --- The other party stopped reception. / --- The other party ran out of recording paper.
Page 121 PROBLEM CAUSE & REMEDY I cannot scan. ~ The fax machine may be in use. Try again after the other operation is completed. ~ There may not be enough space on the hard disk. Try again after deleting unnecessary files or closing unused applications. ~ There might not be enough RAM.
Page 123 2.4. PROGRAMMING AND LISTS The programming functions are used to program the various features and functions of the machine, and to test the machine. This facilitates communication between the user and the service man while programming the unit. 2.4.1. OPERATION...
Page 124 While programming, to cancel any entry, press the STOP key. 2.4.2. OPERATION FLOW Note: Refer to LCD MESSAGES (for KX-FM189S)() and BUTTON NAME (for KX-FM189S)(). 2.4.3. USER MODE (The list below is an example of the SYSTEM SETUP LIST the unit prints out.) 2.4.3.1. KX-FM189BL...
Page 125 Note: The above values are the default values. 2.4.3.2. KX-FM189S...
Page 126 Note: The above values are the default values. 2.4.4. SERVICE FUNCTION TABLE...
Page 127 Code Function Set Value Effective Default Remarks Range Pause time set X 100 001~600 ---------- msec Flash time (for KX- X 10 ms 01~99 ---------- FM189BL) Flash time (for KX-FM189S) X 10 ms 01~99 ---------- VOX time 1:8 sec 2: ---------- 6 sec 3: 4sec...
Page 128 Code Function Set Value Effective Default Remarks Range DTMF single tone test 1:ON 2: 1, 2 TEST FUNCTIONS(). Monitor on FAX 1:OFF 2: Sets whether to monitor the line communication select PHASE B 3 signal with the unit's speaker during :ALL FAX communication or not.
Page 129 Code Function Set Value Effective Default Remarks Range Overseas DIS detection 1, 2 1:detects See Symptom/Countermeasure select at the 1st for long distance and international time / 2: calls in THE UNIT CAN COPY, detects at CANNOT EITHER TRANSMIT/ the 2st RECEIVE LONG DISTANCE OR time INTERNATIONL COMMUNICATIONS...
Page 130 Code Function Set Value Effective Default Remarks Range Receive speed selection Adjusts the speed to start training 14400BPS during FAX reception. Refer to / 2: RECEIVE PROBLEM() and 12000BPS CAN COPY, BUT THE TRANSMISSION / 3: AND RECEPTION IMAGE ARE 9600BPS / INCORRECT 4:7200BPS...
Page 131 FAX or TAD can be performed mode setting after bell time Fax mode after the bell time you ran out. 2.4.5. SERVICE MODE SETTINGS (Example of a printed out list) 2.4.5.1. KX-FM189BL Note: The above values are the default values. 2.4.5.2. KX-FM189S...
Page 132 Note: The above values are the default values. 2.4.6. HISTORY...
Page 133 Note: See the following descriptions of this report. Item No. (1) ~ (47) are corresponding to the listed items in DESCRIPTIONS OF THE HISTORY REPORT(). 2.4.6.1. DESCRIPTIONS OF THE HISTORY REPORT (1) ROM VERSION EPROM version (2) SUM EPROM internal data calculation. (3) YOUR LOGO The user logo recorded in the unit.
Page 134 (4) YOUR TELEPHONE NUMBER The user telephone number recorded in the unit. If it is not recorded, NONE will be displayed. (5) FAX PAGER NUMBER If you program a pager number into the unit, the pager number will be displayed here. (6) FACTORY - CUSTOMER This shows how many days from factory production until the user turns ON the unit.
Page 135 (28) NUMBER OF RECEIVING TO PC The number of times received in the PC through the FAX serial interface (RS232C). (The number of pages received. If the unit does not have a PC interface, NONE will be printed.) (29) NUMBER OF SENDING FROM PC The number of times transmitted from the PC through the FAX serial interface (RS232C).
Page 136 Remote printing function for the journal reports (JOURNAL, JOURNAL 2 and JOURNAL 3) is also available for service technicians. (Refer to REMOTE PROGRAMMING().) The JOURNAL report only gives you basic information about a communication, but the other two journal reports provide different information on the same item (communication).
Page 137 For further details, see JOURNAL 2() and JOURNAL 3(). 2.4.7.1. JOURNAL 2 Refer to JOURNAL 2 in PRINTOUT EXAMPLE(). Journal 2 displays the additional detailed information about the last 35 communications. Descriptions: (1) RCV. MODE Indicates which receive mode the unit was in when the unit received a fax message. This information is also displayed when the unit transmitted a fax message.
Page 138 communications terminated by "No Response". (Some of the communications terminated by "No Response" were not displayed in the JOURNAL.) When a fax transmission cannot be performed because the other party’s unit is set to the TEL mode, "No response" will be printed. 2.4.7.2.
Page 140 2.5. TEST FUNCTIONS The codes listed below can be used to perform simple checks of some of the unit’s functions. When complaints are received from customers, they provide an effective tool for identifying the locations and causes of malfunctions.
Page 141 CROSS REFERENCE: DTMF SINGLE TONE TRANSMIT SELECTION() BUTTON CODE TABLE() PRINT TEST PATTERN()
Page 142 Note: The numbers in the boxes (XXX) indicate the keys to be input for the various test modes. CROSS REFERENCE: DIGITAL SPEAKERPHONE() SENSORS AND SWITCHES() 2.5.1. DTMF SINGLE TONE TRANSMIT SELECTION Note: After performing this check, do not forget to turn the setting off. otherwise, dialing in DTMF signal will not work.
Page 143 Note: Refer to BUTTON NAME (for KX-FM189S)(). 2.5.3. PRINT TEST PATTERN 1. Platen roller (Reference pattern)
Page 144 2. Left margin/Top margin (Reference pattern)
Page 145 3. Thermal head 1 dot (Reference pattern)
Page 146 4. Use this test pattern to confirm the torque limiter for Ink film and platen roller timing. (Reference pattern) 3. ADJUSTMENTS 3.1. ADJUSTING THE FEEDER PRESSURE If misfeeding of a document such as multiple feeding or no feeding occurs frequently, try to...
Page 147 adjust the feeder pressure by following the steps below. 1. Open the front cover by pulling up the center part. 2. Shift the position of the green lever by using an instrument with a pointed end, such as a paper clip. Left: When documents multiple feed.
Page 148 4. DISASSEMBLY INSTRUCTIONS 4.1. HOW TO REMOVE THE BOTTOM FRAME AND RS232C BOARD 4.2. HOW TO REMOVE THE OPERATION PANEL BLOCK...
Page 149 4.3. HOW TO REMOVE THE OPERATION BOARD AND LCD...
Page 150 4.4. HOW TO REMOVE THE ANALOG, DIGITAL AND POWER BOARDS AND AC INLET...
Page 151 4.5. HOW TO REMOVE THE MOTOR BLOCK...
Page 153 4.6. HOW TO REMOVE THE SEPARATION ROLLER...
Page 154 4.7. HOW TO REMOVE THE IMAGE SENSOR (CIS)
Page 155 4.8. HOW TO REMOVE THE TERMAL HEAD...
Page 156 4.9. HOW TO REMOVE THE PLATEN ROLLER, BACK COVER...
Page 157 4.10. HOW TO REMOVE THE PICKUP ROLLER...
Page 158 4.11. HOW TO REMOVE THE CASSETTE PLATE...
Page 159 4.12. HOW TO REMOVE THE DOCUMENT TRAY...
Page 160 4.13. INSTALLATION POSITION OF THE LEAD WIRES...
Page 161 5. HOW TO REPLACE THE FLAT PACKAGE IC Even if you do not have the special tools (for example, a spot heater) to remove the Flat IC, with some solder (large amount), a soldering iron and a cutter knife, you can easily remove the ICs that have more than 100 pins.
Page 162 Recommended power consumption is between 30 W to 40 W. / Temperature of Copper Rod 662 ± 50°F (350 ± 10°C) / (An expert may handle a 60~80 W iron, but a beginner might damage the foil by overheating.) - Flux / HI115 Specific gravity 0.863 / (Original flux should be replaced daily.) 5.2.
Page 163 When you attach a new IC to the board, remove all solder left on the land with some tools like a soldering wire. If some solder is left at the joint on the board, the new IC will not be attached properly.
Page 164 as shown in the figure below. 6. CIRCUIT OPERATIONS 6.1. CONNECTION DIAGRAM...
Page 165 6.2. GENERAL BLOCK DIAGRAM The following is an outline of each device IC on the digital board. (Refer to GENERAL BLOCK DIAGRAM().). 1. ASIC (IC501) Composed mainly of an address decoder and a modem control.
Page 166 Controls the general FAX operations. Controls the operation panel I/F. Controls the thermal head I/F and CIS I/F. Performs the image processing. CPU and Real time clock Provides the reset pulse for each of the major ICs. 2. ROM (IC502) Contains all of the program instructions on the unit operations.
Page 167 6.2.1. GENERAL BLOCK DIAGRAM CROSS REFERENCE: ANALOG UNIT BLOCK DIAGRAM() 6.3. CONTROL SECTION...
Page 168 6.3.1. BLOCK DIAGRAM 6.3.2. MEMORY MAP...
Page 169 6.3.3. ASIC (IC501) This custom IC is used for the general FAX operations. 1. CPU: This model uses a Z80 equivalent to the CPU operating at 12 MHz. Most of the peripheral functions are performed by custom- designed LSIs. Therefore, the CPU only works for processing the results.
Page 171 Note*: This memory is incorporated into the ASIC (IC501) and used for the image processing. Fig. A shows the memory map of the Image Data RAM. 6.3.4. ROM (IC502) This 512KB ROM (EPROM or MASKROM or OTPROM) carries a common area of 32KB and bank areas which each have 8KB (BK4~BK63).
Page 172 SIGNAL POWER SUPPLIED DESCRIPTION VOLTAGE AIN1 3.3V CCD IMAGE SIGNAL INPUT AIN2 3.3V THERMISTOR TEMPERATURE WATCH INPUT AIN3 3.3V ----------- AMON 3.3V ANALOG SIGNAL MONITOR TERMINAL VSSB POWER SOURCE (ANALOG GND) VDDB 3.3V POWER SOURCE (ANALOG +3.3V) VDD(3.3V/B) 3.3V/BATT POWER SOURCE (+3.3V/LITHIUM BATTERY) X32OUT 3.3V/BATT...
Page 173 TONE2 TONE OUTPUT...
Page 174 SIGNAL POWER SUPPLIED DESCRIPTION VOLTAGE VOLUREF ANALOG REF VOLTAGE VOLUOUT VOLUME OUTPUT VOLUIN VOLUME INPUT MIDAT/IOP MIDAT MICLK/IOP MICLK MILAT/IOP MILAT XRESCS1 OUTPUT PORT (BREAK) IOP90 OUTPUT PORT (SPMUTE) POWER SOURCE (GND) VDD (5V) POWER SOURCE (+5V) XNMI HIGH FIXED CBUSY2 CBUSY2 CBUSY1...
Page 175 XOPRBE NOT USED...
Page 176 SIGNAL POWER SUPPLIED DESCRIPTION VOLTAGE ADR15 CPU ADDRESS BUS 15 (NOT USED) ADR14 CPU ADDRESS BUS 14 (NOT USED) ADR13 CPU ADDRESS BUS 13 (NOT USED) XRAS/IOP DRAM (IC503) ROW ADDRESS STROBE XCAS1/IOP DRAM (IC503) CULUM ADDRESS STROBE XCAS2/IOP OUTPUT PORT (MODRST) POWER SOURCE (GND) VDD (3.3V) 3.3V...
Page 177 SIGNAL POWER SUPPLIED DESCRIPTION VOLTAGE RBA6/IOP96 OUTPUT PORT (S/ENB) IOP95 OUTPUT PORT (SEN LED ON) IOP94 OUTPUT PORT (RESERVER) IOP93 OUTPUT PORT (CIS LED ON) XRESET RESET INPUT XORESET RESET OUTPUT VDD (5V) POWER SOURCE (+5V) POWER SOURCE (GND) XRESETI RESET INPUT WDERR WATCHED ERROR OUTPUT SIGNAL...
Page 178 SIGNAL POWER SUPPLIED DESCRIPTION VOLTAGE KRXD OPERATION PANEL CONTROL ADSEL1 CHANNEL SELECT SIGNAL FOR VSSC POWER SOURCE (ANALOG GND) VDDC 3.3V POWER SOURCE (ANALOG +3.3V) VSSA POWER SOURCE (ANALOG GND) VDDA 3.3V POWER SOURCE (ANALOG +3.3V) VREFB 3.3V A/D CONVERTER’S ZERO STANDARD VOLTAGE OUTPUT 3.3V ANALOG PART STANDARD...
Page 179 backed up by a lithium battery. 3. The watch dog timer, built-in the ASIC (IC501), is initialized by the CPU about every 1.5 ms. When a watch dog error occurs, pin 137 of the ASIC (IC501) becomes low level. The terminal of the 'WDERR' signal is connected to the reset line, so the 'WDERR' signal works as the reset signal.
Page 180 mode, in which the power consumption is lower. 6.3.9. SUPERVISION CIRCUIT FOR THE THERMAL HEAD TEMPERATURE 1. Function The thermistor changes the resistor according to the temperature and uses the thermistor's characteristics. The output of pin 169 of IC501 becomes a low level. Then when it becomes a high level, it triggers point A In point C, according to the voltage output time, the thermal head's temperature is detected.
Page 181 CROSS REFERENCE: THERMAL HEAD() 6.4. FACSIMILE SECTION 6.4.1. IMAGE DATA FLOW DURING FACSIMILE OPERATION Copy (Fine, Super-Fine, Half Tone) 1. Line information is read by CIS (to be used as the reference white level) via route1, and is input to IC501. Refer to BLOCK DIAGRAM() 2.
Page 182 3. The draft’s information that is read by CIS is input to IC501 via route1. After it is adjusted to a suitable level for A/D conversion via route2, the draft’s information is converted to A/D (8 bit), and it is input to the Image Processing Section.
Page 183 the data in the communication buffer DRAM (IC503) along route12. 2. The data stored in DRAM (IC503) is decoded by the CPU (IC501) via route12, and is stored in DRAM (IC503) via routes13 and 5. 3. Same processing as Copy item 4. 6.4.2.
Page 184 6.4.3. THERMAL HEAD 1. Function This unit utilizes the state of the art thermal printer technology. The ink film is chemically processed. The ink film is comprised of two parts: an ink layer and a base film. When the thermalhead contacts this ink film, it emits heat momentarily, and the ink layer...
Page 185 is melted and transferred to the paper. If this continues, letters and/ or diagrams appear, and the original document is reproduced. 2. Circuit Operation Refer to the block diagram and the timing chart on the following page. There are 9 driver ICs aligned horizontally on the thermal head and each one of these ICs can drive 192 heat-emitting registers.
Page 186 synchronized at IC501 pin 150 (THCLK), and sent from IC501 pin 149 (THDAT) to the shift register of the ICs. The shift registers of the 9 ICs are connected in series, and upon the shift of the 1728 dot increment, the shift register becomes filled with data, and a latch pulse is emitted to each IC from IC501 pin 151 (THLAT).
Page 187 6.4.4. SCANNING BLOCK The scanning block of this device consists of a control circuit and a contact image sensor made up of a celfoc lens array, an LED array, and photoelectric conversion elements. When an original document is inserted and the start button pressed, pin 20 of IC501 goes to a high level and the transistor Q512 turns on.This applies voltage to the LED array to light it.
Page 188 The stepping motor works for both transmission and reception. 2. Motor During motor driving, pin 163 of ASIC IC501 becomes a high level, and Q503, Q501 turns ON. As a result, +24V is supplied to the motor coil. Stepping pulses are output from ASIC IC501 pins, 157, 160~162, causing driver IC508 pins, 16~13 to drive the Motor Coil.
Page 189 When the motor suspends while it is in the receive mode (about 70~80 msec), pin 163 of ASIC IC501 becomes a low level and Q503 turns OFF. Then Q501 also turns OFF, and instead of +24 V, +5 V is supplied through D501 so that the motor is held in place. When the system is in the stand- by mode, all of the motor drive transistors turn OFF.
Page 190 6.4.6.2. MODE OPERATION Once a mode is selected, the Drive Motor Gear rotates counterclockwise (CCW) and then the controlling positions of Swing Gears A, B and C determine which gears convey their drive power in each mode. A. Transmit mode (See Fig. A.) : Swing Gear C engages G4 and conveys its power to the Separation Roller Gear through G3 and sets the Separation Roller for feeding documents.
Page 191 Note* : See "Sensor Location" in SENSORS AND SWITCHES(). C. Receive mode (See Fig. C.) : Swing Gear B engages G13 and conveys its power to the Platen Roller Gear through G6. Then, the Platen Roller feeds recording paper for printing the received data. Fig.
Page 192 receiving faxes and copying) 6.4.6.3.1. IDLE STATUS Note: See “Sensor Locations” in SENSORS AND SWITCHES(). 6.4.6.3.2. TRANSMITTING DOCUMENTS...
Page 193 CROSS REFERENCE: SENSOR SECTION(). 6.4.6.3.3. RECEIVING FAX...
Page 194 Note: See “Sensor Locations” in SENSORS AND SWITCHES(). 6.4.6.3.4. COPYING...
Page 195 Note: See “Sensor Locations” in SENSORS AND SWITCHES(). CROSS REFERENCE: SENSOR SECTION() 6.5. SENSORS AND SWITCHES All of the sensor and switches are shown below.
Page 196 Sensor Sensor or Switch Message Error Sensor Circuit Name Location Operation SW352 Document set SW [CHECK DOCUMENT] Panel SW353 [REMOVE DOCUMENT] Document top SW Digital PCB SW501 Film End/Cover open [CHECK COVER] or [CHECK FILM] PS501 Paper Top [PAPER JAMMED] Anaalog P.C.B SW102 Motor Position...
Page 197 1. [Document top SW (SW353)] When a document is brought to the read position, the SW becomes ON, and the input signal of IC301-16 pin (Operation) becomes a low level. When there is no document at the read position, the SW becomes OFF, and the input signal of IC301-16 pin (Operation) becomes a high level. Operation Board Phototransistor Signal (IC301-16 pin)
Page 198 2. [Document Set (SW532)] When a document is set, the SW becomes ON, and the input signal of IC301-15 pin (Operation) becomes a low level. When there is no document, the SW becomes ON, and the input signal of IC301-15 pin (Operation) becomes a high level. Operation Board Phototransistor Signal (IC301-15 pin)
Page 199 Operation Board Signal (IC501-56 pin) ON-Hook High level OFF-Hook Low level 5. [Paper top Sensor (PS501)] When the recording paper is loaded on the print head, the shelter plate shuts the sensor light, and the phototransistor becomes OFF. The input signal of IC501-131 pin becomes a high level. Usually, the shelter plate is lifted, the phototransistor becomes ON, and the input signal of IC501- 131 pin becomes a low level.
Page 200 6.6.1. FUNCTION The unit uses a 1 chip modem (IC505) that serves as an interface between the control section for FAX transmission and reception and the telephone line. During a transmitting operation, the digital image signals are modulated and sent to the telephone line. During a receiving operation, the analog image signals which are received via the telephone line are demodulated and converted into digital image signals.
Page 201 suppressing redundancy in signals prior to transmission, and error -free reception of transmission is possible. The scope of these facsimile applications is not limited simply to transmission of written statements. Through symbiotic linkages with other communication methods, it can be expected to expand to include integrated services.
Page 202 Hold time: This is the time required after the document contents have been sent to confirm that the document was actually sent, and to check for telephone reservations and/or the existence of continuous transmission. 5. Facsimile Standards Telephone Network Facsimile G3 Machine Item Connection Control Mode Telephone Network Signal Mode...
Page 203 Explanation of Signals Control signals are comprised mainly of 8-bit identification signals and the data signals added to them. Data signals are added to DIS and DCS signals. Signal..DIS (Digital Identification Signal) / Identification Signal Format..00000001 Function: / Notifies the capacity of the receiving unit. The added data signals are as follows. Signal..DCS (Digital Command Signal) / Identification Signal Format..X1000001 Example (Some models do not support the following items.):...
Page 204 Bit No. DIS/DTC Transmitter --- T.2 operation Receiver --- T.2 operation Receiver --- T.2 operation T.2 IOC = 176 T.2 IOC = 176 Transmitter --- T.3 operation Receiver --- T.3 operation Receiver --- T.3 operation Reserved for future T.3 operation features Reserved for future T.3 operation features.
Page 205 Bit No. DIS/DTC R8×7.7 lines/mm and/or 200×200 pels/ R8×7.7 lines/mm and/or 200×200 pels 25.4mm 25.4mm Two-dimensional coding capability Two-dimensional coding capability 17, 18 Recording width capabilities Recording width (0, 0) 1728 picture elements along scan line 1728 picture elements along scan line length of length of 215 mm ±...
Page 206 Bit No. DIS/DTC Extend field Extend field Validity of bits 17, 18 Recording width Bits 17, 18 are valid Recording width indicated by bits 17, Bits 17, 18 are invalid Recording width indicated by this field information Recording width capability 1216 picture Middle 1216 elements of 1728 picture elements along scan line length of 151 ±...
Page 207 Signal Identification Signal Format Function Training 1 ——————— A fixed pattern is transmitted to the receiving at a speed (2400 to 14400 bps) designated by DCS, and the receiving side optimizes the automatic equalizer, etc., according to this signal. ——————— Sends 0 continuously for 1.5 seconds at the same speed as the training signal.
Page 208 6.6.2. MODEM CIRCUIT OPERATION The modem (IC505) has all the hardware satisfying the CCITT standards mentioned previously. When the ASIC IC501 (77) is brought to a low level, the modem (IC505) is chip-selected and the resistors inside IC are selected by the select signals from ASIC (IC501) ADR0-ADR4. The commands are written through the data bus, and all the processing is controlled by the ASIC (IC501) according to CCITT procedures.
Page 209 transmitted serially. Hence, they are placed on the bus in 8 bit units. Here, the internal equalizer circuit reduces the image signals to a long-distance receiving level. This is designed to correct the characteristics of the frequency band centered about 3 kHz and maintain a constant receiving sensitivity.
Page 210 sections is also held in ASIC IC501. / Simple explanations for the various sections are given below. 2. Circuit Operation [NCU Section] This is the interface between the telephone line and external telephone. This is composed of a bell detection circuit, pulse dial generation circuit, amplifier circuit for line transmission and reception, sidetone circuit, etc.
Page 211 IC501 (148): Bell 6.8.4. PULSE DIAL CIRCUIT AND ON/OFF HOOK CIRCUIT 6.8.4.1. For KX-FM189BL While OFF-HOOK, RL101 is ON. Q115 turns on by pin (18) of IC501 as well. On the other hand, while ON-HOOK, Q115 turns OFF by pin (18) of IC501, then the line turns OFF. ON/OFF-HOOK, controlled by pin (18) of IC501, makes the pulse dial operation possible.
Page 212 C130 and C122 and goes into the amplifier IC101 pin (3). This circuit is used to cancel the transmission return signal. 6.8.6. CPC (Calling Party Control) DETECTION CIRCUIT 1. Function This circuit detects the signal (cuts the current ) output from the converter when the other party finishes ICM recording and goes into the ON-HOOK status.
Page 213 When Q114 turns on, Q111 and PC104 also turn on, then the IC501 pin 152 becomes a low level. 6.8.8. CALLING LINE IDENTIFICATION CIRCUIT 6.8.8.1. FSK TYPE (for KX-FM189BL only) 1. Function This unit is compatible with the Caller ID service offered by your local telephone company.
Page 214 6.8.8.2. DTMF TYPE (for KX-FM189S only) 1. Function This unit is compatible with the Caller ID service offered by your...
Page 215 local telephone company. To use this feature, you must subscribe to a Caller ID service. The data for the caller ID from the telephone exchange is sent before the first rings of the bell signal. The data from the telephone exchange is a DTMF signal. 2.
Page 216 6.9.1. GENERAL The general ITS operation is performed by the special IC505 which has a handset circuit. The alarm tone, the key tone, and the beep are output from the ASIC IC501 (digital board). During the pulse dial operation, the monitor tone is output from the ASIC IC501. 6.9.2.
Page 217 D. Greeting/Message/ICM play to Tel Line E. Vox Detection 2. Signal Path Refer to CHECK SHEET(). 6.11. RS-232C SECTION (RS-232C serial communication) 6.11.1. OUTLINE The model has a communication port designed for RS-232C serial communication. (The EIA Standards specify the interface cable type (No. RS232C) and the voltage levels. You can connect the FAX machine to a printer (200dpi), scanner and fax modem with the interface cable and the attached software CD-ROM.
Page 218 Use modem cable or RS-232C data communication cable. (Cable type is specified in Operating Instructions..) Note: The open circuit driver voltage (output) of this set is +12V ~ -12V. The minimum input signal voltage must fall outside the transition region of ±3V. The output voltage range that is terminated with a load between 3kW and 7kW will be between ±...
Page 219 Consequently, in this unit, the timing (positive clock) is generated by the LCD interface circuitry in the gate array (IC301). Density Normal Dark LED1 (IC301-22pin) 6.14. POWER SUPPLY BOARD SECTION This power supply board uses the switching regulator method.
Page 220 [Input Circuit] The input current goes into the input rectifier circuit through the filter circuit. The filter circuit decreases the noise voltage and the noise electric field strength. [Rectifier Circuit] The input current is rectified by D101,D102,D103 and D104 and charges C106 to make DC voltage.
Page 221 Then the power is supplied to the Load. When Q is ON, power is not output from the secondary side. The output voltage is fed back in the control IC according to the error amp rectifier. Then depending on how T is controlled, stabilization occurs.
Page 222 limited by this circuit. [Over Voltage Circuit] If the 24V output increases because the error detecting circuit or control circuit is broken, IC101 will recognize this signal and output becomes 0V. Dummy load method (to quickly check the power supply output) Refer to POWER SUPPLY BOARD SECTION().
Page 223 9. CABINET, MECHANICAL AND ELECTRICAL PARTS LOCATION 9.1. OPERATION PANEL SECTION...
Page 224 9.2. UPPER CABINET SECTION...
Page 225 9.2.1. BACK COVER SECTION 9.2.1.1. BACK COVER 1...
Page 226 9.2.1.2. BACK COVER 2...
Page 227 9.3. LOWER/P.C.B. SECTION...
Page 228 CROSS REFERENCE: OPERATION PANEL SECTION() 9.4. MOTOR SECTION...
Page 229 9.5. ACTUAL SIZE OF SCREWS AND WASHER...
Page 230 10. ACCESSORIES AND PACKING MATERIALS...
Page 231 11. REPLACEMENT PARTS LIST This replacement parts list is for KX-FM189BL and KX-FM189S only.
Page 232 Refer to the simplified manual (cover) for other areas. Notes: 1. The marking (RTL) indicates that the Retention Time is limited for this item. After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability is dependent on the type of assembly, and in accordance with the laws governing parts and product retention.
Page 233 Ref. No. Part No. Part Name & Description Remarks (12.1.1. OPERATION PANEL SECTION) PFGP1172J PANEL, LCD (for KX-FM189BL) PFGP1172H PANEL, LCD (for KX-FM189S) PFBE1005Z1 KNOB, EASY DIAL PFGG1064Y1 GRILLE, OPERATION PANEL (for KX-FM189BL) PFGG1064X1 GRILLE, OPERATION PANEL (for KX-FM189S) PFDN1040Z...
Page 234 Ref. No. Part No. Part Name & Description Remarks PFQT1675Z LABEL, FACE DOWN (for KX-FM189BL) PFQT1678Z LABEL, FACE DOWN (for KX-FM189S) PFUS1238Z SPRING, PICKUP PFKS1039Z TRAY, CASSETE PFKV1027Y1 COVER, UPPER TURN PFHG1088Z RUBBER, PAPER SEPARATION PFHX1339Z INSULATOR, STATIC PFUA1025W CHASSIS, UPPER TURN...
Page 235 Not Used Not Used PFQT1671Z LABEL, AC 120V COVER PQLB1E1 INSULATOR, FERRITE CORE PQHR136Z BINDER PJHE5065Z SCREW PFQT1250Z LABEL, CAUTION (for KX-FM189BL) PFQT1382Z LABEL, S CAUTION (for KX-FM189S) PFMH1082Z FRAME, PLATE PFJS11Q71Z CONNECTOR, 11P PFHX1456Z SPACER,SHEET (12.1.6. MOTOR SECTION) PFDG1155Z...
Page 236 TRAY, PAPER PFQX1526Z INSTRUCTION BOOK (for KX-FM189BL) PFQX1530Z INSTRUCTION BOOK (for KX-FM189S) PFQW1513Z INSTRUCTION BOOK (QUICK START SHEET)(for KX-FM189BL) PFQW1515Z INSTRUCTION BOOK (QUICK START SHEET)(for KX-FM189S) Not Used PFQT1696Z LABEL, RECORDING PAPER SET PFQX1527Z INSTRUCTION BOOK (PANA LINK GUIDE)(for KX-FM189BL)
Page 237 PFWP1FM189BL DIGITAL BOARD ASS'Y (RTL) (for KX-FM189BL) PCB1 PFWP1FM189S DIGITAL BOARD ASS'Y (RTL) (for KX-FM189S) PCB1-1 PFWP2FM189E DIGITAL BOARD ASS'Y (RTL) [without ROM](for KX-FM189BL) PCB1-1 PFWP2FM189S DIGITAL BOARD ASS'Y (RTL) [without ROM] (for KX-FM189S) Refer to LOWER/P.C.B. SECTION(). (ICS) IC501...
Page 238 Ref. No. Part No. Part Name & Description Remarks L502 PQLQR1RM601 COIL L503 PQLQR1RM601 COIL L504 PQLQR1RM601 COIL L505 PQLQR1RM601 COIL L506 PQLQR1RM601 COIL L507 PQLQR1RM601 COIL L513 PQLQR1ET COIL L514 PQLQR2KA20T COIL L516 PQLQR2KA113T COIL L517 PQLQR1ET COIL L518 PQLQR2KA20T COIL L519...
Page 239 Ref. No. Part No. Part Name & Description Remarks (PHOTO ELECTRIC TRANSDUCER) PS501 PFVISG257 PHOTO ELECTRIC TRANSDUCER (RESISTORS) J600 ERJ8GEY0R00 L508 ERJ3GEYJ101 L509 ERJ3GEYJ101 L510 ERJ3GEYJ101 L511 ERJ3GEYJ101 L512 ERJ3GEYJ101 L515 PQ4R18XJ100 L521 ERJ8GEY0R00 L524 PQ4R18XJ220 L526 ERJ3GEY0R00 L528 ERJ3GEY0R00 R501 ERJ3GEY0R00 R502...
Page 240 Ref. No. Part No. Part Name & Description Remarks R540 ERJ3GEYJ102 R541 ERJ3GEYJ473 R542 ERJ3GEYJ473 R543 ERJ3GEYJ222 2.2k R544 ERJ3GEYJ222 2.2k R546 ERJ3GEYJ472 4.7k R547 ERJ3EKF1101 1.1k R548 ERJ3EKF4701 4.7k R549 ERJ3GEYJ104 100k R550 ERJ3GEYJ101 R551 ERJ3GEYJ102 R552 ERJ3GEYJ101 R553 ERJ3GEY0R00 R554 ERJ3GEYJ101...
Page 241 Ref. No. Part No. Part Name & Description Remarks R606 ERJ3GEYJ101 R607 ERJ3GEYJ472 4.7k R609 ERJ3GEYJ103 R610 ERJ3GEYJ103 R611 ERJ3GEYJ102 R612 ERJ3GEYJ273 R616 ERJ3GEYJ103 R617 ERJ3GEYJ104 100k R620 ERJ3GEY0R00 R621 ERJ3GEYJ224 220k R622 ERJ3GEYJ224 220k R624 ERJ3GEYJ103 R626 ERJ1WYJ391 R628 ERJ3GEYJ102 R631 ERJ8GEY0R00...
Page 242 Ref. No. Part No. Part Name & Description Remarks C542 ECUV1H102KBV 0.001 C543 ECUV1H104ZFV C544 ECUV1H104ZFV C546 ECUV1H104ZFV C547 ECUV1H104ZFV C548 ECUV1H104ZFV C549 ECUV1H104ZFV C550 ECUV1H104ZFV C551 ERJ3GEY0R00 C552 ECUV1H150JCV C554 ECUV1H150JCV C555 ECEA1CKS100 C556 ECUV1H104ZFV C557 ECUV1C104KBV C558 ECUV1H104ZFV C559 ECUV1H120JCV C560...
Page 243 ECUV1H183KBV 0.018 C631 ECUV1C104KBV C632 ECUV1H104ZFV C633 ECUV1C104KBV C634 ECUV1H104ZFV C635 PQCUV1H104ZF 11.3. ANALOG BOARD PARTS 11.3.1. for KX-FM189BL Ref. No. Part No. Part Name & Description Remarks PCB2 PFWP3FP185E ANALOG BOARD ASS'Y (RTL) Refer to LOWER/P.C.B. SECTION(). (ICS) IC101...
Page 244 Ref. No. Part No. Part Name & Description Remarks D102 MA4056 DIODE(SI) D107 MA4056 DIODE(SI) D108 MA4056 DIODE(SI) D109 1SS119 DIODE(SI) D111 PQVDHZS2B1 DIODE(SI) D114 1SS119 DIODE(SI) D115 MA700A DIODE(SI) D116 1SS119 DIODE(SI) D117 1SS119 DIODE(SI) D118 PFVDDGS1ZB60 DIODE(SI) D121 MA4056 DIODE(SI) D122...
Page 246 Ref. No. Part No. Part Name & Description Remarks (SWITCHES) SW101 ESE14A211 SWITCH SW102 PFSH1A002Z SWITCH (VARISTORS) SA101 PFRZRA311P6T VARISTOR SA102 PFRZ003Z VARISTOR ZNR101 ERZVA7D151 VARISTOR (CERAMIC FILTERS) L103 PFVF2A102ST CERAMIC FILTER L104 PFVF2A102ST CERAMIC FILTER L105 PFVF2A102ST CERAMIC FILTER L106 PFVF2A102ST CERAMIC FILTER...
Page 247 R136 ERJ3GEYJ182 1.8k...
Page 248 Ref. No. Part No. Part Name & Description Remarks R137 ERJ3GEYJ102 R138 ERJ3GEYJ332 3.3k R141 ERJ3GEYJ101 R142 ERJ3GEYJ472 4.7k R143 ERJ3GEYJ103 R144 ERJ3GEYJ103 R146 ERDS1VJ000 R151 ERJ3GEYJ222 2.2k R153 ERJ3GEYJ222 2.2k R155 ERDS2TJ121 R156 ERJ3GEYJ123 R158 ERDS2TJ391 R159 ERJ3GEYJ103 R164 ERJ3GEYJ153 R166 ERJ3GEYJ102...
Page 249 Ref. No. Part No. Part Name & Description Remarks (CAPACITORS) C110 ECUV1C104KBV 0.1 C113 ECUV1E225ZF C116 ECUV1H220JCV C117 PQCUV1H104ZF C119 ECUV1H220JCV C126 ECUV1H331JCV 330P C129 ECUV1H153KBV 0.015 C130 ECUV1H153KBV 0.015 C133 PQCUV1C224KB 0.22 C135 ECUV1H103KBV 0.01 C136 ECEA1HKS4R7 C138 PQCUV1C334KB 0.33 C139 ECEA0JKS101 C141...
Page 250 Ref. No. Part No. Part Name & Description Remarks C205 ECUV1H103KBV 0.01 C207 ECEA1CKS470 C210 ECUV1H103KBV 0.01 C212 ECUV1C475ZF C214 ECUV1H103KBV 0.01 C220 ECUV1H100DCV 10P C222 PQCUV1H104ZF C223 ECEA1HKS100 C224 ECUV1H681JCV 680P C226 ECUV1H100DCV 10P C228 ECUV1H104ZFV C229 ECUV1H104ZFV 11.3.2. for KX-FM189S Ref.
Page 251 Ref. No. Part No. Part Name & Description Remarks D126 1SS119 DIODE(SI) (COILS) L108 PQLQR2KB113T COIL L109 PQLQR2KB113T COIL L110 PQLQR2KB113T COIL L111 PQLQR2KB113T COIL L116 PQLQR2KB113T COIL L124 PQLQR2KB113T COIL L126 PQLQR2KB20T COIL L127 PQLQR2KB20T COIL L128 PQLQR2KB20T COIL L129 PQLQR2KB20T COIL...
Page 252 Ref. No. Part No. Part Name & Description Remarks L103 PFVF2A102ST CERAMIC FILTER L104 PFVF2A102ST CERAMIC FILTER L105 PFVF2A102ST CERAMIC FILTER L106 PFVF2A102ST CERAMIC FILTER L125 PFVF2B272ST CERAMIC FILTER (FUSE) F101 PQBA1N10NMAL FUSE (RELAY) RL101 ATXD20328 RELAY (TRANSFORMERS) T101 PFLT8E003 TRANSFORMER T102 PFLT8E004...
Page 253 Ref. No. Part No. Part Name & Description Remarks R158 ERDS2TJ391 R159 ERJ3GEYJ103 R164 ERJ3GEYJ153 R166 ERJ3GEYJ102 R168 ERJ3GEYJ101 R169 ERJ3GEYJ103 R171 ERJ3GEYJ561 R173 ERDS2TJ120 R174 ERJ3GEYJ473 R175 ERJ3GEYJ154 150k R176 ERJ3GEYJ114 110k R177 ERJ3GEYJ822 8.2k R178 ERG2SJ821 R179 ERJ3GEYJ474 470k R180 ERJ3GEYJ105...
Page 254 Ref. No. Part No. Part Name & Description Remarks C129 ECUV1H183KBV 0.018 C130 ECUV1H183KBV 0.018 C133 PQCUV1C224KB 0.22 C135 ECUV1H103KBV 0.01 C136 ECEA1HKS4R7 C138 PQCUV1C334KB 0.33 C139 ECEA0JKS101 C141 PQCUV1H563JC 0.056 C142 PQCUV1C334KB 0.33 C143 PQCUV1H563KB 0.056 C144 ECUV1H104ZFV C145 ECEA0JKS101 C146 ECUV1H103KBV 0.01...
Page 255 Ref. No. Part No. Part Name & Description Remarks C223 ECEA1HKS100 C224 ECUV1H681JCV 680P C226 ECUV1H100DCV 10P C228 ECUV1H104ZFV C229 ECUV1H104ZFV 11.4. OPERATION BOARD PARTS Ref. No. Part No. Part Name & Description Remarks PCB3 PFWP4FP85C OPERATION BOARD ASS'Y (RTL) Refer to OPERATION PANEL SECTION().
Page 256 Ref. No. Part No. Part Name & Description Remarks C303 ECEA0JKS101 C304 ECUV1C104KBV C305 ECUV1H101JCV 100P C308 ECUV1H331JCV 330P C309 ECUV1H331JCV 330P C310 ECUV1C104KBV C311 ECUV1C104KBV C314 ECUV1C104KBV C316 ECUV1H103KBV 0.01 C317 ECUV1H103KBV 0.01 C352 ECEA0JKS101 C353 ECUV1H153KBV 0.015 C354 ECUV1C104KBV C355 ECUV1H181JCV...
Page 257 11.5. POWER SUPPLY BOARD PARTS Ref. No. Part No. Part Name & Description Remarks PCB4 PFLP1282EZL POWER SUPPLY BOARD ASS'Y / (RTL) (ICS) IC101 PFVIFA5317P IC201 AN1431T IC202 PFVITA7805F (TRANSISTORS) Q101 2SK2651 TRANSISTOR(SI) (DIODES) D101 PFVD1N4005 DIODE(SI) D102 PFVD1N4005 DIODE(SI) D103 PFVD1N4005 DIODE(SI)
Page 258 Ref. No. Part No. Part Name & Description Remarks VR201 EVNDJAA03B53 VARIABLE RESISTOR (VARISTOR) ZNR101 ERZV10DK751U VARISTOR (RESISTORS) R101 ERDS1J105 R102 ERDS2TJ394 390k R103 ERDS2TJ394 390k R104 ERG2SJ304 300k R105 ERX2SJR22 0.22 R106 ERG2SJ470 R107 ERG2SJ304 300k R108 ERDS2FJ150 R109 ERDS2TJ100 R121 PQ4R10XJ103...
Page 259 EC10 PQZZ3K8Z CONNECTOR, 3P EC11 PFZZ11K12Z CONNECTOR, 11P EC20 PFZZFP85M VOICE PROMPT ROM (for KX-FM189BL) EC20 PFZZFM189S VOICE PROMPT ROM (for KX-FM189S) KM79811245C0 BASIC FACSIMILE TECHNIQUE (for training service technicians) Note: Tools and Extension Cords are useful for servicing. (They make servicing easy.) 12.
Page 260 13.4. ANALOG BOARD: COMPONENT VIEW 13.5. OPERATION BOARD 13.6. POWER SUPPLY BOARD 14. SCHEMATIC DIAGRAM 14.1. DIGITAL BOARD 14.2. ANALOG BOARD (for KX-FM189BL) 14.3. ANALOG BOARD (for KX-FM189S) 14.4. OPERATION BOARD 14.5. POWER SUPPLY BOARD 14.6. RS232C BOARD 14.6.1. PRINTED CIRCUIT BOARD 14.6.2.
Page 261 (COMPONENT VIEW) (BOTTOM VIEW) SRF1018EK R101 R101 T3.15AH 250V C101 C101 F101 T3.15AH 250V F101 D104 D104 D103 D103 D102 D102 C103 D101 D101 C102 C103 C102 R137 R102 R103 R102 C105 R103 C105 C123 C125 C106 C127 IC101 C124 C106 R126 R105...
Page 262 +24VF +24V +5VD +5VD +5VD +5VA C588 Z0.1 R616 +5VD FAX TX Signal IC503 IC502 IC512 IC504 +3.3V/BATT +3.3V +5VD A[0] D[0] A[4] D[0] R618 FAX RX Signal A[0] D[0] A[1] D[1] A[5] D[1] TO POWER UNIT R520 A[1] D[1] A[6] D[2] A[2]...
Page 263 +5VD IC109 R173 R178 +24VA 820(2W) +5VA R127 R103 +12VA R157 R165 FAX TX Signal IC109 R109 R128 Q110 Q112 R145 R105 FAX RX Signal Q101 Q106 C164 R171 R181 R146 Q109 200k Q102 IC110 C178 R190 (TAX PULSE FILTER) +24VA R130 Q103...
Page 264 +5VD IC109 R173 R178 +24VA +5VA R127 820(2W) FAX TX Signal R103 R128 +12VA R157 R165 IC109 R109 R145 Q110 R105 Q112 FAX RX Signal Q101 Q106 C164 R171 R181 Q102 R146 Q109 200k IC110 C178 R190 R130 Q103 T101 +24VA (TAX PULSE FILTER) IC110...
Page 265 +5V2 +5V2 TO LCD CN302 TO DIGITAL LCD CONTRAST 1 GND CN301 RESET 2 +5V KSCLK 3 V0 KTXD 4 RS KRXD 5 R/W TO COB KLATCH KSTART 7 D0 R301 JOG1 1 JOG1 8 D1 R376 JOG2 2 GND 9 D2 +5V3 +5V2...
Page 266 Cycle = 12.4 µs T101 Cycle = 12.4 µs TRANS TH101 R107 300K/2 -55V CN301 R104 100K/1 D201 D102 D101 D106 C202 D103 D104 R128 1000p/1K Cycle = 12.4 µs R223 C205 Q101 R105 0.47/50 C102 0.22/2 270V IC201 R122 C103 D107 R125...
Page 267 (COMPONENT VIEW) PFUP1160Z (BOTTOM VIEW) PFUP1160Z...
Page 270 D126 D125 C214 C202 R223 R194 C591 C590 C181 R580 R579 R576 C182 C584 C582 R622 R572 R575 VLREF C581 R621 R637 R570 R569 MDAT R568 MCLK R566 MLAT R565 IC514 C225 R175 C224 R176...
Page 271 LCD MODULE ASIC CN302 KSL0~4 CN504 CN301 GATE ARRAY IC501 IC301 KIN0~6 XL11, 12 LED4 DOCUMENT TOP SW DOCUMENT SET SW DIGITAL BOARD OPERATION BOARD...
Page 272 SW501 C508 IC504 Q506 Q505 R525 IC521 R519 R524 C583 IC520 R572 R612 R546 Q509 R605 C566 PFUP1201ZA...
Page 273 CN502 CN506 CN505 J502 D502 Q511 PS501 R620 C509 R594 R619 R556 L518 IC506 1.25A F502 R506 Q501 IC508 C565 C502 CN510 R505 +24V IC502 R513 IC512 REF-CH Q503 D505 +5VD RA501 RA502 RA503 RA504 Q504 RA505 Q513 D506 IC507 RA506 +5VA R617...
Page 274 CN106 CN101 D127 Q121 D118 Q114 R139 IC102 PFUP1223YA...
Page 275 JJ105 J119 CN101 CN106 JJ160 D121 RL104 J102 JJ216 JJ161 PC102 J101 C166 JJ217 D122 JJ114 JJ108 C139 C145 JJ203 C223 JJ219 JJ209 JJ204 JJ220 JJ210 JJ103 JJ205 JJ112 JJ228 C150 JJ221 Q125 E C152 R155 PFUP1223YA R158 JJ102 PC103 JJ116 D112 PCB-CH...
Page 276 (COMPONENT VIEW) (BOTTOM VIEW) J321 R378 R377 R379 R303 C366 C311 C365 R305 J323 J322 R386 C314 LED301 R310 R318 J304 C310 R319 R311 J333 C361 LED302 C305 R312 J305 C364 J301 R320 J306 C363 C308 C309 R304 J335 R375 J336 J308 R302...

This manual is also suitable for:

Kx-fm189s

Panasonic KX-FM189BL Service Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Panasonic KX-FM189BL

Summary of Contents for Panasonic KX-FM189BL

This manual is also suitable for:
