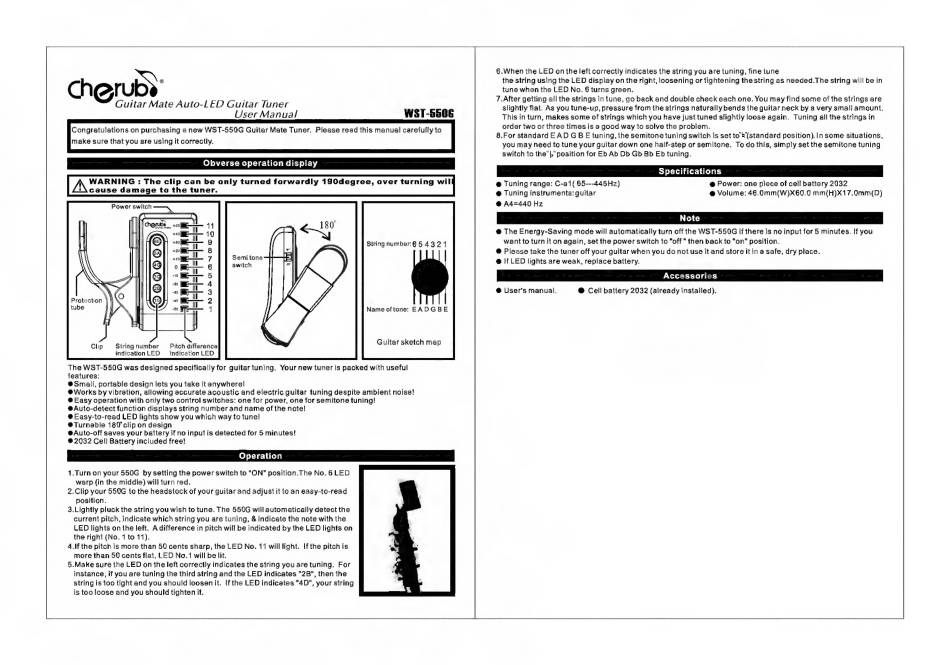

Cherub WST-550G User Manual

cherubs'
Guitar Mate Auto-LED Guitar Tuner
User Manual
WST-5506
Congratulations on purchasing a new WST-550G Guitar Mate Tuner. Please read this manual carefully to
make sure that you are using it correctly.
Obverse operation display
l
String number:§ 54321
Semi tone
pa S
AN WHOAN OE
ne oS
Name oftone: EADGBE
|
局
Clip String number Pitch difference Guitar sketch map
indication LED indication LED
The WST-550G was designed specifically for guitar tuning. Your new tuner is packed with useful
features:
Small, portable design lets you take it anywherel
Works by vibration, allowing accurate acoustic and electric guitar tuning despite ambient noise!
® Easy operation with only two control switches: one for power, one for semitone tuning!
@Auto-detect function displays string number and name of the note!
@Easy-to-read LED lights show you which way to tunel
@®Turnable 180 clip on design
@Auto-off saves your battery if no input is detected for 5 minutes!
2032 Cell Battery included free!
Operation
1.Turn on your 550G by setting the power switch to "ON" position. The No. 6 LED
warp (in the middle) will turn red.
2.Clip your 550G to the headstock of your guitar and adjust it to an easy-to-read
position.
3.Lightly pluck the string you wish to tune. The 550G will automatically detect the
current pitch, indicate which string you are tuning, & indicate the note with the
LED lights on the left. Adifference in pitch will be indicated by the LED lights on
the right {No. 1 to 11).
4.If the pitch is more than 50 cents sharp, the LED No. 11 will light. If the pitch is
more than 50 cents flat, LED No.1 will be lit.
5.Make sure the LED on the left correctly indicates the string you are tuning. For
instance, if you are tuning the third string and the LED indicates "2B", then the
string is too tight and you should loosen it. If the LED indicates "4D", your string
is too loose and you should tighten it.
6.When the LED on the left correctly indicates the string you are tuning, fine tune
the string using the LED display on the right, loosening or tightening the string as needed.The string will be in
tune when the LED No. 6 turns green.
7.After getting all the strings in tune, go back and double check each one. You may find some of the strings are
slightly flat. As you tune-up, pressure from the strings naturally bends the guitar neck by a very small amount.
This in turn, makes some of strings which you have just tuned slightly loose again. Tuning all the strings in
order two or three times is a good way to solve the problem.
8.For standard EAD GB E tuning, the semitone tuning switch is set to 4(standard position). In some situations,
you may need to tune your guitar down one half-step or semitone. To do this, simply set the semitone tuning
switch to the,' position for Eb Ab Db Gb Bb Eb tuning.
Specifications
@ Tuning range: C-a1( 65---445Hz) @ Power: one piece of cell battery 2032
@ Tuning instruments: guitar @ Volume: 46.0mm(W)X60.0 mm(H}X17.0mm(D)
@ A4=446 Hz
@ The Energy-Saving mode will automatically turn off the WST-550G if there is no input for 5 minutes. If you
want to turn it on again, set the power switch to "off" then back to on" position.
@ Please take the tuner off your guitar when you do not use it and store it in a safe, dry place.
@ |f LED lights are weak, replace battery.
Accessories
@ User's manual. © Cell battery 2032 (already installed).
