- Page 1 USER MANUAL 8-Zone Irrigation Controller Model No. HIC801W Welcome to the RAINPOINT family! Please read the manual before using to learn about the features and functions.
- Page 3 Contents Contents in the box Introduction 2.1 Product Overview 2.2 Button Introduction 2.3 Product Specification 2.4 Product Features Work On APP 3.1 APP Download 3.2 Irrigation Controller Connection 3.3 Irrigation Controller Installation App Features And Functions 4.1 APP Overview 4.2 Irrigation Controller Homepage 4.3 Basic Setting 4.4 Plan Setting 4.5 Single Zone Setting...

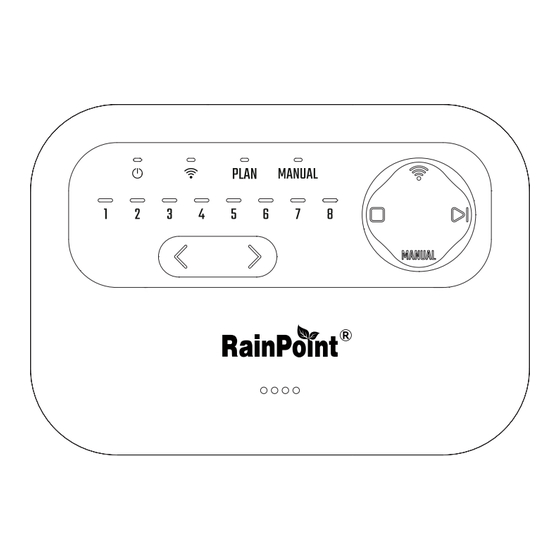

- Page 4 1. Contents in the box 1 X HIC801W 8-Zone Irrigation Controller 1 X Quick Guide 1 X Screws and Expansion Bolts 1 X User Manual 1 X Warranty Card 1 X AC Adaptor 2. Introduction 2.1 Product Overview Wi-Fi Pairing Button...
- Page 5 Test Button 2.2 Button Introduction BUTTON MODE OPERATE FUNCTION Test the connection status of Standby mode/ Zone Press for 2 valves from zone 1 to zone 8 selecting mode seconds pairing Standby mode/ Zone Press for 5 Enter into Wi-Fi pairing selecting mode seconds (Default: Automatic Pairing)
- Page 6 Up to 8 watering plans for each valve. Check watering plan on calendar. Track working status of valves based on weather forecast. 3. Work On APP 3.1 APP Download Search and download RainPoint Smart+ on: Or scan the QR code to download: Android -03-...
- Page 7 3.2 Irrigation Controller Connection Add device on the Home page, tap or "Add Device" on the Home page, and select the HIC801W. Or press scan QR code and enter into next step. Scan to connect 0250801100...
- Page 8 Select 2.4 GHz Wi-Fi and enter the password. Power the irrigation controller and press the button for 5 seconds. The Wi-Fi LED will flash quickly and start pairing. Flash quickly -05-...
- Page 9 Press "Next" to search the device. Search and find the device, rename it and save. -06-...
- Page 10 2.4GHz available all the time. AP mode to connect the irrigation controller lf you can not connect to the irrigation controller, please try AP mode: to add a device on the Home page, then select the HIC801W. -07-...
- Page 11 Select 2.4 GHz Wi-Fi and enter the password. Tap "Switch Mode" to the AP Connection Mode page. -08-...
- Page 12 Press the Wi-Fi button for 5 seconds until the Wi-Fi LED flashes quickly, then press "Next". Press the Wi-Fi button for 5 seconds until the Wi-Fi LED flashes slowly, then press "Next". -09-...
- Page 13 Connect your phone to the device's Wi-Fi. Tap "Go Connecting" to connect the phone to the "HomGar_XXXX" Wi-Fi network. Please REFRESH your Wi-Fi networks if you can not find "HomGar_XXXX". Select "HomGar_XXXX" Wi-Fi, then tap "←" back to app. Tap "Next" to continue. Note: Please check if your phone is connecting to 2.4 GHz Wi-Fi before you connect to the "HomGar_XXXX"...
- Page 14 Auto pairing. The irrigation controller will auto connect the Wi-Fi. If successful, the LED of Wi-Fi in the controller will always on, and the app will show as right. 3.3 Irrigation Controller Installation 3.3.1 Controller Installation Mount the screw on the wall and hang the irrigation controller from the screw. If necessary, use the included expansion bolts.
- Page 15 Connect the wires from the transformer to the AC terminals, or power the irrigation controller by AC adaptor included. When connecting the valve, please confirm whether the type of valve you purchased matches that of HIC801W. SUPPORT IN-PLACE TYPE SPECIFICATION...
- Page 16 Note: Each zone can only be connected with one wire. If there is a main valve, please connect the wires to the C and M zone on the left side of all zones. 4. App Features And Functions 4.1 APP Overview Home management: Rename your home, add or delete home members.
- Page 17 4.2 Irrigation Controller Homepage Setting: Basic setting of irrigation controller 8 Zones: Check the information of single zone Next plan: Check the next irrigation plan for 8 zones Plan: Set or manager the irrigation plan Manual: Set manual watering plans for 8 zones Sensor: Check and control the information from sensors Calendar: Check all date irrigation plan for different zones -14-...
- Page 18 4.3 Basic Setting Press "Setting" to enter into basic setting. Basic setting includes device name and device information. 4.3.1 Enable Zone Turn on "Main Valve" or "Enable Zone" to select the zone need to irrigate. -15-...
- Page 19 4.3.2 Sensor After connecting outdoor rain sensor, turn on "Rain Sensor" and select "Sensor Mode". 4.3.3 Valve Inspection Solenoid valve detection: After the device is connected to the valve, enable the in-place detection function to check whether the connection is correct. The green light is displayed correctly, and the red light is displayed incorrectly.
- Page 20 4.4 Plan Setting Press "Plan" to enter into plan page, press to set up plan. -17-...
- Page 21 Start time: Set daily irrigation start time. Duration: Set different irrigation duration for different zone. -18-...
- Page 22 Repeat: Set irrigation frequency from everyday, interval or customize. Note: Only one repeat mode can be chosen. When the interval is in hour, each zone can only be set one plan. In other repeat mode, each zone can be set 8 plans. Effective Date: Select the day to function the plan.
- Page 23 4.5 Single Zone Setting Zone Information: Press any zone to check the plan information. Zone Setting: Press on individual zone and enter into zone setting. 4.6 Manual Watering Setting Press "Manual" and enter into manual watering setting. -20-...
- Page 24 Select zone and set the watering duration. After setting, you can press to switch irrigation zone, or press to stop irrigation. Note: When you turn on manual watering, if there is a plan running or a plan will start during your manual watering time, it will skip that plan. -21-...
- Page 25 4.7 Rain Delay Setting Select zone and set the watering duration. Select the rain delay time and delay zone. Note: Rain delay applies to rainy days or other weather that causes high soil moisture. During the rain delay, the timer stops watering. After the rain delay is over, the timer will be executed according to the next watering plan.
- Page 26 4.8 Seasonal Adjustment Seasonal adjustment for more seasonal environmental conditions, adjust your irrigation time (range: 10%-200%) to meet your irrigation needs in different seasons. -23-...
- Page 27 4.9 Sensor Adding Add and pair the soil sensor. Set "Stop Plan" Moisture and Intelligent irrigation to stop or start irrigation when soil moisture reaches the setting value. -24-...
- Page 28 Note: Need to purchase and pair RainPoint Smart+ soil sensor “HCS021RFR” to use this function. 4.10 Calendar Press "Calendar" to check all date irrigation plan for different zones. -25-...
- Page 29 Tighten the screws when installing it on the wall. 7. Warranty Policy RainPoint provides a 1-year limited warranty on this product against manufactur- ing defects in materials and workmanship. Warranty service can only be performed by our authorized service center. The...
- Page 30 8. FCC Statement (FCC ID: 2AWDBxxxxxx) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
- Page 31 If you find it difficult to set up and want to watch the setting tutorial video, please subscribe to our channel RainPoint on YouTube. Or scan the QR code to visit the RainPoint channel on YouTube quickly. If the app and the user manual don’t have what you’re looking for, and need some help about Rainpoint, please contact us by LOT NO.: XXXXXX (on the back of the device)
- Page 32 Need Help ? Scan the QR code for more help. or Email： support@rainpointonline.com...
