- Page 1 HOW TO PUT THIS SH*T TOGETHER TUSHY Wave Non-Electric Bidet Seat hellotushy.com...
- Page 2 Congratulations! You’re minutes away from ultimate booty bliss. This manual will guide you step by step through your TUSHY Wave installation, turning your toilet into total self-care. Online video resources: (for our visual learners) http://hellotushy.com/wave...
- Page 3 Table of Contents Meet This Manual Meet Your TUSHY Wave Before You Start Prepare Your Toilet Connecting Your TUSHY Wave Know Before You Go How to Use Your TUSHY Wave Frequently Assked Questions Warnings & Safety Troubleshooting Warranty Contact Information...
- Page 4 *By signing up via text, you agree to receive recurring automated promotional, personalized marketing text messages (e.g. cart reminders), and bumderful puns from TUSHY at the cell number used when signing up. Consent is not a condition of any purchase. Reply HELP for help and STOP to cancel. Msg frequency varies. Msg & data rates...
- Page 5 Meet Your TUSHY Wave...
- Page 6 Included parts Base Plate TUSHY Wave (Attached to the bottom of the TUSHY) Tank Adapter Flexible TUSHY Hose (7/8” x 7/8” x 3/8" Compression) (3/8" x 3/8" Compression) Mounting Brackets Mounting Bolts Top-Mounting Rubber Inserts Bolt Washers Mounting Template...
- Page 7 (for any spills) Screwdriver Screwdriver Scan this code to watch our TUSHY Wave install video or go to hellotushy.com/wave T U S H Y T I P Keep all of these parts (and this manual) just in case you need...
- Page 8 Before You Start Warnings and safety Read all instructions before installing or using your TUSHY Wave. Failure to do so could result in property damage. Always turn off the water supply valves before installing or performing maintenance on your TUSHY Wave.
- Page 9 It is commonly found 1 8 . 5 " on newer toilets. Make sure your TUSHY Wave matches your toilet’s bowl shape. If they don’t match or if you are unsure, reach out to install@hellotushy.com and we’ll help you out.
- Page 10 2. Which type of toilet do you have? The Standard M O S T C O M M O N The Standard Toilet is the most common toilet you’ll find in the majority of residential homes. It typically has two pieces, consisting of the bowl and the tank, and has a flexible steel hose connection between the water supply and tank.
- Page 11 The Skirted W A T E R T A N K Skirted Toilets are a more modern, clean design that may hide the external tank connection. If you are able to access the tank connection, awesome! You shouldn’t have too much trouble. If you aren’t able to access the tank connection, check out hellotushy.com/waveskirted for tips on how to connect these toilets with the valve adapter.
- Page 12 At first glance, these toilets don’t look TUSHY compatible, BUTT... we have a hack for that. ;) If you have a flushometer toilet, check out hellotushy.com/ flushometer for guidance on how to connect these toilets relying on your sink with a valve adapter and longer hose.
- Page 13 The French Curve M A Y B E Do you oui oui in this type of potty? French Curve Toilets are one-piece toilets that are curved in the back. Though they are very high-end, they also tend to be hard to fit when it comes to any bidet seats or attachments.
- Page 14 3. Check your water connection F L E X I B L E R I G I D H O S E P I P E What kind of water connection does your toilet have? If you have a flexible hose (left), you’re good to go. If you have a rigid pipe, contact our Poo-Rus and we will send you a flexible pipe to replace it.
- Page 15 Your TUSHY Wave Inlet port Lid and seat sliding lock Quick release button Pressure knob...
- Page 16 Prepare Your Toilet Turn off your water supply valve S T E P 1 Turn off the water valve beside the toilet by turning it clockwise. T U S H Y T I P If the valve is tight, there may be some mineral buildup. In that case, try twisting in one direction and then the other, each time rotating a little further until it’s free to turn all the way around.
- Page 17 Remove the toilet seat S T E P 3 For most toilet seats, flip up the bolt caps behind the seat with a flathead screwdriver to access the bolts. Turn counterclockwise to loosen the bolts. Remove the seat and either store it (in case you ever need it) or bury it (in case you want to give your old seat a proper goodbye).
- Page 18 T U S H Y T I P You may need to hold the nut on the underside of the bolt with your other hand (using pliers or a towel if necessary) while unscrewing. If your toilet is dirty—hey, it happens!—it’s the perfect time to clean it! Got a unique quick-release or mounted toilet seat?
- Page 19 Connecting Your TUSHY Wave...
- Page 20 Make sure the black rubber gasket is inside the top of the adapter before screwing. Be careful not to overtighten! Screw the provided Flexible TUSHY Wave Hose onto the Tank Adapter’s side connection. Be careful not to overtighten!
- Page 21 Attach your TUSHY Wave Base Plate S T E P 5 to the bowl Insert the included Top-Mounting Rubber Inserts and Mounting Bolts into the toilet bolt holes until they are nearly flush with the surface. Keeping the Mounting Bolts inside the Rubber Inserts will provide a firm guide to push the rubber down into the holes.
- Page 22 Line up the included Mounting Brackets with the rough edges facing down on the Base Plate directly over the toilet bolt holes. The Mounting Brackets should click into the grooves in the Base Plate to stay in place. B A S E P L A T E M O U N T I N G H O L E S M O U N T I N G...
- Page 23 Slide your TUSHY Wave onto the Base Plate S T E P 6 Next, place your TUSHY onto your bowl in front of the Base Plate. You will notice that on the bottom of the main body there are two slots that will slide onto the Base Plate. Line those up with the Base Plate and slide towards the back of your toilet until it clicks into place and securely locks.
- Page 24 Check your TUSHY alignment No lip overhang or underhang If you need to adjust the position of your TUSHY, measure the amount of overlap at the front of your bowl so you can adjust the Base Plate accordingly. Sits flat on toilet bowl Make sure your TUSHY lies flat on your toilet bowl so the nozzle can function properly.
- Page 25 Centered on bowl Make sure your TUSHY is straight on the toilet bowl. Enough space for lid Make sure there is enough space between the TUSHY and your tank so the lid can open properly.
- Page 26 To adjust the TUSHY position, remove the TUSHY from the mounting plate by pressing the Quick Release button on the left hand side and pulling the TUSHY away from the tank. Then, loosen the Mounting Bolts and adjust the Base Plate until it is in the desired location before reattaching your TUSHY.
- Page 27 Take the elbow end of the Flexible TUSHY Hose attached to the Tank Adapter and screw it onto the inlet port of the TUSHY in a clockwise direction if you are facing the inlet port side of the bidet. Do not overtighten—finger tight should be right.
- Page 28 Check for leaks S T E P 8 This is a super important step so that we can avoid any leaks. Nobody wants that. Turn the water valve on and off slowly one time to check the water connections for any leaks. Be sure to touch each hose to ensure water isn’t running down them.
- Page 29 Your booty is now ready for the clean of a lifetime! If you have any questions or concerns at all, consult a plumber, email install@hellotushy.com, or text us at MYTUSHY to 794-54 (US only) or 1 (888) 599-8926 (Canada only), and we will be able to ASSist you.
- Page 30 Let the nozzle do its thing. If you get a little schmutz on the nozzle, don’t freak! The self-cleaning nozzle rinses itself off every time you use your TUSHY.
- Page 31 TUSHY at its top setting (especially for a long time) could cause irritation or other issues. TUSHY is meant to wash away the bad bacteria, not power wash the good bacteria. For best butt health practices, talk to your doctor.
- Page 32 Front cleansing mode. This ensures every spray is pristine when it hits your bottom! The nozzles will continue to self-clean everytime you use the TUSHY. To stop the water flow, turn the knob to its original position between the Rear and Front cleansing modes.
- Page 33 T O P V I E W Rear spray To wash your booty after pooping, turn the knob counterclockwise while seated (toward the toilet tank). The water pressure increases the more you turn the knob, and every house has different pressure. So go slow to start! Front spray Now do the opposite to clean your front.
- Page 34 Special functions / features Removable lid/seat The TUSHY Wave has a simple slide-on/off lid and seat for easy removal and cleaning. To remove the lid: Unlock the lid by lifting it upward and sliding the lock on the left hinge to the LEFT. Shift the left side of the lid back.
- Page 35 Removable lid/seat L I D R E M O V A L S E A T R E M O V A L...
- Page 36 TP and show them the bidet side of life. I need an extra doodad to install my TUSHY. What do I doo? Just like butts, there is a wide variety of toilets. In an effort to support our sustainability goals, we send you the standard parts in your TUSHY install kit that we anticipate you’ll need.
- Page 37 How do I clean my TUSHY bidet? You should clean TUSHY as frequently as you do your toilet. The TUSHY Wave has an easily removable lid/seat for fast cleaning around the hinges. Use a neutral PH mild cleaner to wipe down surfaces (avoid spraying directly onto your TUSHY) and manually pull down the nozzles.
- Page 38 Do not use this bag in cribs, beds, carriages, or playpens. This bag is not a toy. Do not attempt to open or perform internal maintenance on the TUSHY Wave as this could result in injury, and will impact the performance of the bidet as well as void the limited warranty.
- Page 39 2. Contact us to request a replacement adapter. 3. The TUSHY or hose may need to be replaced 3. Contact us to request (very rare). a replacement part or TUSHY. There’s no access to water 1.
- Page 40 TUSHY reserves the right to inspect the product to confirm that the issue is covered by this warranty. 4. TUSHY is not responsible for the cost of return shipping of this product. 5. This warranty does NOT apply to: •...
- Page 41 THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. TUSHY SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR A THIRD PARTY, OR FOR ANY OTHER EXPENSES NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE...
- Page 42 Contact Information: The TUSHY Poo-Rus We bend over backwards for your backside. Find a helpful bidet concierge every day at hellotushy.com — chat with a real pooping human! Support Center Self-service more your thing? Visit hellotushy.com/support Text Us Keep us in your back pocket!
- Page 44 Congrats, you put this sh*t together! Now cut out this ribbon and wear it. Credit where credit is doo!
- Page 45 Your prize? Some fun games: Bowel Movements Word Search diarrhea smelly painful pellets green solid snake soft serve tough scary splashy...
- Page 46 Aug - Peach Mar - Lava Cake Sep - Sphincter Apr - Balloon Knot Oct - Dumper May - Blossom Nov - Fart Box Jun - Hershey Squirter Dec - Caboose Share yours and tag @hellotushy to get a TUSHY surprise.
- Page 47 Bowel Movements Word Search: ANSWERS diarrhea smelly painful pellets green solid snake soft serve tough scary splashy...
Need help?
Do you have a question about the Wave and is the answer not in the manual?
Questions and answers

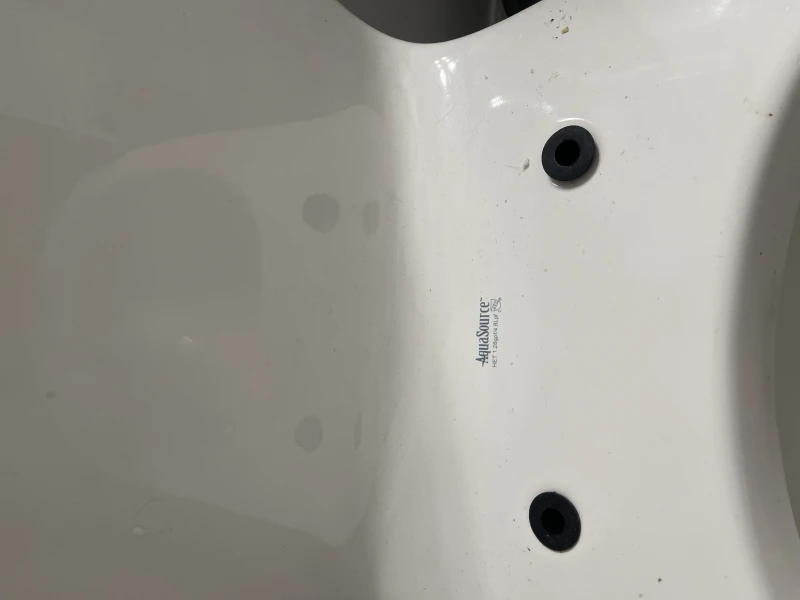

How do I uninstall the top Mount rubber inserts?
