HLA
Installation
Introduction

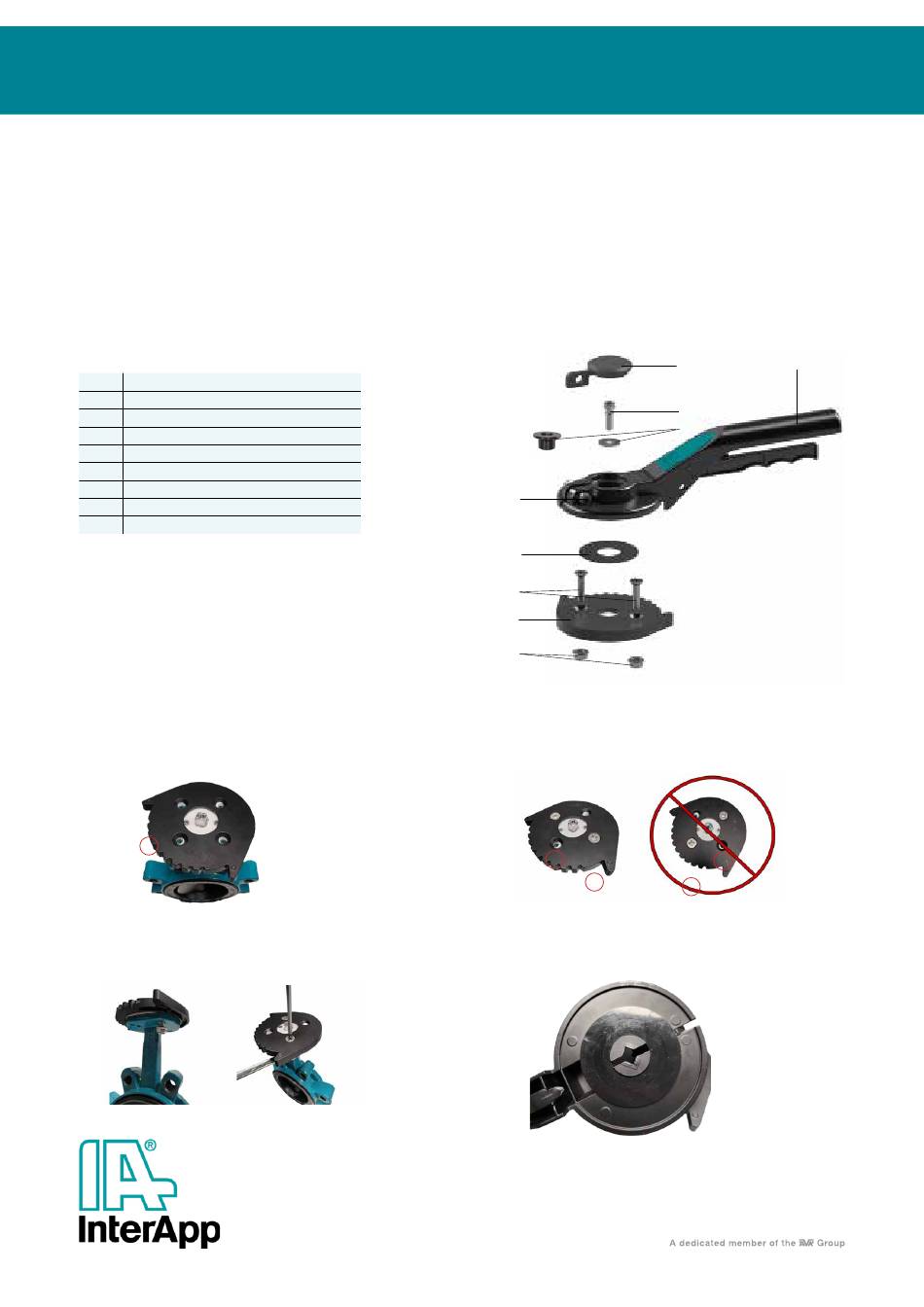

This instruction defines the assembly process for HLA-C1 hand levers.
Assembly
Components
1
Cap
2
Screw with captive washer
3
Washer / Extension*
4
Screw
5
Antifriction washer sticked to handle
6
Screws
7
Notch plate
8
Nuts
9
Hand lever
*In Desponia plus, the washer is replaced for an extension.
Step 1:
Align C (closing position) with valve body. Place notch plate
(7) on top of valve flange.
Step 3:
Place nuts (8) on the screws (6) and tighten (see the torque table
below).
*
Step 2:
Place screws (6) into the drills of the notch plate (7).
Step 4:
Ensure antifriction washer (5) is placed on handle.
1/2
Advertisement
Summary of Contents for InterApp HLA-C1
- Page 1 Installation Introduction This instruction defines the assembly process for HLA-C1 hand levers. Assembly Components Screw with captive washer Washer / Extension* Screw Antifriction washer sticked to handle Screws Notch plate Nuts Hand lever *In Desponia plus, the washer is replaced for an extension.
- Page 2 1.7 / 6 HLA.F0708.210-C1 HLA.F0711.210-C1 HLA.F0711.340-C1 HLA.F0714.340-C1 14.5 HLA.F0717.340-C1 The technical data are noncommittal and do not assure you of any properties. Please refer to our general sales conditions. Modifications without notice. © 2024 InterApp AG, all rights reserved www.interapp.net INSTALL-HLA-C_2410...
