Summary of Contents for ubiquoss GE-PON ONT C504LL

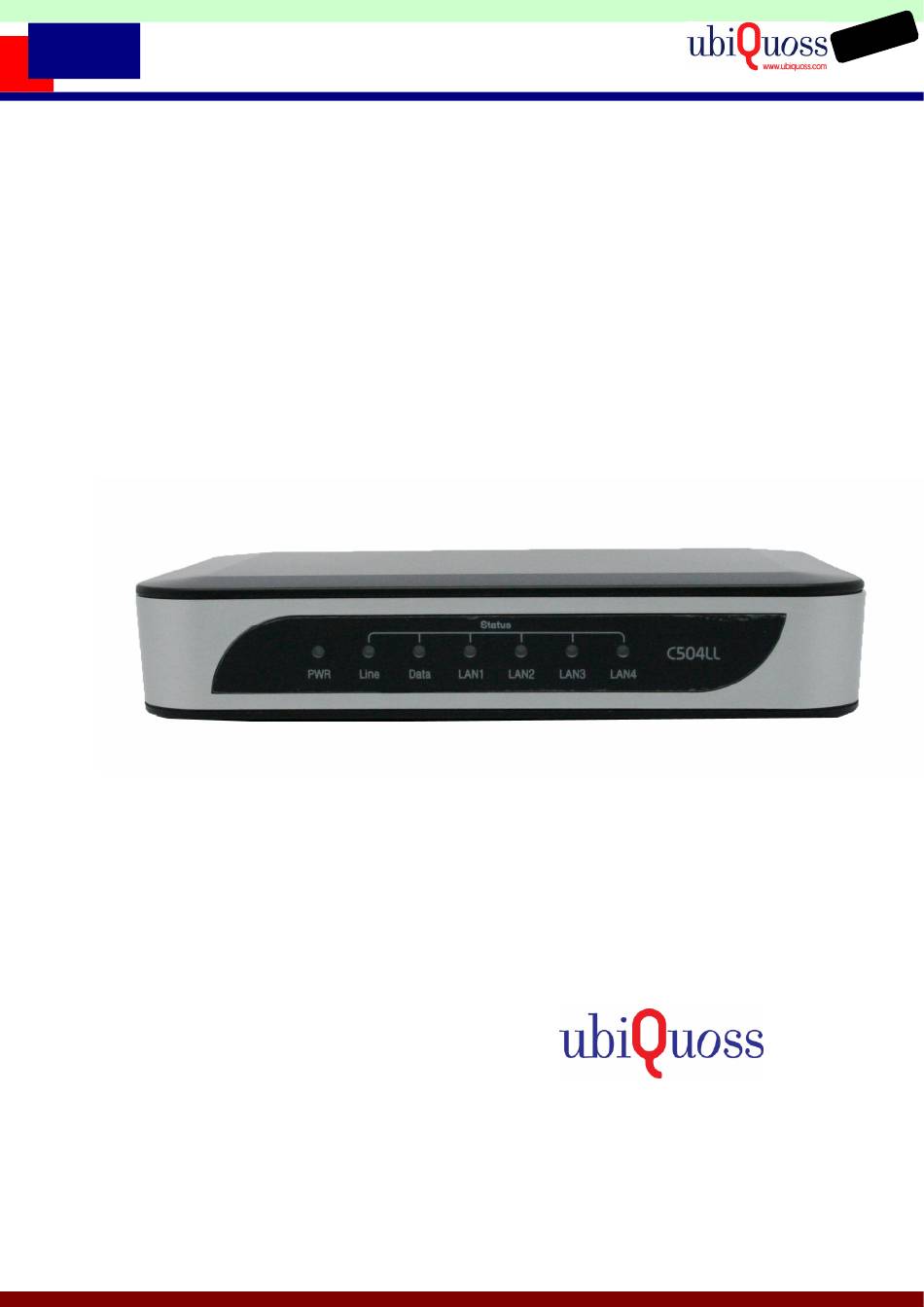

- Page 1 PON ONT GE-PON ONT 04LL Installation Guide ubiQuoss Inc. 24F Millennium B/D, 467-12 Dogok-Dong Gangnam-Gu, Seoul 135-700 Korea TEL: +82-70-8666-5000 FAX: +82-2-2190-3201 E-mail: oversea.team@ubiQuoss.com...

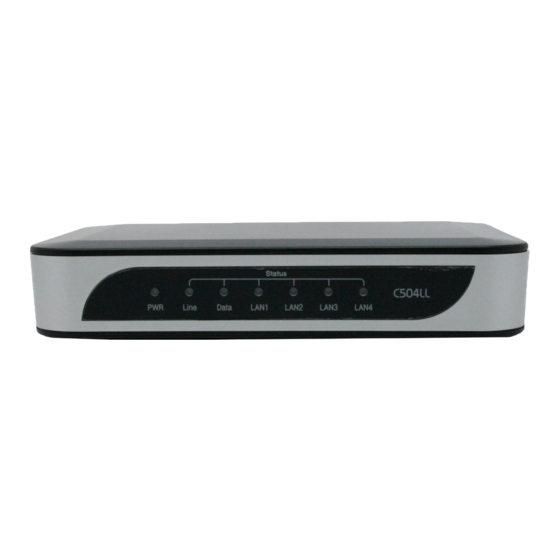

- Page 2 PON ONT Overview The C504LL is an ONT (Optical Network Terminal) based on EPON te chnology for home and small office. It supports 4 Gi gabit Ethernet (UTP, RJ45) ports to the subscriber. It is connected to GE-PON OLT (Optical Line Terminal) and RN (Remote Node) via a fiber optic cable to provide various servic C504LL is connected to the IP terminal devices such as a sub scriber’s home-...
- Page 3 PON ONT Contents of the Package User Guide RJ45 Cable Power Adaptor C504LL Precautions Warning Before y u install the C504LL, read this section. This section contains important safety information u should know before w orking with the system. Power Cons iderations ...
- Page 4 PON ONT Connecting Cables When you connect cables, note the following guidelines. Do not work on the system or connect or disconnect cables during periods of lightning activity. Working wi th Lasers If your system inc ludes a fiber-optic port, note the following guidelines. ...
- Page 5 PON ONT Installation Wa ning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. 1. Open the bottom cover panel. Grip the ONT upside down. Then pull the bottom cover panel up with your thumb and push it backw ard with the others at the same time.
- Page 6 PON ONT . Connect the rated power adaptor (5V 2A) provided together with C504LL main body. PON Splitter 6. Turn on the power switch. 7. Make sure that the PWR LED is ON. 8. Make sure that LAN LED is ON. 9.
- Page 7 PON ONT System Architecture Front Panel Name Color Status Function Actions to take Power Check Power switch at the GREEN Power OFF back panel-> Power adapter & power outlet Link Up (Normal Normal Operation GREEN BLIN Link Down. Opt ic signal O Call Service Provider Line (Every 1 sec)
- Page 8 PON ONT Rear Panel Indication Description Line 1.25G PON Port LAN 1~4 Gigabit Ethernet Ports 5.0V 2.0 A Power Terminal ON/OFF Power Switch...
- Page 9 PON ONT Troubleshooting: ymptom: Can not access to the Internet; Step 1 Make sure that the ONT is turned on. Once you turn on the power, the PWR LED on the front panel of C504LL should be turned on. If the PWR LE D is turned OFF, please check if the power cable is connected to the power inlet of ONT properly or switch of power strip if any is turned ON.
- Page 10 PON ONT Specification Item Description Standard IEEE 802.3ah Type Desktop System Architecture Size (mm) 180(W) x 135(D) x 40( Input: 110~220 V ±15%, 60 ± 3Hz Power Output: +5V, 2A (power ada ptor used) Consumption: Max 5.0W PON interface 1.25G 1000Base-PX, 1 Core SMF Available Interface User interface Four ports 10/100/1000base-Tx (IEEE 802.
- Page 11 PON ONT - Transmission distance: 10 Km or 20Km(Optional) Physical Optical charac teristics - Transmission q uality: BER 10-10 or lower Characteristics - Transmission level : -1~4dBm Dielectric resistance 100Mohm or higher (based on DC 500V) - IEEE Std 802.3™-2002 Carrier sense multiple access with collision detection (CSMA/CD) access method and ph ysical layer specifications...
