Summary of Contents for CueScript EMC15

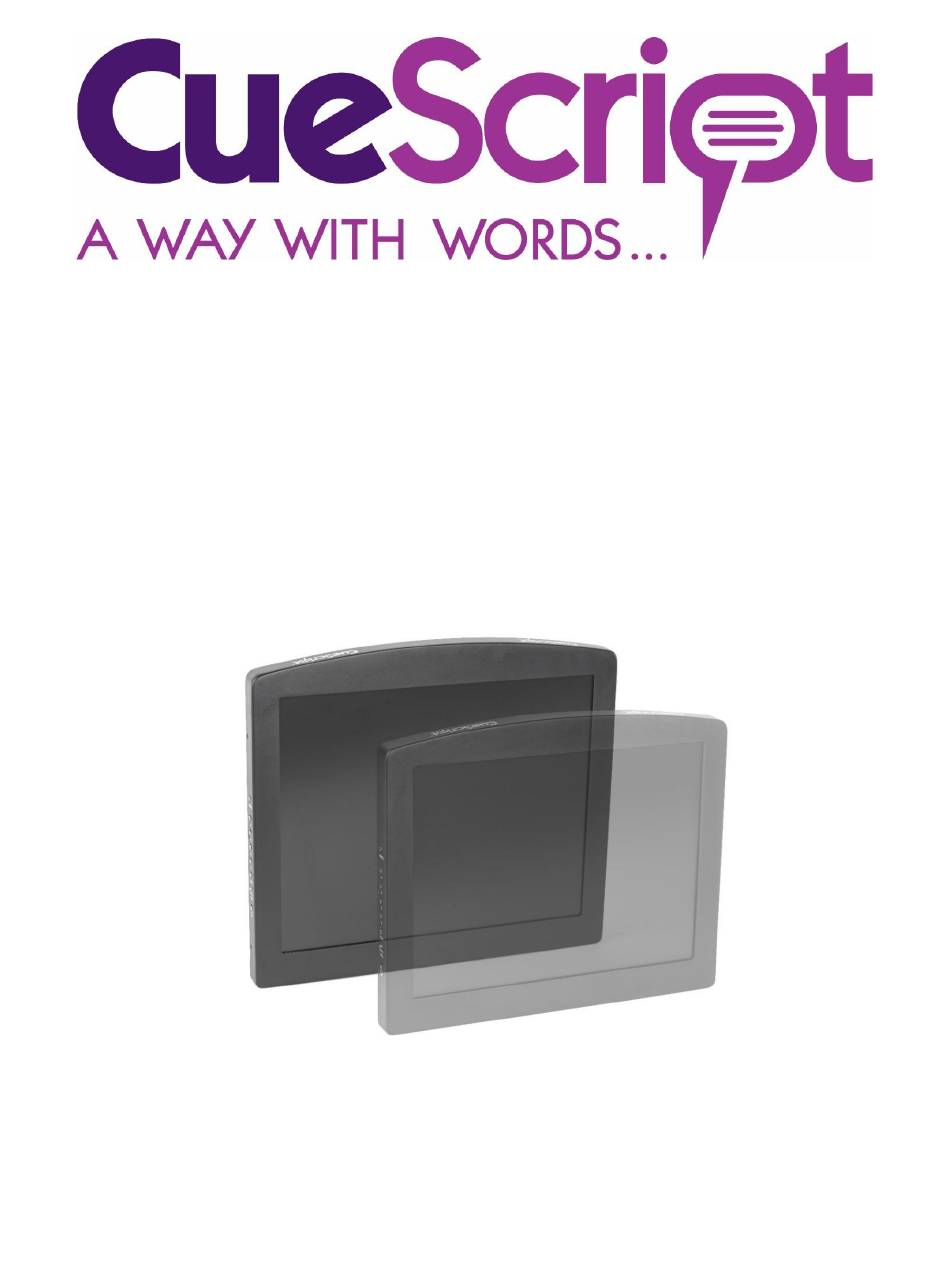

- Page 1 Installation and Operation Manual Next Generation On-Camera Prompter Displays Model EMC15 & EMC17 Prompter Monitors...
- Page 2 Contents 1.0 Introduction ............................... 3 2.0 CueScript EMC Prompter Monitors Features ....................3 Display Technical Specifications ........................4 Model EMC15 ............................4 Model EMC17 ............................4 4.0 Signal I/O ................................4 5.0 Power Requirements ............................5 6.0 Dimensions ................................ 5 Model EMC15 ............................
- Page 3 1.0 Introduction CueScript was created with a “clean slate” in order to design the most up to date prompters in the industry. These new low-profile prompters have all the state-of-the-art features demanded by professional prompter users. A quick, no-tools required, mounting system instantly installs the prompter to the mount.
- Page 4 1000:1 Viewing Angle 178°(H), 178°(V) Backlight Technology 4.0 Signal I/O All CueScript prompters are designed to accept most common video signals used in prompting. The following signals are compatible. Please contact CueScript for any special requirements. Input facilities • HDMI •...
- Page 5 5.0 Power Requirements CueScript EMC series prompter monitors are powered with 12VDC. The power consumed is a follows: • EMC15: Typ: 1.08A / 12.9Watts Max: 1.4 A / 16.9 Watts • EMC17: Typ: 1.27 A / 15.2 Watts Max: 1.6 A / 19.5 Watts 6.0 Dimensions...
- Page 6 Any missing items should be noted and brought to the attention of the shipper. Installation Requirements The following requirements should be observed when installing a EMC15 or EMC17 prompter. Do not exceed the maximum ambient temperature of 40°C / 104°F.
- Page 7 10.0 Connectors and Controls 10.1 DC Power The CueScript EMC Monitors require a regulated supply of 12 volts DC rated at 3 Amps. Alternatively, a battery with sufficient capacity may be used. Monitor Connector type: 2.5mm X 5.5mm Male coaxial plug Mating (cable) connector: 2.5mm X 5.5mm Female coaxial socket...
- Page 8 10.3 VGA In (RGB in OSD) Description: CueScript EMC series prompters have a PC compatible VGA input. The prompter will automatically scale the input resolution to the screen native resolution. Monitor Connector type: 15 pin High Density D socket Pin connections are standard VGA.
- Page 9 C. Menu keys There is a group of four buttons arranged as Up and Down, and Left and Right. The operation of these buttons for the on-screen display is as follows: EMC15 & EMC17 Monitors Manual...
- Page 10 • Exits a OSD sub menu RIGHT ARROW • Backlight Adjustment (default) • Moves the OSD selection • Increments the OSD item value LEFT ARROW • Volume Adjustment (unused) • Moves the OSD selection • Decrements the OSD item value EMC15 & EMC17 Monitors Manual...
- Page 11 Adjust color temperature of the screen’s image. Color Mode: Warm / Medium / Cool / User Red; Green; Blue 0 ~ 100 Backlight Adjust the backlight of the screen. 0 ~ 100 Auto Colour Applied only to VGA (RGB Input) EMC15 & EMC17 Monitors Manual...
- Page 12 [Note] Enabled sources from Source Setting can be searched via “Auto Source” mode. Source Setting does NOT affect Manual Source Selection. Mute (unused) ON / OFF (unused) Volume (unused) 0 ~ 100 (unused) Restore Default Initializing that memory by factory presetting except OSD language (Yes / No) EMC15 & EMC17 Monitors Manual...
- Page 13 Detect the valid input source automatically. (On, Off) 3DNR Select NR mode. (Off, Strong, Standard, Weak) Advanced (VGA / RGB only) H-Pos: 0 ~ 100 V-Pos: 0 ~ 100 Clock: 0 ~ 100 Phase: 0 ~ 100 Auto: Auto Adjust EMC15 & EMC17 Monitors Manual...
- Page 14 KeyPad Up (RIGHT ARROW button): Backlight (default) KeyPad Down (RIGHT ARROW button): Volume (default) Options: Backlight, Volume, Contrast, Flip/Flop, Image Flip, Image Mirror, Mute, Mono, Colour Channel, Red Only, Green Only, Blue Only, Zoom Other Unused EMC15 & EMC17 Monitors Manual...
- Page 15 13.0 EMC Compliance The CueScript EMC15 & EMC17 series prompter monitors have been tested by TUV Rhineland and are compliant with the following standards: 13.1 Guidance Documents Emissions: EN55103-1:1996 Immunity: EN55103-2:1996 13.2 Test Methods Emissions: EN55022:2010 & FCC Part 15...
- Page 16 The CueScript model EMC15 & EMC17 prompter monitors are not user serviceable. Please return to CueScript in the event that servicing is required. After any servicing, the CueScript service centre will re-test each prompter to ensure product safety is intact.
- Page 17 555 Lordship Blvd Unit 15, First Quarter Business Park Stratford Blenheim Road CT 06824 Epsom, Surrey KT19 9QN T: +1(203) 763 4030 T: +44 (0) 20 3757 8880 24 Hour Support: +1(203) 692 4856 support@cuescript.tv www.cuescript.tv EMC15 & EMC17 Monitors Manual...
