Summary of Contents for Dripex F801A

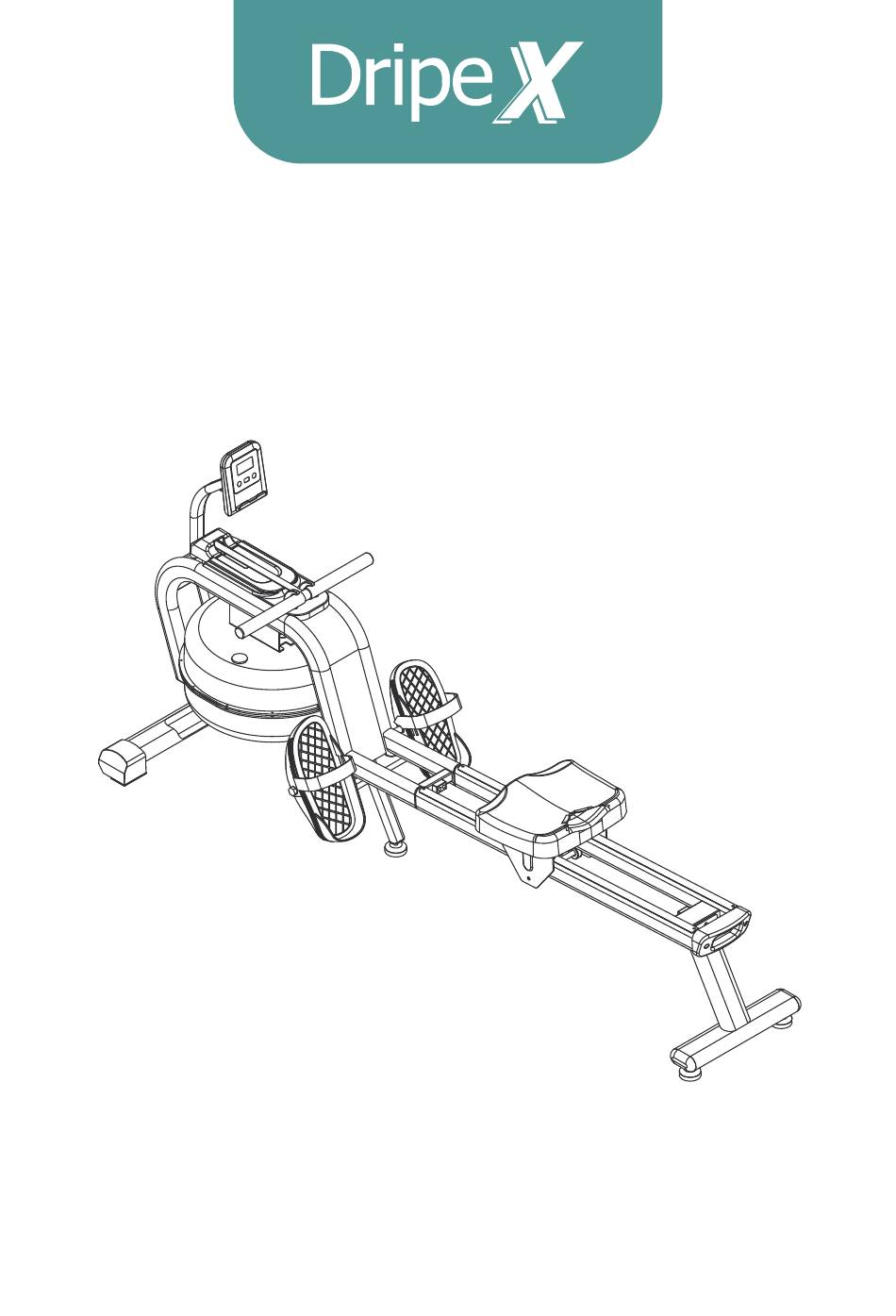

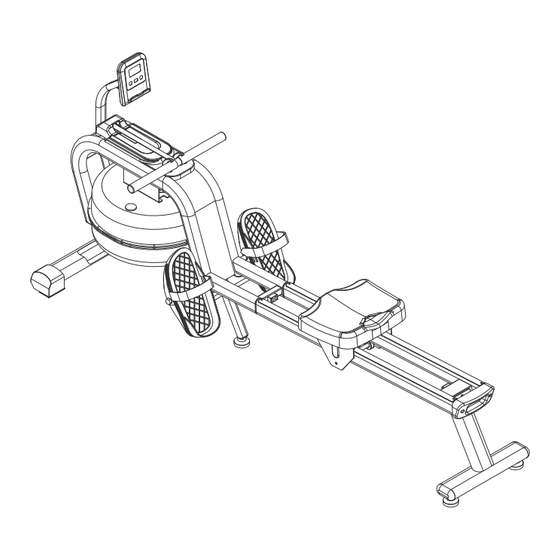

- Page 1 F801A Dripex Water Rowing Machine User’s Manual...
- Page 2 Table of Contents Safety Information Parts List Assembly Instruction Exploded Drawing Adjustment Instruction 8-10 Maintenance 11-12 Monitor Instruction 13-14 Customer Support...
- Page 3 1. We recommend consulting a physician before starting out with an exercise program. Please read all instructions before using the Dripex Water Rowing Machine. Great care has been taken to design these instructions and following them will help you with quicker assembly and minimize the risk of injury. It is important that you keep these instructions for future reference.
- Page 4 Button Head Allen Bolt M6*15 Positioning Axle Pan Head Machine Screw M5*15 Monitor Holder Flat Washer Seat Wave Washer Left Pedal Spring Washer Right Pedal Multi-Function Wrench S=10/13/17/19 Rear End Cap Allen Wrench 30*68/S5 User’s Manual Funnel Purification Tablets Syphon Pump dripex.co.uk@outlook.com...
- Page 5 Stablizer (A4) to the Rail (A2). 2. Use the Allen Wrench(T2) supplied, and Pan Head Machine Screw (38) to fasten the Rear End Cap (A10) onto the Rail (A2). 3. Carefully slide the Seat (A7) into the Rail (A2)，as shown. dripex.co.uk@outlook.com...
- Page 6 2. Connect the Rail (A2) to the Main Frame (A1) and tighten with the Allen wrench (T2), Hex Bolt (29) Spring Washer (52) and Wave Washer (50) supplied. 3. Use the Allen Wrench(T2), Hex Bolt (29), Spring Washer (52) and Flat Washer (48) supplied, fasten the Positioning Axel (A5) on the Main Frame (A1) as shown. dripex.co.uk@outlook.com...
- Page 7 (A8) as well as the Right Pedal (A9) and tight them properly. 2. Connect the Wire as shown and plug them into the hole nearby. 3. Use the Allen Wrench (T2) supplied and the Button Head Allen Bolt (33) to fasten The Monitor Holder(A6) to the Main Frame (A1) dripex.co.uk@outlook.com...
- Page 8 Exploded Drawing dripex.co.uk@outlook.com...
- Page 9 Self Drilling Phillips Countersunk Screws ST4.2*19 Pedal Strap Self Drilling Phillips Countersunk Screws ST4.2*19 Multi-funtion Wrench S=10/13/17/19 Self Drilling Phillips Countersunk Screws ST4.2*25 Allen Wrench Self Drilling Phillips Countersunk Screws ST4.2*15 Funnel Flat Washer d3*D6*1.0 Syphon Pump Flat Washer d5*D10*1.0 dripex.co.uk@outlook.com...
- Page 10 The adjustable pad underneath the Rear Stablizer (A4) can be adjusted to help the machine land safely and stable. Storage Your Dripex Rowing Machine can be stored upright. Carefully hold the Rear Stablizer (A4) with both hands, Pull the machine towards you and use the momentum to stand it in an upright position.
- Page 11 3. Empty：Conversely, put the shorter pipe A into the tank and the longer pipe B into the container prepare. Pumping C to draw the water out of the tank. 4. Replace the Plug (63). 5. Remove the Pump Cover D to release the water inside. dripex.co.uk@outlook.com...
- Page 12 NOTE - Fill the tank with ordinary municipal water. Municipal water contains additives which will deter the growth of algae. If municipal water is unavailable, use distilled water (do not use well water). Unless using blue dye, add the purification tablet supplied. dripex.co.uk@outlook.com...
- Page 13 Maintenance OPERATION The Dripex Water Rowing Machine is unique in using the effect of drag to provide an exercise which is entirely self-paced. Because drag is linked to speed, a crew rowing down a river chooses its intensity of exercise simply by altering the pace at which they row: the faster the boat travels the greater the drag and the harder the crew must work.
- Page 14 Traning Guidelines To ensure you get the maximum benefit from training on your Dripex Water Rowing Machine and to avoid unnecessary problems or injuries here are a few guidelines: ▪ A health check before starting an exercise program.
- Page 15 SPECIFICATIONS SPECIFICATIONS: AUTO SCAN Every 4 seconds TIME 00:00-99:59' TRIP DISTANCE 0.00-9999(ML)KM FUNCTION CALORIES 0.0-999.9kCAL COUNT 0-9999 T.COUNT 0-9999 BATTERY TYPE 2pcs ofSIZE -AAA or UM-4 OPERATING TEMPERATURE 0°C ~ +40°C STORAGE TEMPERATURE -10C ~+60°C dripex.co.uk@outlook.com...
- Page 16 2. The monitor will enter into sleep/power saving mode after 4 mins without rowing or pulse input 3. The monitor will turn on when starting to rowing or push button w/signal in. 4. The monitor will start calculating when you start to rowing and will stop when you stop for 4 seconds . dripex.co.uk@outlook.com...
- Page 17 • Precise description of the issue / defect. The best way to contact us is via our official customer service email: dripex.co.uk@outlook.com IMPORTANT Please retain your sales receipt, Dripe X Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase.
- Page 18 Model: F801A Company: Xiamen Zroll Industrial Co., Ltd. E-mail: dripex.co.uk@outlook.com Address: 3rd Floor, Building A, No. 529 Xinmin Avenue, Tong'an District, Xiamen, China. Accord With EN957 MADE IN CHINA...
