RiDom Ri-R-1i Installation Manual

Repeater «Ri-R-1i»
Installation guide
1 GENERAL INFORMATION
1.1 Repeater «Ri-R-1i» (hereinafter – Ri-R-1i) is used to relay information
from wireless security and fire detectors or other terminal devices
(hereinafter – TD).
1.2 Ri-R-1i operates as part of the smart home security system RiDom,
communicating with the «Ri-HUB-1» control center (hereinafter referred
to as the Hub) via the «Ri-Contact-Ri» radio channel protocol.
1.3 Ri-R-1i does not require any official licensing or registration as a
radio frequency device.
1.4 The Ri-R-1i is powered by AC mains with a nominal voltage of 230 V,
50 Hz or 110 V, 60 Hz.
1.5 Ri-R-1i remains operational in the supply voltage range of 85–305 volts.
1.6 Ri-R-1i generates two types of notifications:
- normal status;
- opening of the case;
- failure of the main power supply;
- failure of the backup power supply.
1.7 Ri-R-1i recharges the battery (except for the loader mode). The
battery will not charge when the voltage is below 2.5 V or the ambient
temperature is below 0°C.
1.8 The frequency of regular radio exchange sessions with the
transmission of the status is set by a command from the Hub from for the
range of 10, 15, 30, 60 seconds, 2, 5, 10 minutes.
1.9 The Ri-R-1i is designed for continuous 24/7 operation
1.10 Ri-R-1i is resistant to electromagnetic interference..
2 SPECIFICATIONS
Table 1
Parameter
Frequency range
Radiation power, no more
AC supply voltage range
Maximum power consumption
Battery charging range
Battery operation time, not less
Protection class
Dimensions
Weight
Average service life
Operational conditions
Operating temperature range
Permissible air humidity at a temperature
of +40 °C, without moisture condensation
3 SCOPE OF SUPPLY
Table 2
Name
Repeater «Ri-R-1i»
Antenna
Screw 3-3x30.016
Dowel NAT 5x25 SORMAT
Installation guide for the «Ri-R-1i»
ATTENTION! Only persons with a safety qualification group III
at least and having a permit to work with voltages up to 1000 V
are allowed to work on the installation and maintenance of
the Ri-R-1i.
4 SAFETY MEASURES
4.1 When installing and operating the Ri-R-1i, the «Rules for technical
operation and safety regulations for electrical installations up to 1000 V»
must be observed.
4.2 The power terminal block is the source of dangerous voltage.
4.3 Installation and dismantling should be carried out with the power off
and the battery removed.
4.4 Linking and checking the quality of communication should be carried
out only from the battery.
4.5 When installing the battery, observe the correct polarity indicated
in pic. 1.
5 VIEW AND DESIGN
The appearance of the Ri-R-1i with the cover removed is shown in Figure 1.
The base of the body (1) contains:
- two openings (2) for installation of the Ri-R-1i to the mounting surface;
- opening (6) for attaching the case cover;
- opening for antenna installation (7);
- a cutout (15) for laying the power wire.
The following elements are located on the printed circuit board (3):
- BOOT contacts (4) for updating the firmware using a USB-UART converter;
- case opening sensor (5);
- antenna connection block (8);
- red LED indicator (9);
- green LED indicator (10);
- battery holder (11);
- battery (12) with an insulator;
- pin contacts START (13);
- AC terminal block (14).
Value
865...867 MHz
25 mW
85–305 V,
6 EXTERNAL CONNECTION
50/60 Hz
The power wires must be double insulated with a cross section of
1,5 ВA
0.75 to 1.5 mm
0... +45 C
о
7 INDICATION
24 hours
Table 3
IP30
65х66х28 mm
0,2 kg
External power supplied
10 years
-20... +45 С
о
Up to 93 %
Qty.
1 pc.
8 CHOOSING THE PLACE OF INSTALLATION
1 pc.
Ri-R-1i is designed for indoor installation only.
2 pc.
It is recommended to mount the Ri-R-1i so that the antenna orientation
remains vertical.
2 pc.
Do not install Ri-R-1i under the following conditions:
1 copy
1. On massive metal structures and closer than 1 m to them;
2. Closer than 1m to metal water pipes;
3. Near sources of radio interference;
4. Inside metal structures.
5. Outdoors.
6. In rooms with temperature and humidity outside the allowable.
1 2 3 4 5
BOOT
RTR isp2
v10.2_R
15

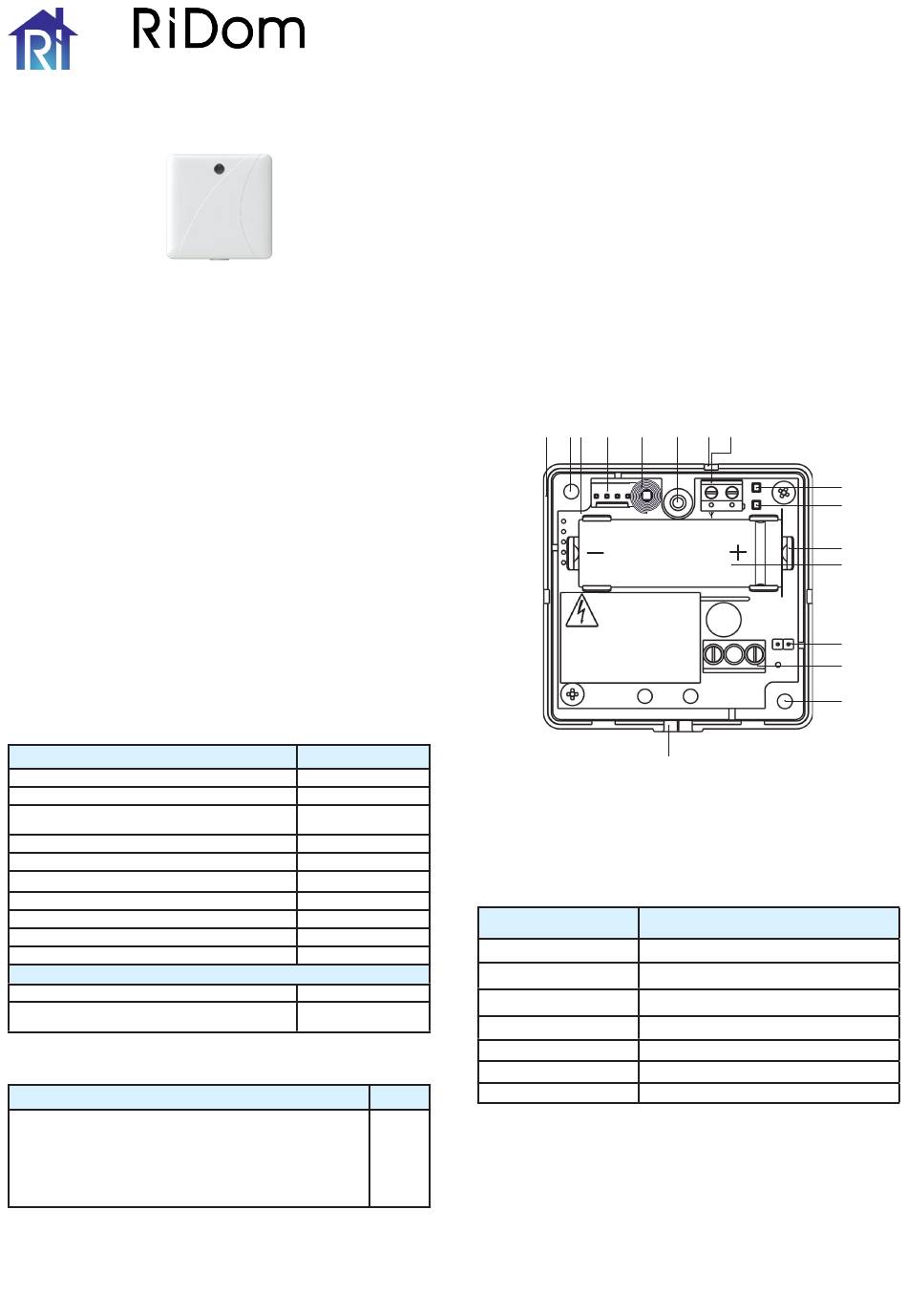

Picture 1 – «Ri-R-1i», front view with removed case
.
2
LED mode
«Linking»
«Linking » complete Short-term (2 s) turning on of the red LED
«Identification» single red indicator light with a period of 4 s
indication
Loader
«Connection quality»
6 7 8
9
10
11
12
13
START
14
N АС L
RoHS 2
Indication
Continuous green LED light
Intermittent green LED light
Alternating green and red LEDs
Turning on the red LED
See table 4
