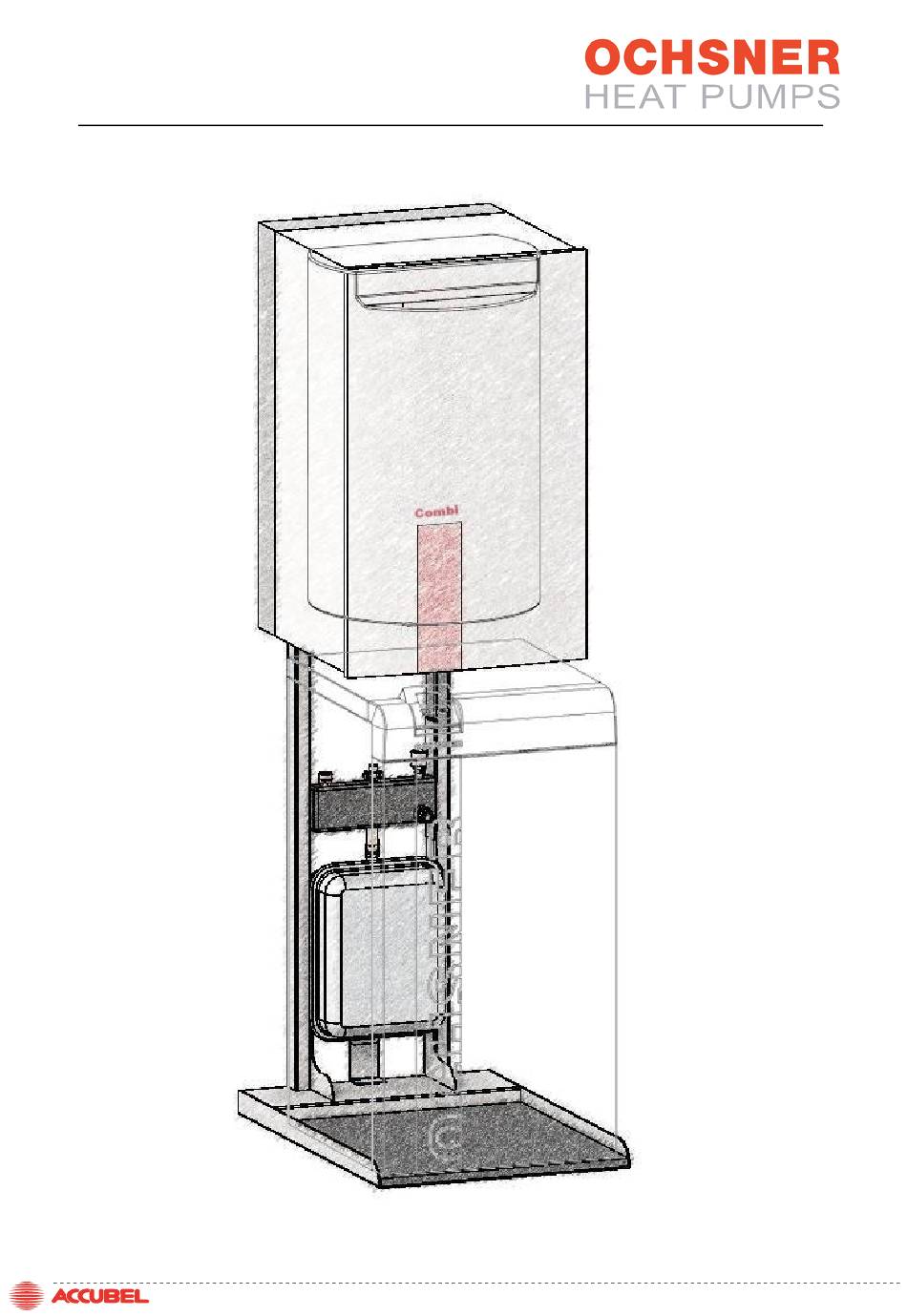

Installation Instructions
Supporting framework and storage tank
Combi-Universal
_____________________________________________________________________________________________________
OCHSNER Wärmepumpen GmbH; Ochsner-Straße 1; A 3350 Haag
Tel.: +43 (0) 5 04245 - 8
Art.No.: 290206
Industriestrasse
B-
Eupen
Tel.:+
Fax:+
info@accubel.be
www.accubel.be
28
4700
32(0)87 59 16 50
32(0)87 59 16 55
Advertisement
Related Manuals for ACCUBEL Ochsner Combi-Universal
Summary of Contents for ACCUBEL Ochsner Combi-Universal
- Page 1 Supporting framework and storage tank Combi-Universal _____________________________________________________________________________________________________ OCHSNER Wärmepumpen GmbH; Ochsner-Straße 1; A 3350 Haag Tel.: +43 (0) 5 04245 - 8 Art.No.: 290206 Industriestrasse Eupen Tel.:+ Fax:+ info@accubel.be www.accubel.be 4700 32(0)87 59 16 50 32(0)87 59 16 55 ...
- Page 2 Introduction This appliance conforms to the fundamental Due to continuous further development of our requirements of the applicable European products, illustrations, functional steps and guidelines. technical data can deviate slightly from those in this manual. The conformity has been tested and proved. The applicable documents and the original declaration of conformity are filed at the Document updating...
- Page 3 Contents Explanation of symbols ........................3 Safety pointers ..........................3 Guarantee ............................3 Product description ........................4 Range of application and use ....................4 Construction .......................... 4 Scope of delivery ........................4 Dimensions and weight ......................4 Installation ............................6 Regulations ...........................
- Page 4 Explanation of symbols Risk of injury / Damage to system Pointer Indicates a potentially dangerous User tips for optimum adjustment i i i i situation, which could lead to and use of the appliance. Other average or light bodily injury or useful information.
- Page 5 Product description Range of application and use (1) Supporting frame: Stable steel-frame construction with expansion The supporting frame-storage tank unit, vessel, air separator, expansion valve coupled with an OCHSNER-heat pump forms connecting sleeve, manometer, safety valve the Combi-Universal unit. The Combi-Universal and automatic venting valve.
- Page 6 Frontal view (with Golf Maxi) Rear view (with Golf Maxi) Side view (with Golf Maxi) Plan view (with Golf Maxi) 20080623_Montageanleitung Combi Universal EN...
- Page 7 Installation Regulations In order to prevent continuous loss of energy, we do not recommend installing a circulation The relevant local guidelines, regulations and pipeline. codes of practice (e.g. DIN, EN, VDI) must be OCHSNER continuously endeavours adhered to! i i i i to use high quality components in order to prevent system damage such as leaks.
- Page 8 Connecting the water-bearing pipework Storage tank connection apart from Pos. 20, ready for installation and is to be executed on site for a heat pump return The relevant local guidelines, regulations and coming from the right or from the left. The codes of practice must be adhered to! double nipple Pos.
- Page 9 Maintenance The supporting frame and the hot water The maintenance of the heat pump is to be storage tank are essentially maintenance free. carried out according to the to the heat pump installation instruction manual. The safety valve and the automatic bleeder valve are to be checked Ensure that the hot water tank, the connected regularly for function and seal.
- Page 10 10 Components list Supporting frame and connection unit Pos. Order.-No. Description Quantity 915393 Supporting frame 1 piece 922390 Expansion vessel 1 Piece 924041 Air separator 1 Piece 917136 Self-adhesive insulation for air separator 1 Piece 922240 Safety valve ½“ with manometer 1 Piece 922389 Rapid bleeder IV10R...
- Page 11 Storage tank unit Pos. Order.- Description Quantity 920436 (a) Cover 1 Piece (b) 150 l stainless steel tank and standard copper register incl. EPS half-shell insulation and flow and return pipework (c) Supporting frame with 4 self-tapping cross-headed screws 3,8x13 (d) Supporting bracket 923181 Screws M10x40...
- Page 12 1 Piece 914275 Clamping ring screw joint 15 mm to ½“ ext. thread (not illustrated) 2 Pieces 20080623_Montageanleitung Combi Universal EN Industriestrasse Eupen Tel.:+ Fax:+ info@accubel.be www.accubel.be 4700 32(0)87 59 16 50 32(0)87 59 16 55 ...
