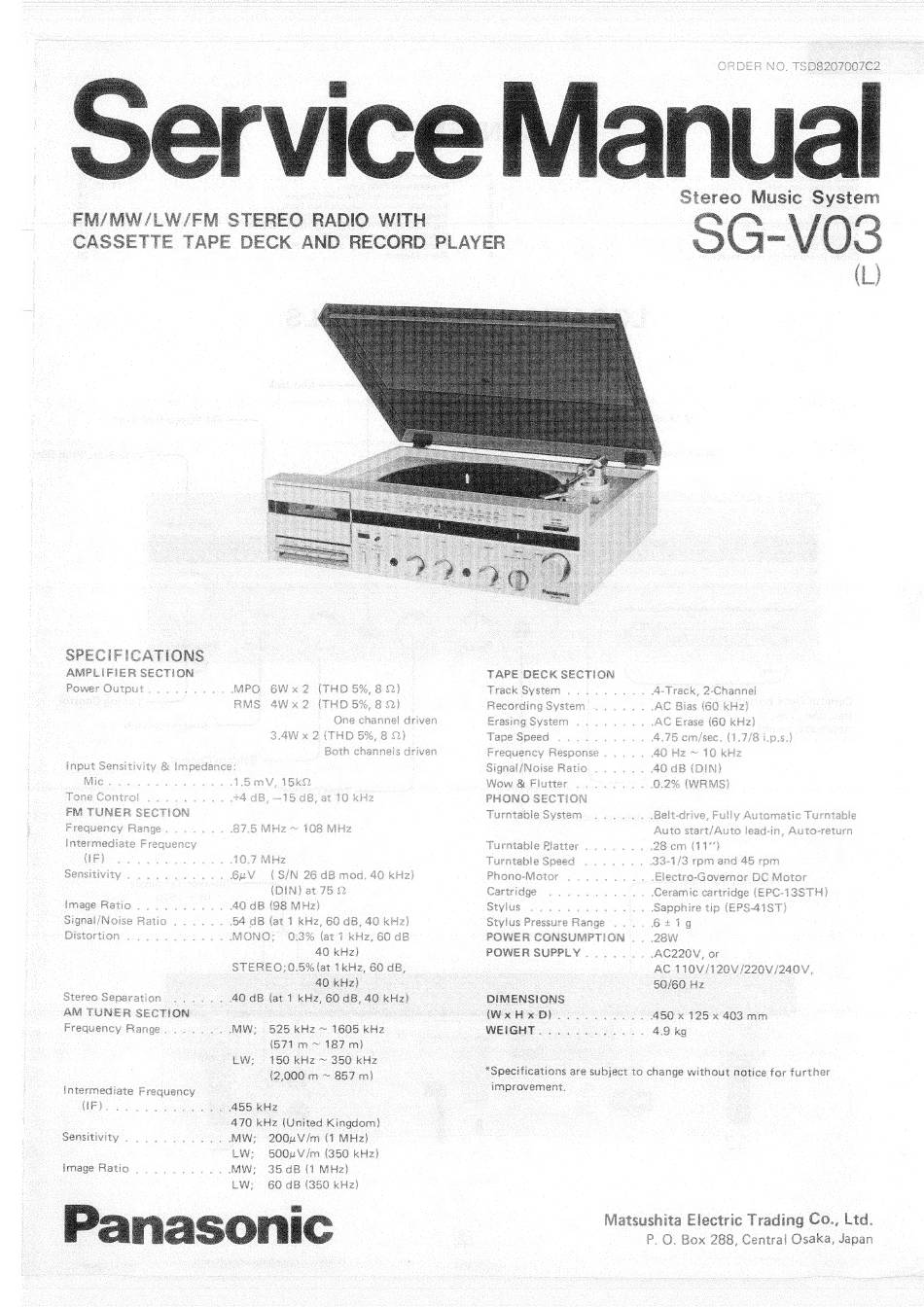

Panasonic SG-V03 Service Manual

FM/MW/LW/FM STEREO RADIO WITH
ER NO. +$08207007C2
CASSETTE TAPE DECK AND RECORD PLAYER
SPECIFICATIONS
AMPLIFIER SECTION
Power Output... 2.0... MPO. 6W x 2(THD 5% 89}
: RMS 4Wx 2 (THD 5%, 8 Q)
One channel driven
3.4W x 2 (THD 5% BO)
. Both channels driven
input Sensitivity & Impedance:
MiG ek ee n e ee LG MV, 15K
Fone Control oo... ew es +40B,-15 08, at 10 kre
FM TUNER SECTION
Frequency Range... 6. 87.5 MHz ~ 708 MHz
intermediate Frequency
er eee Gl ne te 10.7 Maz
Sensitivity... oo. ee. .. BuV¥ (8/N 26 dB mod. 40 kHz)
(DIN) at 75 2
Image Ratio 0 ee 40 dB (98 MHz)
Signal/Noise Ratio .. 2... .54dB lat? kHz, 60 dB, 40 kHz}
Distortion sero ie oe MONO: ":0% (at 1} kHz, GO dB
40 kHz)
STEREO: 0. Bi lat TkHz, 60 dB,
8 a 40 kHz) a
Stereo Separation 2.0... 40 dB fart kHe, 60 aB, 40 kee) a
AM TUNER SECTION
Frequency Range 2.0 2. MW: 595 kHz ~ 1605 kHz
(687i m~ 187m)
LW: 180 kHz ~ 350 kHz
— (2,000 m ~ 857 m)}
Intermediate Frequency —- :
Ug ee (2 ABB KHZ
'470 kHz (United Kingdom}
Sensitivity. ee, AW, 200uUV/m (1 MHz)
LW: BO0uV/m (S50 kHz)
Image Ratio 202 ee MW; 35 dB (1.MHz}
LW; 60dB (350 kHz)
Panasonic
TAPE DECK SECTION
Track Systerm ooo... ... 4-Track, 2-Channel
Recording System 0.00. AC Bias (60 kHz}
Erasing System oo. A Erase (60 kHz)
Tape Speed .......... 4.78 em/sec. (1.7/8 Lows.)
Frequency Response . .. 40 Hz-~ 10 KHz
Signal/Noise Ratio ...... 40dB (DIN)
Wow & Flutter o.oo. 6.2% (WRAMS)
PHONG SECTION
Turntable System. 0... .Belt-drive, Fully Automatic Turntable
Auto start/Auto lead-in, Auto-return
Turntable Platter... 0... 28cm (11°)
Turntable Speed | . 0... . .85-1/2 rpm and 45 rom
Phono-Motor ........0.. Electro-Governor DC-Motor
Cartridge ow k e ee Ceramic cartridge (EPC-13STH)
STYIUS ea ee Sapphire tip (EPS-415T}
Stylus Pressure Range 0... G 21g
POWER CONSUMPTION |. 26W
POWER SUPPLY... ... . .AC220V, or
AC 110V/120V/220V/240V,
OO
50/60 Hz
DIMENSIONS
(WxHxD) 260. 450% 125% 403. mm
WEIGHT... J . . . 4.9 kg
- *Specifications are subject to change without notice for further
improvement.
