Summary of Contents for ahead RC Crawler TGA

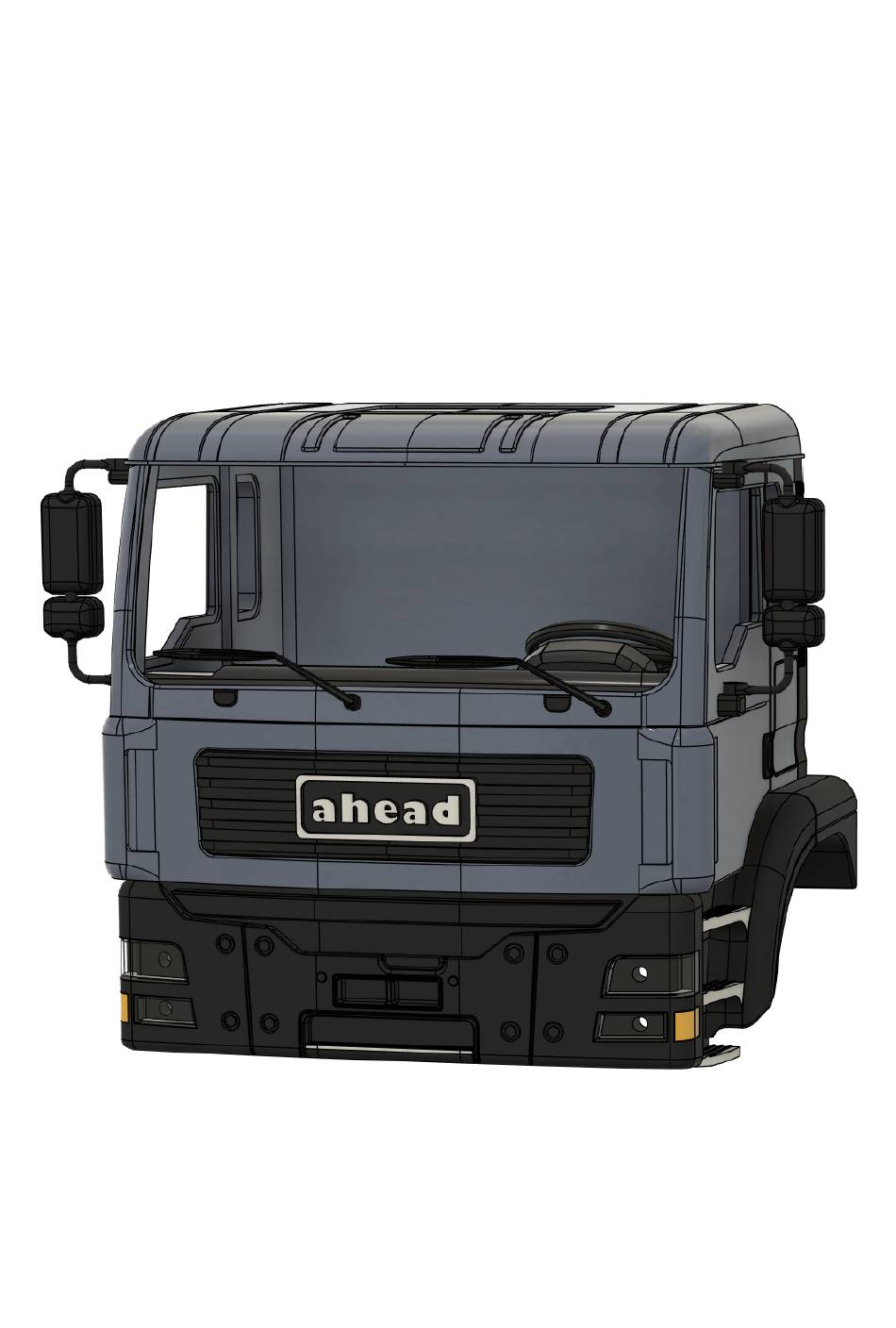

- Page 1 RC Crawler TGA Front Cab Assembly Manual ahead RC...
- Page 2 Required tools and hardware Tools 1.5mm Hex Driver 2.0mm Hex Driver 2.5mm Hex Driver Needle Nosed Pliers Instant Glue Hot Glue Electronics 5mm White LED x4 3mm Orange LED x2 Hardware Hardware Quantity Check M2*8 Socket head M2*12 Socket head M2.5*12 Socket head M3*10 Socket head M3*15 Socket head M3*20 Socket head M3*30 Socket head M3 Washer ahead RC...
- Page 3 Before you begin Be sure to read through the manual and familiarise yourself with the instructions Visualise a plan to assemble all the pieces Make sure you have all of the hardware and tools Be sure to have enough instant glue Dry fit all parts before painting and assembling Tip: It will help to paint all of the parts before final assembly ahead RC...
- Page 4 Assembling the interior M2x12mm x1 M2.5x12mm ahead RC...
- Page 5 M2.5x12mm M2.5x12mm ahead RC...
- Page 6 Installing the grille and wipers M3x10mm x2 Repeat on the other wiper ahead RC...
- Page 7 Assembling the door M2x8mm Repeat on the other door M2x12mm Repeat on the other door ahead RC...
- Page 8 Assembling the roof M3x10mm ahead RC...
- Page 9 Installing the light lenses 5mm White LED x4 Repeat on the other lenses 5mm Orange LED x2 ahead RC...
- Page 10 Mounting the body chassis mounts M3x15mm M3x20mm Repeat on the M3 other mount washer x2 To chassis M3 washer x2 M3x30mm ahead RC...
- Page 11 Body is now fully complete. Thank you for selecting ahead RC products. If you have any questions or need help with the assembly, please do not hesitate to contact us at: aheadrc@gmail.com or visit us at: www.aheadrc.com Best of luck with your build! ahead RC...
