Summary of Contents for Backyard Expressions TROPHY SLAYER 908279

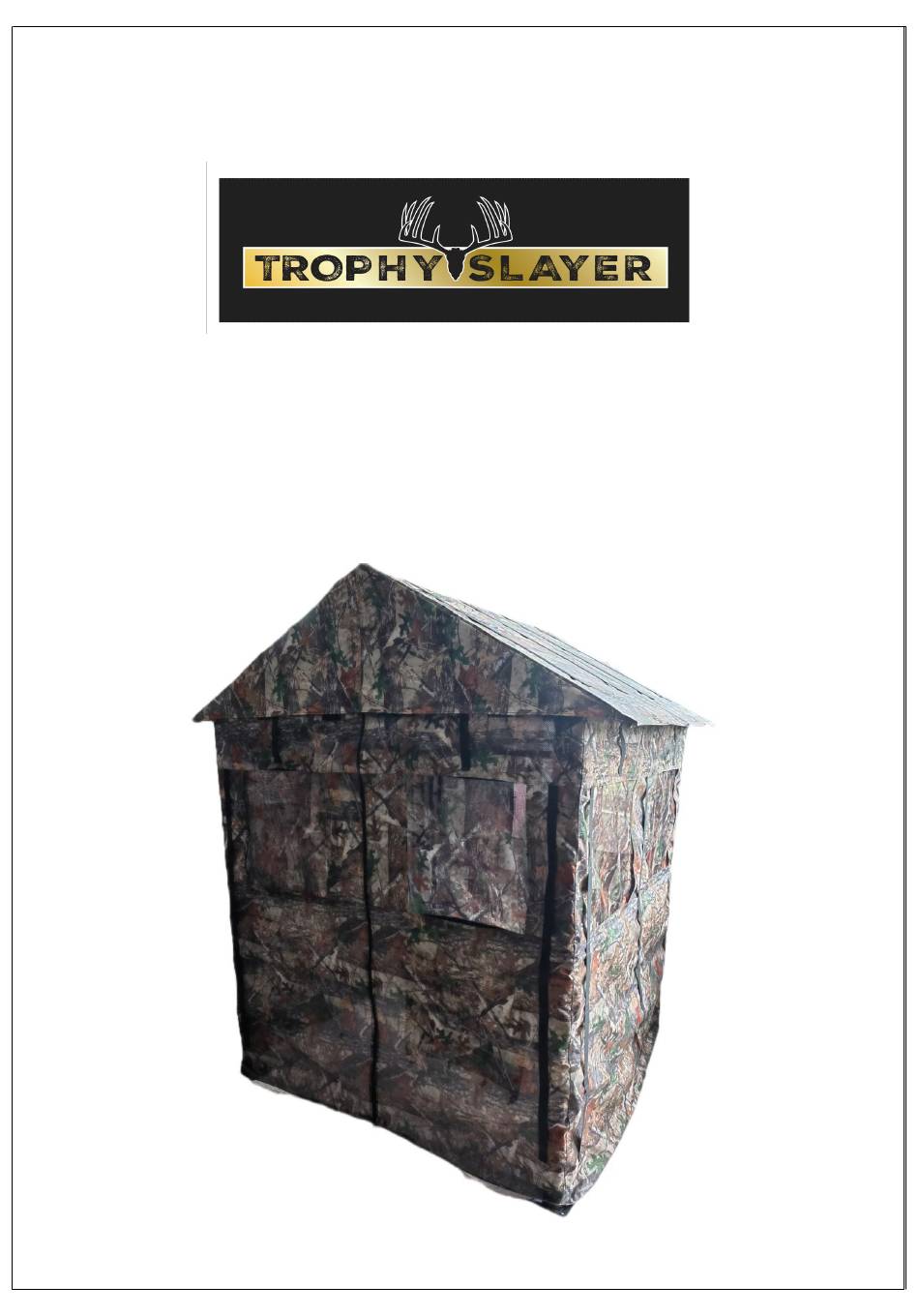

- Page 1 5x5See Through Ground Blind UPC:908279...
- Page 2 Parts List Corner Post x4pcs Bolt M6*15mm x9pc Guard Bar x4pcs x10pc Support Beam x1pcs Ground Stakes x16pcs Hex Wrench x1pcs Cross Beam x10pcs Lintel x1pcs Wrench x1pcs Q shoot Through Mesh x 8 Pcs Base Plate x4pcs x1pcs Cup Holder Bow Holder x1pcs Gunstock...
- Page 3 Step 1 Connect corner post A and base plate Hwith bolt R (M6x15mm) Step 2 Connect corner posts A and B with bolt P (M6x32 mm) Connect U connecters (part N ) on all posts with...
- Page 4 Step 3 Connect support beam D and Lintel F with bolt O (M6x50mm) Then use the pushpins to connect cross beams E into Lintel F . Step 4 Connect cross beam E and the rest of the frame with bolt P(M6x32mm) using the U connector.
- Page 5 STEP 05 STEP 06 Use Fabric top L to cover the top of the blind...
- Page 6 STEP 07 Enclose the bottom half of the blind using fabric bottomM . Attach shoot through mesh(Q) on each of the 8 windows.
- Page 7 Customers and Stores - Please help us give you the best possible service by customerservice@ddicorp.com emailing your parts and service needs to: Emails are responded to quickly and are the fastest and most accurate way to communicate item/parts needs. PLEASE KEEP ORIGINAL RECEIPT AND INSTRUCTION MANUAL for possible future reference.
