DMX Zhaga casDMX Quick Start Manual

Zhaga casDMX
DMX Engineering LLC
http://dmx.engineering
Casambi 12-Channel DMX Master
with Casambi CBM003 Long Range Radio
Product Description
Zhaga
casDMX is a Bluetooth controllable, Casambi enabled, 12 channel DMX-512 master
dimmer that generates a single DMX Universe. The casDMX connects DMX enabled lighting
devices and fixtures to a Casambi network to gain full color control. The
connected between a 12-24 VDC Class 2 power supply and provides a non-isolated DMX-512
universe.
Zhaga
casDMX can control luminaires using Casambi color widgets, and up to 12 DMX chan-
nels utilizing Casambi sliders in Evolution mode. The
ler for RGBW and tunable white (TW) applications since a user choice of multiple Casambi
Profiles allow for selection of four, eight and 12 slider channels and standard Casambi 4-
channel color controls.
Zhaga
casDMX can be controlled with Casambi app which can be downloaded free of charge
from the Apple App Store and Google Play Store.
Different Casambi enabled products can be used from a simple one luminaire direct control to

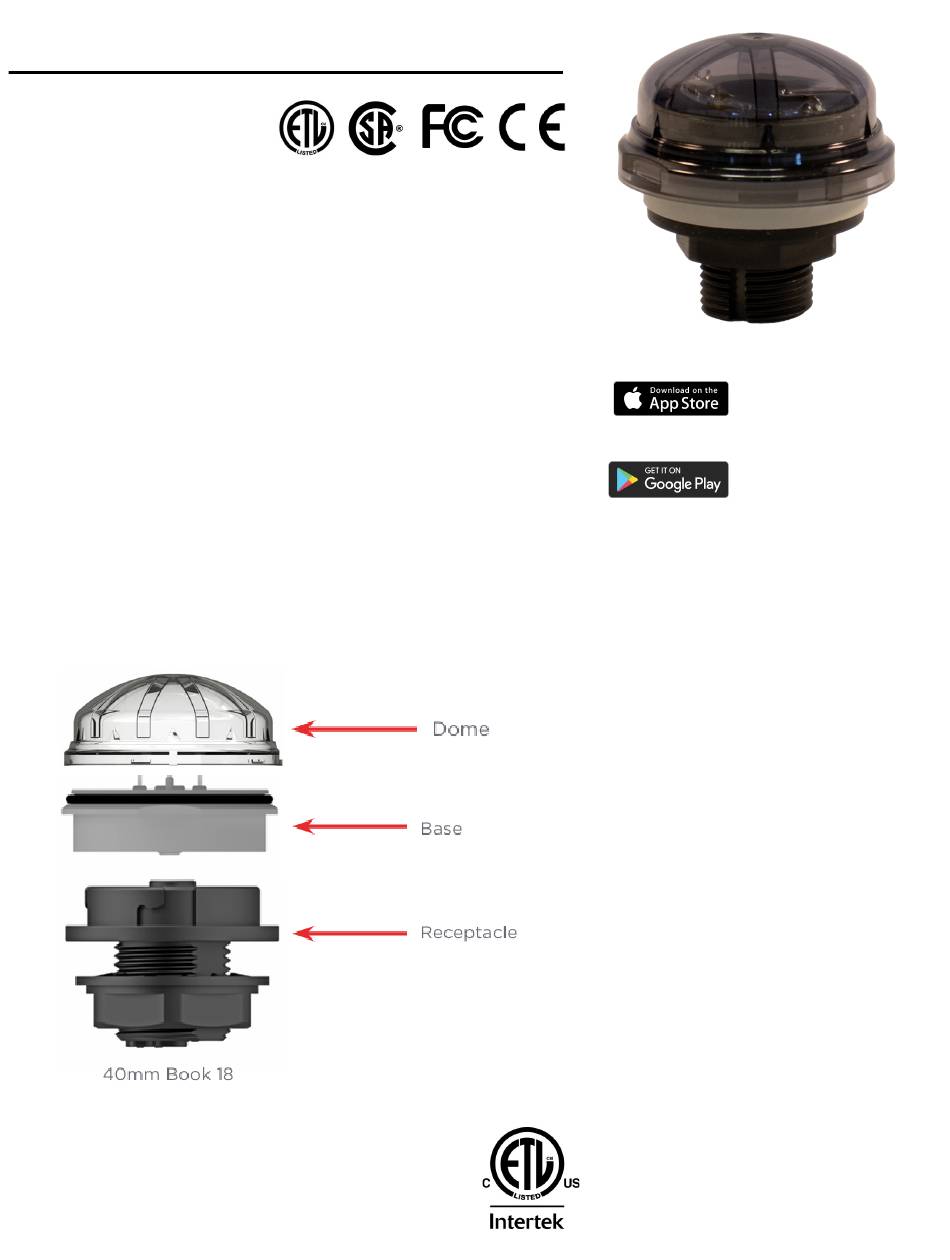

Zhaga 40mm Book 18 Mechanical Diagram
Dimensions
48mm Round, 30mm tall
Weight: 2.2 oz
DMX Engineering LLC
9221 E. Baseline Road, Suite 109-492
Mesa, AZ 85209
USA & Canada
Zhaga
casDMX is an ideal DMX control-
Certifications
Contains FCC ID: 2ALA3-CBM003B
Contains IC: 22496-CBM003B
Conforms to UL STD 916
Certified to CSA STD C22.2#205
Zhaga
casDMX is
Technical Data
Compatible Mobile Devices
iPhone 4S or later
iPad 3 or later
iPod Touch 5th gen or later
Android 4.4 or later devices
produced after 2013 with full
Input
Voltage range: +8-24 VDC, Class 2
No-load input current: 30 mA
DMX-512 Output
3-wire non-isolated DMX-512
Radio transceiver
Casambi CBM003B Radio Module
Operating frequencies: 2.401-2.483 Ghz
Maximum output power: typ. +8 dBm
-103 dBm RX sensitivity in long-range mode
Operating conditions
IP66 (non submersible)
Ambient temperature, ta: -13...+113°F (-25...+45°C)
Max. case temperature, tc: +167°F (+75°C)
Storage temperature: -13...+167°F (-25...+75°C)
Max. relative humidity: 0...80%, non-cond.
Recommended Interface Connector
TE Zhaga 40mm Book 18 Connector
PN TE 2213858-1
TE Book 18 Connector Signals
Pin 1 = 12=24VDC
Pin 2 = Ground (share with DMX ground as well)
Pin 3 = DMX+
Pin 4 = DMX-
