Summary of Contents for MClimate MC-LW-CO2-E-INK-01

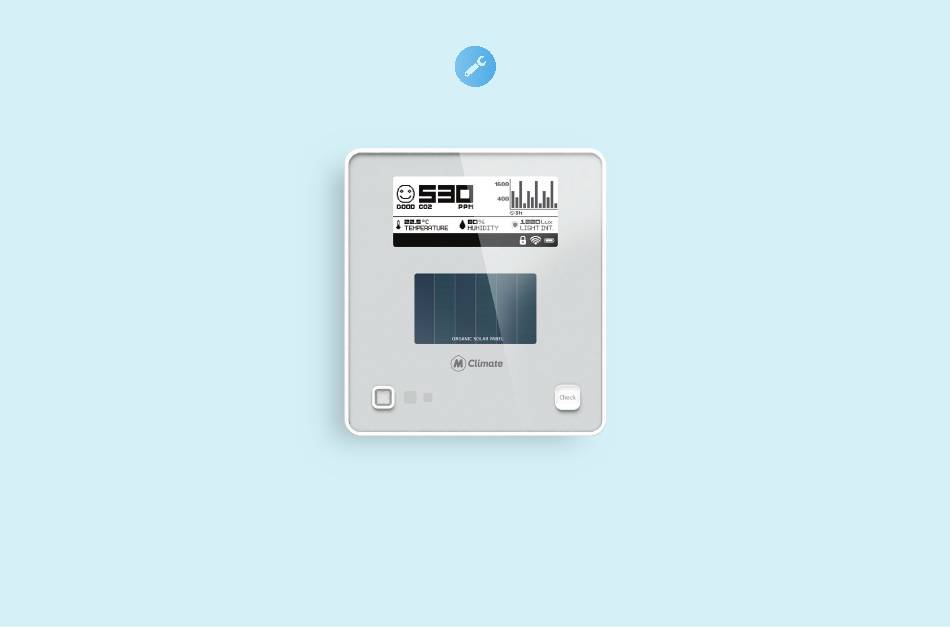

- Page 1 MClimate CO2 Display LoRaWAN® User manual...
- Page 2 За да разберете как се Om te weten te komen hoe u Pentru a afla cum să instalați Norėdami sužinoti, kaip įdiegti инсталира MClimate CO2 MClimate CO2 Display LoRaWAN® MClimate CO2 Display MClimate CO2 Display Scan the QR Code Display LoRaWAN®, installeert, scan de QR-code of LoRaWAN®, scanați codul QR...
- Page 3 What’s inside the box? What is in the box? Technical details, Safety instructions, Legal Notices & Compatibility Device Parts, Mechanical dimensions ORGANIC SOLAR PANEL Placement guidelines Display’s content Wall mounting plate Secure bolt Buttons MClimate CO2 Display LoRaWAN® Behavior Installation Commissioning...
- Page 4 Technical specifications Safety Instructions Compatibility Description: MClimate CO2 Display LoRaWAN is a stand-alone CO2 sensor In order to operate MClimate CO2 Display Please read the safety instructions before installing the powered entirely by solar energy using an organic solar panel. The device device! Failure to follow the recommended instructions in LoRaWAN®, you will need:...
- Page 5 Device parts Display Solar panel Secure screw hole Mounting holes PIR Sensor OK button Assembled MClimate CO2 Display LoRaWAN®, top view Wall mounting plate, top view...
- Page 6 Placement guidelines Do not place the device in direct sunlight, as this will result in gradual worsening of the performance of the solar panel. A few hours a day in direct sunlight >20cm wouldn’t be an issue. 150cm...
- Page 7 Display’s content Description Current CO2 reading The image below has all visible elements of the display activated. Sensor temperature The 2.9” e-ink display supports fast partial refresh. Full refresh is performed every 12 hours (period can be adjusted via a downlink) to avoid the e-ink phenomena “image sticking”...
- Page 8 Request on SF9. Performs full refresh of the screen. Perform- ing a Reset IS NOT equal to factory reset. All configured parameters are preserved. Assembled MClimate CO2 Display Assembled MClimate CO2 Display LoRaWAN®, top view LoRaWAN®, bottom view When the check button is...
- Page 9 Behavior Start-up behavior Using multiple energy sources The device starts when you press the Reset button on The CO2 Display has three options for power supply: the back one time. - Organic Solar Panel At startup, the device measures the voltage of the - USB-C supercapacitor, which is storing the energy harvested - 2 or 4 AA Batteries (1.5VDC each)
- Page 10 Installation We recommend installing the device in an open environment (e.g. not in a recess) at 1.5m height. Do not install the device near big metal items as it will worsen the RF performance. Use double-sided tape to attach it to the surface or screws and dowels to attach the anti-theft bracket in a more permanent manner.
- Page 11 Commissioning Before you install the device, we highly recommend that you first commission it on your LNS. Once the RESTART button is pressed, the device will initiate a LoRaWAN Join Procedure on SF9. Please, make sure you enable ADR in your LNS and/or mark the device as static.
- Page 12 Designed & Manufactured by MClimate in Europe. last update: 21.08.2023...
