Summary of Contents for ubiquoss C604G

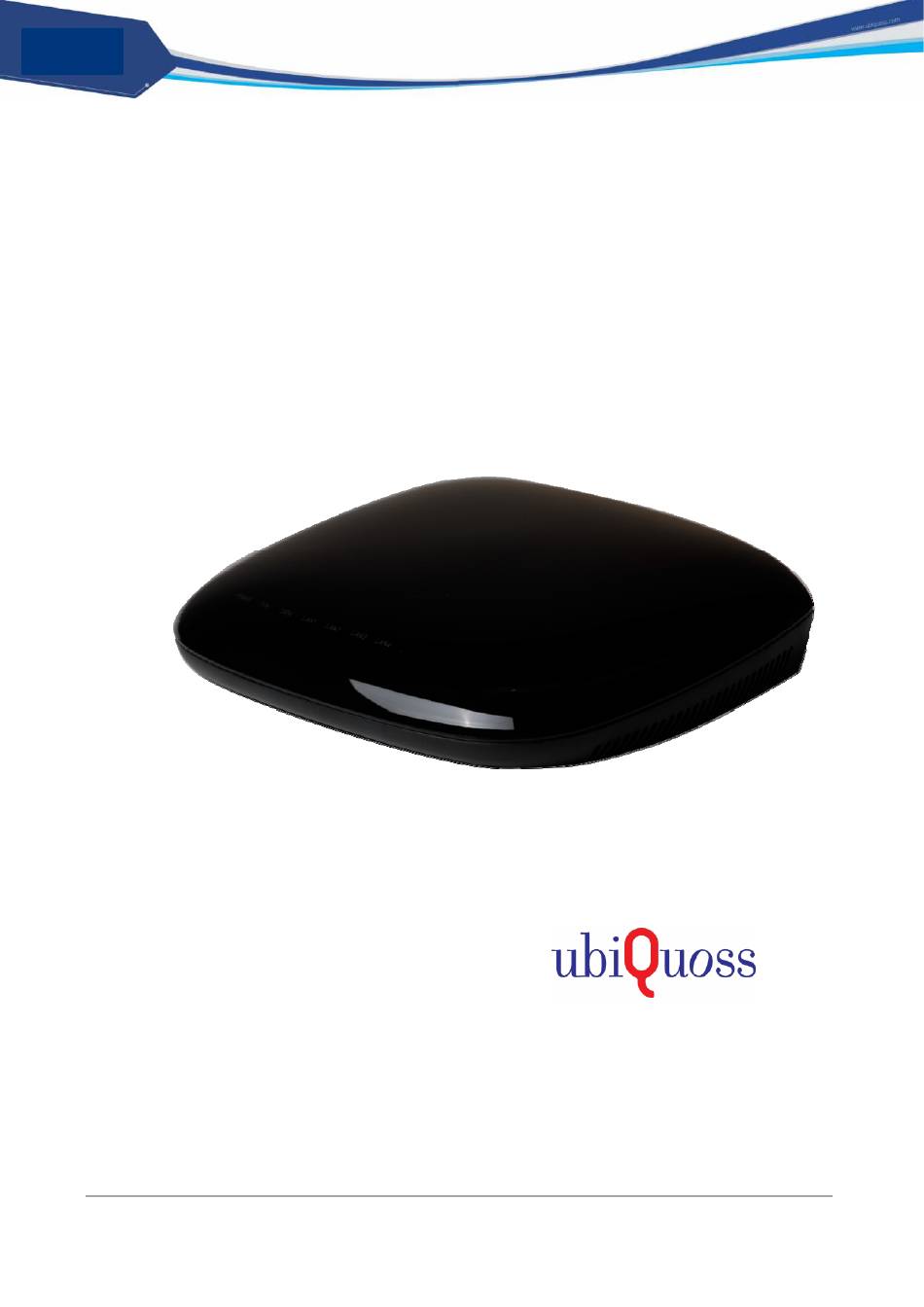

- Page 1 C604G Installation Guide ubiQuoss Inc. 24F Millennium B/D, 467-12 Dogok-Dong Gangnam-Gu, Seoul 135-700 Korea TEL: +82-70-8666-5013,4912 FAX: +82-2-2190-3201 E-mail: oversea.group@ubiQuoss.com www.ubiQuoss.com...
- Page 3 Table of Contents Table of Contents......................III GPON Solution >> C604G .....................1 Overview...........................1 Features..........................1 Contents of the Package....................1 Precautions........................2 Installation........................4 ONT Shape........................5 Front Panel ........................5 Rear Panel ........................6 Troubleshooting: ......................7 Specification ........................9 Specification........................9 C604G Installation Guide...
- Page 5 GPON ONT 4-Port Gigabit Ethernet Overview The C604G is a GPON ONT for advanced IP service delivery in a single fiber environment to provide bandwidth intensive applications such as broadband Internet and various multimedia services. It supports 4-port Gigabit Ethernet interface and 1 port GPON uplink over single optical fiber.
- Page 6 Precautions Warning Before you install the C604G, read this section. This section contains important safety information you should know before working with the system. Power Considerations Be careful when connecting the system to the supply circuit so that wiring is not overloaded.
- Page 7 If Strong EMI occurs in the installation place, consult RFI experts to get rid of it. Disposing of the System Dispose of the system and its components (including batteries) as specified by all national laws and regulations. C604G Installation Guide...
- Page 8 1. Connect the SC/APC connector on the side of a yellow single-mode optical fiber into the optical terminal of the optical outlet and the other connector into the PON port of C604G by pushing them until you hear a clicking sound.
- Page 9 ONT Shape C604G consists of Front panel and Real panel. Front panel has ONT status LED. Real panel has ONT ports. Front Panel Name Color Status Function Actions to take Power ON BLUE Check to connect power Power OFF adapter & power outlet...
- Page 10 Rear Panel The following table describes the ports of ONT. Port Description Indication Description GPON Port LAN 1~4 Gigabit Ethernet Ports 1.5A Power Terminal...
- Page 11 Make sure that the ONT is turned on. Once you turn on the power, the PWR LED on the front panel of C604G should be turned on. If the PWR LED is turned OFF, please check if the power cable is connected to the power inlet of ONT properly.
- Page 12 Step 8 Choose 1) option Step 9 Click OK...
- Page 13 Specification The following table shows the specification of C604G. Specification Item Description • 4 Port 10/100/1000 Base-T Ethernet data interfaces • Ethernet port auto negotiation or manual configuration • MDI/MDIX automatic sensing • AC Adapter input 100 ~ 240 volts , 50/60 Hz SYSTEM HW ARCHITECTURE •...
