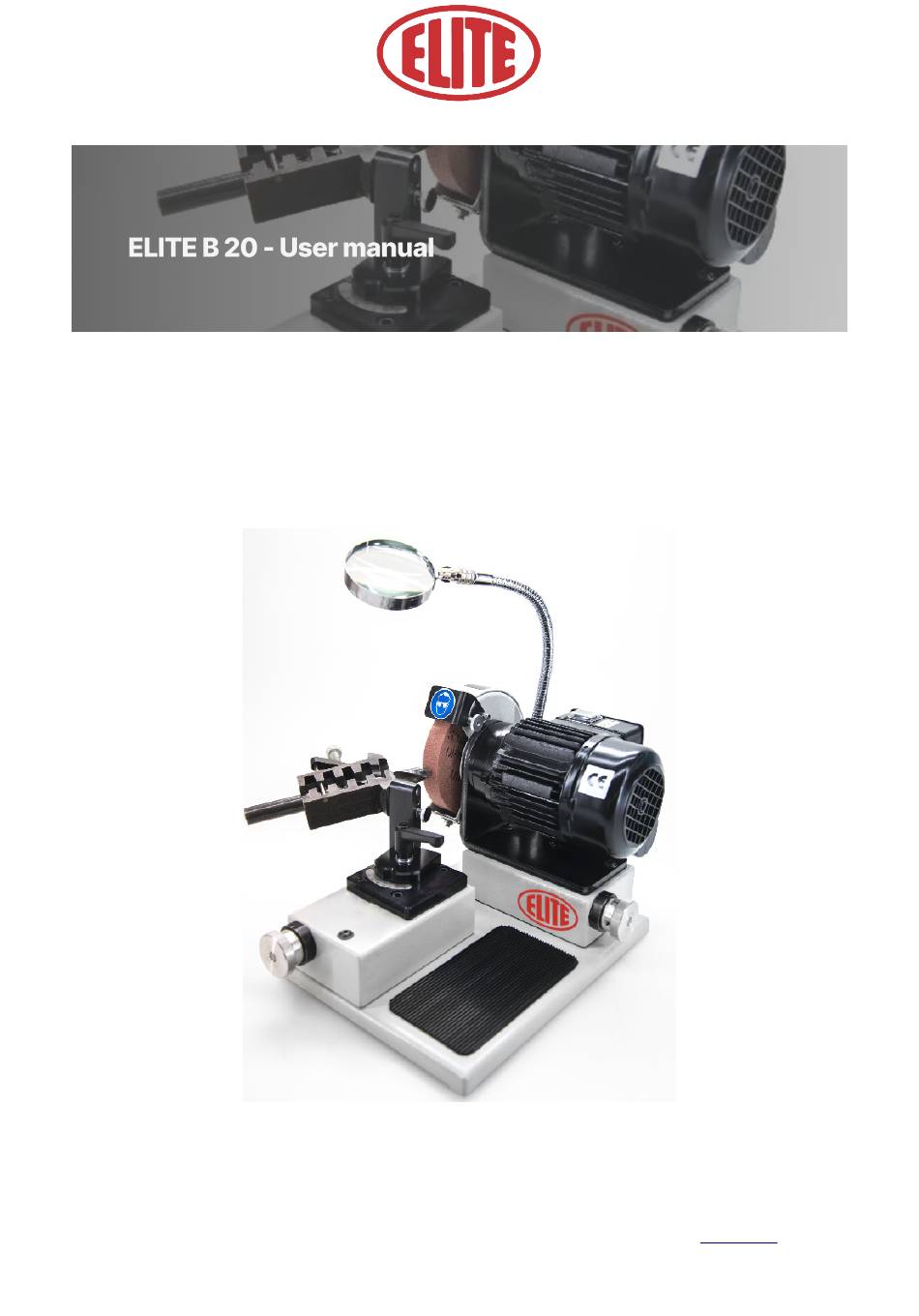

- Page 1 ELITE B20 User manual Version September 2024 Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 2 THIS PAGE IS NOT WRITTEN INTENTIONALLY Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 3 Congratulations on your purchase of the ELITE model B 20 drill and countersink sharpening machi- Read this guide before you start. The ELITE model B 20 is a drill and countersink sharpening machine. It can sharpen drill bits from ø1 to ø 20 mm This manual introduces you to the main functions of the sharpening machine in order to avoid risks to your health or that may cause a breakdown or premature wear of the machine.
- Page 4 The ELITE model B 20 drill and countersink sharpening machine has been designed for sharpen drill bits from ø1 to ø 20 mm. excluding any other type of operation.
- Page 5 These warnings do not include all possible risks that improper use of the machine could cause. For this reason, the operator must proceed with prudence and observing the rules. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 6 Use of the machine by untrained persons • Serious failures in scheduled maintenance • Unauthorized interventions or modifications • Use of non-original spare parts. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 7 2.3.Declaration of conformity The company hereby Elite Sharpening Machines, SLU C/Joan Oró, 27 ES-08635 Sant Esteve Sesrovires declares that the product indicated below, based on its conception and construction, as well as the version put on the market by our company, complies with the mandatory basic health and safety re- quirements of the CE directive.
- Page 8 THIS PAGE IS NOT WRITTEN INTENTIONALLY Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 9 In the following information table, find the list of technical specifications of the machine described in this manual. TECHNICAL DATA ELITE B 20 Sharpening capacity From ø1 to ø20 mm (0.039" to 0.78") 2-3 and 4 cuts drills for wood or steel, right...
- Page 10 4.TRANSPORTATION The ELITE B 20 sharpening machine is delivered packed in a wooden box. During all transport and transfer, the machine must be kept in its original vertical position, any variation in this position may result in the loss of the warranty.
- Page 11 To unpack, remove the top panel and any wooden blocking pieces. The machine is supported by wooden supports bolted to the box. Remove them before attemp- ting to move it. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 12 Poor levelling of the machine can cause unwanted vibrations and premature wear. ATTENTION: The machine must not be used under any circumstances by unqualified or unauthori- zed personnel. Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 13 Remember: before connecting the machine, remove any protection that the machine may have to protect the components during transport. The ELITE B 20 sharpener must be connected strictly to the voltage indicated on the machine order and on the machine itself. Connection to a voltage different from that indicated may cause a break- down in the machine and represents a risk for people using the machine.
- Page 14 9.Knurled nut with scale for drill feed 10.Reversing prism, clamping range from 2-20mm 11.Special corundum grinidng wheel 12.Adjustable splash guard 13.Optical lens Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
- Page 15 For sections 6 to 8 of this manual, as well as for more up-to-date information and useful videos on the operation of the machine, please refer to our website www.elite.es www.elite.es/en/support/manuals/elite-b-20-user-manual Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – !
- Page 16 We recommend using ELITE ref. nr. B20-4. Corundum ø125x20x20 mm Corundum grinding wheel We recommend using ELITE ref. nr. B20-5. Diamond grinding wheel ø125x20x20 mm Diamond grinding wheel We recommend using ELITE ref. nr. B20-6. CBN grinding wheel ø125x20x20 mm.
- Page 17 For more up-to-date information and useful videos on how to operate the mac- hine, see our website www.elite.es Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– +34 932 935 178 – ! info@elite.es...
