Cosmo COS-BGGN325K User Manual

Outdoor built-in grill
Hide thumbs Also See for COS-BGGN325K:
Table of Contents

Advertisement

Quick Links

Download this manual

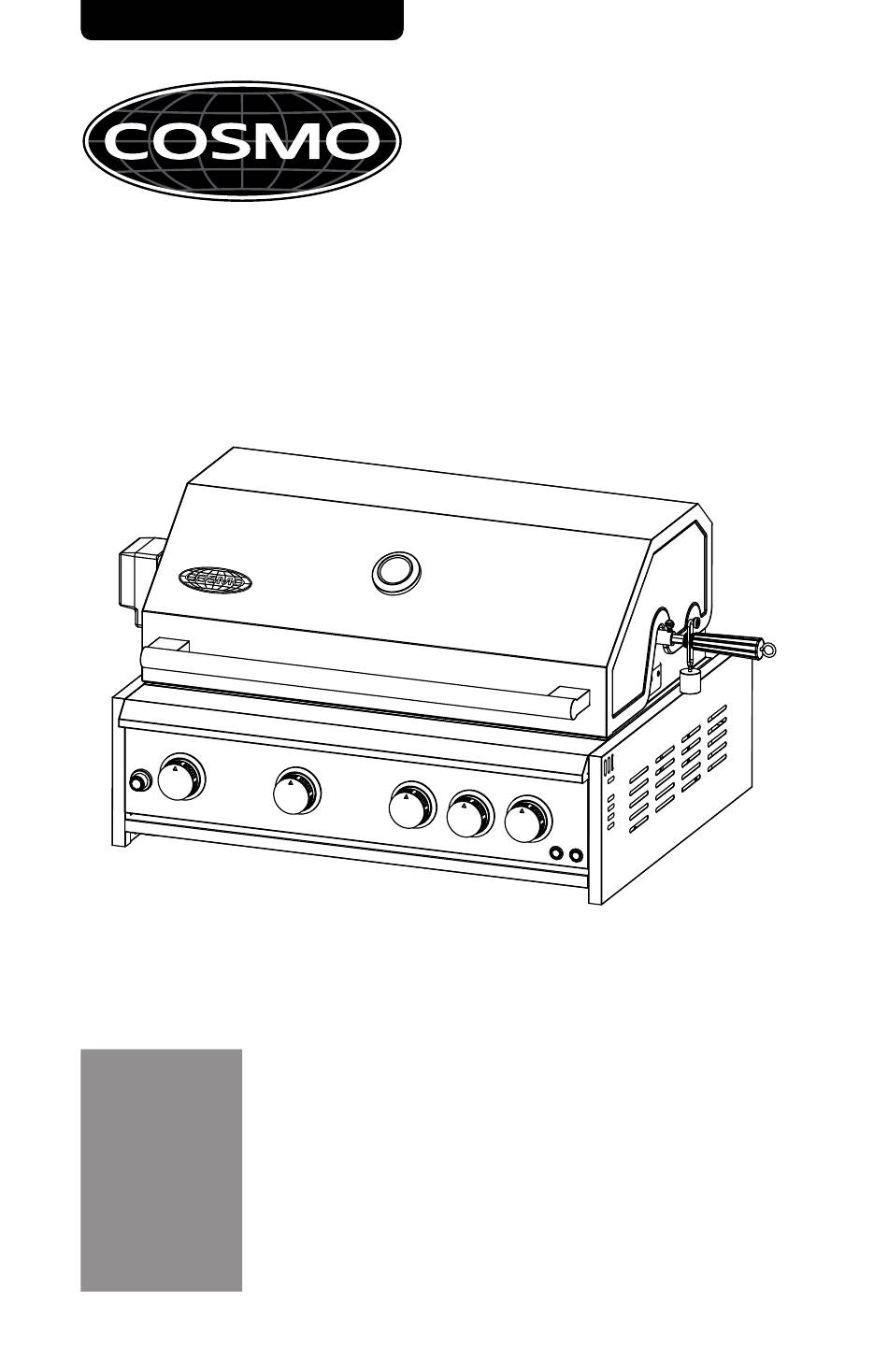

GAS GRILL
COS-BGGN325K
OUTDOOR BUILT-IN GRILL
USER MANUAL
IMPORTANT:
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR
THE OWNER.
OWNER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Rev.24.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COS-BGGN325K and is the answer not in the manual?

Questions and answers

Related Manuals for Cosmo COS-BGGN325K

Summary of Contents for Cosmo COS-BGGN325K

  • Page 1 GAS GRILL COS-BGGN325K OUTDOOR BUILT-IN GRILL USER MANUAL IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR THE OWNER. OWNER: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. Rev.24.05...
  • Page 2 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS GRILL SAFETY...................... 4 Important Safety Instructions ................. 6 INSTALLATION REQUIREMENTS ................ 8 Tools and Parts ......................8 Location Requirements .................... 9 PRODUCTION DIMENSIONS ................10 Grill Layout ....................... 10 Internal Dimensions ....................11 LP GAS CONNECTION ..................12 Gas Pressure Regulator ..................

  • Page 4: Grill Safety

    GRILL SAFETY READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol.
  • Page 5 DANGER FIRE AND EXPLOSION HAZARD If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electrical shock, injury to perso ns, or damage when using the grill, foll ow basic precautions, including the following: • An outdoor cooking gas • Inspect the gas cylinder supply appliance is not intended to be hose before each use of the installed in or on boats.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS • This model is designed for use • Place a dust cap on cylinder with a Standard 20 lb. Liquid valve outlet whenever the Petroleum Gas tank. A 20lb tank cylinder is not in use. Only install of approximately 305mm in the type of dust cap on the diameter by 393mm high,...

  • Page 8: Installation Requirements

    INSTALLATION REQUIREMENTS TOOLS AND PARTS Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. TOOLS NEEDED • Tape measure • Adjustable wrench or pliers • Phillips screwdriver • Safety glasses •...

  • Page 9: Location Requirements

    LOCATION REQUIREMENTS Select a location that provides minimum exposure to wind and traffic paths. The location should be away from strong draft areas. Do not obstruct flow of combustion and ventilation air. Clearance to combustible construction for outdoor grills: • A minimum of 36"...

  • Page 10: Production Dimensions

    PRODUCT DIMENSIONS GRILL LAYOUT The locations and appearances of the features shown here may not match those of your model. Thermometer Hood Handle Hood Control Panel Warming Rack Cooking Grates Rotisserie...

  • Page 11: Internal Dimensions

    INTERNAL DIMENSIONS 30.3" 3" 1" 14" 40" 12" Open heat emission space on either side of top cabinet should be at least 20in^2 At least 2 ventilation openings are needed and distance between opening to the top cabinet countertop should be no more than 5".

  • Page 12: Lp Gas Connection

    LP GAS CONNECTION GAS PRESSURE REGULATOR The gas pressure regulator supplied with this grill must be used. The inlet (supplied) pressure to the regulator should be as follows for proper operation. Connect Regulator with Hose to Your LP Gas Tank •...

  • Page 13: Install Propane Tank

    INSTALL PROPANE TANK LP Tank Installation Layout 1. This grill is designed to operate with a propane tank (not supplied). A gas pressure regulator / hose assembly is supplied. 2. Grill tank tray is compatible with most of the propane tanks in the market. The propane tank must be mounted and secured.

  • Page 14: Electrical Safety

    ELECTRICAL SAFETY A. Locking screw Cylinder must be arranged B. Tank tray to provided vapor withdraw C. 20 lb LP gas fuel tank tray Electrical equipment provided with the outdoor cooking gas appliance shall have the following in the instructions: •...

  • Page 15: Grill Instructions

    GRILL INSTRUCTIONS The grill you have purchased may have some or all the feature listed below. The locations and appearances of the features shown here may not match what you are having on your model. CONTROL PANEL A. Battery Box (for ignition) E.
  • Page 16 WARNING FOOD POISONING HAZARD • Do not let food sit for more than one hour before or after cooking. • Doing so can result in food poisoning or sickness. Inspect the Gas Fuel Tank Supply Hose Inspect the gas pressure regulator/hose assembly before each use. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the outdoor cooking gas appliance being put into operation.
  • Page 17 Prepare the Gas Supply Manually Lighting the Main Grill 1. Make sure control knobs are turned 1. Do not lean over the grill. to OFF. The drip tray must be in place 2. Remove the manual lighting extension and pushed all the way to the back. (see following illustration) and attach a match to the split ring.
  • Page 18 Using Your Rotisserie Burner 5. Push the pulse igniter module and push in and turn the control knob To avoid damage to the warming rack, IGNITE/ON. Hold this knob in for 15 remove from grill when using the seconds after the burner is lit. You will rotisserie burner.

  • Page 19: Rotisserie Chart

    ROTISSERIE CHART Use a portable meat thermometer to check internal doneness of the food. Turn off rotisserie burner when meat thermometer reads 5°F/3°C lower than desired internal temperature. Continue rotating, hood closed, for 10 minutes before carving. Timing is affected by weather conditions such as wind and outside temperature.

  • Page 20: Tips For Outdoor Grilling

    TIPS FOR OUTDOOR GRILLING WARNING FOOD POISONING HAZARD • Do not let food sit for more than one hour before or after cooking. • Doing so can result in food poisoning or sickness. BEFORE GRILLING • Thaw food items before grilling. •...

  • Page 21: Cooking Methods

    COOKING METHODS DIRECT HEAT Cooking by direct heat means the food is placed on grill grates directly above lighted burners. Hood position can be up or down. If hood is in the up position, total cooking times may be longer. Direct heat sears the food. Searing is a process that seals natural juices in food by cooking with intense heat for a short period of time.

  • Page 22: Cooking Recipes

    COOKING RECIPES GRILLING CHART • Knobs have High, Medium and Low settings for flame adjustment. • Heat settings indicated are approximate. • Grilling times are affected by weather conditions. • When 2 temperatures are listed, for example: Medium to Medium-Low, start with the first and adjust based on cooking progress.
  • Page 23 COOKING INTERNAL TIME SPECIAL FOOD METHOD/ FOOD (TOTAL TEMP. INSTRUCTIONS BURNER MINUTES) °F (°C) SETTING Ham steak precooked, DIRECT Reheat 7-10 Preheat Medium (145°F/63°C) 1/2" thick Grill Medium DIRECT Hot Dogs Reheat 5-10 Slit skin if desired. Medium (145°F/63°C) Chicken For even cooking, Breast, boneless 170°F / 77°C...
  • Page 24 COOKING INTERNAL TIME SPECIAL FOOD METHOD/ FOOD (TOTAL TEMP. INSTRUCTIONS BURNER MINUTES) °F (°C) SETTING Eggplant DIRECT 7-10 Wash and cut into 1/2" slices or Medium lengthwise. Brush with olive oil. Onion, 1/2" thick DIRECT 8-20 Grill, turning once. Brush with olive Medium oil.

  • Page 25: Outdoor Grill Care

    OUTDOOR GRILL CARE REPLACING THE IGNITER BATTERY If igniters stop sparking, the battery should be replaced. 1. Unscrew igniter button cap counterclockwise to remove. A. Igniter Push Button B. "AA" Size Battery 2. Remove battery from the battery compartment. 3. Replace with a new alkaline "AA" size battery. Install battery with negative end in first.

  • Page 26: Grill Grates

    GRILL GRATES IMPORTANT: To avoid damage to grill grates, do not use a steel or fiber scraper. Immediately after you are finished cooking, loosen food soil with a brass bristle brush. Turn all burners to HI for 10-15 minutes with the hood closed to burn off food soil.
  • Page 27 BURNERS Cleaning Method: • Clean the exterior of the burner with a wire brush • Clean any clogged burner ports with a straightened paper clip • Do not use a toothpick as it may break off and clog the port •...

  • Page 28: Rotisserie Burner

    ROTISSERIE BURNER Cleaning Method: • Light the rotisserie burner. See the "Using Your Rotisserie Burner" section • Close the grill hood • Leave the burner on high for approximately 30 minutes • Turn knob to OFF and let cool completely •...

  • Page 29: Troubleshooting

    • Is the propane tank valve turned off? Turn on the valve. • Is the grill properly connected to the gas supply? Check installation instructions. For further inquiries, please contact Cosmo Support at 888-784-3108. • Is there any gas in propane tank? Check the gas level before using the grill.

  • Page 30: Excessive Flare-Ups

    • Is the flame noisy or lifting away from the burner? Burner may be getting too much air. Check the air shutter adjustment. • Is the burner flame mostly yellow or orange? Grill may be in an area that is too windy, or not receiving enough air. Check the burner air inlets for obstructions.

  • Page 31: Limited Warranty

    LIMITED WARRANTY WARRANTY AND SERVICE TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER AND REVIEW FULL WARRANTY DETAILS, VISIT: WWW.COSMOAPPLIANCES.COM/WARRANTY SCAN TO REGISTER CUSTOMER SUPPORT TO CHAT WITH US LIVE FOR ASSISTANCE, VISIT: WWW.COSMOAPPLIANCES.COM/CHAT SCAN TO CHAT...
  • Page 32 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact COSMO Customer Support at +1 (888) 784-3108 DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY SERVICE. IMPORTANT Ne pas Réexpédier ce Produit au Magasin...
  • Page 33 APPLIANCES Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
