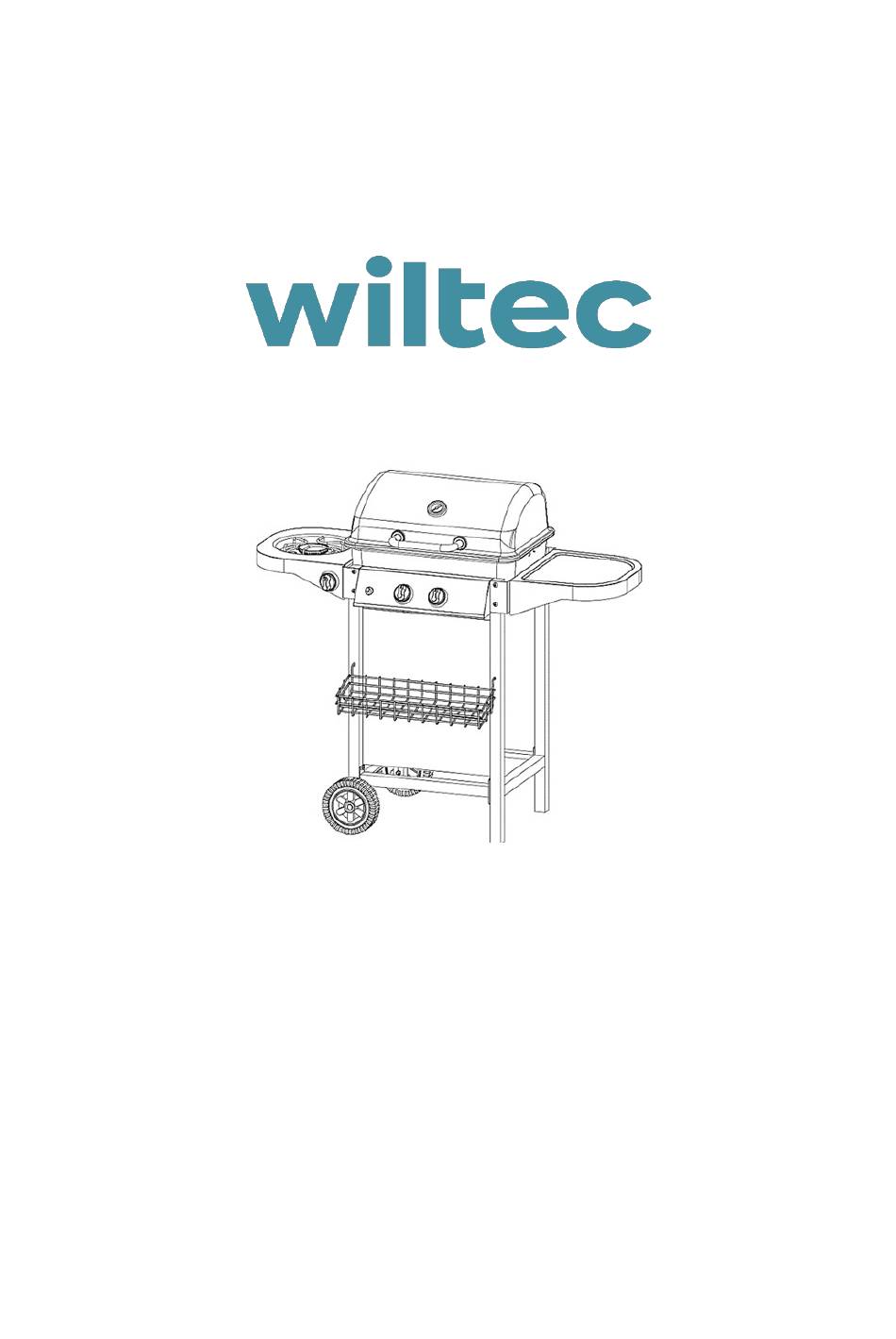

Operation Manual
3-Burner Gas Grill
65057
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for WilTec 65057
Summary of Contents for WilTec 65057
- Page 1 Operation Manual 3-Burner Gas Grill 65057 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 All rights re- served. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
- Page 3 This grill is intended for heating, cooking, and grilling food. Use the product only as described in this manual. Any other use is considered improper and can lead to property damage or even injury. Wiltec accepts no liability for damages caused by improper use. •...
- Page 4 • To operate this grill, you need a standard 5-kg or 11-kg propane or butane gas cylinder. Note! The gas cylinder and gas hose have a left-hand thread. © by WilTec Wildanger Technik GmbH Item 65057 Page 4 http://www.wiltec.de 09 2024-1...
- Page 5 1. Wash off any coarse manufacturing residues with warm water. Avoid using cleaning or dish- washing agents. 2. Rub the grill grate with a soft cloth and cooking or frying oil. © by WilTec Wildanger Technik GmbH Item 65057 Page 5 http://www.wiltec.de...
- Page 6 2. With the lid closed, only one flame is needed. Set the temperature to low or medium flame. 3. Close the grill lid. 4. Avoid overheating the grill. 5. Minimise opening the lid to retain heat. © by WilTec Wildanger Technik GmbH Item 65057 Page 6 http://www.wiltec.de...
- Page 7 4. Wipe the burner with a soft brush or clean it with compressed air. Then wipe it with a cloth. 5. Clean blocked openings with a sturdy pipe cleaner, wire, or the open end of a paper clip. © by WilTec Wildanger Technik GmbH Item 65057 Page 7 http://www.wiltec.de...
- Page 8 The gas grill may only be stored indoors if the gas cylinder has been removed. • If the grill will not be used for an extended period, it should be covered with a protective cover. © by WilTec Wildanger Technik GmbH Item 65057 Page 8 http://www.wiltec.de...
- Page 9 Parts list © by WilTec Wildanger Technik GmbH Item 65057 Page 9 http://www.wiltec.de 09 2024-1...
- Page 10 Screw P Side table Axle Pot stand for side burner Control knob for the side burner Screw Rotary switch for side burner Screw Hanger for grease tray © by WilTec Wildanger Technik GmbH Item 65057 Page 10 http://www.wiltec.de 09 2024-1...
- Page 11 Attach the base of the table-tube combination (10) to the left frame combination (11) using the M5×12 screws (A). Step 2 Attach the base of the table-tube combination (10) to the right frame combination (12) using the M5×12 screws (A). © by WilTec Wildanger Technik GmbH Item 65057 Page 11 http://www.wiltec.de 09 2024-1...
- Page 12 2. Attach the wheel (7) to the left frame combination (11). Step 4 Attach the control panel (13) to the left frame combination (11) and right frame combination (12) using the M5×12 screws (A). © by WilTec Wildanger Technik GmbH Item 65057 Page 12 http://www.wiltec.de...
- Page 13 Insert the burner (5) so that the nozzles of the control knobs extend into the burner connection tubes. The ends of the tubes should loosely sit over the nozzles. This air gap is desired. © by WilTec Wildanger Technik GmbH Item 65057 Page 13 http://www.wiltec.de...
- Page 14 Attach the side burner housing (9) to the left frame combination (11) using the M5×12 screws (A). Step 8 Attach the control knob for the side burner (16) to the left side burner housing (9) using the P M4 screws (E). © by WilTec Wildanger Technik GmbH Item 65057 Page 14 http://www.wiltec.de...
- Page 15 (C) and M4 nuts (D). 2. Insert the ignition pin into the electronic terminal. 3. Install the switch for the side burner (17) on the left side burner. © by WilTec Wildanger Technik GmbH Item 65057 Page 15 http://www.wiltec.de...
- Page 16 Attach the right-side table (14) to the right frame combination (12) using the M5×12 bolt screws (A). Step 12 Attach the hinges (20) to the burner housing (2) using the M5×12 screws (A) and M5 nuts (B). © by WilTec Wildanger Technik GmbH Item 65057 Page 16 http://www.wiltec.de...
- Page 17 Step 14 Attach the support for the flame protection plate (6) to the burner housing (2) using the M4×8 screws (C) and M4 nuts (D). © by WilTec Wildanger Technik GmbH Item 65057 Page 17 http://www.wiltec.de...
- Page 18 Step 15 Install the thermometer (8) on the lid (1). Step 16 Attach the hanger for the grease tray (18) to the burner housing (2). © by WilTec Wildanger Technik GmbH Item 65057 Page 18 http://www.wiltec.de 09 2024-1...
- Page 19 Attach the grease tray (19) to the hanger for the grease tray (18). Step 18 Install the pot stand for the side burner (15), the flame protection plate (21), and the grill grate (25). © by WilTec Wildanger Technik GmbH Item 65057 Page 19 http://www.wiltec.de...
- Page 20 (12). Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 65057 Page 20 http://www.wiltec.de...
