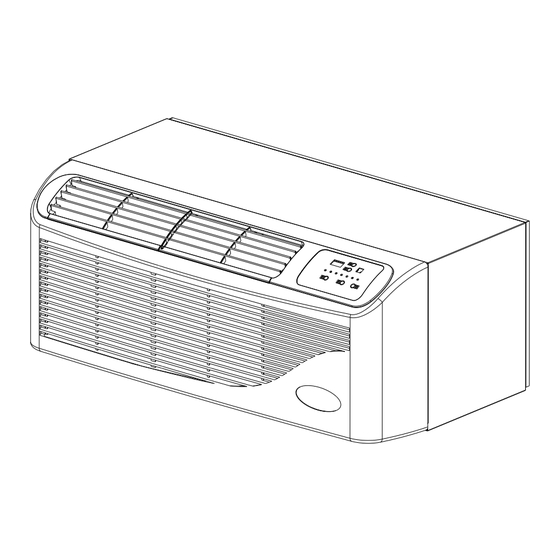

Islandaire EZ42 Installation Instructions & Owner's Manual

Packaged terminal air conditioner/heat pump
Hide thumbs Also See for EZ42:

Advertisement

Quick Links

Download this manual

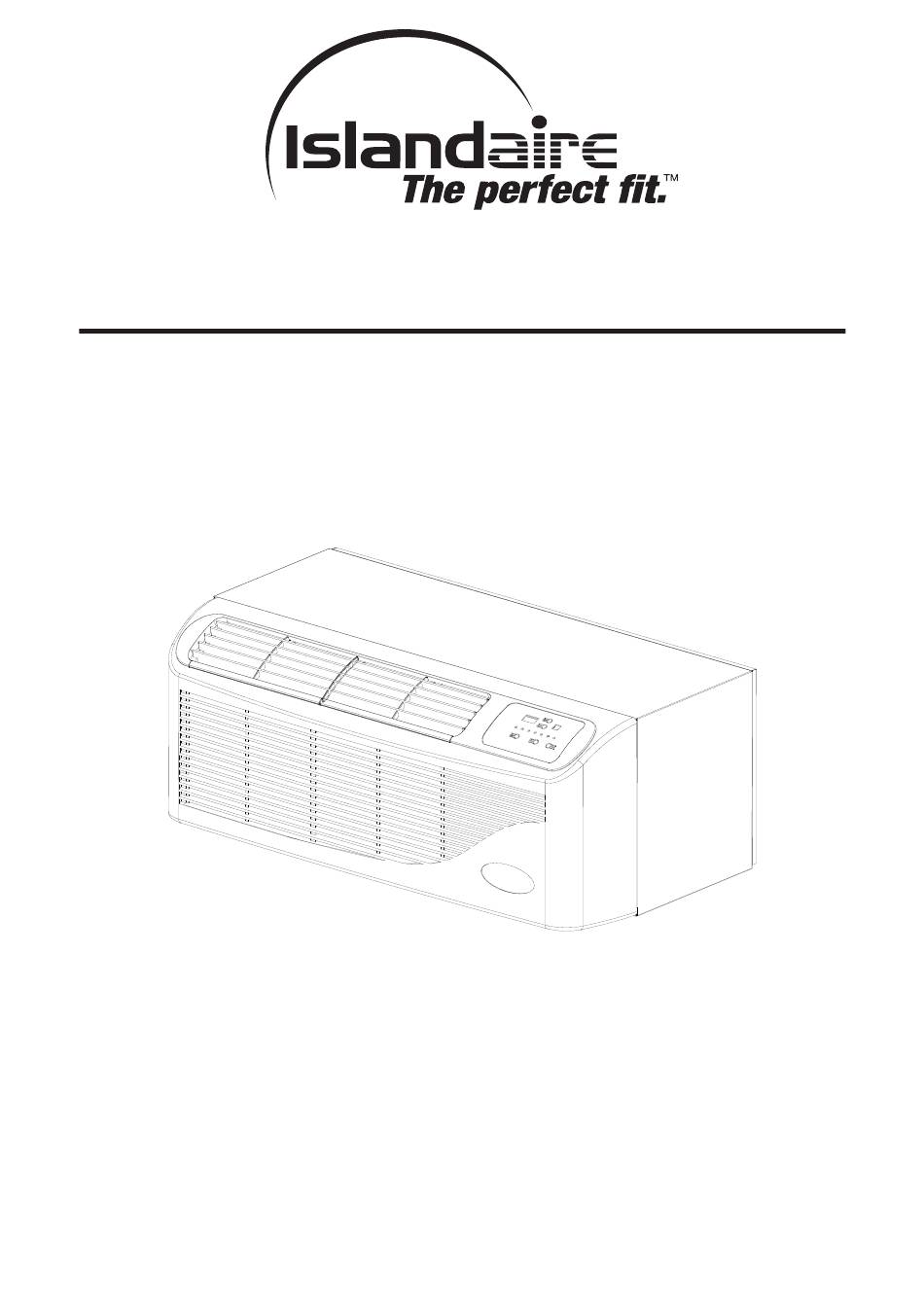

PACK A GED TERM INAL
A IR CON DITIONER/HEAT PUM P
INSTALLATION INSTRUCTIONS & OWNER'S MANUAL
EZ42
ATTENTION INSTALLATION PROFESSIONAL
As a professional installer you have an obligation to know the product better than the customer. This includes all safety precau-
tions and related items.
Prior to actual installation, thoroughly familiarize yourself with this instruction manual. Pay special attention to all safety warn-
ings.
Often during installation or repair it is possible to place yourself in a position which is more hazardous than when the unit is in
operation.
Remember it is your responsibility to install the product safely and to know it well enough to be able to instruct a customer in its
safe use.
Safety is a matter of common sense, a matter of thinking before acting. Most dealers have a list of specific good safety practic-
es, follow them.
The precautions listed in this Installation Manual are intended as supplemental to existing practices. However, if there a direct
conflict between existing practices and the content of this manual, the precautions listed here take precedence.

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ42 and is the answer not in the manual?

Questions and answers

Related Manuals for Islandaire EZ42

Summary of Contents for Islandaire EZ42

  • Page 1 PACK A GED TERM INAL A IR CON DITIONER/HEAT PUM P INSTALLATION INSTRUCTIONS & OWNER'S MANUAL EZ42 ATTENTION INSTALLATION PROFESSIONAL As a professional installer you have an obligation to know the product better than the customer. This includes all safety precau- tions and related items.
  • Page 2 CONTENTS WARNING “RISK OF ELECTRIC SHOCK. CAN CAUSE INJURY OR SAFETY PRECAUTIONS FOR R32 REFRIGERANT..1 DEATH .DISCONNECT AII REMOTE ELECTRIC POWER SUPPLIES BEFORE SERVICING”, or the equivalent. UNIT FEATURES ..............5 For equipment with multiple hazardous voltage power supplies, this marking shall be located on all panles pro- INSTALLATION INSTRUCTION ..........
  • Page 3 SAFETY PRECAUTIONS FOR R32 REFRIGERANT 1. Information on servicing 1.1 Checks to the area Prior to beginning work on systems containing FLAMMABLE REFRIGERANTS, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the REFRIGERATING SYSTEM. 1.2 Work procedure Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.
  • Page 4 SAFETY PRECAUTIONS FOR R32 REFRIGERANT 2. Sealed Components Sealed electrical components shall be replaced. 3. Instrinsically safe components Instrinsically safe components must be replaced. 4. Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects.
  • Page 5 SAFETY PRECAUTIONS FOR R32 REFRIGERANT • Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. • Cylinders shall be kept in an appropriate position according to the instructions. •...
  • Page 6 SAFETY PRECAUTIONS FOR R32 REFRIGERANT The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the rel- evant waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that FLAMMABLE REFRIGERANT does not remain within the lubricant.
  • Page 7 • High Pressure Protection - The unit will shut off UNIT FEATURES automatically when the pressure in the system is over 638 psi and within 10 minutes, after the com- pressor turns off, the unit will restart when the pres- This unit has many features which are different than sure turns back below 551 psi.
  • Page 8 • Fan Motors Permanently Lubricated - All units UNIT ACCESSORIES have two fan motors for quiet operation and maxi- This unit is designed for through-the-wall installation in mum operating efficiency. new or existing buildings. To complete the installation • Motors are permanently lubricated to reduce mainte- of this PTAC, an insulated wall sleeve and an outdoor nance and totally enclosed to keep dirt and water grille (either the stamped aluminum grille, or the archi-...
  • Page 9 INSTALLATION INSTRUCTIONS To ensure that the unit operates safely and efficiently, it must be installed, operated and maintained according to these installation and operating instructions and all local codes and ordinances or, in their absence, with the latest edition of the National Electric Code. The proper installation of this unit is described in the following sections. Fol- lowing the steps in the order presented should ensure proper installation.
  • Page 10 SLEEVE INSTALLATION Width: Fit approximately 3 stud spaces. Wall sleeve location MAIN STUD HEADER - 4" × 4" OR When making the wall opening, please observe the 2-2" × 4" ON EDGE JACK STUDS following requirement: A) The air inlet and outlet should be unblocked and the air can be delivered to every corner of the room.
  • Page 11 OUTDOOR GRILLE 5. Secure the chassis to the wall sleeve using three (OPTIONAL ACCESSORY) screws on each side of the chassis to ensure a An outside grille must be installed to direct air flow for proper seal between the chassis and the wall proper unit operation and also protect the outdoor coil.
  • Page 12 WARNING HIGH VOLTAGE Tandem Perpendicular Large tandem 230/208V 15Amp DISCONNECT ALL POWER BEFORE SERVICING OR 230/208V 20Amp 230/208V 30Amp INSTALLING THIS UNIT. MULTIPLE POWER SOURCES BE PRESENT, FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. DO NOT SERVICE THIS UNIT WITHOUT FIRST SHUTTING 265V 15Amp 265V 20Amp 265V 30Amp...
  • Page 13 OPERATING INSTRUCTIONS WARM button Digital displayer Pressing this button to set room temperature warmer. On normal operation it indicates room TEMP; When pressing WARM or COOL button, it indicates setting TEMP; On timer operation, it Receiver of IR remote controller signal. indicates timer time;...
  • Page 14 1) For reference, subject to actual conditions. 2) At the first power on, the LCD of the remote controller displays all the icons first and then enters the standby state, displaying only the clock 12:00. 3) Introduction of LCD screen icon: •...
  • Page 15 2. Open the Tuya app and click “Add Device”. 3. Choose the “Air Conditioner” from the “Large Home Appliances”.
  • Page 16 4. Press and hold the “MODE” button on the operation board for 5s, the buzzer will sound once and enter the net- work distribution state. Tuya module responds, the LED of WiFi will flash. 5. Once the device is discovered, tap “Add”. Enter the WiFi name and password; 6.
  • Page 17 • Press the ON/OFF button. Low Temperature Protection - A standard feature of • Press the HEAT/COOL/FAN button, select the oper- the Islandaire electronic control system is the 'Low Temperature Protection' option. If an indoor tem- ation mode: heat/cool/fan. perature of 50 degrees Fahrenheit (or lower) is detect- •...
  • Page 18 MAINTENANCE AND CLEANING WARNING Remove shipping screw if present HIGH VOLTAGE DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES BE PRESENT, FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Fig 12 Shipping Screw Location MONTHLY MAINTENANCE AND CLEAN- The vent control allows outside air to be drawn into the conditioned area.
  • Page 19 Vent Screen Wall sleeve Before cleaning the vent screen, disconnect power to Clean the wall sleeve while cleaning the unit. The the unit by unplugging the power cord at the wall outlet caulking around the sleeve should be checked to or subbase, or disconnect power at the fuse box or make sure that any potential air and water openings circuit breaker.
  • Page 20 DIAGNOSTIC CODES CAUTION! HIGH PRESSURE AND HIGH TEMPERATURE CLEANING The Diagnostic Maintenance provides detailed infor- IS NOT RECOMMENDED. mation on PTAC control operation and operational DOING SO COULD DAMAGE THE ALUMINUM FIN STOCK status including present modes, failures, airflow AND ELECTRICAL COMPONENT. restriction warnings, operating temperatures, and past failures.
  • Page 21 802022000203 BK(BR) WH(BL) GN(YE/GN) RD(BK) COMP YE/GN COMPRESSOR HEATER1 THERMO THERMO YE/GN FUSE2 FUSE1 ELEC_L/GAS ELEC_N COMP HEATER2 EGND WHITH L2(N) RELAY2 IN FAN L2(N) INPUT_N INPUT_L TRANS_IN WHITH YE(BL) EVAPORATOR MOTOR CN25 TRANS_24V TRANS_11V OUT FAN TRANSFORMER SYN.FAULT 4 WAY VALVE COIL CONDENSER MOTOR CONTROL PANEL COND/PUMP...
  • Page 22 1、S1 3、SW1 2 3 4 5 6 2 3 4 Fan CON/CYC for heating Reserved As shown below, please select the dial speed of differ- RESTART ent models. Room freeze Gas heat Electric heater Heat pump Factory default setting Hydronic heat Factory Description Function...
  • Page 23 TROUBLE SHOOTING POSSIBLE CAUSES SOLUTIONS UNIT DOES NOT START • Unit may have become unplugged. • Check that plug is plugged securely in wall receptacle. • Fuse may have blown. Note: Plug has a test/reset button on it. Make sure that the •...
  • Page 24 R.E. HANSEN INDUSTRIES, INC. DBA ISLANDAIRE Address: 22 RESEARCH WAY E. SETAUKET, NY 11733 Phone: (631)471-2900 Fax: (631)471-2913 Doc. No. 6140432 Rev. F E-mail: sales@islandaire.com Web: http://www.islandaire.com...
