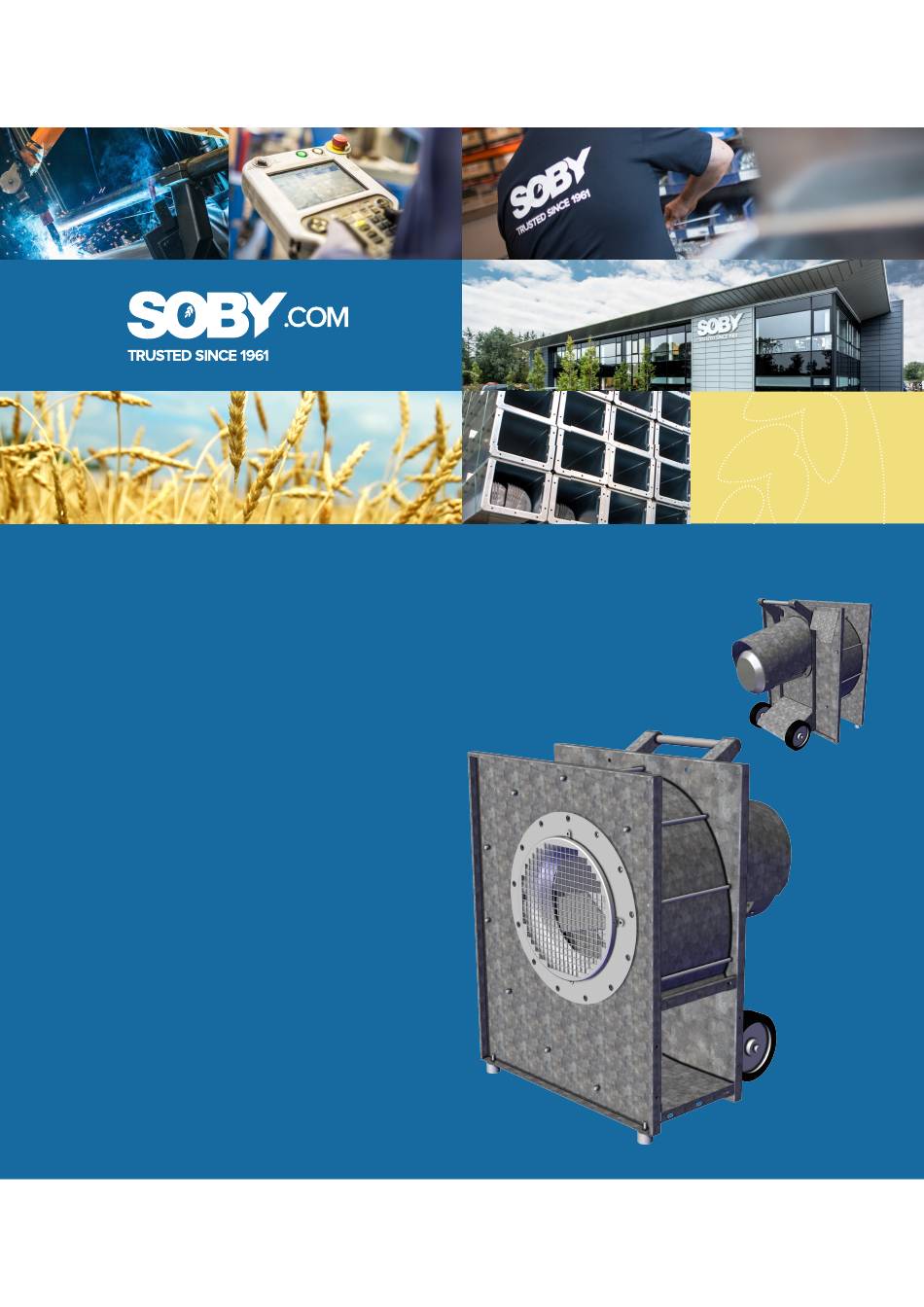

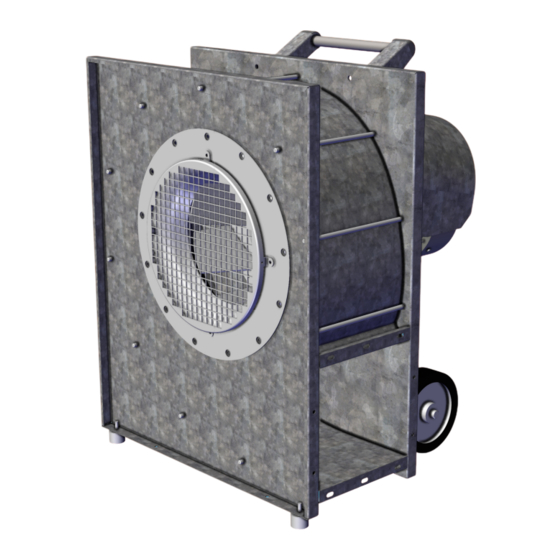

- Page 1 User manual Thank you for choosing SØBY In order for the machine to function optimally, it is important to forllow the instructions in this manual. Enjoy. Vers. 05 Dec. 2022...
- Page 2 Vers. 05 Dec. 2022 Introduction Thank you for choosing SØBY. It is very important that you read this user manual to obtain the necessary knowledge regarding in- stallation, operation, service, maintenance, and dismantling. It is important to keep the user manual in a safe location for future use.
- Page 3 Vers. 05 Dec. 2022 Contents General Information ........................ 3 Use of the Machine ......................... 7 Explanation of the Pictograms ....................8 Residual Risk.......................... 9 Description of the Components .................... 10 Technical Data and Specifications..................11 Noise Values ........................13 Commissioning ........................14 Changing of the Fan Wheel ....................
- Page 4 This construction provides a brief review of the most important safety issues, which are associated with installation, maintenance and use of the equipment. Please pay Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 5 [°C] Grænse værdier If the air contains stones, metal or other foreign objects, the explosion safety of the equipment cannot be guaranteed. Must comply w/ EN 60079-10-2:2015 concerning explosive atmosphere / dust atmosphere. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 6 Instructions for Use. If the fan is placed in areas classified as potentially explosive, use specially approved motor for the zone in question. If in doubt, please contact SØBY for Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 7 The fan must be located in a dry place in order to avoid oxidation of engine and contacts. The equipment must not be exposed to more dust impact (dust layers) than allowed in EN60079-14. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 8 The fan is not intended for extraction of air, gases, etc. The intake air must not be heated to temperatures above 55° C. Failure to observing of the above will invalidate any warranty obligation. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 9 All shieldings must be mounted before starting up of the machine Hearing protection is required when working with this machine. Centre of Gravity here. The arrow indicates the direction of the fan wheels for rotating. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 10 ATEX and in the Machinery Directive, and in accordance with the consequently harmonized standards. If these regulations are disregarded, the fan might be a danger to the operator/user or to the life and limb of a third party. See Declaration of Conformity. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 11 Vers. 05 Dec. 2022 Description of the Components Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 12 TLR 7,5 kW 13,30 Neozed TLR 11 kW 19,30 Neozed TLR 15 kW 26,20 Neozed Flows are indicated at 400 V supply. Be aware of limited running time in star connection, before delta connection. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 13 Vers. 05 Dec. 2022 TYPE 150/200 200/300 300/400 300/400/500 10,0 300/400/500 11,0 15,0 1044 400/500 15,0 20,0 1044 400/500 Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 14 The noise values measured in dB(A) at a distance from the fan of 1,5m Type TLR Size Motor Side / Rear Suction Side 1,5 kW 2,2 kW 4,0 kW 5,5 kW 7,5 kW 11,0kW 15,0kW Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 15 If the fan is going to be mounted into a pipe or into a hose, one could use a circular fan nipple from the fan figure 1. Figure 1. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 16 Now the bolt and the loch washer are ready to be dismounted as shown in figure 4, and the wheel here after can be drawn off. Using suitable lifting equipment for this task is important. Figure 4 Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 17 6. Figure 5 Figure 6 The motor now is ready for dismounting as shown in figure 7. Figure 7 Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 18 Balancing of the potential: An outside terminal for connection to the balancing connection exists on the motor. The connection must be carried out in accordance with the instructions in EN60079-14. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 19 It must be controlled after 40 operating hours that nuts all washers and nuts are properly tightened. Fan Wheel SØBY Must be controlled every year before season. Check if fan wheel balances/ check if it shakes. Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 20 Fan is not adjusted/straightened Adjust the under layer/mount up or fitted the fan firmly Fan wheel out of balance or If possible, straighten up or Fan is shaking damaged during order spareparts transportation/collision Viborgvej 306/ DK 7840 Højslev / soby.com...
- Page 21 Declaration of Conformity The Company Søby Maskinaktieselskab Viborgvej 306 DK-7840 Højslev Denmark Hereby declares that this machine type supplied by Søby Maskinaktieselskab type: TLR Complies with the following normative documents: OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 17 May 2006 on machinery, and DIRECTIVE 2006/42/EC amending Directive 95/16/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the...
