DTX SHOULDER SHOT Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
SHOULDER SHOT
SHOULDER SHOT
© Line Launchers, LLC

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHOULDER SHOT and is the answer not in the manual?

Questions and answers

Summary of Contents for DTX SHOULDER SHOT

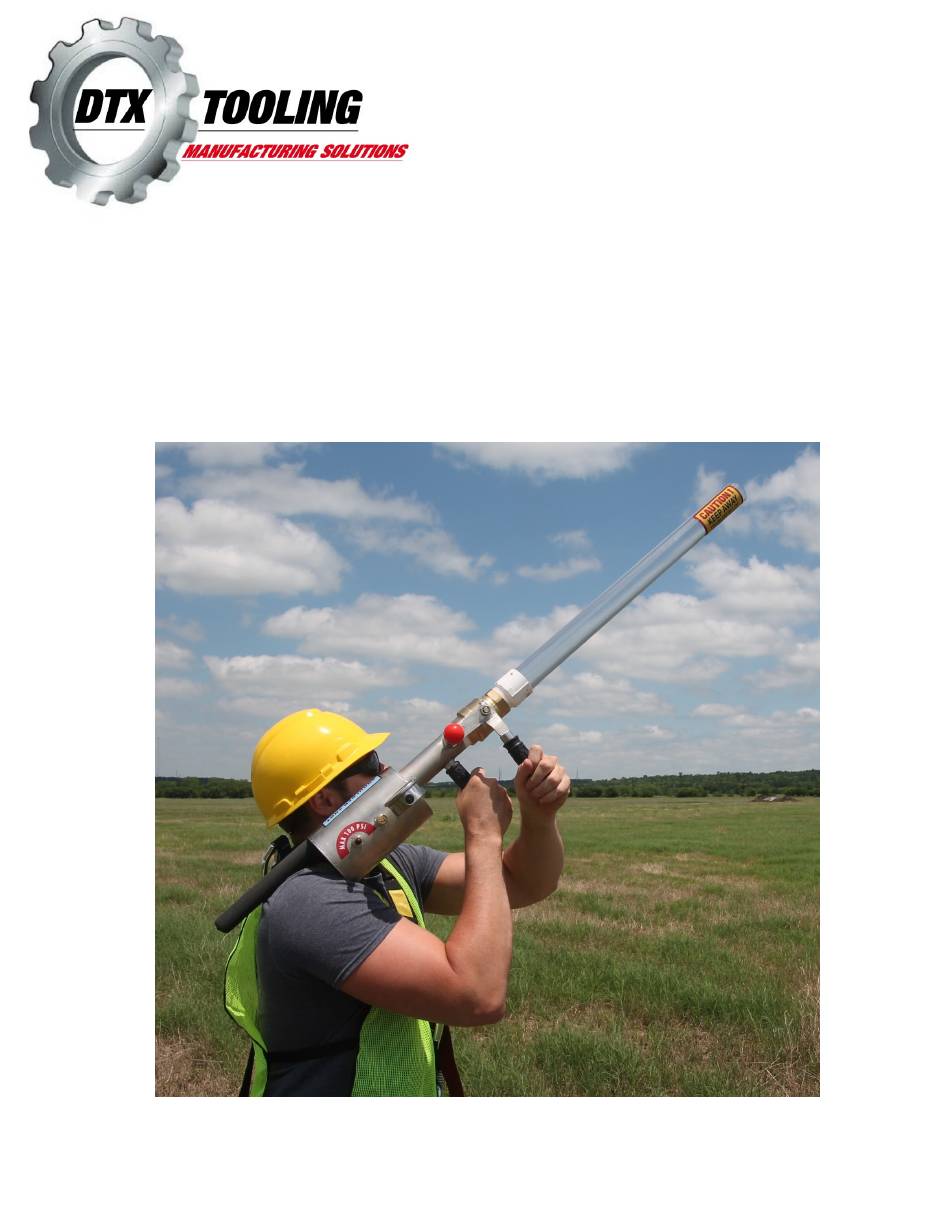

  • Page 1 INSTRUCTION MANUAL SHOULDER SHOT SHOULDER SHOT © Line Launchers, LLC...
  • Page 2 INSTRUCTION MANUAL SHOULDER SHOT Safety Lock [pictured in locked position] 140 cm Used to avoid accidental activation of 26 cm the device, using spring loaded ball lock Shoulder Pad Rest on shoulder to align shot Barrel Load throw bag in.

  • Page 3: Safety Checklist

    11. Fill the air chamber. Do not overfill. Max is 110 PSI. 12. Verbally announce preparation for activating the device 13. Set the Shoulder Shot firmly, and comfortably on the shoulder of the personnel activating the device 14. Check for clearance of the desired target.
  • Page 4 INSTRUCTION MANUAL SHOULDER SHOT STEP 1 Connect the clear PVC barrel to the device by screwing the white coupling to the valve. Valve Coupling Barrel © Line Launchers, LLC...
  • Page 5 INSTRUCTION MANUAL SHOULDER SHOT STEP 2 Attach lightweight throw line to the bean bag. The 12 ounce Weaver throw bag is recommended. Other bags work if they fit tightly in the barrel. Connect line to the back end of the...
  • Page 6 INSTRUCTION MANUAL SHOULDER SHOT STEP 3 Insert throw bag, back end first, line outward. Push bag to bottom of the barrel, using a rod or stick. Check for tight fit. Check your air-intake valve is open before loading the bag.
  • Page 7 INSTRUCTION MANUAL SHOULDER SHOT STEP 4 Check the safety lock on the valve. Make sure the handle is in the downward lock position and the pin is inserted into the washer on the pipe prior to airing up the device.
  • Page 8 INSTRUCTION MANUAL SHOULDER SHOT STEP 5 Fill the air chamber. Inflate with air or CO2. The intake valve fits any standard pump. Adjust PSI to match target distance, using the distance chart. Do not put more than 110 PSI into chamber. A pressure relief valve will release air at 120 PSI for safety.
  • Page 9 INSTRUCTION MANUAL SHOULDER SHOT STEP 6 Place unit comfortably on shoulder. When ready, pull the red safety knob out and turn, to remove the safety for launch. Find your target by looking down the tip of the barrel and aiming. Firmly push handle forward and fire.
  • Page 10 INSTRUCTION MANUAL SHOULDER SHOT PSI TO VERTICAL DISTANCE CHART Note: Distances may vary based on speed of valve release Meters High 30 Meters Horizontal Meters Meters High High 23 Meters Horizontal Meters High 38 Meters Horizontal Meters Meters High High 30 Meters Horizontal ©...
  • Page 11 INSTRUCTION MANUAL SHOULDER SHOT PSI TO VERTICAL DISTANCE CHART Note: Distances may vary based on speed of valve release Meters High 61 Meters Horizontal Meters Meters High High 45 Meters Horizontal Meters High 106 Meters Horizontal Meters Meters High High 76 Meters Horizontal ©...
  • Page 12 INSTRUCTION MANUAL SHOULDER SHOT PSI TO VERTICAL DISTANCE CHART Note: Distances may vary based on speed of valve release Meters High 137 Meters Horizontal Meters Meters High High 106 Meters Horizontal PSI to Distance Summary Table © Line Launchers, LLC...
