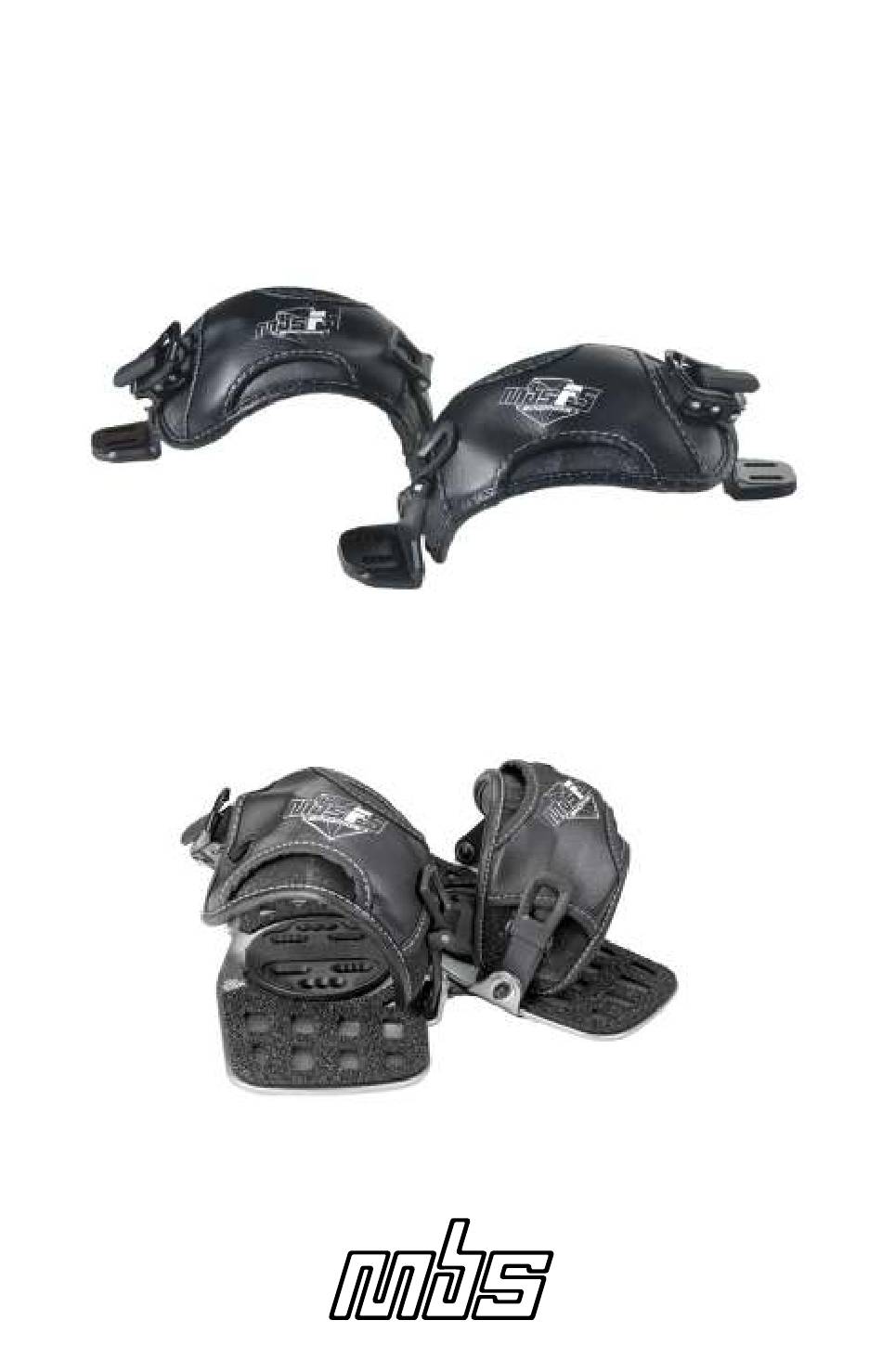

- Page 1 MBS F5/F5X BINDINGS - Owner’s Manual - #14051 F5 BINDINGS #14060 F5X BINDINGS...
- Page 2 F5X ASSEMBLY 1. Identify F5X Parts: Main Strap Cam Buckle Ratchet Buckle Ratchet / Ladder Strap Cam / Adjuster Strap Disc Screws Disc Washers Disc F5X Base RIGHT FOOT BINDING 2. Determine Stance: Stand on your board in a stance that feels comfortable. Left foot forward (regular) Right foot forward (goofy) Freestyle...
- Page 3 F5X ASSEMBLY 3. Attach Binding to Deck (deck with binding inserts) Align Disc with deck inserts . Note: It doesn’t matter what angle your binding is on, your disc will always be aligned with the 4-hole binding insert pattern in your deck. Place disk in hole.
- Page 4 F5 ASSEMBLY 1. Identify F5 Parts: RATCHET BUCKLE CAM BUCKLE MAIN STRAP SCREWS WASHER PLATE CAM LADDER RATCHET LADDER LEFT RIGHT 2. Note Orientation of Left vs. Right Bindings on Board: LEFT RIGHT 3. Install first binding (decks with binding inserts) Tighten screws using 4mm allen key.
- Page 5 Insert screws from bottom. Nuts on top. M6 NUT LONG SCREW (M6) F5 Bindings Assembled and Ready to Ride: MAINTENANCE Before Each Ride: 1. Check all hardware is tight. 2. Inspect and replace ladder straps with nicks, tears, stretching or discoloration.
- Page 6 OPERATION / ADJUSTMENT F5 / F5X Bindings Offer Two Levels of Adjustment: COARSE ADJUSTMENT (Cam-Lock Buckle) Use the cam-lock buckle to adjust your F5 strap to the OPEN size of your feet. ADJUST 1. Open Cam buckle. CLOSE LOCK 2. Slide strap up or down.
- Page 7 OTHER COSTS INCURRED NOR SHALL MBS BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES. In North America - For more information, or to file a warranty claim, contact MBS directly. mbs.com/warranty Outside North America - Contact the dealer / distributor in your country.
- Page 8 COLORADO SPRINGS, CO 80907 USA 1.719.884.1000 customerservice@mbs.com www.mbs.com Tag us on Instagram for a chance to win MBS Merch. @mbsmountainboard @mountainboarders We have worked hard to make sure your product meets or exceeds your expectations. If for any reason it doesn’t, or if you have any...
