Summary of Contents for ProMeister PT7301

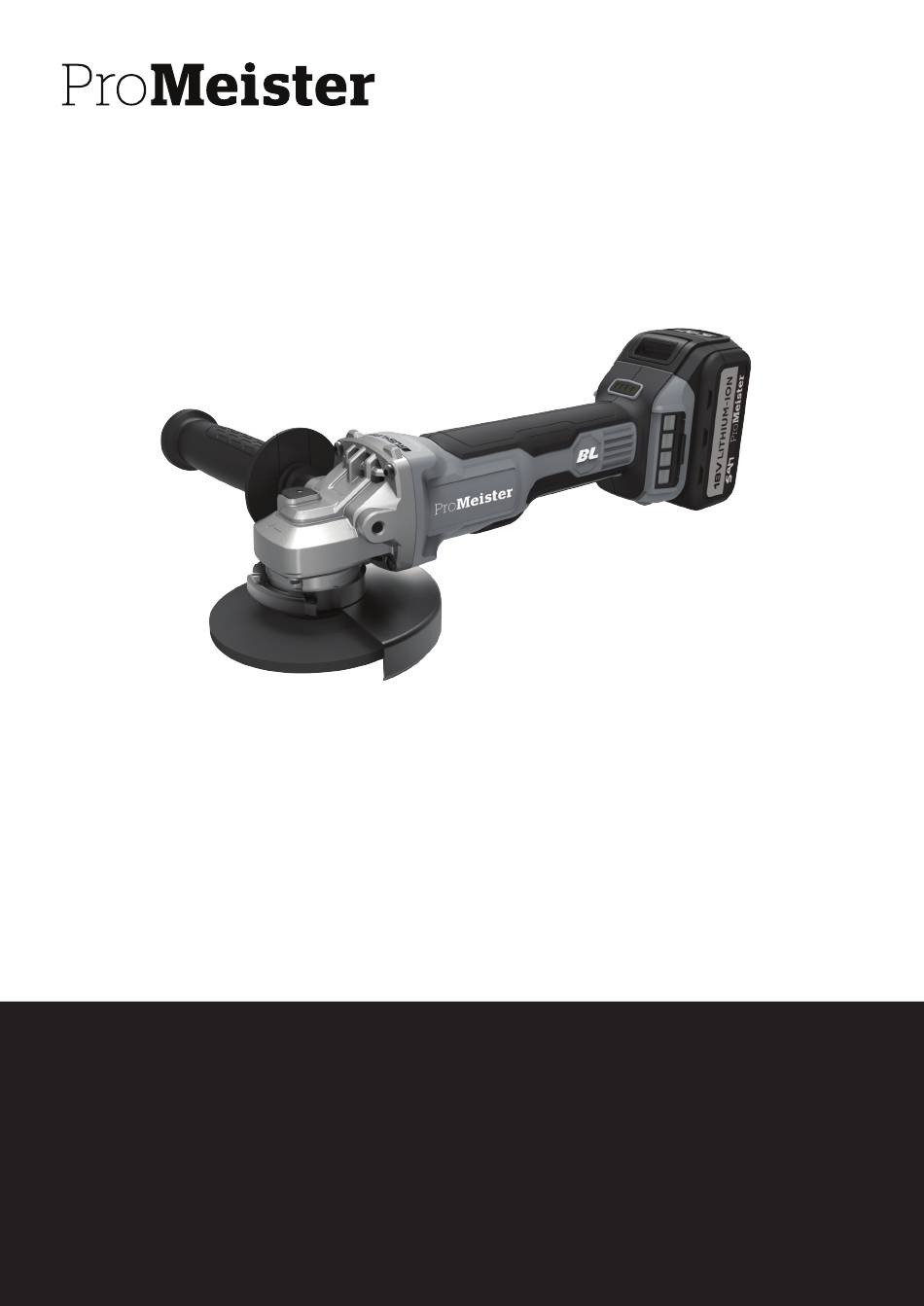

- Page 1 User Guide Max 20V Li-ion Brushless Angle Grinder Winkelschleifer Vinkelsliber Vinkelslip Kulmahiomakone Vinkelsliper Art. Nr: PT7301 RVNR-02...
- Page 2 Product Specifications Product Specifications 1. Paddle switch 2. Spindle lock 3. Backing flange 1. Screw 2. Removable mesh filter cover 3. LED cover 4. Threaded clamp nut 5. Grinding wheel guard 6. Cutting wheel guard 4. PCB assy 5. Switch 6.
- Page 3 Description of Symbols Product Information Art. Nr: PT7301 Motor: 18V DC Brushless Volts Voltage Rated Speed: 8000rpm Spindle Thread: 15.9mm Amperes Current Wheel Size: ø125mm NOISE AND VIBRATION INFORMATION Hertz Frequency (cycles per second) (measured values determined according to EN 60745) •...
- Page 4 General Power Tool Safety Warning General Power Tool Safety Warning 4) Power Tool Use and Care WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and • Do not force the power tool. Use the correct power tool for your application. The correct power instructions may result in electric shock, fire and/or serious injury.
- Page 5 Safety Warnings Common for Grinding, Abrasive Cutting-off Safety Warnings Common for Grinding, Abrasive Cutting-off Operations: Operations: • Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. • Do not use accessories that require liquid coolants. Using water or other liquid coolants may result •...
- Page 6 Safety Warnings Specific for Grinding and Abrasive Cutting-Off WARNING! Use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use a face or dust Operations mask if the operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT: • ANSI Z87.1 eye protection (CAN/CSA Z94.3) •...
- Page 7 Additional Safety Information Additional Information on Battery and Charger • Do not use flat abrasive or diamond wheels without the proper cutting wheel guard. • The battery pack is not fully charged out of the cart on. First read the safety instructions and then •...
- Page 8 Fitting and Removing the Battery Pack to the Charger Diagnostics Angle Grinder The charger is designed to detect certain problems that can arise with battery packs. • When the charger detects a battery pack that is overheated, all three charging lights will blink at •...
- Page 9 Charge Level Indicator Installing the Auxiliary Handle (Fig. D) If the tool is turned on, the charge level indicator lights for 5 seconds and the battery’s charge level can • Remove the battery pack before installing or removing the be checked. auxiliary handle.
- Page 10 Adjusting the Wheel Guard (Fig. H) Installing And Removing The Wheel (Fig. K, L) The guard is pre-adjusted to the diameter of the gear case hub at the Depressed centre wheel must be used with the included flanges. factory. If, after a period of time, the guard becomes loose, tighten the •...
- Page 11 Paddle Switch (Fig. M) Grinding with Grinding Wheels (Fig. N) Grasp the tool body and the auxiliary handle firmly. Push the lock-up Always carefully select and use grinding wheels that are recommended button forward (1) and press the paddle (2) to start the tool. for the material to be ground.
- Page 12 Cutting with Cutting Wheels (Fig. O) Maintenance Always carefully select and use cutting wheels that are recommended for Storing the machine, operating instructions and where necessary the accessories in the original the material to be ground. Make sure that the operating speed of any packaging.
- Page 14 Produced in China for Bileko Car Parts AB P.O. Box 542 S-645 25 Strängnäs, Sweden Tel: +46 771 72 00 00 www.promeister.com...
