Summary of Contents for SAN HIMA SH6PUMP

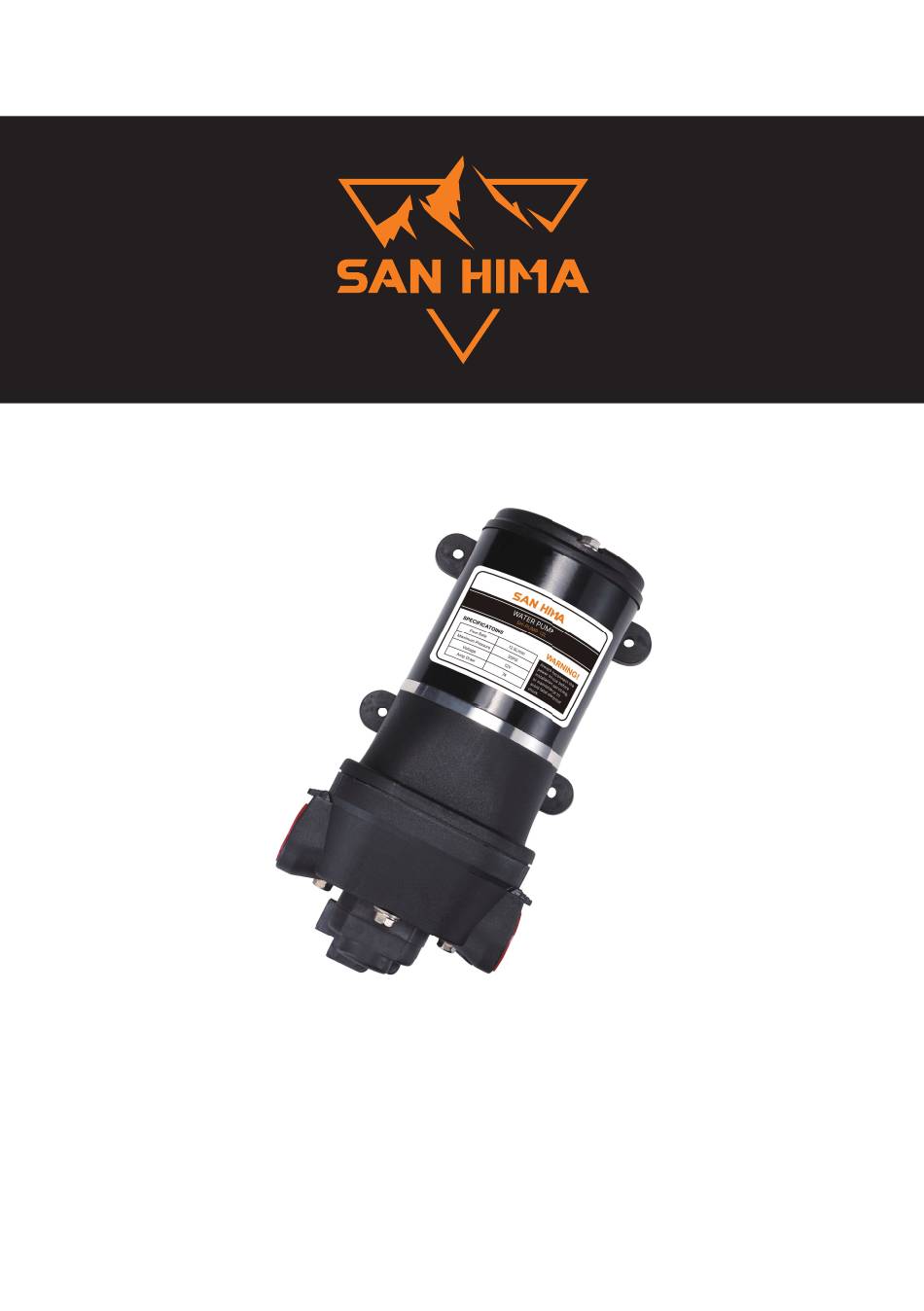

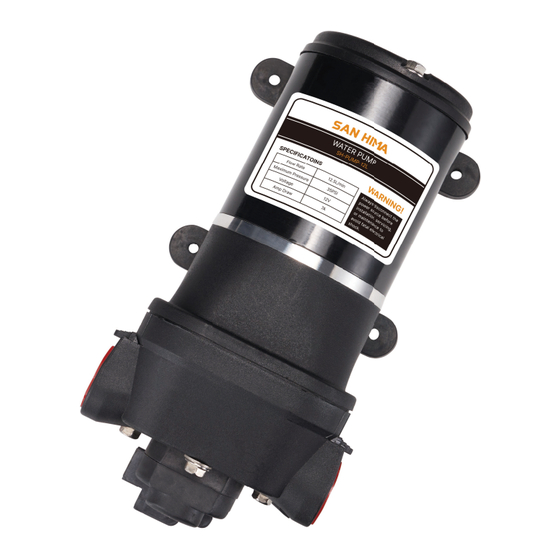

- Page 1 12V 6L/12L Water Pump User Manual SH6PUMP/SH12PUMP Please carefully follow these instructions for safe and correct use. Keep it in a secure place for future reference. V 1.1...
- Page 2 Technical Specifications----------------------------------------------------- -------7 Warranty-------------------------------------------------------------------- -------8 IMPORTANT SAFETY INSTRUCTIONS Read and understand the User Manual before operating your San Hima water pump to prevent personal injury and equipment damage. General Safety Always disconnect the power source before installation, servicing, or maintenance to avoid fatal electrical shock.
- Page 3 Tired or sick Taking medication Under the influence of alcohol or drugs Eye Protection San Hima recommends wearing eye protection that meets ANSI Z87.1 or CE standards. Hand Protection Wear non-slip, heavy-duty work gloves to enhance grip and reduce vibration. Hearing Protection San Hima recommends wearing hearing protection during operation.
- Page 4 Keep long hair secured with a cap or net to avoid entanglement. WHAT’S INCLUDED SH6PUMP SH12PUMP 1 PC(s) San Hima 12V 6L Water Pump 1 PC(s) San Hima 12V 12L Water Pump 2 PC(s) Connectors 3 PC(s) Connectors 2 PC(s) Locking Pins...
- Page 5 For the 6L pump, push the locking pins to secure them. Mounting Horizontal Mounting: Recommended to mount the San Hima water pump horizontally to optimize the self-priming feature. Vertical Mounting: If vertical mounting is necessary, position the motor above the pump. Refer to the diagram for proper setup.
- Page 6 Hose Requirements: Use only flexible hose with the correct pressure rating. Avoid using check valves that could interfere with the pump's priming ability. If a check valve is used, ensure it has a cracking pressure of no more than 2 psi (0.14 bar). √...
- Page 7 CARE AND MAINTENANCE Avoid using the pump continuously for 30 minutes to prevent overheating and potential failure. Overheating can cause permanent damage and void the warranty. Drain the pump of water before freezing weather conditions to prevent damage. TROUBLESHOOTING Motor Operates, but Pump Not Pumping Check and clear any blockages in the intake or outlet line.
- Page 8 Replace a defective rectifier or motor. Ensure the pump is receiving sufficient voltage. Pulsating Flow - Pump Cycling On and Off Check discharge lines, fittings, valves, and spray nozzles for clogging or undersizing. TECHNICAL SPECIFICATOINS Model No: SH6PUMP SH12PUMP 6L/min 12.5L/min Flow Rate Maximum Pressure...
- Page 9 San Hima water pump. San Hima, at its discretion, will either replace the product or issue a refund, provided that the fault is found to have been caused by a design or manufacturing defect that results in the water pump's failure to perform as described.
