True Fitness C4RT9 Owner's Manual

Residential 9” touchscreen console

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

RESIDENTIAL 9"

TOUCHSCREEN CONSOLE

MODEL C4RT9

MAN-C4RT9 REV03

OWNER'S

MANUAL

Table of Contents

Need help?

Do you have a question about the C4RT9 and is the answer not in the manual?

Questions and answers

Summary of Contents for True Fitness C4RT9

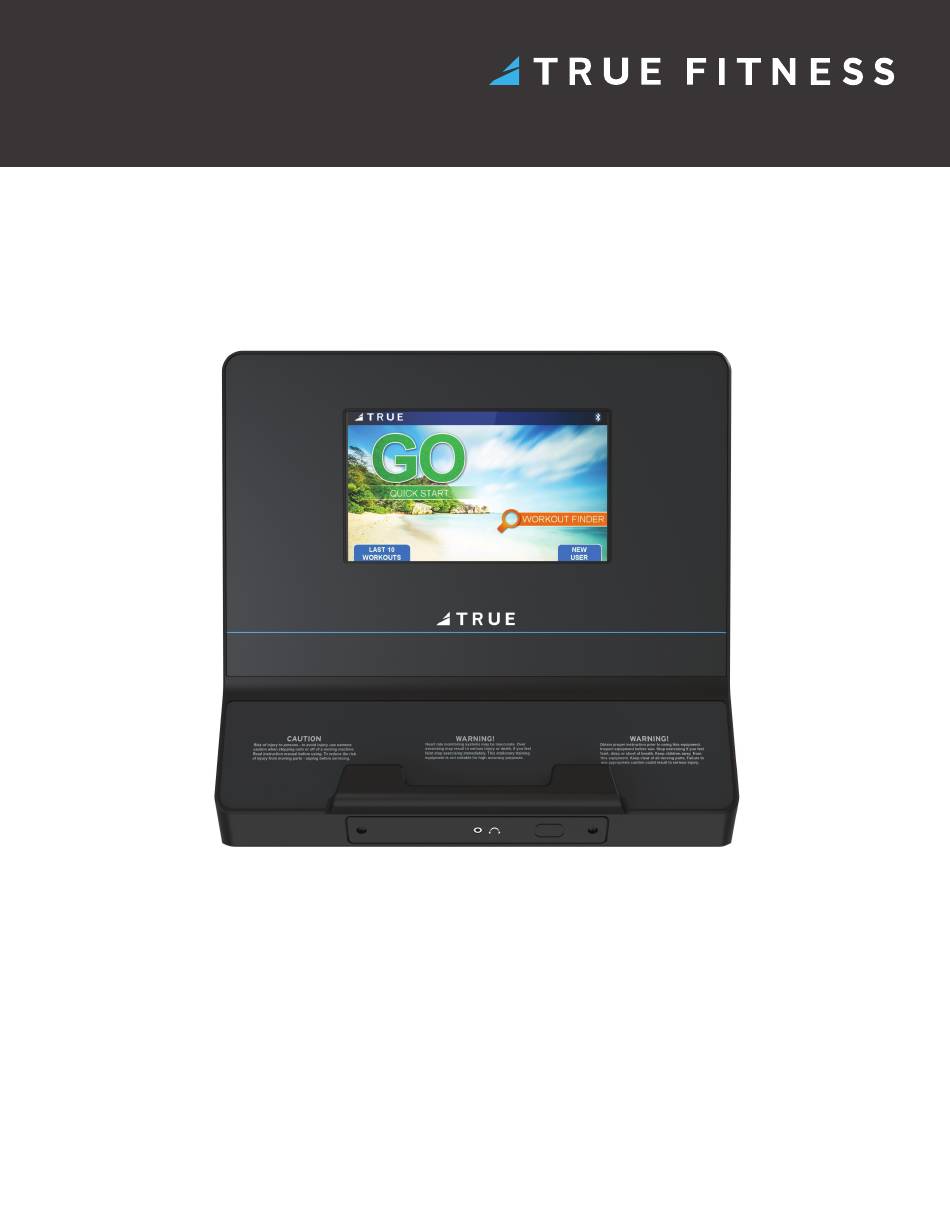

Page 1 RESIDENTIAL 9” TOUCHSCREEN CONSOLE OWNER’S MODEL C4RT9 MANUAL MAN-C4RT9 REV03...
Page 2: Important-Please Read
IMPORTANT—PLEASE READ All products shown are prototype. Actual product delivered may vary. Product speciﬁ cations, features, and software are subject to change without notice. For the most up-to-date version of this manual, please see our website: https://shop.trueﬁ tness.com/services-support/user-manuals/ CONTACTING OUR SUPPORT TEAM To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST): •...
Page 3: Reporting Freight Claims Or Parts Damage
REPORTING FREIGHT CLAIMS OR PARTS DAMAGE Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the appropriate process for you to follow. Severe Damage—Obvious damage to external packaging and internal product. Please refuse the shipment and it will be returned to TRUE by the carrier.
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS............5 POWER REQUIREMENTS..........................5 WARNING DECALS...........................6 COMPLIANCES...........................7 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST........................8 ASSEMBLY STEPS...........................9 CONSOLE FEATURES FEATURES OVERVIEW..........................18 9” TOUCHSCREEN ICON DESCRIPTIONS....................19 WORKOUT PROGRAM DESCRIPTIONS.....................20 HEART RATE INFORMATION HEART RATE MONITORING........................22 HEART RATE CONTROL (HRC).........................23 CONSOLE NAVIGATION HOME SCREEN............................24 SELECTING A PRESET WORKOUT......................25...
Page 5: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS This equipment intended for in-home use only. Do not use this product in any commercial, rental, school or institutional setting. • Read and understand all instructions and warnings prior to use. • Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy, or experience pain, stop and consult your physician.
Page 6: Warning Decals
WARNING DECALS WARNING: Replace warning labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@trueﬁ tness.com | 800.883.8783). 24-000000X console serial number location 24-000000X -0000 C4RT9 C4RT console serial number location...
Page 7: Compliances
WARNING DECALS COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.trueﬁ tness.com.
Page 8: Assembly Instructions
IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support (service@trueﬁ tness.com | 800.883.8783). BOX CONTENTS TOOLS NEEDED FOR INCLUDED ITEM PART NUMBER DESCRIPTION ASSEMBLY IN BOX C4RT9 CONSOLE, UCIV, RETAIL 9” TOUCHSCREEN #2 Phillips Screwdriver MAN-C4RT9 MANUAL, C4RT9...
Page 9: Assembly Steps
ASSEMBLY STEPS Example shown below—see the base assembly instructions for how to attach the console to the console mast for your base. Step 1—Attach Console to Mast Parts Used in this Step Tools Used in this Step Item Part Description #2 Phillips Screwdriver CONSOLE MAST ASSEMBLY CONSOLE...
Page 10 Step 2—Make Cable Connections Example shown below—see the base assembly instructions for how to attach the console to the console mast for your base. A. Connect the I/O cable, center pod cable, contact heart rate cable, and safety key cable to their respective ports on the console control board.
Page 11: Step 3-Connect Power Cord
Step 3—Connect Power Cord Example shown below—see the base assembly instructions for how to attach the power cord or power adapter to the base. A. Connect the power cord into the power inlet and then power on the machine. B. Verify the console powers up.
Page 12 Step 4—Configure and Calibrate the Machine Parts Used in this Step Item Part Description CONSOLE NOTE: All new products require configuration. However, not all new products require calibration. The TPS treadmills require calibration. If calibration is required, you must calibrate the machine. NOTE: Users must select the correct base in conﬁ...
Page 13 Step 4—Configure and Calibrate the Machine Continued B. The ﬁ rst screen displayed after entering Service Mode is the Service menu. In the Service menu, select Utilities (A) to highlight it. Press NEXT (B) to continue. C. Under Utilities select Product Setup (A). Press NEXT (B) to continue.
Page 14 Step 4—Configure and Calibrate the Machine Continued D. To conﬁ gure the machine, press Setup Wizard (A). E. In the Setup Wizard, select the correct base model and follow the on-screen instructions to complete the procedure. NOTE: Misconﬁ guration of the console may cause damage to the unit and void the manufacturer warranty. If necessary, please contact TRUE Technical Support at 800-883-8783 for assistance.
Page 15 Step 4—Configure and Calibrate the Machine Continued B. In the Service Menu, select Diagnostics (A) to highlight it. Press NEXT (B) to continue. C. Under Diagnostics, select Calibration/Test (A) to highlight it. Press NEXT (B) to continue.
Page 16 Step 4—Configure and Calibrate the Machine Continued D. Under Calibration/Test, select Speed/Incline Cal (A) to highlight it. Press NEXT (B) to continue. E. Under Speed/Incline Calibration, press Run (A) to begin calibration. F. Once calibration is complete, turn the power off on the machine for 30 seconds. WARNING: This process will take full control of the machine and can be dangerous if caution is not taken.
Page 17 Step 5—Attach Rear Console Cover Example shown below—see the base assembly instructions for how to attach the console rear cover. Tools Used in this Step #2 Phillips Screwdriver Using a #2 Phillips screwdriver, secure the rear console cover to the console mast using the screws provided with the base.
Page 18: Console Features
CONSOLE FEATURES FEATURES OVERVIEW A. Capactive Touchscreen Display B. USB Port C. Headphone Jack D. Reading Rack...
Page 19: 9" Touchscreen Icon Descriptions
9” TOUCHSCREEN ICON DESCRIPTIONS ICON* DESCRIPTION ICON* DESCRIPTION Resistance/Workload/ Toolbox Level Home Screen Toggle Cool Down Keypad Incline Speed/RPM Down *Icons vary by model.
Page 20: Workout Program Descriptions
WORKOUT PROGRAM DESCRIPTIONS WORKOUT WORKOUT PROGRAM DESCRIPTION PROGRAMS QUICK START A workout in which you control all settings. The workout continues until you end it. MANUAL Set up your own workout to a time or distance limit. A series of increasing and decreasing workload changes that simulate rolling hills. Adjust your settings at ROLLING HILLS any time during the workout to increase or decrease intensity of the hills.
Page 21 WORKOUT PROGRAM DESCRIPTIONS WORKOUT WORKOUT PROGRAM DESCRIPTION PROGRAMS A ﬁ tness test uses heart rate to estimate the user’ s VO2 max. The test increases speed and incline GERKIN gradually every minute and ends at the point where the user’ s heart rate reaches 85% of the maximum FITNESS TEST for their age.
Page 22: Heart Rate Information
HEART RATE INFORMATION HEART RATE MONITORING TRUE cardio equipment can monitor a user’ s heart rate using a Polar* 5kHz compatible chest strap or the metal grips on the hand rails (called contact heart rate or CHR pads). The chest strap transmits the user’ s heart rate to the console via radio, and the console reads the user’...
Page 23: Heart Rate Control (Hrc)
HEART RATE CONTROL (HRC) You are now the owner of the most sophisticated Heart Rate Control (HRC) cardio equipment available. TRUE HRC is unique and patented. It accommodates users from rehabilitation to world class athletes, and all those in between. TRUE HRC allows users to do a completely hands-free heart rate controlled workout using speed, incline, and/or resistance.
Page 24: Console Navigation
CONSOLE NAVIGATION HOME SCREEN Home Screen The Home Screen is displayed on the console when there is no workout in progress. From this screen the user is able to select from various options to begin a workout. A. Quick Start Starts a Quick Start workout in which the user controls all settings until the workout is ended by the user.
Page 25: Selecting A Preset Workout
SELECTING A PRESET WORKOUT Selecting a Preset Workout Preset workouts are accessed by selecting WORKOUT FINDER from the Home Screen. To view the description of a workout (A), select the workout by touching it (B). Once the desired workout has been selected, simply press NEXT (C) to proceed. NOTE: Workouts can be viewed by category by pressing i (D).
Page 26: Workout Data Screens
WORKOUT DATA SCREENS Workout Data Screens During any workout a Workout Data Screen will be displayed to give the user a comprehensive visual overview of their current workout data. NOTE: The image below may differ slightly based on the base unit used. A.
Page 27: Quick Touch
WORKOUT DATA SCREENS J. Show Tools Gives the user the following options: • Customize the data shown in the Statistics bar. • Change units between English and Metric. • Pair a Bluetooth heart rate strap. K. Quick Touch Displays various preset speed, level, and incline levels to allow the user to quickly and conveniently customize their workout. L.
Page 28 WORKOUT DATA SCREENS Show Tools Tapping Show Tools (A) will display various options. Tapping Bike Mode (B) toggles it on, displays the MPH dial (C) and simulates riding a 21-speed (D) road bike. The resistance changes to constant torque against the pedals and calculates speed (E) for a more realistic biking experience.
Page 29: User Profiles
USER PROFILES Creating a New User To create a new user proﬁ le, touch NEW USER on the Home Screen and the NEW USER screen will appear. Tap the information (A) on the left side of the screen to edit it. Once all of the information is complete, touch BACK (B) to return to the home screen.
Page 30: Bluetooth Functions
BLUETOOTH FUNCTIONS Bluetooth Audio (Before Workout) Tap Bluetooth on the Home Screen or in a User Proﬁ le to display the CONNECTIVITY screen. Touch PAIR (A) on the console to begin the pairing process. From the Bluetooth menu on your audio device, select the device listed on the console (B) to complete the pairing process.
Page 31 BLUETOOTH FUNCTIONS Bluetooth Heart Rate (Before Workout) Tap Bluetooth on the Home Screen or in a User Proﬁ le to display the CONNECTIVITY screen. Touch Heart Rate PAIR (A) to display the Heart Rate Pairing screen. Tap Bluetooth HR (B) and then select the desired device from the list provided. Bluetooth Heart Rate (During Workout) To pair a Bluetooth heart rate strap, tap SHOW TOOLS on the Workout Data screen, then press Bluetooth Heart Rate (A) and select the desired strap from the list (B).
Page 32: Advanced Console Functions
BLUETOOTH FUNCTIONS Mobile Fitness App Pairing This console is compatible with GymTrakr ﬁ tness tracking apps. To pair a compatible app, tap Bluetooth on the Home Screen or in a user proﬁ le to display the connectivity screen. Touch Mobile App PAIR (A) to display the Mobile App Pairing screen. From the ﬁ...
Page 33: Service Menu
ADVANCED CONSOLE FUNCTIONS Service Menu The ﬁ rst screen displayed after entering service mode is the Service menu. From this menu technicians can access all of the service mode features by selecting different categories. To select a category, touch the desired category (A) to highlight it. Once a category has been selected, press NEXT (B) to continue.
Page 34 ADVANCED CONSOLE FUNCTIONS Utilities Menu - Product Setup The Product Setup screen allows the technician to adjust model conﬁ guration. To conﬁ gure the machine, press Setup Wizard (A) and follow the on-screen instructions to complete the procedure. NOTE: Misconﬁ guration of the console may cause damage to the unit and void the manufacturer warranty. If necessary, please contact TRUE Technical Support at 800-883-8783 for assistance NOTE: The image below may differ slightly based on the base unit used.
Page 35 ADVANCED CONSOLE FUNCTIONS Options Menu The Options menu contains various options and settings that pertain to the operation and setup of the machine. Select the option to change and use the keypad to make changes. A. User Proﬁ les G. Finder Timeout Enables or disables the Custom User Proﬁ...
Page 36 ADVANCED CONSOLE FUNCTIONS Diagnostics Menu - Calibration/Test This menu contains tools for testing and verifying machine operation on applicable machines. NOTE: The image below may differ slightly based on the base unit used. A. Key Test When a key is pressed on the console NONE will change to indicate which key is being pressed. In the event of a stuck key, the key that is being engaged will display.
Page 37 ADVANCED CONSOLE FUNCTIONS Diagnostics Menu - Error Log Error codes are an important part of troubleshooting any issues with the machine. Any time an error occurs it is entered into the Error Log for review by a service professional. This console is capable of storing the ten most recent errors. The error log can be cleared by pressing NEXT (A), but it is not recommended.
Page 38: Limited Warranty
See the base manual or visit the TRUE website for the warranty duration for this product. All TRUE Fitness products are distributed by TRUE and are •...
Page 39: Warranty Registration
WARRANTY REGISTRATION Thank you for purchasing a TRUE product! PLEASE RETAIN THIS PORTION FOR YOUR RECORDS To validate your product warranty, you must register BASE SERIAL NUMBER: your product within 30 days of purchaser’ s receipt of this CONSOLE SERIAL NUMBER: product.
