Summary of Contents for Huawei AR100-S

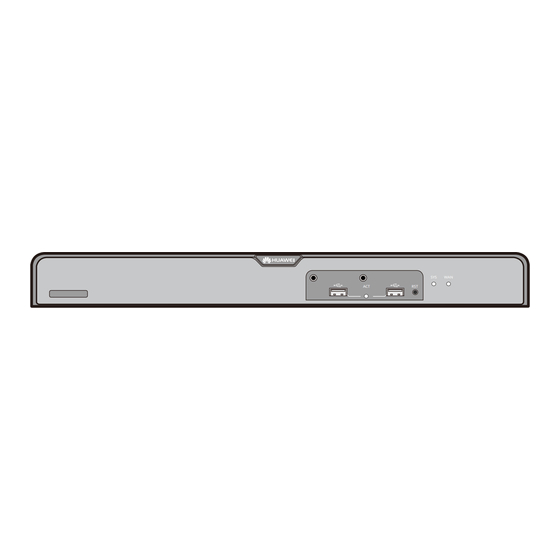

- Page 1 Quick Start Guide AR100-S, AR110-S, AR120-S, AR150-S, AR160-S, AR200-S, AR1200-S, AR2200-S, and AR3200-S Series Enterprise Routers Issue: 19 (2021-09-09) Part Number: 31505224 HUAWEI TECHNOLOGIES CO., LTD...
- Page 2 1 About This Guide Thank you for purchasing a Huawei AR series router. This guide describes how to install AR100-S, AR110-S, AR120-S, AR150-S, AR160-S, AR200-S, AR1200-S, AR2200-S, and AR3200-S series routers. It also explains how to log in to your router for the first time.
- Page 3 The panel with interfaces must face down to protect the interfaces from water. The distance between two installation holes of the AR100-S series routers is 120 mm. The distance between two installation holes of the AR110-S/AR120-S/AR150-S/AR160-S/AR200-S series routers is 130 mm.
- Page 4 Install indoor remote antennas on the primary 3G or LTE interfaces on the routers. The AR100-S series routers cannot be installed in a cabinet. Some router models have specific installation requirements. Refer to the following for details about your router model.
- Page 5 Installation Procedure Step 1 Attach mounting brackets to the router with M4 screws. Determine the mounting method according to the brackets delivered with your router. Applicable to AR110-S/AR120-S/AR150-S Applicable to AR1200-S series Applicable to AR2201-48FE-S /AR160-S/AR200-S series Applicable to AR2204-27GE-S AR2204-S/AR2220E-S Distance between mounting rails: Distance between mounting rails:...
- Page 6 WSIC card into two SIC slots with the guide rail removed. For information about the cards supported by your model, see Cards in the Hardware Description of your router on the Huawei support website. All cards are hot swappable. Before installing a card, wear an ESD wrist strap or ESD gloves.
- Page 7 Scenario 2: Removing a Guide Rail Installation Procedure Step 1 Use a Phillips screwdriver to loosen the captive screws on the filler panels on the two SIC slots counterclockwise. Step 2 Pull the filler panel out by the captive screw. Keep the filler panel for future use. Step 3 Use the Phillips screwdriver to loosen the screw on the guide rail.
- Page 8 7 Connecting Cables Before You Start Power cables must be more than 10 cm away from signal cables. Optical fibers must be used with optical modules. The bend radius of optical fibers must be larger than 40 mm. For the ground cable, attach the M4 lug to the router and the M6 lug to the ground point. If your router uses AC power supply, use AC power cables in compliance with local standards.
- Page 9 8 Logging In to the Router for the First Time 8.1 Using the default web login settings Before You Start If the web page is displayed abnormally, the browser version may be too low. Upgrade the browser and log in to the web platform using Mozilla Firefox 12.0 or later, Google Chrome 23 or later, or Internet Explorer 8.0 or later.
- Page 10 Web-based Configuration of the product. The default username and password are available in AR Router Default Usernames and Passwords (https://support.huawei.com/enterprise/en/doc/EDOC1100182073 If you have not obtained the access permission of the document, see Help on the website to find out how to obtain it.
- Page 11 Enable the Web server function. [Huawei] http server enable Step 7 Configure an HTTPS user and set the user level. [Huawei] aaa [Huawei-aaa] local-user admin password cipher Admin@huawei [Huawei-aaa] local-user admin privilege level 15 [Huawei-aaa] local-user admin service-type http [Huawei-aaa] quit [Huawei] quit <Huawei>...
- Page 12 11 Declaration of Conformity Hereby, Huawei Technologies Co., Ltd. declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.huawei.com/en/product-certification.
