Cuisinart Outdoors CGG-9748 Manual

28” outdoor griddle with hood
Hide thumbs Also See for CGG-9748:
Table of Contents

Advertisement

Quick Links

Download this manual
• For Outdoor Use Only (outside
any
enclosure).
• This instruction manual
contains important information
necessary for proper assembly
and safe use of this appliance.
• Read and follow all warnings
and instructions before
assembling and using the
appliance.
• Follow all warnings and
instructions when using the
appliance.
• Keep this manual for future
reference.
DANGER
• If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open the lid.
4. If the odor continues, keep
away from the appliance and
immediately call your fire
department.
WARNING
• Do not store or use gasoline
or other flammable liquids or
vapors in the vicinity of this or
any other appliance.
• An LP cylinder not connected
for use shall not be stored in
the vicinity of this or any other
appliance.
28" Outdoor Griddle With Hood
Customer Service Hotline
1-866-994-6390
ANSI Z21.58-2018 • CSA 1.6-2018
DO NOT RETURN PRODUCT TO THE STORE
Before visiting your local retailer, please email outdoors@
cuisinart.com or call our customer service department at
1-866-994-6390 to chat with a representative. To best serve
you, our representatvies are available to answer calls Monday
to Friday 9 AM to 5 PM EST.
MODEL NO: CGG-9748
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CGG-9748 and is the answer not in the manual?

Questions and answers

Related Manuals for Cuisinart Outdoors CGG-9748

Summary of Contents for Cuisinart Outdoors CGG-9748

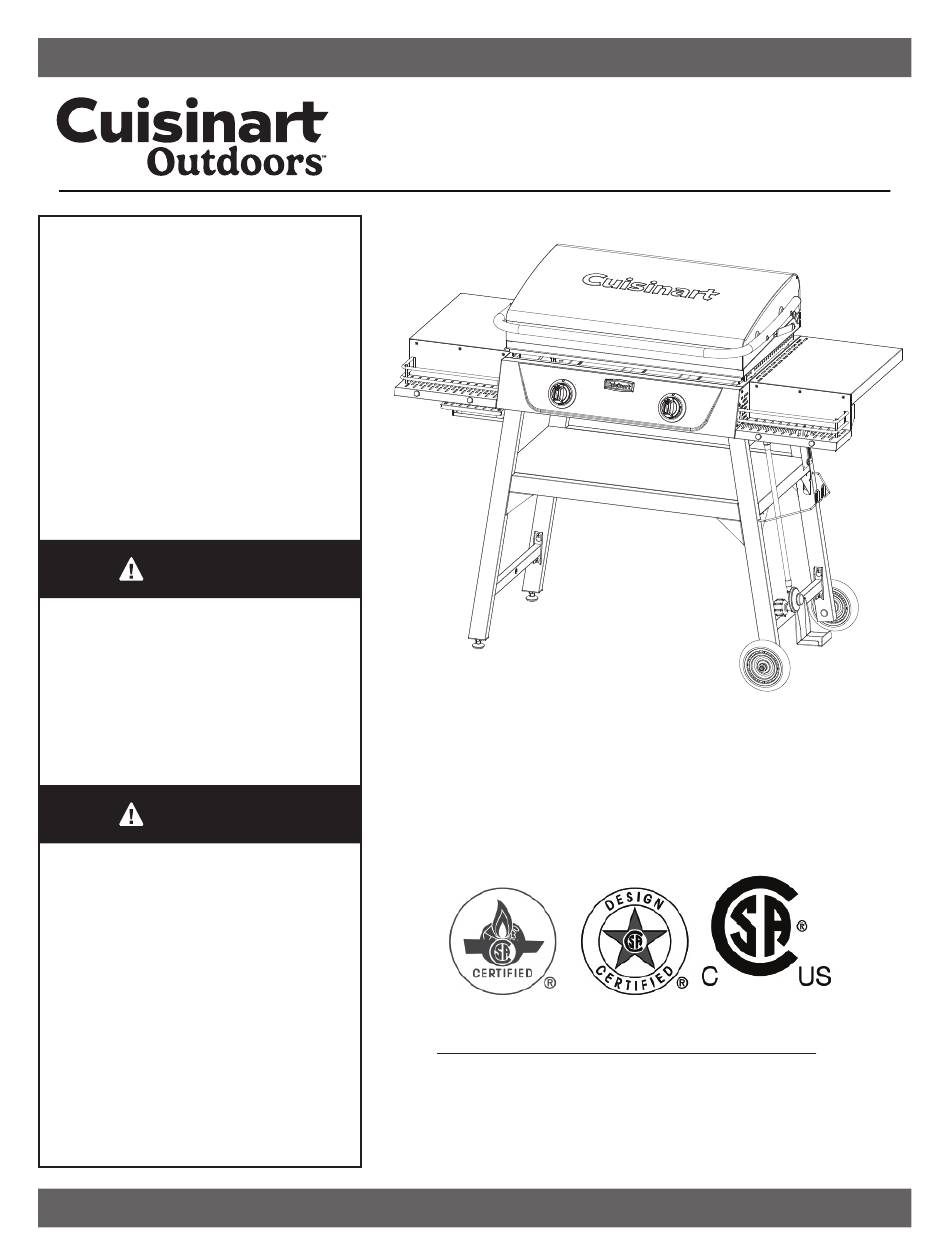

  • Page 1 28” Outdoor Griddle With Hood MODEL NO: CGG-9748 • For Outdoor Use Only (outside enclosure). • This instruction manual contains important information necessary for proper assembly and safe use of this appliance. • Read and follow all warnings and instructions before assembling and using the appliance.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Safety Information What’s In The Box Assembly Instructions Setup Instructions Operating Instructions Care and Maintenance Match Light Instructions Trouble Shooting Exploded View & Parts List Warranty & Replacement Parts Back Cover...

  • Page 3: Safety Information

    SAFETY INFORMATION SAVE THESE INSTRUCTIONS FOR OUTDOOR HOUSEHOLD USE ONLY • The installation must conform with local codes or, in the absence of local codes either ANSI Z223.1/NFPA 54, CSA B149.1, or CSA B149.2 • This outdoor cooking gas appliance must only be used outdoors and must not be used in a building, garage, or any other enclosed area •...
  • Page 4 SAFETY INFORMATION The Fuel System • Gas appliances are used safely by millions of people when following simple safety precautions. This appliance is configured for liquid propane, do not use a natural gas supply. • The components in the fuel system including the pressure regulator and hose are designed for operation with this Griddle.

  • Page 5: What's In The Box

    WHAT’S IN THE BOX PART COMPONENT DESCRIPTION PART COMPONENT DESCRIPTION Propane Tank Bracket Front Left Leg Back Left Leg Burner Body Griddle Front Right Leg Grease Chute Grease Back Right Leg Cup Tray Horizotal Brace Left Side Table Shelf Bracket Right Side Table 1pc Ignitor Bracket 1pc Shelf...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts. Estimated asembly time: Tools you will need: 1.5 hours...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 2 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 4 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 6 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 8 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 9 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 10 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP 12 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 14 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP 16 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 16 ASSEMBLY INSTRUCTIONS STEP 18 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP 19 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 18 ASSEMBLY INSTRUCTIONS STEP 20 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Secure the Left Side Table (18) by installing 3 A Screws to the bottom edge.
  • Page 19 ASSEMBLY INSTRUCTIONS STEP 22 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 20 ASSEMBLY INSTRUCTIONS STEP 24 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 21 ASSEMBLY INSTRUCTIONS STEP 26 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 22 ASSEMBLY INSTRUCTIONS STEP 28 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 23 ASSEMBLY INSTRUCTIONS STEP 30 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...

  • Page 24: Setup Instructions

    SETUP INSTRUCTIONS CONNECTING THE LIQUID PROPANE (LP) CYLINDER - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...

  • Page 25: Leak Test Procedure

    SETUP INSTRUCTIONS LEAK TEST PROCEDURE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Although gas connections on the griddle are leak tested prior to shipment, we recommend conducting a leak test after initial setup and every time an LP cylinder is attached.

  • Page 26: Operating Instructions

    OPERATING INSTRUCTIONS GETTING STARTED- OPERATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - OUTDOOR USE ONLY / NEVER LEAVE UNATTENDED 1.
  • Page 27 OPERATING INSTRUCTIONS HOW TO SEASON YOUR GRIDDLE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A properly seasoned griddle surface creates a naturally non-stick cook top and helps prevent rusting. Season- ing your griddle surface is essential for optimal performance and longevity.

  • Page 28: Care And Maintenance

    CARE AND MAINTENANCE CLEANING AND CARE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Griddle Plate •...
  • Page 29 CARE AND MAINTENANCE General Care • All painted and stainless steel surfaces can be cleaned with warm soapy water and a soft sponge. We do not recommend harsh scrubbers like steel wool on any of the surfaces as this can damage the paint and scratch the stainless steel.
  • Page 30 CARE AND MAINTENANCE REPLACING YOUR BURNERS STEP 1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...
  • Page 31 CARE AND MAINTENANCE STEP 3 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...

  • Page 32: Match Light Instructions

    CARE AND MAINTENANCE STEP 5 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - •...

  • Page 33: Trouble Shooting

    TROUBLE SHOOTING WARNING Spiders and insects can nest inside the burners of the Griddle and disrupt gas flow. This very dangerous condition could cause a fire behind the valve panel, thereby damaging the Griddle and making it unsafe for operation. Inspect the Griddle at least twice a year. When to Look for Spiders You should inspect the burner at least twice a year or immediately after any of the following conditions occur: •...

  • Page 34: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST...
  • Page 35 EXPLODED VIEW & PARTS LIST For replacement parts, call our customer service department 866-994-6390, 9 a.m.-5 p.m., EST, Monday-Friday or email outdoors@cuisinart.com NOTE: Not all parts are replaceable. Part Description Quantity Griddle Lid Short Lid Hinge Long Lid Hinge Lid Hardware Set Lid Handle Griddle Plate Burner Rear Bracket...

  • Page 36: Warranty & Replacement Parts

    Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 866-994-6390, 9 a.m.-5 p.m., EST, Monday-Friday or email outdoors@cuisinart.com Visit our website: www.cuisinart.com 2410 Model#CGG-9748 Cuisinart Outdoors a division of Conair LLC Newton, MA 02466...
