Instruction manual rear suspension german : A.
1.
Safety Instruction ............................................................................................................... 1
2.
Mounting Instruction.......................................................................................................... 2
2.1
Product description....................................................................................................... 2
2.2
Assembly dimensions and bearings ............................................................................. 2
3
Adjustment.......................................................................................................................... 4
3.1
Primary filling ................................................................................................................ 4
3.2
Rebound adjustment .................................................................................................... 5
4
Modification and servicing ................................................................................................ 5
4.1
Cleaning and maintenance ........................................................................................... 5
2.1.
Inspection ..................................................................................................................... 6
2.2.
Warranty ....................................................................................................................... 6
5
Contact / Imprint ................................................................................................................. 6
1.
Safety Instruction
Ignoring the safety instructions will lead to the termination of the warranty.
1) Servicing is only to be done by skilled personnel.
2) When servicing always use protective goggles. Because of the construction of the
damping unit a sudden pressure release can occur during disassembly.
3) Before filling the damping unit with air please read the manual of the pump you are
using.
4) The customer is responsible for the collision-free function of the damping unit. The room
needed for the function of the damping unit is to be provided in every travel status!
Manual AiR-force SLR_2 version_1.0_engl.
®
state of the art bike technology
Before assembling please read the mounting instructions!
®

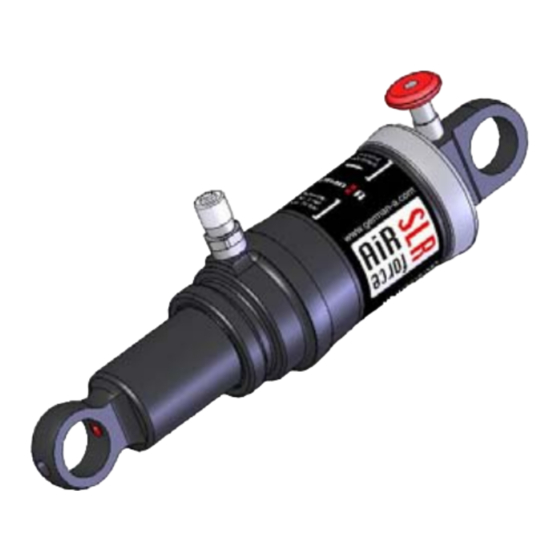

AiR-force SLR

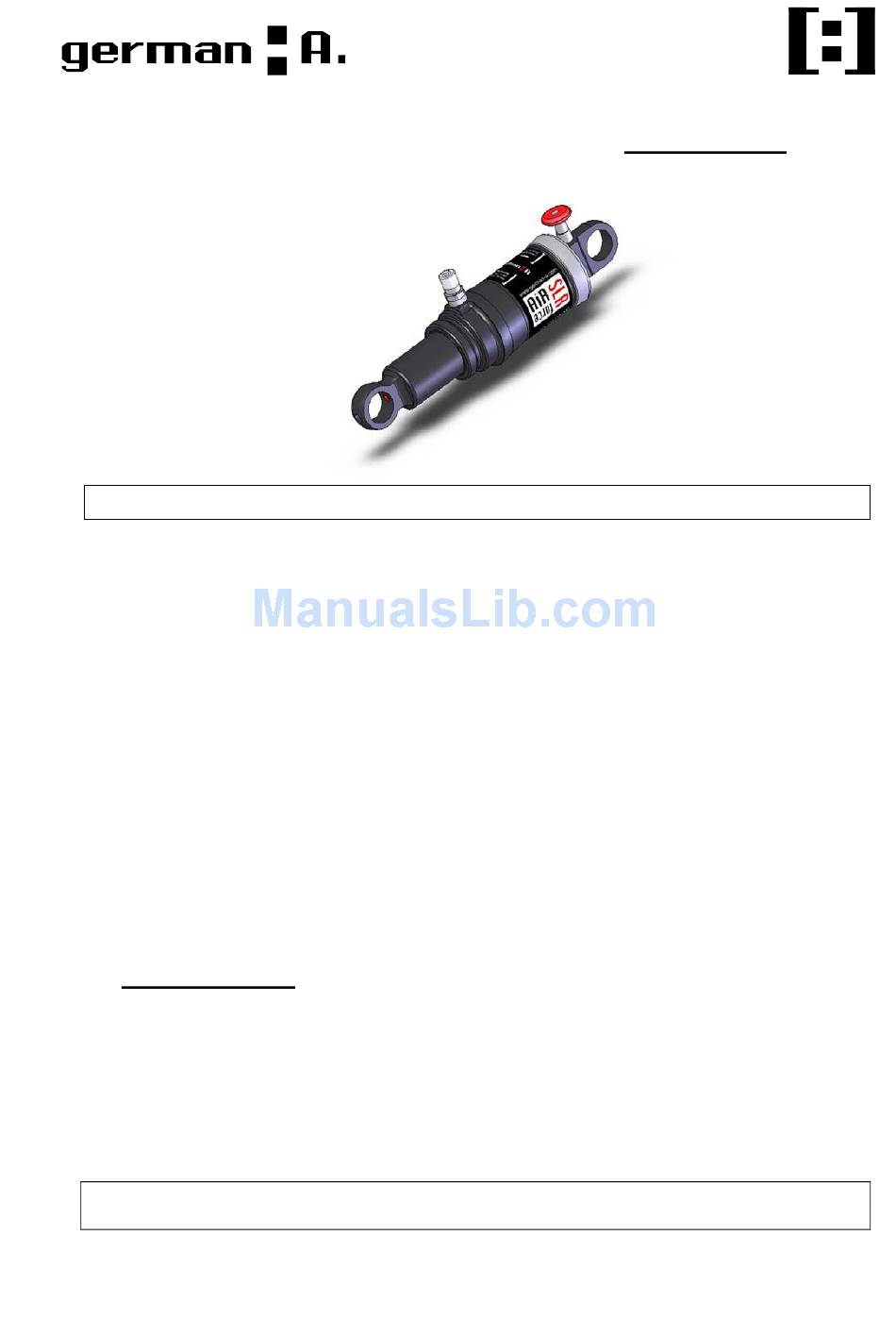

Page 1
Advertisement
Table of Contents
Related Manuals for Germana-A AIR-FORCE SLR REAR
Summary of Contents for Germana-A AIR-FORCE SLR REAR
- Page 1 ® state of the art bike technology ® Instruction manual rear suspension german : A. AiR-force SLR Before assembling please read the mounting instructions! Safety Instruction ....................... 1 Mounting Instruction......................2 Product description....................... 2 Assembly dimensions and bearings ................2 Adjustment..........................
- Page 2 ® state of the art bike technology 5) The damping unit is not to be put under any load when it is not filled with air! Compression of the damping unit without the use of force (point 4) is an exception. 6) The fixing eyelets are not to be rotated to each other counter clockwise, because many of these connection points are connected through screws for better servicing that could get loose because of this movement.
- Page 3 ® state of the art bike technology Picture 1.1 The mounting area of the shock absorber should have a minimum width of 12 mm. Picture 1.2 shows the sequence of mounting hardware. Please use only the standard mounting hardware from the shock. You need the bushing four times and the seals 13x1 two times. Fit together as shown.
- Page 4 ® state of the art bike technology Adjustment Primary filling The AiR-force SLR is already filled with pressure from 6-8 bar by delivery. To adjust the pressure, for testing the clearance of the shock absorber or for the adjustment of the valve position it might be necessary to remove the air from the shock absorber.
- Page 5 ® state of the art bike technology Rebound adjustment The rebound adjustment is the red knurl shown at picture 1.4 below. The rebound adjustment should be done after filling in the pressure. Picture 1.4 • Lower rebound damping means a higher hopping speed. Turn the knurl against clock rotation (blue arrow) for lower rebound damping.
- Page 6 ® state of the art bike technology Very extreme example of removal of dirt inside (mud) Service kit for the air chamber of AiR-force SLR 2.1. Inspection The rear shock absorber is object to general wear and tear, so that a servicing every year or earlier depending on ride conditions is obligatory.
