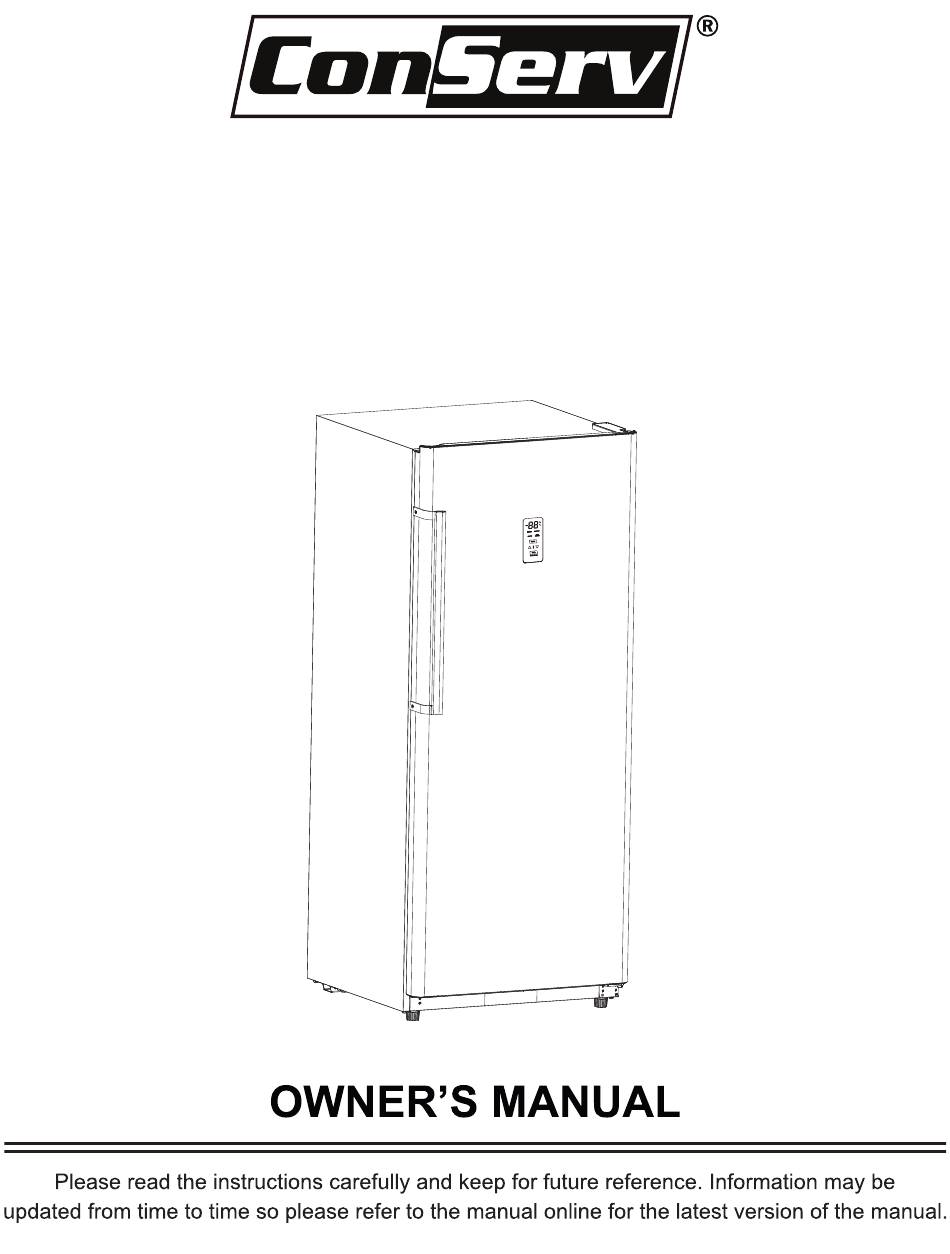

- Page 1 Upright Freezer Convertible Freezer / Refrigerator Model - FR 1700 REV...
- Page 2 Installing as built-in Cleaning appliance using solvents Mishandling e.g. Breakage of door handle or shelves QR Code 1. Open Smart Phone 2. Open Camera 3. Scan QR Code 4. Click the Link...
- Page 3 Congratulations on your new Upright Freezer! In addition to its contemporary design, this is a highly sophisticated engineered product that will give you many years of satisfaction. Here are some of the best reasons for buying your appliance: · Can be converted from a freezer to a refrigerator. ·...
- Page 4 Placement 5" (12.7 cm) This unit is designed to be free standing and not built-in. The unit should be placed in a ventilated and dry environment. Do not put the unit in direct sunlight, and keep 5" (12.7 cm) it as far as possible from heat sources. 5"...
- Page 5 Door Reversal Instructions Warning: Unplug the appliance before reversing the door. It is recommended that 2 people, who are qualified technicians, carry out the door reversal procedure. Parts required for this procedure are provided in an accessory bag. Instructions are provided to move the hinges from the right side to the left side.
- Page 6 Replace the bottom door hinge 1. Remove 4 bolts and bottom hinge from the right side. 2. Remove 4 caps on the left side (keep them to replace on the opposite side). 3. Unscrew the door shaft nut. 4. Move the shaft and hinge to the left side and tighten. 5.
- Page 7 Operating Instructions This appliance is intended for household use. Control Panel 1. Temperature display 2. Mode: Fridge, Freeze, Subzero, Fast Freeze 3. Up and Down arrows to select temperature 4. Selection button for °F or °C Press for 3 sec to activate Control Panel Operation This appliance can be used as either a refrigerator or a freezer.
- Page 8 Maintenance Clean inside, behind and around the refrigerator regularly, using water and mild detergent, and a damp cloth (not wet). Never use boiling water, harsh cleaning chemicals or abrasive materials. Check and clean the door gasket regularly to ensure that the door closes and seals properly.
- Page 9 Troubleshooting PROBLEM POSSIBLE CAUSE • Power is not on or the unit is not connected to The unit does not work power • Low voltage • A fuse may be blown or the circuit breaker tripped • Plug not fully inserted into the wall outlet •...
- Page 10 Technical Specifications Model No. FR 1700 REV Category Upright Freezer-Refrigerator Refrigerating Mode No Frost Rated Voltage/Frequency 115V~60Hz Rated Power 180 W Rated Current 1.6 A Refrigerant, Amount R600a (72g / 2.57oz) Foaming Agent Cyclopentane Energy Class Energy Star Net Weight 167.5 lbs...
