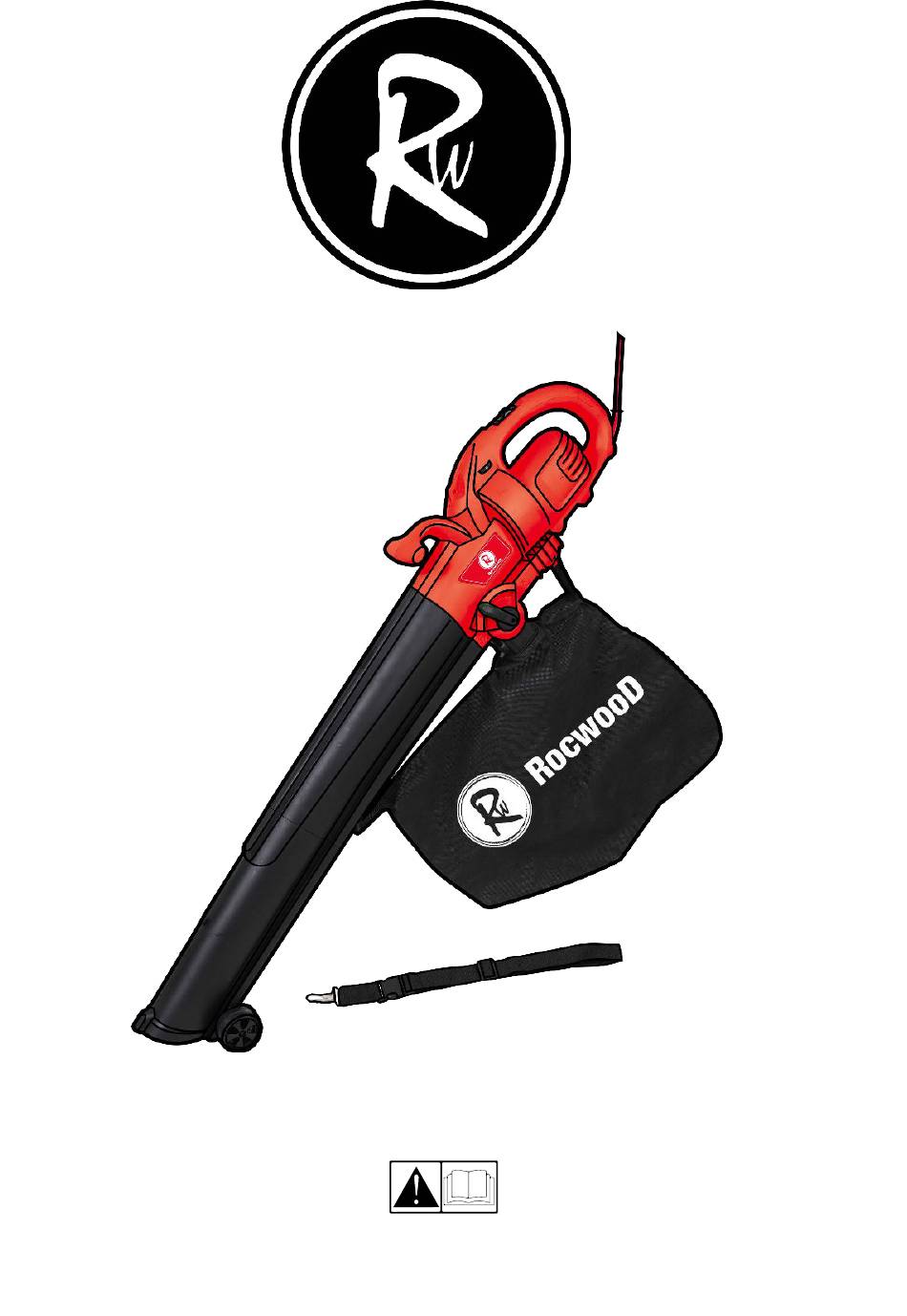

- Page 1 RocwooD RWACBV1 VACUUM BLOWER Keep this manual in a safe place, review it frequently and ensure that all users have read it to ensure safe operation.
-
Page 2: Table Of Contents
Original Instructions Table of Contents GENERAL SAFETY INSTRUCTIONS ........................3 SAFE OPERATION ............................4 SPECIFIC SAFETY INSTRUCTIONS ........................5 Preparation ................................. 6 Using your Vac-Blower ............................6 EXPLANATION OF WARNING SYMBOLS ......................7 INTENDED USE ............................... 8 DATA SPECIFICATION ............................8 OPERATING INSTRUCTIONS .......................... -
Page 3: General Safety Instructions
Original Instructions GENERAL SAFETY INSTRUCTIONS Before attempting to operate this machine, it is important that you read, understand and follow these instructions very carefully. They are designed for the safety of yourself and others ensuring a long and trouble free service life from your machine. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 4: Safe Operation
Original Instructions SAFE OPERATION Know Your Power Tool It is important that you have read and understood your instruction manual and any label attached to the power tool. Learn its applications as well as its limitations and the potential hazards associated with this power tool. -
Page 5: Specific Safety Instructions
Original Instructions Inspect extension cords periodically and if damaged replace it. Keep handles dry, clean and free from oil and grease. Ensure that ventilation slots are kept clean and free from dust at all times. Blocked ventilation slots can cause overheating and damage to the motor. Disconnect Power Tools Ensure that power tools are disconnected from the mains supply when not in use, before servicing, lubricating or making adjustments and when changing accessories such as blades, bits and cutters. -
Page 6: Preparation
Original Instructions Never allow children or people who have not read and understood these instructions to use the Vac-Blower. Do not use the Vac-Blower for any purpose other than those described in these instructions. Study the warning stickers on the machine and replace any damaged or illegible warning stickers. Read these instructions carefully. -
Page 7: Explanation Of Warning Symbols
Original Instructions 3. Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained. WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. -
Page 8: Intended Use
This appliance should only be used for blowing or collecting leaves and debris to clean your garden around your home, not intended for commercial use. Other use of the appliance, not included in this manual, could damage the appliance or seriously injure the operator. DATA SPECIFICATION RWACBV1 Model: Rated Voltage: 230-240V~ 50 Hz... -
Page 9: Assembly (Pic.3And Pic.4)
Original Instructions Warning! The Vac-Blower must not be used or switched on until it has been fully assembled. Pic.2 Assembly (Pic.3and Pic.4) Pull out the two suction/blower tubes, one Vacuum-Blower body and four screws that are in the manual bag from the package, the user needs to assemble the two tubes together first using the two screws, shown in Pic.3, then put the whole tube into the machine body and securely fix it with the two screws provided, see Pic.4, Ensure that the three parts are all fitted correctly. -
Page 10: Before Starting
Original Instructions Before Starting Before starting the Vacuum-Blower plug into the mains supply via the (R.C.D.) and switch on. Check that the (R.C.D.) is operating correctly. Starting the Vacuum-Blower To start the Vacuum-Blower, Ensure that the two intermediate suction/blower tubes together with the machine body are fitted correctly. -
Page 11: Operating The Vacuum-Blower
Original Instructions Important Do not use the Vacuum-Blower to suck up water or very wet debris. Never operate the Vacuum-Blower without the debris collection bag fitted. Operating the Vacuum-Blower Blower mode Inspect the area to be worked before starting. Remove any objects or debris that could be thrown, jammed or become entangled in the Vacuum-Blower. - Page 13 RWACBV1 CYBV01 SPARE PARTS LIST Item Tapping screw ST3.5X16 Right housing Damping block Tapping screw ST3.5X14 Tension disc Left housing Push button Tapping screw ST3X20 Control board Conversion board button Push rod Motor set Power cable 12.1 Cable gland 12.2 12.3...
