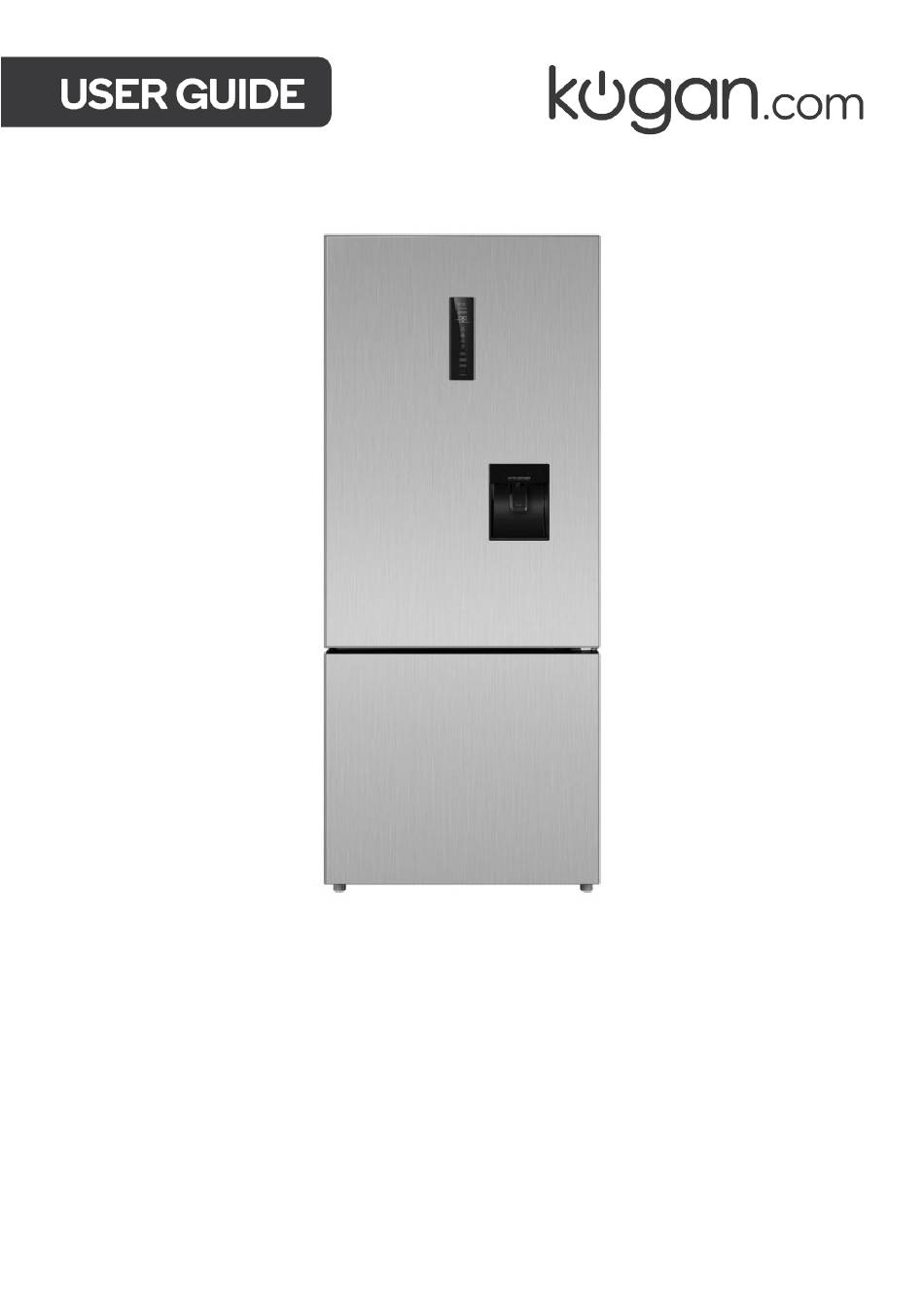

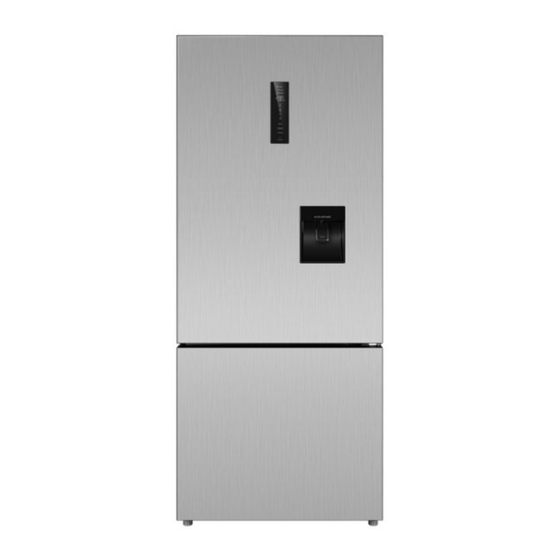

- Page 1 412L BOTTOM MOUNT FRIDGE WITH WATER DISPENSER KAT412BMFWA & KAT412BMFWB...
- Page 2 Safety & Warnings Overview Installation Before First Use Operation Cleaning & Care Specifications Troubleshooting Notes...
- Page 3 • Do not use other electrical appliances (such as ice cream makers) inside the appliance unless they are approved for this purpose by Kogan.com. • Do not touch the light bulb if it has been on for a long period of time as it will be very hot.
- Page 4 • Any damage to the power cord may cause a short circuit, fire and/or electric shock. If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • This appliance is intended to be used in household and similar applications such as: Staff kitchen areas in shops, offices and other working environments.
- Page 5 Service • Any electrical work required to service the appliance should be carried out by a qualified electrician. • If the appliance is damaged, cease use immediately and contact help.Kogan.com for support. Energy Saving • Do not put hot food inside the appliance.
- Page 6 Responsible Disposal • At the end of its working life, do not throw this appliance out with your household rubbish. Electrical products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. •...
- Page 7 OVERVIEW Lighting Strip Twist Ice Maker Refrigerating Shelf Middle Freezer Drawer Refrigeration Air Duct Back Plate Lower Freezer Drawer Humidity-Controlled Crisper Drawer Door Shelf Variable Temperature Zone Shelf Water Tank Variable Temperature Zone (T- Half-Door Shelf Temp) Upper Freezer Half Drawer...
- Page 8 Control Panel Fridge Indicator Holiday Indicator Variable Temperature Zone (T- Lock Indicator temp) Indicator Freezer Indicator Zone Button Temperature Display Regulate Button Power Cool Indicator Function Button Power Freeze Indicator Unlock Button...
- Page 9 INSTALLATION Handling and Placement WARNING: To ensure safe transportation, keep the fridge at a maximum tilt angle of 30 degrees during loading and unloading. Allow ample space for manoeuvring, avoiding tight corners or obstacles. Failure to adhere to these guidelines may result in damage to the appliance or injury.
- Page 10 Space Requirements Outline Dimensions Space Required by the Product Total Space Required Space needed for ventilation. Outline Dimensions Space Required by the Product Total Space Required >L1+100 >W1+200 >L1+690 >W1+600...
- Page 11 Door Reversal Note: If you are not confident in performing the door reserving procedure, consult a qualified trade professional. Tools required (not provided): • Philips head screwdriver. • Wrench. Components: Left upper hinge Left upper hinge cover Left lower hinge assembly Left middle hinge Right upper decorative Left door stop...
- Page 12 Take out the middle hinge screw with a Phillips head screwdriver, remove the middle hinge, remove the screw cover at the left screw hole, and take down the lower door. Gently tilt the fridge, remove the lower hinge and leveling foot at the bottom of the fridge.
- Page 13 Install the left lower hinge assembly prepared in advance on the left side. Install the previously removed leveling foot to the right side and install the lower door. Install the prepared middle hinge in the left mounting position and install the previously removed screw cover into the right screw hole.
- Page 14 BEFORE FIRST USE • • Remove all packing materials such as adhesive tape, plastic bags, etc. Be sure to remove the foam base. • Use a cloth dampened in warm water to clean both the interior and exterior of the fridge.
- Page 15 OPERATION Powering On for the First Time • When the appliance is powered on for the first time: The fridge will run at 5°C. The variable temperature zone will run at 4°C. The freezer will run at -18°C. Child Lock •...
- Page 16 Variable Temperature Zone (T-Temp) Temperature Adjustment • Repeatedly press the ‘Zone’ button until the ‘T-Temp’ indicator illuminates. • Repeatedly press the ‘Regulate’ button to cycle through the temperature options: ‘4’ – ‘-1’ – ‘- 3’. • Select the appropriate temperature to adjust the temperature. •...
- Page 17 Memory Function In the event of a power outage, when power is restored, the fridge will return to the previous settings. Door Alarm • If the fridge is not closed tightly or stays open for more than 1 minute, the alarm will beep.
- Page 18 Freezer (-24°C ~-15°C) • The freezer is used to freeze food, store frozen food and make ice cubes. • Do not put fresh and frozen food next to each other. The frozen food may thaw. • When freezing large amounts of fresh food (such as meat or fish), divide it into small pieces before putting it in the freezer to speed up freezing.
- Page 19 Adjustable Shelves and Crisper Drawer • The walls of the fridge are equipped with runners so that the shelves can be adjusted and removed as desired. • Pull the shelf outwards and upwards to remove it. • Pull the crisper drawer outwards to remove it. Freezer Drawer Pull the drawer outwards and upwards to remove it.
- Page 20 Water Tank Filling the water tank: Open the tank cover. Pour water into the tank. Close the cover. Installing and removing the water tank: • Hold both sides of the water tank with balanced force and slowly press along the arrow direction until it cannot be pressed further.
- Page 21 Water Dispenser • To dispense water, gently push the dispenser pad using a glass or container. • To stop the water flow, pull your glass away from the dispenser pad. Dispenser Pad Notes: • When filling the water tank, ensure the water level does not surpass the maximum capacity indicated by the tip line.
- Page 22 Notes: • If the power cord and plug are damaged or dusty, electric shock or fire may occur. If this occurs, cease use immediately and contact help.Kogan.com for support. • After unplugging, wait 5 minutes before plugging in again. • Do not put your hands under the fridge, as this may cause injury.
- Page 23 SPECIFICATIONS Climate type Electric shock residence Total storage volume 412L Fridge storage volume 270L Freezer storage volume 106L Variable temperature volume Power type 220-240V~50Hz Rated current 1.65A Power consumption 249kWh/y Lamp power Weight 76kg Dimension (mm) 703 x 689 x 1725mm Refrigerant and charge amount R600a, 52g Noise volume...
- Page 24 TROUBLESHOOTING Abnormal Occurrences Problem Potential Cause Solution Check the connection of Properly connect the power power plug. plug. Check whether the fridge is The fridge does Move the fridge to a place exposed to direct sunlight not power on or without direct sunlight and or whether there is heat the refrigeration...
- Page 25 Normal Occurrences Phenomenon Cause Heat on two sides and spacing part surface Fridge pipes (condenser, anti-fog pipes) are on two sides between refrigerating and front part of fridge for heat dissipation and to chamber and freezing prevent from condensation. chamber. Reopening of the door immediately after closing it is hard The door is too tight and because hot air enters the fridge and contracts to...
- Page 26 NOTES...
- Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
