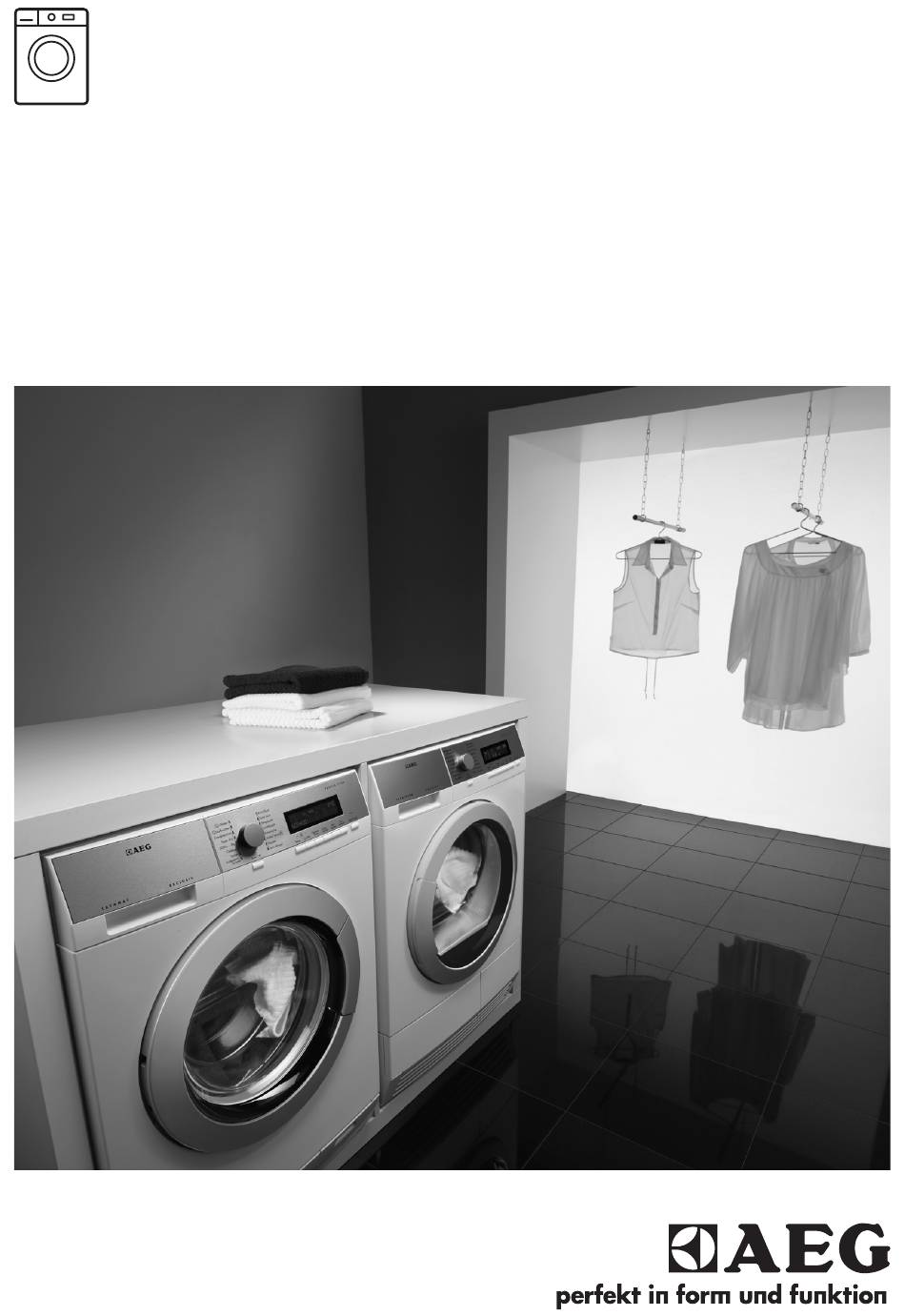

- Page 1 EN User manual L 60260 FL L 60460 FL L 60660 FL L 60468 FL L 60668 FL...
- Page 2 13. INSTALLATION ............25 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler –...
- Page 3 ENGLISH 1. SAFETY INFORMATION Before the installation and use of the appliance, careful- ly read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use cau- ses injuries and damages. Always keep the instructions with the appliance for future reference. 1.1 Children and vulnerable people safety WARNING! Risk of suffocation, injury or permanent disability.
- Page 4 • Do not let children play with the appliance. • Keep all packaging away from children. • Keep all detergents away from children. • Keep children and pets away from the appliance door when it is open.
- Page 5 ENGLISH • The first time you use the appliance, • Before maintenance, deactivate the make sure that there is no leakage. appliance and disconnect the mains plug from the mains socket. 2.2 Use • Do not use water spray and steam to clean the appliance.
- Page 6 Cold water Water supply Maximum load Cotton 6 kg Spin speed Maximum 1200 rpm (L60260FL) 1400 rpm (L60460-60468FL) 1600 rpm (L60660-60668FL) 1) Connect the water inlet hose to a water tap with a 3/4'' thread. 4. PRODUCT DESCRIPTION Worktop...
- Page 7 ENGLISH 5. ACCESSORIES Spanner To remove the transit bolts. Plastic caps To close the holes on the rear side of the cabinet after the removal of the transit bolts. Anti-flood inlet hose To prevent possible leakage Plastic hose guide To connect the drain hose on the edge of a sink.
- Page 8 6.2 Programme knob Turn this knob to set a programme. 6.3 Display The display shows: • The programme time When the programme starts, the time decreases with steps of 1 mi- nute. • The delay start When you press the delay start button, the display shows the delay start time.
- Page 9 ENGLISH 6.10 Acoustic signals function 6.4 Start/Pause button You can hear the acoustic signals when: Press button to start or interrupt a • You activate the appliance. programme. • You deactivate the appliance. 6.5 Delay start button • You press the buttons. •...
- Page 10 10 www.aeg.com 7. PROGRAMMES Programme Type of load Cycle Functions Temperature max. weight of load description Koch/Bunt White and coloured Wash SPIN REDUC- 95° - Cold cotton with normal Rinses TION soil. Long spin RINSE HOLD max. 6 kg EXTRA SPÜLEN...
- Page 11 ENGLISH Programme Type of load Cycle Functions Temperature max. weight of load description Pumpen All fabrics Drainage of the The maximum load water of the laundry is rela- ted to the type of laundry. Spülen All fabrics. One rinse with SPIN REDUC- additive spin TION...
- Page 12 12 www.aeg.com Set this programme to have a good washing results and decrease the energy consumption. The time of the washing programme is extended. For cotton economy programmes you can set only the Extra Quick duration. The washing temperature of the washing phase may differ from the temperature declared for the selected programme.
- Page 13 ENGLISH Off Mode (W) Left-On Mode (W) 0.48 0.48 The information given in the charts above are in compliance with the EU Com- mission regulation 1015/2010 implementing directive 2009/125/EC. 8. BEFORE FIRST USE To activate the drain system, put 2 li- detergent dispenser.
- Page 14 14 www.aeg.com The detergent compartment for the prewash phase, the soak programme and for the stain function. Add the detergent for prewash, soak and stain remover before the start of the programme. The detergent compartment for the washing phase. If you use a liquid detergent, put it immediately before you start the programme.
- Page 15 ENGLISH To use powder detergent, turn the flap up. To use liquid detergent, turn the flap down. With the flap in the position DOWN: – Do not use gelatinous or thick liquid detergents. – Do not put more liquid deter- gent than the limit showed in the flap.
- Page 16 16 www.aeg.com If you deactivate the appliance, it Press button . The indicator is necessary to set the pro- flashes. gramme again. Change the function set. 9.10 At the end of the 9.7 Set the delay start programme Press button again and again un- •...
- Page 17 ENGLISH 10. HINTS AND TIPS 10.1 The laundry load 10.3 Detergents and additives • Divide the laundry in: white, coloured, • Only use detergents and additives synthetics, delicates and wool. specially made for washing machines. • Obey the washing instructions that are •...
- Page 18 18 www.aeg.com Water hardness table Water hardness Level Type °dH °T.H. mmol/l Clarke soft 0-15 0-1.5 medium 8-14 16-25 1.6-2.5 10-16 hard 15-21 26-37 2.6-3.7 17-25 very hard > 21 > 37 >3.7 >25 11. CARE AND CLEANING WARNING! CAUTION! Do not use alcohol, solvents or chemical products.
- Page 19 ENGLISH 11.6 Detergent dispenser To clean the dispenser: Press the lever. Pull the dispenser out. Remove the top part of the liquid additive compartment. Clean all the parts with water. Clean the dispenser recess with a brush. Put back the dispenser in the recess. •...
- Page 20 20 www.aeg.com To clean the drain pump: Open the drain pump door. Put a container below the recess of the drain pump to collect the water that flows out. Press the two levers and pull for- ward the drainage duct to let the water flow out.
- Page 21 ENGLISH Clean the filter under the water tap and put it back in the pump into the special guides. Make sure that you tighten correctly the filter to prevent leakages. Close the drain pump door. 11.8 The inlet hose filter and •...
- Page 22 22 www.aeg.com Install again the inlet hose. Make sure that the couplings are tight to prevent leakages. Open the water tap. 45° 20° 11.9 Emergency drain 0 °C, remove the remaining water from the inlet hose and the drain pump.
- Page 23 ENGLISH Problem Possible cause Possible solution The filters in the water Clean the filters. Refer to 'Care inlet hose is blocked . and cleaning'. The water tap is blocked Clean the water tap. or is furred with lime- scale. The connection of the Make sure that the connection water inlet hose is not is correct.
- Page 24 24 www.aeg.com Problem Possible cause Possible solution The delay start is set. To start immediately the pro- gramme, cancel the delay start. The Child Lock function Deactivate the Child Lock func- is activated. tion. There is water on Leakages from the cou- Make sure that the couplings the floor.
- Page 25 ENGLISH 13. INSTALLATION 13.1 Fixing plate kit If you install the appliance on a plinth, secure the appliance in the fixing plates. (4055171146) Follow the instructions supplied with the kit. Available from your authorized dealer. 13.2 Unpacking Use the gloves. Remove the external film.
- Page 26 26 www.aeg.com Open the door and remove all the items from the drum. Put one of the polystyrene packag- ing elements on the floor behind the appliance. Carefully put down the appliance with the rear side on it. Make sure not to damage the ho- ses.
- Page 27 ENGLISH Remove the three bolts. Use the key supplied with the appliance. Pull out the plastic spacers. Put the plastic caps in the holes. You can find these caps in the user manual bag. – We recommend that you keep the packaging and the transit bolts for when you move the appliance.
- Page 28 28 www.aeg.com 13.3 Positioning and levelling • Install the appliance on a flat hard floor. • Make sure that carpets do not stop the air circulation below the appliance. • Make sure that the appliance does not touch the wall or other units •...
- Page 29 ENGLISH • Connect the water inlet hose to the cold water tap with 3/4 thread. CAUTION! Make sure that there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Con- tact the service centre for the re- placement of the inlet hose.
- Page 30 30 www.aeg.com • On the edge of a sink. • Make sure that the plastic guide can- not move when the appliance drains. Attach the guide to the water tap or the wall. • To a stand pipe with vent-hole.
- Page 31 ENGLISH 14. ENVIRONMENT CONCERNS Recycle the materials with the appliances. Do not dispose symbol . Put the packaging in appliances marked with the symbol applicable containers to recycle it. with the household waste. Return the Help protect the environment and product to your local recycling human health and to recycle waste facility or contact your municipal...
- Page 32 www.aeg.com/shop...
