Summary of Contents for Asus B460M

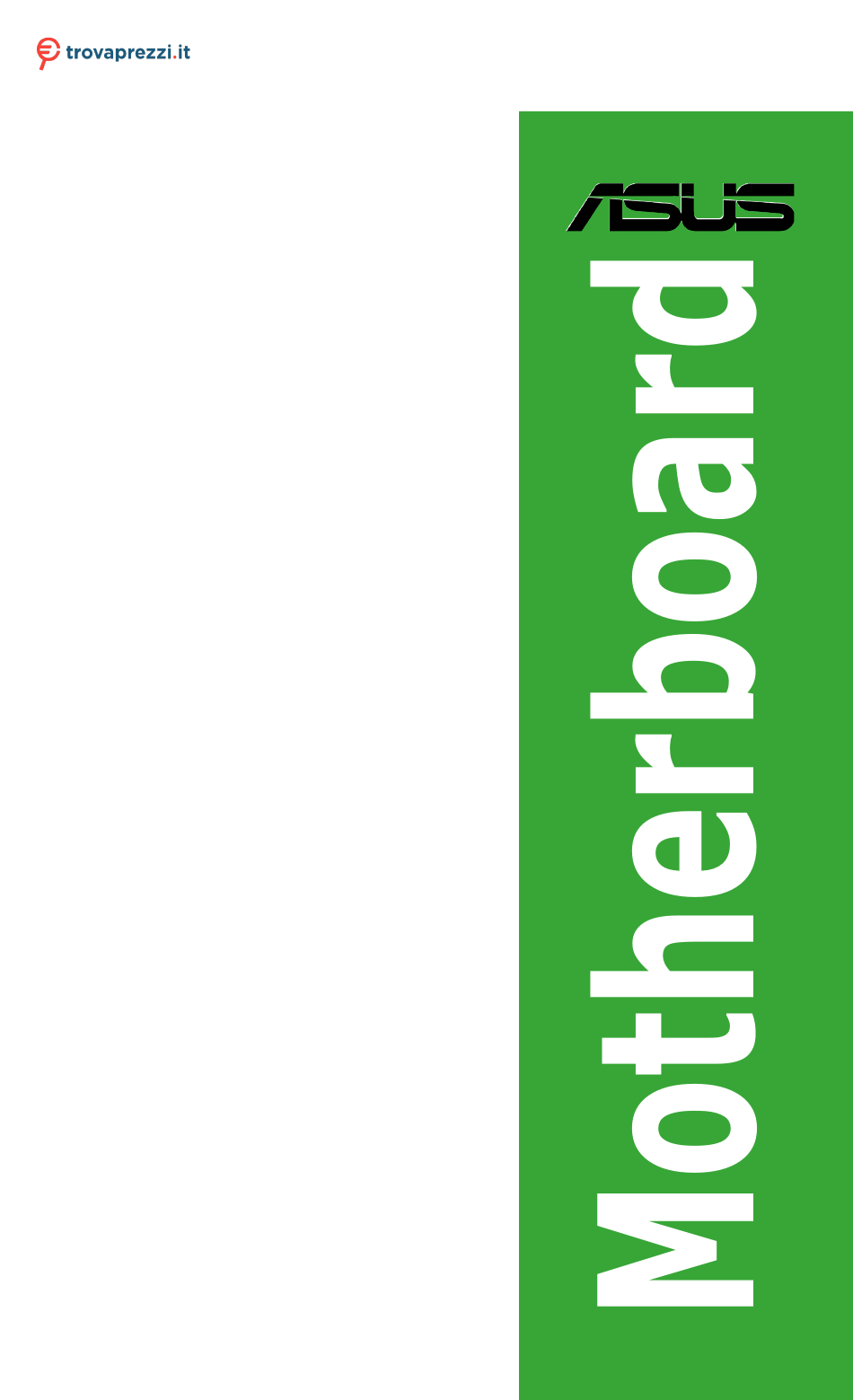

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asus B460M PRO B460M-C/CSM o cerca il tuo prodotto tra le migliori offerte di Schede Madri Pro B460M-C...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
- Page 3 Contents Safety information ...................... iv About this guide ......................v Package contents ....................... vi Pro B460M-C specifications summary ..............vi Connectors with shared bandwidth ................. ix Chapter 1 Product introduction Before you proceed ..................1-1 Motherboard overview ................. 1-1 Central Processing Unit (CPU) ..............1-8 System memory ....................
- Page 4 Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
- Page 5 Refer to the following sources for additional information and for product and software updates. ASUS website The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer.
- Page 6 * For 10 Gen Intel processors, only Core™ i9/i7 CPUs support 2933/2800/2666/ ® 2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). 2 x DisplayPorts 1.4** 1 x D-Sub 1 x HDMI 1.4b Graphics *Graphics specifications may vary between CPU types.
- Page 7 Pro B460M-C specifications summary Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset ® M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)**...
- Page 8 - Anti-Moisture - 24/7 Reliability - Overcurrent Protection ASUS Exclusive Software Software IT Management software supported Features - ASUS Control Center Express (ACCE) BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows 10 - 64 bit ®...
- Page 9 Connectors with shared bandwidth KBMS CPU_FAN EATX12V DIGI +VRM DP_12 LGA1200 U32G1_12 U32G1_34 LAN_USB78 Intel ® M.2_1(SOCKET3) I219V PCIE SATA IRST AUDIO 2260 2242 2280 CHA_FAN1 PCIEX16 PCIEX1_1 Super M.2_2(SOCKET3) Intel ® PCIE SATA IRST B460 1083 PCIEX1_2 MONO_OUT 128Mb 2280 2260 2242...
- Page 11 PCIE SATA IRST B460 1083 PCIEX1_2 MONO_OUT 128Mb 2280 2260 2242 BIOS CHA_FAN2 SATA6G_4 LPC_DEBUG CLRTC CHASSIS COM1 COM2 SATA6G_6 SATA6G_5 USB910 USB1112 SPEAKER AAFP F_PANEL 14 10 Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components. ASUS Pro B460M-C...
- Page 12 1.2.1 Layout contents 1. CPU socket The motherboard comes with a surface mount Intel Socket LGA1200 designed for 10 ® Intel Core , Pentium Gold and Celeron Processors. ® ® ® For more details, refer to Central Processing Unit (CPU). 2. DDR4 DIMM slots The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4 (Double Data Rate 4) memory modules.
- Page 13 If the steps above do not help, remove the onboard battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery. 11. Chassis intrusion header This header is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this header. The chassis CHASSIS intrusion sensor or switch sends a high-level signal to this header when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event. ASUS Pro B460M-C...
- Page 14 HD-audio-compliant Audio]. pin definition 14. LPC Debug header LPC_DEBUG This header allows connection to a LPC Debug card. • Scan the QR code to view the meaning of each debugging code. • Debugging codes are only available for PIN 1 ASUS LPC Debug cards. • Contact your region sales representative for LPC Debug cards ordering. 15. LPT header The LPT (Line Printing Terminal) header supports devices such as a printer. LPT standardizes as IEEE 1284, which is the parallel port interface on IBM PC-compatible computers. PIN 1 16. Mono-out header This internal Mono-out header allows connection to an internal, low power MONO-OUT speaker for basic system sound capability. The subsystem is capable of PIN 1 driving a speaker load of 3 Watts RMS at 4 Ohms.
- Page 15 Activity LED cable to this header. The HDD LED lights up or flashes when data is read from or written to the HDD. • ATX power button/soft-off button (2-pin PWR_BTN) This header is for the system power button. • Reset button (2-pin RESET) This 2-pin header is for the chassis-mounted reset button for system reboot without turning off the system power. ASUS Pro B460M-C...
- Page 16 1.2.2 Rear panel connectors PS/2 Mouse (green) port. This port is for a PS/2 mouse. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other VGA-compatible devices. USB 3.2 Gen 1 (up to 5Gbps) ports. These 9-pin Universal Serial Bus (USB) ports connect to USB 3.2 Gen 1 devices. Ethernet port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the table below for the Ethernet port LED indications. Ethernet port LED indications Speed Activity Link Activity/Link LED Speed LED Status Description Status Description No link 10Mbps connection...
- Page 17 Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center Lime (Front panel) — — — Side Speaker Out To configure a 7.1-channel audio output: A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. ASUS Pro B460M-C...
- Page 18 ® ® ® Processors. Unplug all power cables before installing the CPU. • Ensure that you install the correct CPU designed for the LGA1200 socket only. DO NOT install a CPU designed for LGA1150, LGA1151, LGA1155 and LGA1156 sockets on the LGA1200 socket. • Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. • Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1200 socket. • The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap. • The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU. • Ensure that all power cables are unplugged before installing the CPU. Installing the CPU Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary. Chapter 1: Product introduction...
- Page 19 • Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules. • For 10 Gen Intel processors, only Core™ i9/i7 CPUs support 2933/2800/2666/2400/ ® 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. • A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot. • The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. • For system stability, use a more efficient memory cooling system to support a full memory load (4 DIMMs). • Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List). Recommended memory configurations DIMM_B1 DIMM_B2* DIMM_B2* DIMM_A1 DIMM_A2* DIMM_A2* DIMM_A2* ASUS Pro B460M-C...
- Page 20 Installing a DIMM To remove a DIMM 1-10 Chapter 1: Product introduction...
- Page 21 BIOS information ASUS Self-Recovering BIOS ASUS-exclusive BIOS protection technology automatically recovers the system’s BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall your hardware. • Ensures safe BIOS updates •...
- Page 22 The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website at www.asus.com to download the latest BIOS file for this motherboard. •...
- Page 23 CPU Over Heating Error! events** CPU Over Voltage Error! * Record of when USB Over Current occurs ** Record of when CPU temperature rises above 75°C ***Record of when CPU Voltage reaches below 0 mV or above 1550mV ASUS Pro B460M-C...
- Page 24 Exit menu The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Ai Tweaker Advanced Monitor Boot...
- Page 25 Appendix Notices FCC Compliance Information Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA Phone / Fax No: (510)739-3777 / (510)608-4555 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 26 Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 27 ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/TT-BCT. Các sản phẩm ASUS bán tại Việt Nam, vào ngày 23 tháng 9 năm2011 trở về sau, đều phải đáp ứng các yêu cầu của Thông tư 30/2011/TT-BCT của Việt Nam.
- Page 28 ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials.
- Page 29 Директив. Повний текст декларації відповідності стандартам ЄС доступний s bitnim zahtjevima i ostalim odgovarajućim odredbama vezanih direktiva. на: www.asus.com/support Cijeli tekst EU izjave o sukladnosti dostupan je na: www.asus.com/support Türkçe AsusTek Computer Inc., bu aygıtın temel gereksinimlerle ve ilişkili Čeština Společnost ASUSTeK Computer Inc. tímto prohlašuje, že Yönergelerin diğer ilgili koşullarıyla uyumlu olduğunu beyan eder.
- Page 30 +1-510-739-3777 +1-510-608-4555 Web site https://www.asus.com/us/ Technical Support Support fax +1-812-284-0883 Telephone +1-812-282-2787 Online support https://qr.asus.com/techserv ASUS COMPUTER GmbH (Germany and Austria) Address Harkortstrasse 21-23, 40880 Ratingen, Germany Web site https://www.asus.com/de Online contact https://www.asus.com/support/Product/ContactUs/ Services/questionform/?lang=de-de Technical Support Telephone (DE) +49-2102-5789557 Telephone (AT)
