Summary of Contents for BFI Automation Flamonitec IFC 11

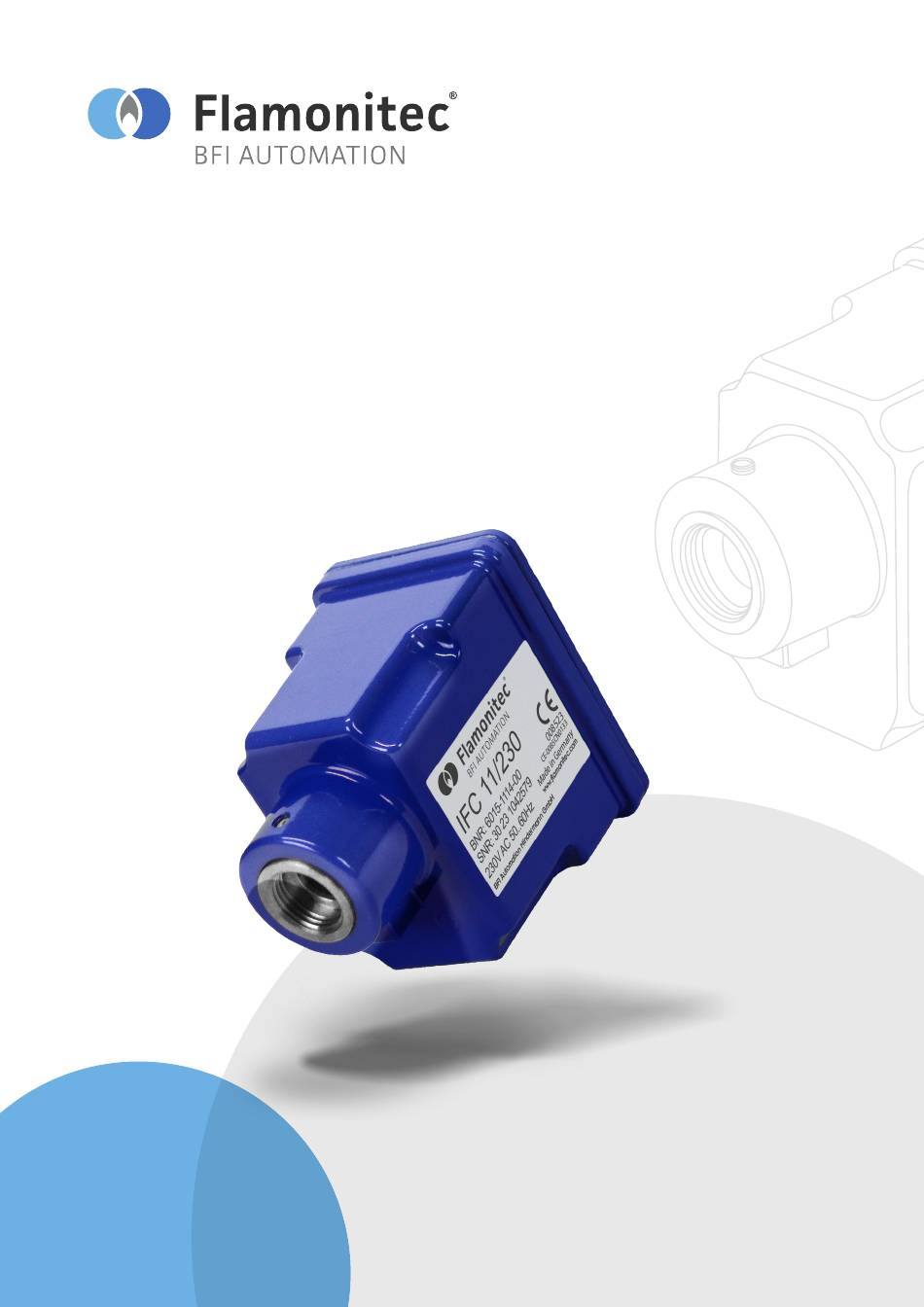

- Page 1 Operating manual UV Compact Flame Detector IFC 11...
- Page 2 Content General aspects Introduction Warning notes Copyright protection Disposal information Warranty Obligation of the operating company Liability disclaimer Declaration of conformity Address of the manufacturer Safety Intended use Requirements on persons Safety instructions Safety devices 2.4.1 Fundamental aspects 2.4.2 Safety devices on the compact industrial flame controller IFC 11 Safety instructions in case of maintenance and troubleshooting...
- Page 3 Content Description Functional description IFC 11 Optionally function blocks for IFC 11 5.2.1 Relay module for flame detectors RMF 1 5.2.2 Diagnostic with UVT-Com Operation of the compact flame detector IFC 11 Test of the compact flame detector Operating indicator LED Maintenance and servicing Cleaning Maintenance interval...
- Page 4 This warning level indicates a potentially hazardous situation. If the hazardous situation is not prevented, this may result in slight or moderate injuries. Follow the instructions that accom- pany this warning to prevent the injury of persons. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 4...
- Page 5 The recognised technical rules for safe and professional working also have to be observed in addition to the operating instructions and the regulations on accident prevention applicable to the country and place of use. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 5...
- Page 6 It is recommended that the operator of the device concludes a service contract with BFI Automation. This guarantees that the device is regularly checked by our service staff and ensures that any required wearing and spare parts are available without long delivery periods.
- Page 7 BFI Automation for consequential damages. BFI Automation is liable for possible errors or omis- sions with the exclusion of additional claims entered into in the framework of the warranty obligations conceded to in the contract.
- Page 8 GENERAL ASPECTS Declaration of conformity Herstelleranschrift BFI Automation Mindermann GmbH Ruegenstr. 7 . 42579 Heiligenhaus . Germany T +49 2056 989 46-0 . E-Mail: info@flamonitec-bfi.com www.flamonitec.com BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 8...
- Page 9 The procedures described in the operating instructions have to be observed. The manufacturer/supplier shall not be liable for damage resulting from use for non-intended purposes. The user/operating company alone shall bear the risk. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 9...
- Page 10 • The operating instructions always have to be kept close to the device and be readily at hand. • Any non-compliance with the safety instructions outlined in these operating instruc- tions may lead to damage to property, personal injury or even death. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 10...
- Page 11 • Operating and auxiliary materials as well as exchanged parts have to be disposed of in a safe and eco-friendly way. • Spare parts supplied by BFI Automation or approved of by BFI Automation only may be used. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11...
- Page 12 German Workplace Safety Ordinance (BetrSichV) in force and the applicable electrical regulations. In case of queries, please get in touch with BFI Automation. 2.5.4 Safety test WARNING To ensure proper operation, the UV flame detector must be tested several times in all applications by starting the burner several times.
- Page 13 Log off time < 0.5 s Signal output Open collector output max. switching current 15 mA max. switching power 0.3 W max. switching voltage 280 V AC / 400 V DC BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 13...
- Page 14 Dimensions see under item 4.4 Block diagram IFC 11 1 UV-Sensor Signal 2 Amplifier Protected Earth 3 Filter 4 Signal switch 5 Power supply 6 Time controlled voltage increase BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 14...
- Page 15 Report any damage After arrival of the device and accessories, notify the shipping agent, the insurance company and BFI Automation immediately in case of any damage caused by transport or inadequate packaging. Take steps to minimise and prevent further damage.
- Page 16 UV flame detector must be de-energised for at least 5 sec. between control shutdown and restart. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 16...
- Page 17 ¼‘‘ and ½‘‘ optionally. The air connection is combined with the adapter. Depending on the application again lenses and glasses are available. This eliminates the normal adapter. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 17...
- Page 18 • Protect from direct sunlight. Storage temperature: +5 °C to 35 °C. • Store in a dustfree location. • Avoid mechanical vibrations and damage. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 18...
- Page 19 Via the connection cable and the interface, the data can be read into a laptop or PC using the corresponding BST-Com software. Further information can be found in the BST-Com operating instructions. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 19...
- Page 20 Blinking Flame is detected The blinking of the LED representes the flame signal intensity Increasing blinking = higher intensity The flame is detected with highest intensity BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 20...
- Page 21 Precaution after crossing the tube service life of 10,000 h should the UV tube be replaced by the manufacturer or by authorized personnel. IFC 11 is a safety compo- nent and may not be opened! BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 21...
- Page 22 I) Tube faulty Replace tube interference II) View to sparks Change view Order data The UV Compact Flame Detector IFC 11 is available from BFI Automation Mindermann GmbH under the following order data: Type Description Order-No. Flame detector IFC 11/230...
- Page 23 Due to the different designs that can be tailored to the particular application involved, the rear sight is one with the appropriate glasses or lenses not included as well as the cable and the desired jack must be ordered separately. BFI Automation Mindermann GmbH | UV COMPACT FLAME DETECTOR IFC 11 Page 23...
- Page 24 BFI Automation Mindermann GmbH Ruegenstr. 7 42579 Heiligenhaus . Germany T +49 2056 989 46-0 info@flamonitec-bfi.com www.flamonitec.com...
