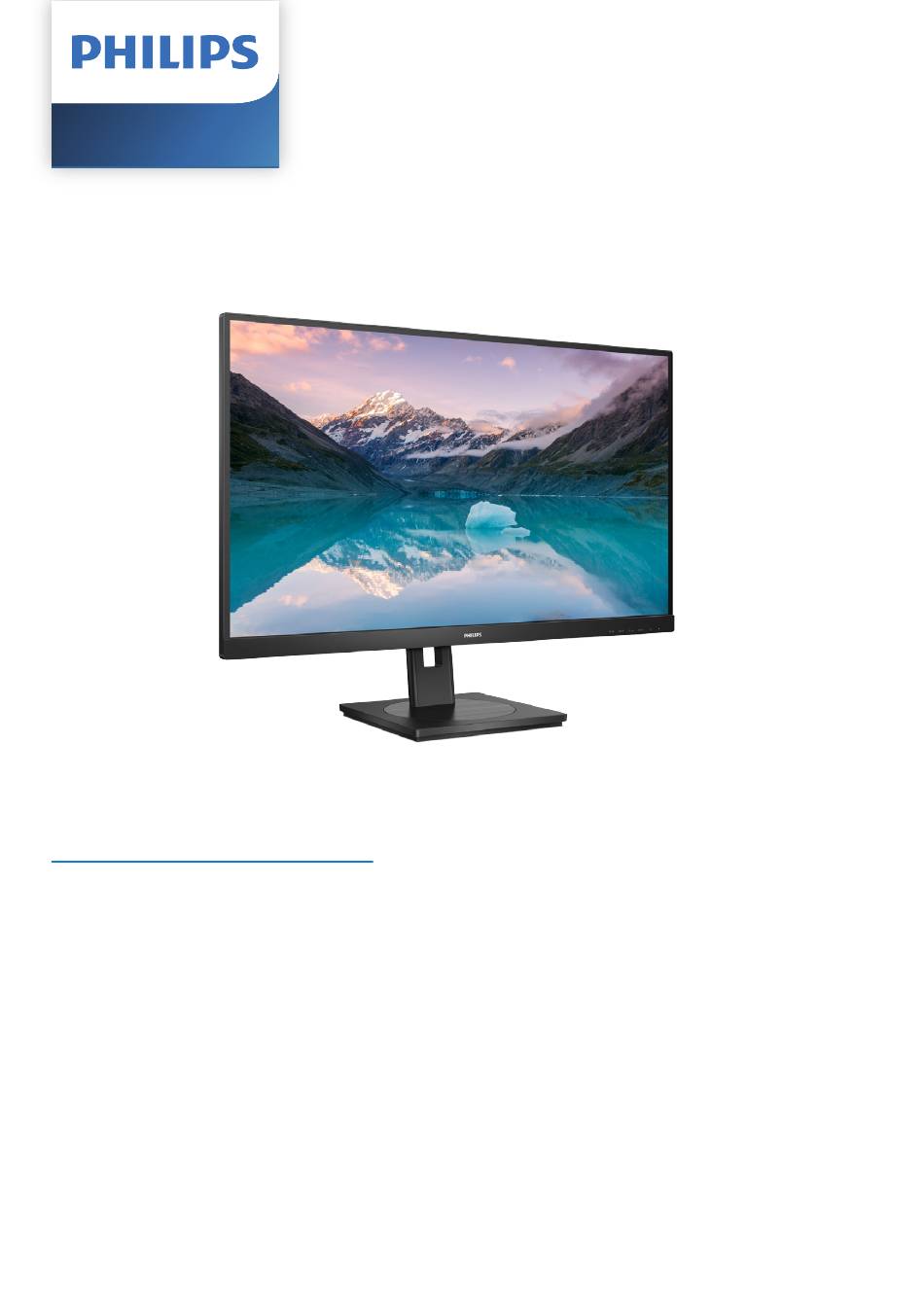

- Page 1 S Line 275S9 www.philips.com/welcome EN User manual Customer care and warranty 20 Troubleshooting & FAQs...
- Page 2 6. Technical Specifications ....15 6.1 Resolution & Preset Modes ..18 7. Power Management ....19 8. Customer care and warranty ...20 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ......... 20 8.2 Customer Care & Warranty ..23 9. Troubleshooting & FAQs ..24 9.1 Troubleshooting ......
- Page 3 • Please use approved power cord provided by Philips all the time. If your 1.1 Safety precautions and power cord is missing, please contact maintenance with your local service center. (Please...
- Page 4 1. Important • Do not subject the monitor to severe within the following temperature and vibration or high impact conditions humidity ranges. during operation. • Temperature: 0-40°C 32-104°F • Do not knock or drop the monitor • Humidity: 20-80% RH during operation or transportation.
- Page 5 1. Important • Do not leave your monitor in a car/ 1.2 Notational Descriptions trunk under direct sun light. The following subsections describe Note notational conventions used in this Consult a service technician if the monitor document. does not operate normally, or you are not Notes, Cautions and Warnings sure what procedure to take when the operating instructions given in this manual...
- Page 6 From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on its entails participation in national take- packaging illustrates that, under European...
- Page 7 S Line 275S9 Quick Start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Gently attach the base to the stand. Power (2) Use your fingers to tighten the screw located at the bottom of the base, and secure the base to the stand tightly.
- Page 8 2. Setting up the monitor Connecting to your PC charging This display has USB ports capable of standard power output including some with USB Charging function (identifiable with power icon ). You can use these ports to charge your Smart phone or power your external HDD, for example.
- Page 9 What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user...
- Page 10 2. Setting up the monitor Main menu Sub menu LowBlue Mode 1, 2, 3, 4 Input HDMI 1.4 DisplayPort Auto On, O SmartImage Picture EasyRead, O ce, Photo, Movie, Game, Economy, LowBlue Mode, O Adaptive Sync On, O Picture Format Wide Screen, 4:3 Brightness 0~100...
- Page 11 2. Setting up the monitor Resolution notification Height adjustment This monitor is designed for optimal performance at its native resolution, 2560 x 1440. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 2560 x 1440 for best results.
- Page 12 2. Setting up the monitor Note 2.3 Remove the Base Assembly This monitor accepts a 100mm x 100mm for VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the monitor VESA Mounting Screw M4. Always contact base, please follow the instructions below manufacturer for wall-mount installation.
- Page 13 How does it work? SmartImage is an exclusive, leading edge • EasyRead: Helps improve reading Philips technology that analyzes the of text based application like PDF content displayed on your screen. Based ebooks. By using a special algorithm on a scenario you select, SmartImage...
- Page 14 • Off: No optimization by SmartImage. Note Philips LowBlue mode, mode 2 compliance with TUV Low Blue Light certification, you can have this mode by simply press the hotkey , then press...
- Page 15 4. Adaptive Sync AMD Radeon R9 285 • 4. Adaptive Sync AMD Radeon R7 260X • AMD Radeon R7 260 • ■ Processor A-Series Desktop and Mobility APUs Adaptive Sync AMD A10-7890K • PC gaming has long been an imperfect AMD A10-7870K •...
- Page 16 (CVS) according to your height. 4. Choose Philips monitor for easy-on- Philips monitor is designed to prevent eye eyes. strain caused by prolonged computer use. • Anti-glare screen: Anti-glare screen Follow below instructions and use Philips...
- Page 17 6. Technical Specifications 6. Technical Specifications Picture/Display Monitor Panel Type VA (275S9JML) Backlight W-LED Panel Size 27" W (68.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2331 (H) mm x 0.2331 (V) mm Contrast Ratio(typ.) 4000:1 Optimum Resolution 2560 x 1440 @ 60 Hz Viewing Angle 178°...
- Page 18 6. Technical Specifications Plug & Play Compatibility DDC/CI, sRGB, Windows 11/10/8.1/8, Mac OS X Stand Tilt -5 / +25 degree Swivel -180 / +180 degree Height adjustment 130 mm Pivot -90 / +90 degree Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 100VAC , 50Hz...
- Page 19 500 to 1060hPa (Non-operation) Environmental and energy ROHS Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color Black Finish Texture Note This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
- Page 20 6. Technical Specifications Note 6.1 Resolution & Preset Modes Please notice that your display works Maximum Resolution best at native resolution of 2560 x 1440. 2560 x 1440 @ 75 Hz For best display quality,please follow this resolution recommendation. Recommended Resolution 2560 x 1440 @ 60 Hz H.
- Page 21 7. Power Management The following setup is used to measure 7. Power Management power consumption on this monitor. • Native resolution: 2560 x 1440 If you have VESA DPM compliance display card or software installed in your PC, the • Contrast: 50% monitor can automatically reduce its •...
- Page 22 8.1 Philips’ Flat Panel Monitors colors. Pixel Defect Policy Types of Pixel Defects Philips strives to deliver the highest quality Pixel and sub pixel defects appear on the products. We use some of the industry's screen in different ways. There are two...
- Page 23 TFT Monitor panel pixels that are always dark or 'off'. That is, in a Philips flat panel monitor must have a dark dot is a sub-pixel that stands out on pixel or sub pixel defects exceeding the the screen when the monitor displays a tolerances listed in the following tables.
- Page 24 8. Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer...
- Page 25 Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
- Page 26 If the problem Digital mode as it is not necessary. still persists after you have tried these Visible signs of smoke or sparks solutions, contact Philips customer service representative. • Do not perform any troubleshooting...
- Page 27 For further assistance, refer to the Service contact information listed in Important • Uninterrupted display of still or static information manual and contact Philips images over an extended period customer service representative. may cause "burn-in", also known as * Functionality different according to "after-imaging"...
- Page 28 Shut down your computer, disconnect handling the monitor, make sure your old monitor and reconnect your that there is no pressure or force Philips LCD monitor. applied to the panel surface side. This may affect your warranty • Turn on your monitor and then turn conditions.
- Page 29 The any PC, workstation or Mac? damage mentioned above is not covered under your warranty. Ans.: Yes. All Philips LCD monitors are fully compatible with standard Q12: Why is my Display not showing PCs, Macs and workstations. You...
- Page 30 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
