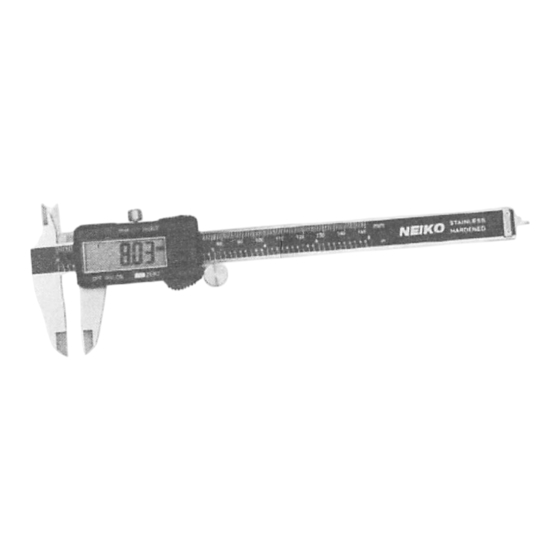

NEIKO TOOLS 01407A User Manual

Neiko Tools Digital Caliper -Fractional &. Decimal Display
Neiko Tools Digital Caliper -Fractional & Decimal Display User Guide User Guide
● Face should be cleaned with only clean, dry, and lint-free cloth.
● When needed, lubricate the body with a few drops of clock oil.
● Keep the battery compartment clean.
11ntroduction
Your digital caliper was constructed with quality materials and workmanship and will
give you many years of trouble free use wiien cared for ns described in the "Cai'e &
Maintenance" section.
Warning: Do not use acetone or alcohol to dean the caliper.
Please read these instructions cai'efully and retain them for future use.

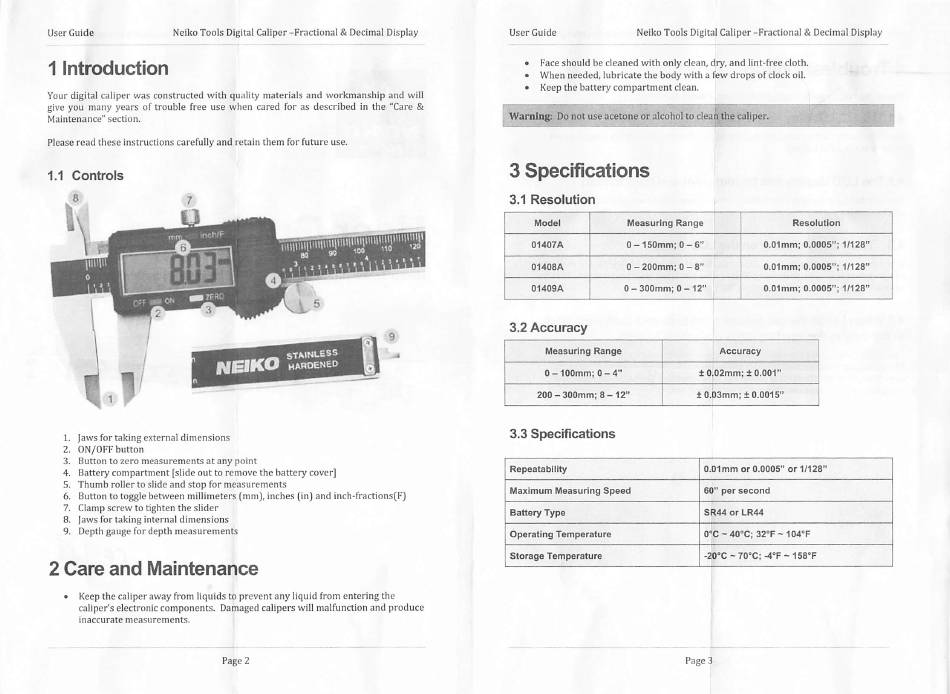

3 Specifications
1.1 Controls
8 3.1 Resolution
7
it
Model Measuring Range Resolution
0.01mm; 0.0005"; 1/128^ 01407A 0 - 150mm; 0-6'
0.01mm; 0.0005"; 1/128" 01408A 0 - 200mm; 0-8
0.01mm: 0.0005"; 1/128'
01409A 0 - 300mm; 0-12'
3.2 Accuracy
Measuring Range Accuracy
STAINLESS
fl0KO hardened
p
0 - 100mm; 0-4' ± 0.02mm; ± 0.001
1
In
200-300mm; 8-12' ± 0.03mm;+ 0.0015"
1
3.3 Specifications
1. Jaws for taking external dimensions
2. ON/OFF button
3. Button to zero measurements at any point
4. Battery compartment [slide out to remove the batteiy cover]
5. Thumb roller to slide and stop for measurements
6. Button to toggle between millimeters [mm], inches (in) and inch-fractions(F)
7. Clamp screw to tighten the slider
8. jaws for taking internal dimensions
9. Depth gauge for depth measurements
Repeatability 0.01mm or 0.0005" or 1/128"
Maximum Measuring Speed 60" per second
Battery Type SR44 or LR44
Operating Temperature 0°C-40°C;32°F-104''F
-20"C - 70°C; -4T - 158°F Storage Temperature
2 Care and Maintenance
● Keep the calipei' away from liquids to prevent any liquid from entei'ing the
caliper's electronic components. Damaged calipers will malfunction ami produce
inaccurate measurements.
Page 3 Page 2
