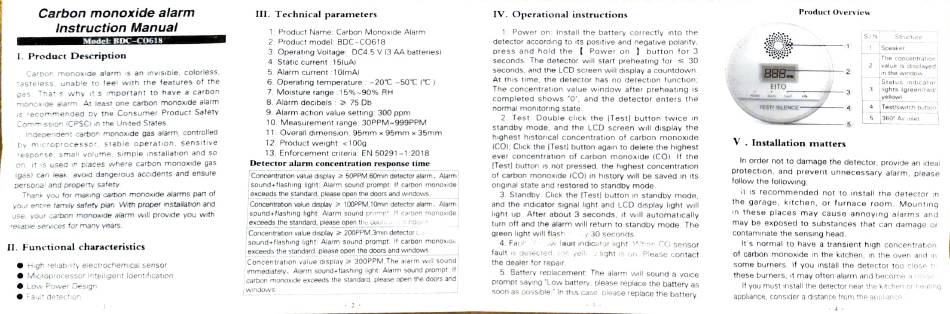

EITO BDC-CO618 Instruction Manual

Carbon monoxide alarm
Instruction Manual
Model: BDC-CO618
I. Product Description
Carbon monoxide alarm is an invis1ble, colorless,
1asteless,
unable to feel with the
features of the
gas That s why it's
important to have a
carbon
monoxIde
alarm. At least one
carbon monoxide alarm
is recommended
by the Consumer
Product Safety
CommissIon (CPSC) in the United States.
independent carbon monOxIde gas alarm, controlled
by microprocessor, stabie operation, sensitive
response, small volume,
simple installation and so
on it is used in places where carbon monox1de gas
igas)
can leak,
avord dangerous accidents and ensure
personal and property safety
Thank you
for mak1ng carbon monoxIde alarms part of
your entire farn1ly
satety plan Wth proper installation and
use, your
carbon monoxide alarm Will provIde you
with
reiable services tor many years.
II. Functional characteristics
High relsabity electrochern1cal sensor
Microprocessor inteifigent ldent1fication
Low Power Design
Fauit detect:on
III. Technical parameters
1. Product Name: Carbon Monoxide Alarm
2. Product model: BDC-CO618
3. Operating Voltage: DC4.5 V (3 AA batteries)
4. Static current:15(uA)
5. Alarm current :10(mA)
6. Operating temperature -20°C -50C (C )
7. Moisture range :15%-90% RH
8. Alarm decibels : > 75 Db
9. Alarm action value setting: 300 ppm
10. Measurement range: 30PPM-999PPM
11. Overall dimension: 95mm x 95mm x 35mm
12. Product weight: <100g
13. Enforcement criteria: EN 50291-1:2018
Detector alarm concentration response time
Concentration value display > 50PPM, 60min detector alarm, Alarm
sound+flashing light: Alarm sound prompt: If carbon monoxIde
exceeds the standard, please open the doors and windows.
Concentration value display > 100PPM,1Omn detector alam, Alarrn
sound+flashing light: Alarm sound promp If carben monoxide
exceeds the standard, please open the duurS a Jindov.s
Concentration value display > 200PPM,3min detector .
sound+flashing light: Alarm sound prompt. If carbon monoxide
exceeds the standard, please open the doors and windovws
Concentration value display
300PPM, The alarm will sound
mmediately, Alarm sound+ flashing light: Alarm sound prompt. If
carbon monoxide exceeds the
standard. please open the doors and
windows
IV. Operational instructions
1. Power on: install the battery correctly into the
detector accord1ng to its positive and negative polarity.
press and hold the Power on ) button for 3
seconds. The detector will start preheating for < 30
seconds, and the LCD screen wili displaya countdown.
At this time, the detector has no detection function:
The concentration value window after preheating is
completed shows 0", and the detector enters the
normal monitoring state.
2. Test: Double click the |Test) button twice in
standby mode, and the LCD screen will display the
highest historical concentration of carbon monoxide
(CO); Clhck the |Test| button again to delete the highest
ever concentration of carbon monoxide (CO). If the
(Test] button is not pressed, the highest concentration
of carbon monoxide (CO) in history will be saved in its
original state and restored to standby mode.
3. Standby: Click the (Test) button in standby mode,
and the indicator Signal light and LCD display light will
light up. After about 3 seconds, it will automatically
turn off and the alarm will return to standby
mode. The
green lght will flash 30 seconds.
4. Faul Y
w fauit indicator ight A'an CO sensor
fault s detected inc
veilo : light is on. Please contact
the dealer for repair.
5. Battery
replacement; The alarm will
sound
a voice
prompt saying
"Low battery. please replace
the battery
as
sOon as
possible In this case,
Dlease replace
the battery
EITO
Product Overview
TEST/ sILENCE -
-2
-3.
V. Installation matters
4
5
S/N Structure
1Speaker
The concentration
2 value is displayed
in the window
Status indicator
atus
3 lights "gnts (green/red/
yellow)
4 Test/switch button
5360° At inlet
In order not
to damage the
detector, provide
an ideal
protection,
and prevent
unnecessary alarm, please
follow the following:
it is recommended
not to instal!
the detector
in
the garage, kitchen,
or
furnace room. Mounting
in these places
may cause annoying
alarms and
may be exposed to substances that can damage or
contaminate the sensing head.
It's normal to have a
transient high concentration
of cartbon monoxide
in the kitchen,
in the oven and in
some burners. If you install the detector too close tr
these burners, it may often alarm and become a nos
If you must install the detector near the kitchen or neating
appliance, consider a distance from the anpiance
