Summary of Contents for Animal Factory Amplification OZYMANDIAS

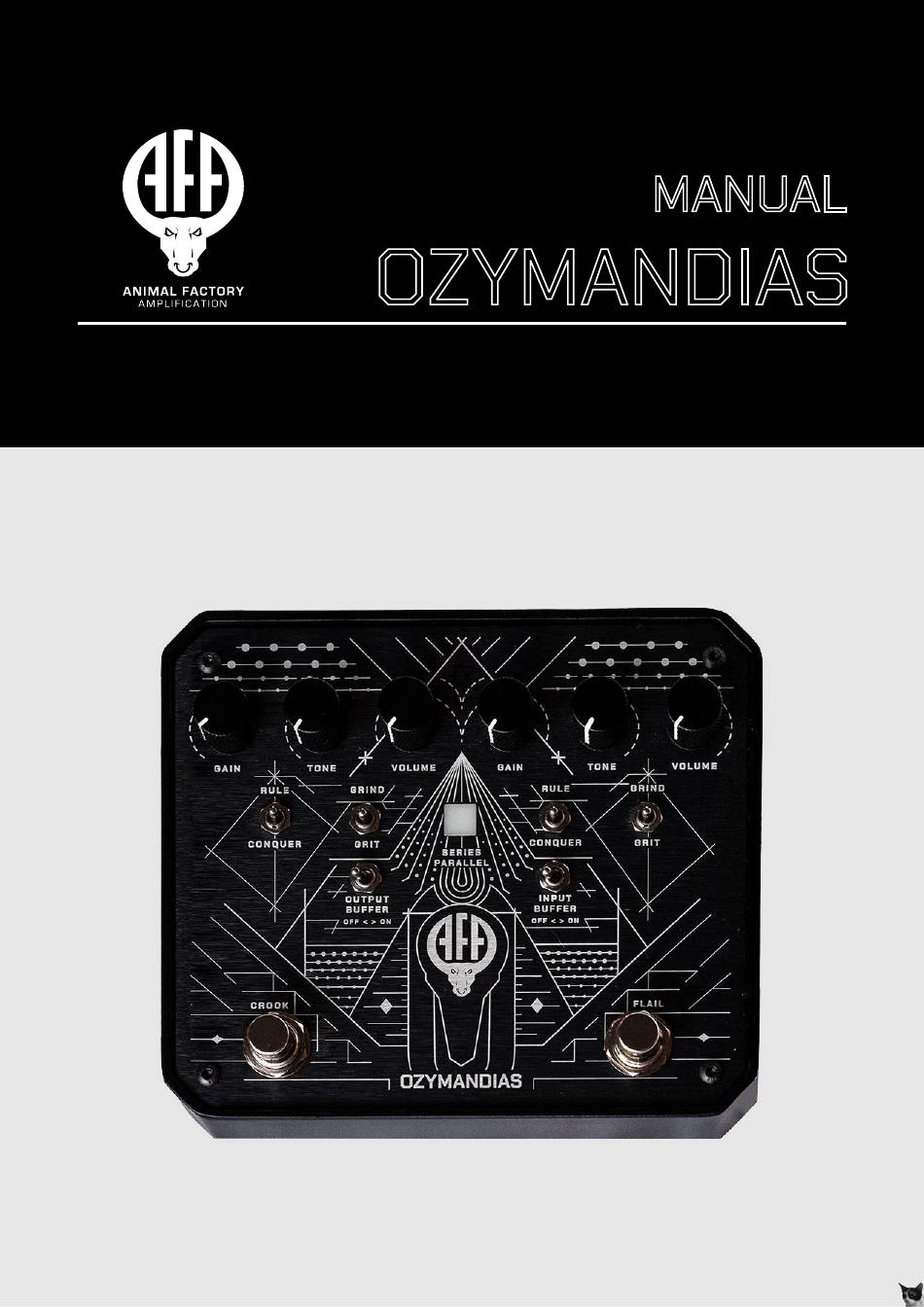

- Page 1 MANUAL OZYMANDIAS...
- Page 2 INDEX OVERVIEW FEATURES BASICS CONTROLS ROUTING: SERIES ROUTING: PARALLEL ROUTING: CRAFTY TRICKS MIDI IMPLEMENTATION CARE WARRANTY CONTACT...
- Page 3 Look upon my tones, ye mighty, and despair! Two vast and trunkless switches does Ozymandias boast. On the face of it, Ozymandias is a fairly simple stacked overdrive that offers a plethora of usage options – from a clean boost with unparalleled headroom to full bore bourbon-swilling crunch, this one rules them all.
- Page 4 BASICS POWER The Ozymandias requires a 9V-12V DC power supply. The polarity doesn’t matter, it accepts both +ve and -ve center power supplies. The Ozymandias draws upto 200mA of power. INPUTS AND OUTPUTS POWER: 9-12V DC input power, either polarity.
- Page 5 CONTROLS BOTH CHANNELS ON (SERIES or PARALLEL) FLAIL CHANNEL (RIGHT) CROOK CHANNEL (LEFT) FAT, FULLRANGE VOICING VOICED FOR UPPER MIDS STATUS LED KNOBSvvvvvvv GAIN: Self-explanatory. Turn it up, get more distortion, melt faces. TONE: Acts as a treble cut. Note that the CROOK channel is darker. VOLUME: Sets the output level for the channel.
- Page 6 Output Buffer ON. In this case, note that the output can be VERY loud - keep the volume level down low to prevent clipping or damaging inputs! NOTE: Even with the BUFFERS off, Ozymandias is not really true bypass. (And we couldn’t give a shit.) Each CHANNEL has relay true bypass.
- Page 7 ROUTING: PARALLEL In PARALLEL mode (square lit up), Ozymandias can be treated as two separate pedals. If nothing is connected to the CROOK input, it internally connects to the FLAIL input. FLAIL INPUT FLAIL FLAIL INPUT BUFFER CHANNEL OUTPUT (SWITCHABLE)
- Page 8 ROUTING: CRAFTY TRICKS Wanna go halfsies with your bandmate? We got you covered. Two instruments can theoretically be routed through the pedal. Use SERIES Mode for this. NOTE: Depending on your setup, you may encounter ground loops. And yes, we did mean instruments - why restrict yourself to guitar? See the example below for one way (of many) to process a drum machine which is equipped with individual/group outputs.
- Page 9 WARNING: Watch your levels - the Ozymandias can put out 20V+ peak-to-peak at full tilt!!! We take no responsibilty for fried amps, effect pedals, melted tubes, blown...
- Page 10 MIDI IMPLEMENTATION The Ozymandias accepts MIDI signals through it’s Type-A 3.5mm MIDI port. The MIDI channel for the pedal is set to channel 4, below are the CCs the pedal responds to set it’s functions. FUNCTION CC # VALUE FLAIL CHANNEL...
- Page 11 CARE Here are a few pointers to keep your Ozymandias in the best shape possible: 1. While upgrading firmware, please connect the USB-C cable before connecting the DC power to avoid any issues. 2. Do not eat your Ozymandias. 3. Do not put it into a washing machine, or shower with it. If you really feel the need to clean it, wipe it down with a dry soft cloth.
- Page 12 • Unauthorized Repairs or Modifications: Altering the pedal in any way not authorized by Animal Factory Amplification. • Any damage caused to any other devices or people stemming from incorrect use of the pedal, or setting the output volume too high. Again: this thing is LOUD!
- Page 13 Ozymandias was shelved, but a simplified version of the FLAIL channel was released as our immensely successful Pit Viper pedal. Ten years on, in 2024, we have built upon the Ozymandias as a more complete, refined product that we truly feel has earned its name.
