D-Flector
Stone Guards: Best safety companion for the road untraveled.
You have acquired a D-Flector accessories , Congratulations.

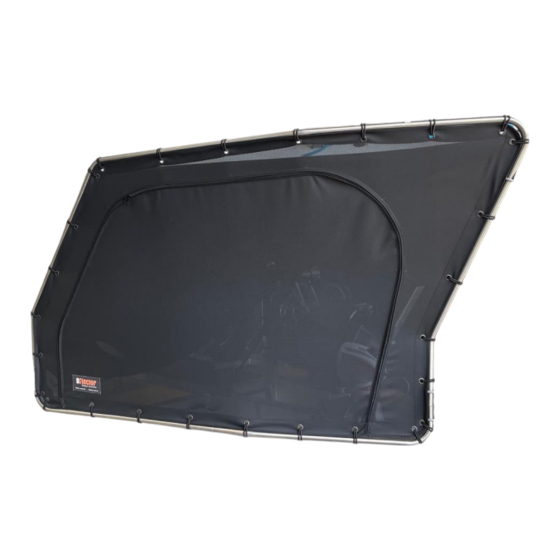

D-Flector
stone guard provided unparallel protection to your RV, adjustable fittings, remain
durable in harshest outback conditions.
Important:
1.
Refer to your fitting instructions to ensure that product is installed correctly.
2.
Check the contents of kit before commencing fitment and report any discrepancies.
3.
Keep checking D-Flector website to ensure you have latest revisions of these instructions.
Fit Time : 30 mins
FASTENERS ARE TIGHT AND ALL STRUCTUAL
Maxwell & Higgs Pty Ltd, AUSTRALIA
6/94-102 Keys Rd,
Moorabbin, Vic, 3189
Installation Guide
PERIODICALLY CHECK TO ENSURE THAT ALL
COMPONENTS ARE SOUND.
Released Date – Jan 2024
support@d-flector.com.au
www.d-flector.com.au
www.youtube.com/watch?v=xBX4PjLa79E
D700
DSG070
1
Advertisement
Related Manuals for D-Flector D700
Summary of Contents for D-Flector D700
- Page 1 Refer to your fitting instructions to ensure that product is installed correctly. Check the contents of kit before commencing fitment and report any discrepancies. Keep checking D-Flector website to ensure you have latest revisions of these instructions. Fit Time : 30 mins...
- Page 2 D700 DSG070 Part list: Item No Part Description Image Tube Set D700 1 each Tube Lower Front RH & LH - 58/59 Tube Support Front Upper RH & LH - 1 each 78/79 Tube Lower Rear - 67 Tube Middle Rear Support - 80 1 each Tube Upper Rear RH &...
- Page 3 D700 DSG070 Part list: Item No Part Description Image HWK010 (Rear Hardware Kit) Rear Mounting Bracket Sub-Assy - BKT010 U Bolt Rear M12(140T) x 41(W) x 270(L) - UBT017 Chassis Rear lower Mounting Plate - PLA048 U Bolt Small Round...
- Page 4 D700 DSG070 Step 1 Fit Front Mounting Bracket Assembly (06) to a symmetric position on the trailer drawbar using the U Bolt (10) M12(50T) x 100(W) x 180(L) or U Bolt (11) M12(75T) x 77(W) x 130(L) depending on chassis thickness.
- Page 5 D700 DSG070 Step 3 Fit Rear Mounting Square Tube Assembly (14) to trailer chassis using the two square U bolt (15) M12(140T) x 41(W) x 270(L) and Lower Mounting Plate (16). Make sure that a Rear Mounting square Tube assembly position is at equal distance from front, so that at both side of the Boat chassis, Stone guard will remain symmetric.
- Page 6 D700 DSG070 Step 4 Fit Front Lower Tube (01) (LABELS “D”) to Front Mounting Bracket (07) using the Small round U Bolt (12) M10(25T) x 26(W) x 47(L). Top of the tube should be positioned in line with the slot in the mounting bracket plate as shown in image.
- Page 7 D700 DSG070 Step 6 Slide the Upper Rear Tube RH (05) into the end of the Front Support Tube RH (02) using the “A” & “B” labels as a guide. RIGHT =“A” LEFT = “B” LABEL “E” LABEL “C” Step 7 Slide the Rear Mounting Tube (04) into the Rear Lower Tube (03) (LABELS “C”) and end of...
- Page 8 D700 DSG070 Step 8 Attach the Mesh (18) using the bungee cords (18) on RH and LH side. Recommended sequence for attaching bungee cords uniformly is, first at each corner of frame (XX), secondly at each middle section of frame (YY) and then remaining portion of frame as per below...
- Page 9 D700 DSG070 Step 9 Attach the Front Cross Brace Assembly (08,09) to the Front Support Tube RH & LH (02) using 2 off the Small Round U Bolts (12) M10(25T) x 26(W) x 47(L). Preferred location is approximately middle of top 2 bungee cords position. Adjust the V-tube Front cross brace (08) to suit the required gap as per boat width then place the SS Bolts (13) into available hole on both side and tightened the Nylon nut (13).
