SN-AAT Manual
®
RCbro
SN-AAT-PLUS

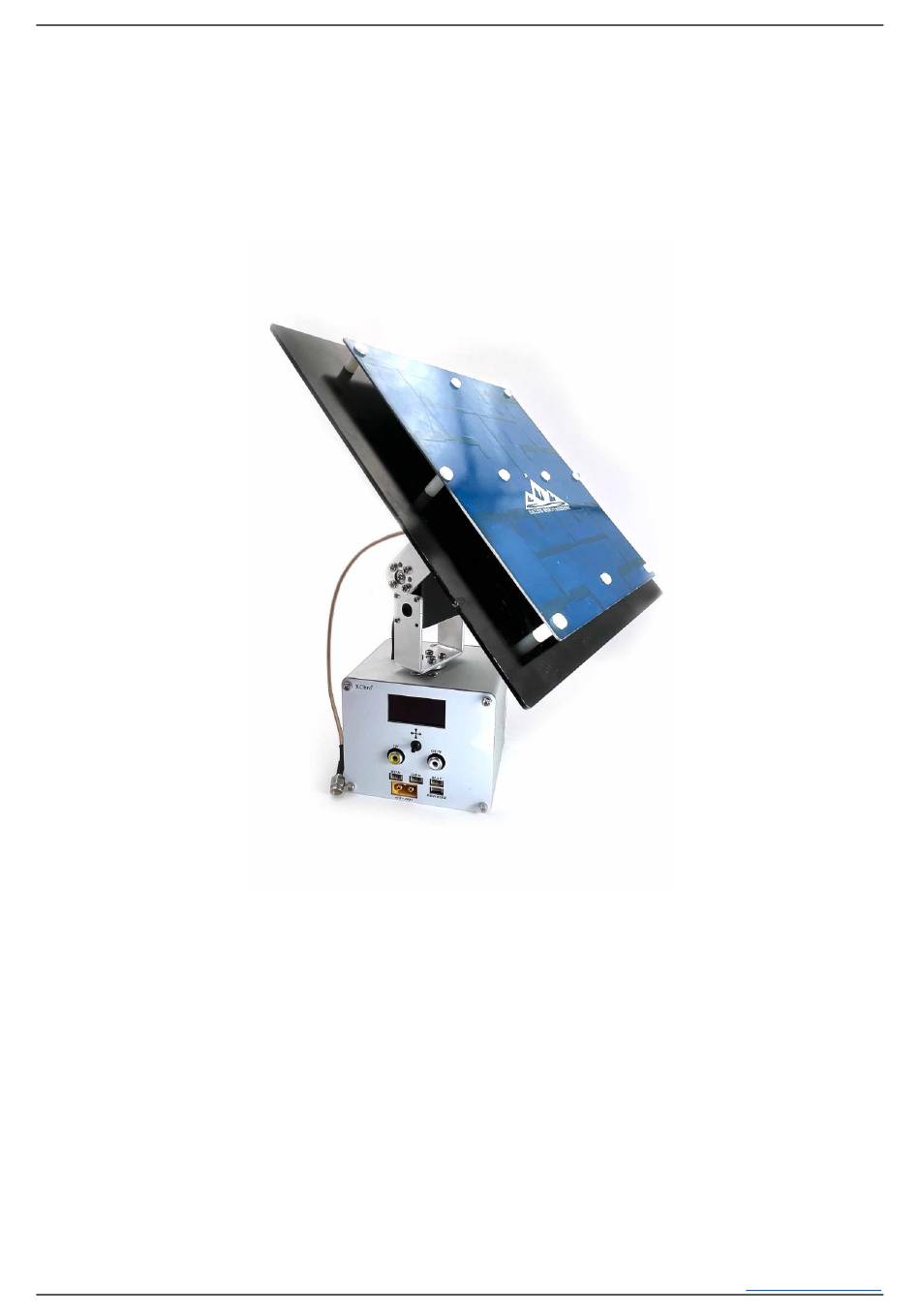

AutoAntennaTracker
Manual V1.3
SN-AAT-PLUS adopts an efficient video signal encoding algorithm.The sky devices (such as flight
controller) encode GPS and other information into video signals, and then transmit the video to AAT
through VTX to achieve information Encoding -Transmission-Decoding; AAT aims the antenna at the
direction of the aircraft in real-time based on the obtained aircraft position information, and outputs its
information through the MAVLINK, screen, or voice module; At the same time, it supports MAVLINK and
CRSF (ELRS) protocol inputs to achieve digital mode tracking. Compared to the previous generation AAT,
the data recognition rate improves by more than 100% in cases of significant video image interference.
乐飞模型
www.lefeirc.com/
Advertisement
Summary of Contents for RCbro SN-AAT-PLUS
- Page 1 AutoAntennaTracker Manual V1.3 SN-AAT-PLUS adopts an efficient video signal encoding algorithm.The sky devices (such as flight controller) encode GPS and other information into video signals, and then transmit the video to AAT through VTX to achieve information Encoding -Transmission-Decoding; AAT aims the antenna at the direction of the aircraft in real-time based on the obtained aircraft position information, and outputs its information through the MAVLINK, screen, or voice module;...
- Page 2 SN-AAT Manual ® RCbro Features ❖ Simple wiring, easy to use, supporting larger antenna loads. ❖ Optimize hardware and software parsing algorithms under video signals, greatly improving data recognition rate. ❖ Solve compatibility issues with cameras. ❖ Support video output, expandable to one screen or FPV glasses.
- Page 3 SN-AAT Manual ® RCbro *The connection of the sensor is different from the other three interfaces, please pay attention when connecting! *Except for the "+" of the power interface, which is 2-4S, the "+" of all other ports are 5V outputs!
- Page 4 SN-AAT Manual ® RCbro Display interface & Parameter interpretation *OK: All conditions have been met, and AAT can track normally; ERR1: Not connected or no correct input signal; ERR2: Signal loss; ERR3: The sky device is not positioned; ERR4: AAT not positioned.
- Page 5 SN-AAT Manual ® RCbro *SKY represents SKY device, such as flight controller(APM/PX4/SN-L+/SN-FAST etc.) Settings menu The settings menu is divided into three levels, with five sub items in the first level menu, as shown in the following figure. Users can enter the corresponding sub items to set parameters according to your needs.
- Page 6 SN-AAT Manual ® RCbro Item Meaning ALTITUDE SPEED DISTANCE Is voice broadcasting enabled VOLTAGE CURRENT VOICE MODE ALARM-1 Alarm below this speed ALARM-2 Alarm below this voltage VOLUME Set the volume level of the voice module SPEED Set the speech speed of the voice module...
- Page 7 SN-AAT Manual ® RCbro Antenna Installation Please control the weight of the AAT load within 500g (including the antenna). The heavier the weight, the more unstable the center of gravity will be when tracking, and it will affect the service life of the servo! If the antenna size is small and the tracking process is not affected by the AAT shell, you can choose not to use copper pillars.
- Page 8 SN-AAT Manual ® RCbro When using GPS, there is no need to manually configure it, just connect it correctly according to the interface definition. The GPS supports the UBLOX, does not support the NMEA, and also supports the 10th generation UBX module.
- Page 9 SN-AAT Manual ® RCbro of a compass, if there is always a small angle error in tracking, the error can be eliminated by adjusting the<OFFSET>. * When the installation position is limited, it is recommended that users install according to the position shown in the diagram to minimize interference.
- Page 10 SN-AAT Manual ® RCbro Analog video input Taking the Hawk eye screen as an example, connect the video output cable of the screen to the AAT video input AV connector. Ensure that the flight controller firmware supports AAT, otherwise it cannot be tracked! TELEMETRY &...
- Page 11 SN-AAT Manual ® RCbro The configuration required for the remote control to output the CRSF protocol. The following introductions use the TBS receiver and TX16S as examples. Input CRSF protocol in wired mode: ① In the RC <SYS>-<HARDWARE>, set <Max bauds> to <115KBps>, <Serial port(TTL)> to <Telem Mirror>;...
- Page 12 SN-AAT Manual ® RCbro Input CRSF protocol via Bluetooth: ① In the RC <SYS>-<HARDWARE>, set <Max bauds> to <115KBps>, <Serial port(TTL)> to <Telem Mirror>; ② Prepare a Bluetooth with a baud rate of 115200 and a PIN code of 1234. The name is assumed to be BT_TX16S, and it is connected to the serial port of RC (Serial port TX is connected to Bluetooth RX, 5V is connected to 5V, "-"...
- Page 13 SN-AAT Manual ® RCbro ④ In the AAT <BLUETOOTH>, set < BLUETOOTH > to <ON>, <PIN>-<1234>; ⑤ Return to the previous level or the main menu, restart AAT; ⑥ Enter the <BLUETOOTH>-<SCAN>, and AAT starts searching for surrounding Bluetooth devices. During the process, ensure that the target Bluetooth is turned on and not connected;...
- Page 14 SN-AAT Manual ® RCbro ③ Set the “Type” as “Bluetooth”, then touch “Scan”; ④ Select the Bluetooth device starting with the ID “SN_AAT_0*”, then “OK” to go back to the “Comm Links” page; ⑤ Select “Bluetooth” and touch “Connect”, Bluetooth connection is established.
- Page 15 SN-AAT Manual ® RCbro ④ Prompt<SCAN-ERR>, you can try scanning again or restart the slave device to be connected. If the error is still reported, the possible reason is that AAT has already connected a Bluetooth device; ⑤ Prompt<PAIR-ERR>, possibly due to AAT already connected to a Bluetooth device;...
- Page 16 SN-AAT Manual ® RCbro Before performing the<Scan>operation, first enter <PAIR> to view the prompt information. If it is not<NONE>, refer to the following <Bluetooth prompt information> and follow the prompts. If the AAT currently has a connected device and needs to be replaced, it is recommended to<BLUETOOTH>-<RESET>.
- Page 17 SN-AAT Manual ® RCbro ① Enter Device Manager and check the actual COM (different computers have different COM); ② Open SN-GCS, enter software settings, and click on serial port; ③ Select your own COM with a baud rate of 115200 and click on Connect;...
- Page 18 SN-AAT Manual ® RCbro SUPPORT If you encounter technical problems and need to consult, you can send an email to contact us. It is not recommended for users to disassemble or repair the equipment themselves. The specific contact information is as follows: Email 1:lefeirc@163.com...
- Page 19 SN-AAT Manual ® RCbro ： Will connecting the output video to other devices affect AAT. A：No impact. To connect two screens, you can first connect the video to one of the screens, then connect the video output of this screen to the AAT video input port, and finally connect the other screen through the AAT video output port.
- Page 20 SN-AAT Manual ® RCbro ： Can the sensor module be installed in other locations? A：Yes, just ensure that the installation direction is correct. The installation direction is limited to 4 types of illustrations, and the specific location is not limited to the illustrations provided in the manual. It is recommended to keep the installation position as far as possible from magnetic interference sources.
