Eonon A0126N Manual

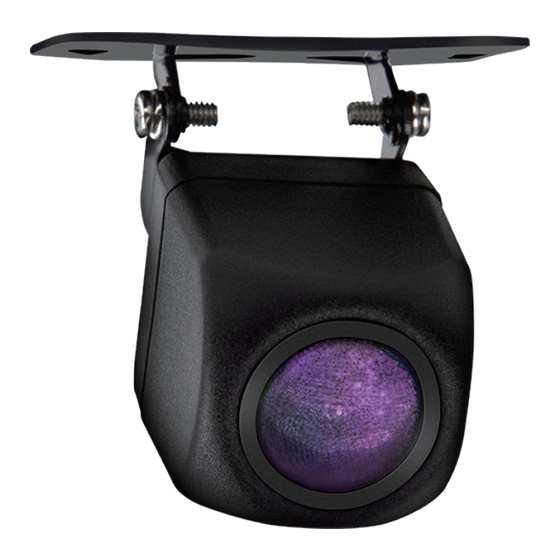

Ahd rear view camera
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

A0126N AHD Rear View Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A0126N and is the answer not in the manual?

Questions and answers

Summary of Contents for Eonon A0126N

  • Page 1 A0126N AHD Rear View Camera...

  • Page 2: Specification

    1. Specification Color: Black Wide Angle: 140° Horizontal Angle: 100° Vertical Angle: 75° Video Output: AHD/CVBS Resolution: 1280*720 Waterproof : IP68 Operation Current: 70mA Operation Voltage: DC 12V Operation Temperature: -20℃ to +60℃ Minimum illumination: 0.1Lux 2. Installtion Wiring a. Wiring Diagram Sample Wiring Diagram Reverse Lamp +12V Power plug...

  • Page 3: Wiring Method

    2. Installtion b. Wiring Method Connect the video out of camera with the cam input of head unit Connect the +12V (Red) and Ground (Black) with the reverse lamp ( or other power source) Ground...

  • Page 4: Fine Tuning

    2. Installtion Fine Tuning After completion of the wiring installation, start the car and put in reverse gear to confirm the image. 699 CAA...
  • Page 5 3. To Start 4. Attention...
  • Page 6 4. Attention 5. Troubleshooting...
