ECCO SAFETY GROUP CODE 3 C3100 Installation & Operation Instructions page 2

Installation and Mounting:
Step 1. Consult the factory service manual to remove the front bumper cover from the vehicle.
Step 2. Test fit the bracket into position as shown in Figure 3. The bracket is positioned behind the center brace. Slight drilling/reaming of the
holes in the brace may be required for the mounting screws provided in this kit.
Step 3. Mount the desired speaker (C3100/C3900) to the desired bracket using the supplied fasteners as shown in Figure 1. C3100 with the
(4) four supplied screws, C3900 with the (2) two supplied screws.
Step 4. Position the bracket behind the central support as shown in Figure 2.
Step 5. Mount the bracket into position using (4) supplied 1/4-20 fasteners in positions as indicated in Figure 3.
Step 6. (For Dual Speaker Applications) - Repeat process using the opposite side speaker bracket, mirroring the position on the central
brace.

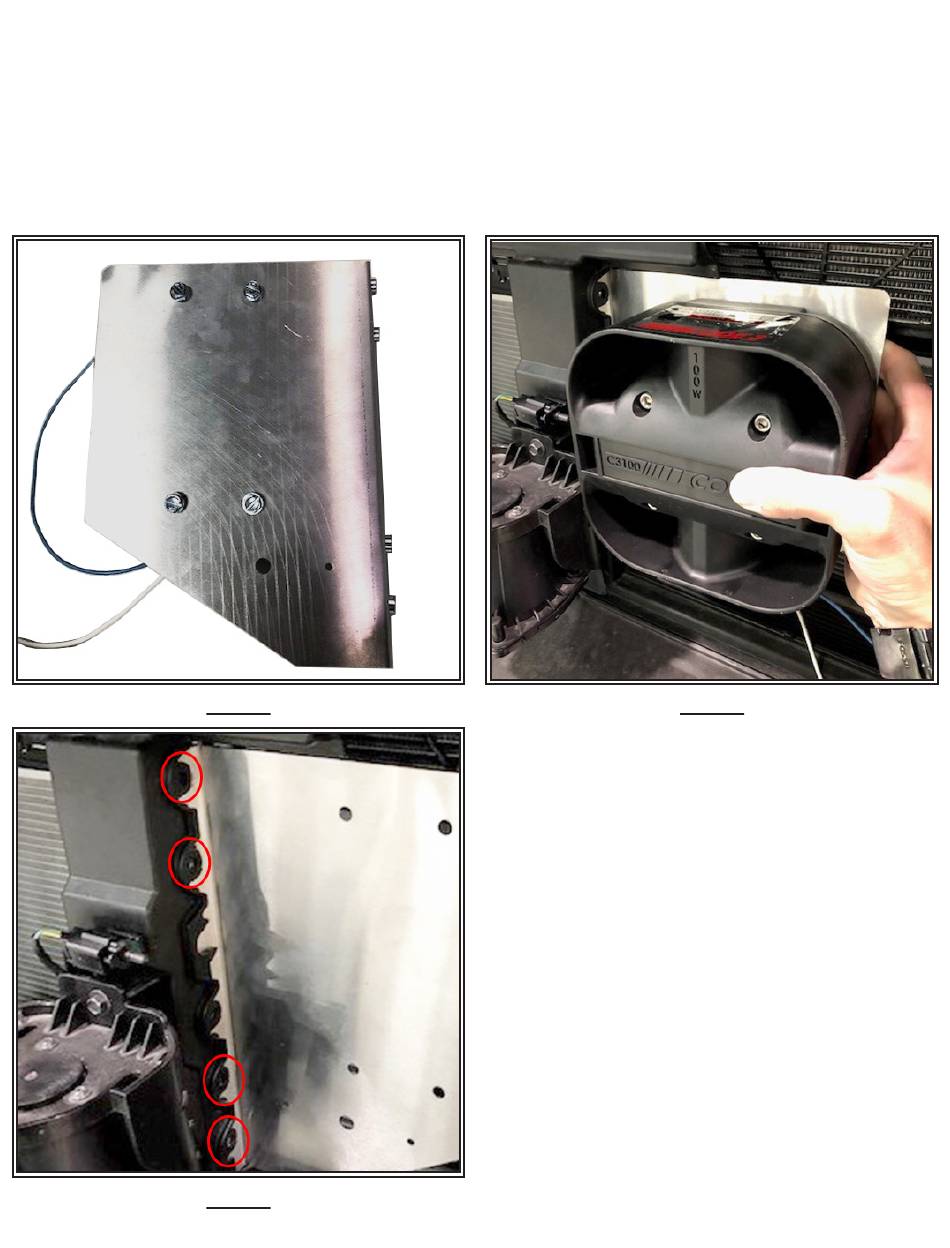

Figure 1
Figure 3
Figure 2
Page 2 of 4
