Nouveau NRHE60W User Manual

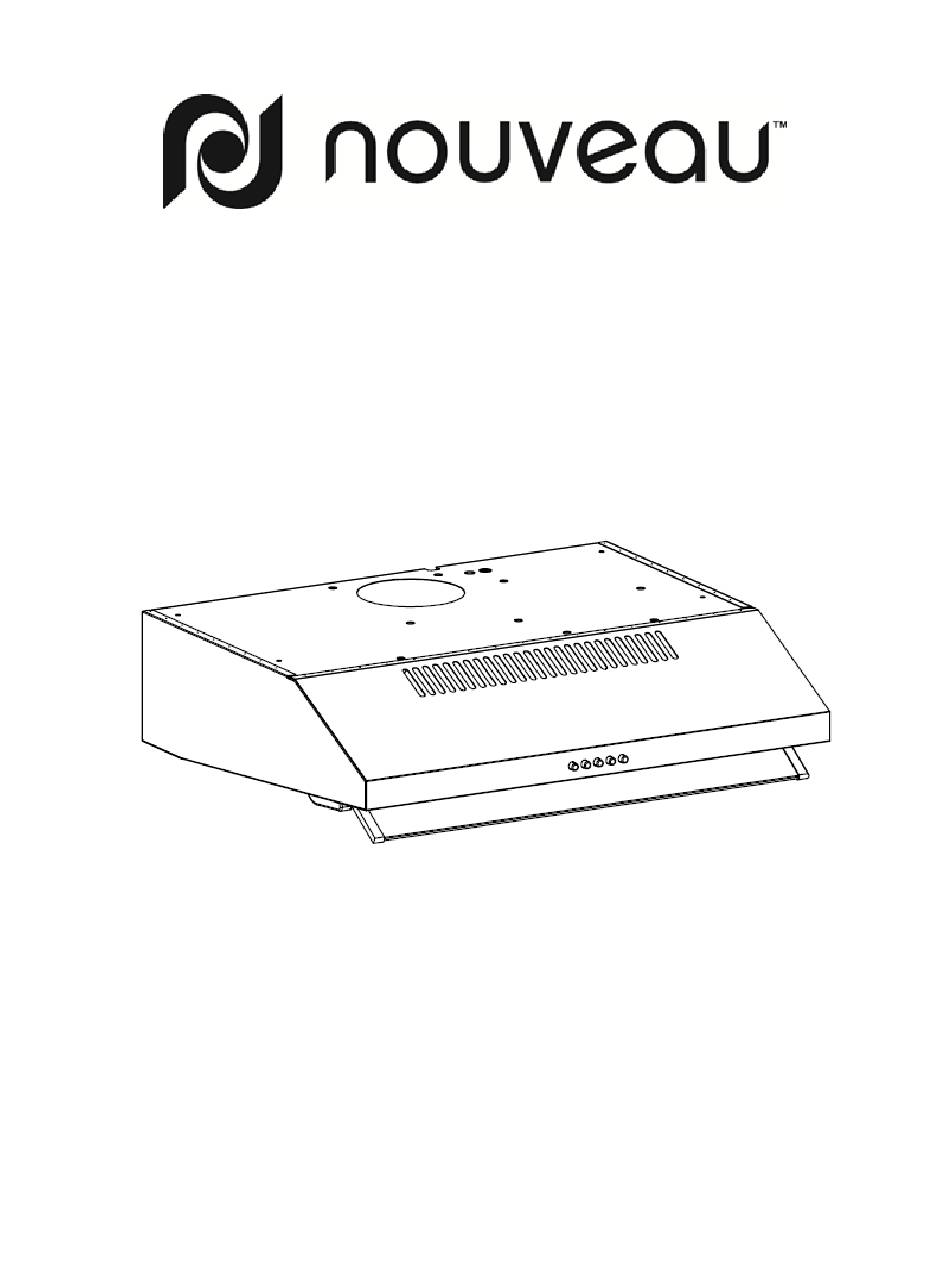

600mm compact rangehood
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual for your Nouveau
600mm Compact Rangehood
NRHE60W / NRHE60SS
NOTE: This user manual contains important information including safety &
installation points which will enable you to get the most out of your Nouveau
appliance. Please keep it in a safe place so that it is readily available for future
reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NRHE60W and is the answer not in the manual?

Questions and answers

Summary of Contents for Nouveau NRHE60W

  • Page 1 NOTE: This user manual contains important information including safety & installation points which will enable you to get the most out of your Nouveau appliance. Please keep it in a safe place so that it is readily available for future...
  • Page 2 Contents Environmental note Important safety information Specifications of your rangehood Using your rangehood Before first use To use your rangehood Cleaning your rangehood The grease filter Maintenance Removing and cleaning the grease filter Changing a light bulb Fitting the carbon filter Installation Electrical connection Before beginning installation...
  • Page 3 Environmental note Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.
  • Page 4 Important safety information Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit from.
  • Page 5 o When installed between adjoining wall cabinets, the cabinets must not overhang the hob. o The edges of the rangehood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the rangehood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced...
  • Page 6 o Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose. o Do not install above a cooker with a high level grill. o Never leave frying pans unattended during use as overheated fats and oils might catch fire.
  • Page 7 Specifications of your rangehood Product dimensions Height: 150mm Width: 600mm Depth: 500mm Your rangehood is fitted with: o Built-in lighting o Push buttons o 3 fan speeds o Noise level 58dB o Can be ducted or recirculated o 120mm diameter ducting outlet Extraction capacity: 400m³/hr Optional extras: o Recirculation possible with optional charcoal filter...
  • Page 8 Using your rangehood Before first use IMPORTANT: This process must be followed before the rangehood is used for the first time. You should use a mild liquid detergent and a damp cloth on all the external areas of your rangehood before it is used for the first time. This will help to remove any residues from the manufacturing process.
  • Page 9 IMPORTANT: Ideally you should switch on your rangehood ten minutes before you start to cook, or at the very least when you begin cooking. You should also run your rangehood for ten minutes after you have finished cooking. Cleaning your rangehood IMPORTANT: Before cleaning, always ensure that you have switched your rangehood off at the omni-polar switch, set at the wall from the cable.
  • Page 10 Maintenance Removing and cleaning the grease filter o First remove the grease filter by sliding the securing nibs at the sides of the grille on the underside of the cooker hood. o Soak the grease filter in hot water and washing up liquid for about an hour. o Rinse it off thoroughly with hot water.
  • Page 11 o If the light still does not work, make sure that the internal plug is fitted properly before you call for technical assistance. o Refit the grease filter. Fitting the carbon filter (Part number ST1) If the appliance is going to be used in recirculation mode then it is necessary to fit a carbon filter.
  • Page 12 Installation IMPORTANT: Before installation read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters. The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric...
  • Page 13 o The brown wire must be connected to the terminal marked “L” (live), or coloured red. ⏚. o The green/yellow wire must be connected to the terminal marked “E” or Before beginning installation o Check that the product purchased is of a suitable size for the chosen installation area.
  • Page 14 Installing your rangehood IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. PLEASE TURN TO PAGE 19 NOW TO UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO MODES. o We recommend that at two people install this hood. o Your cooker hood can be fitted to the wall or to the underside of a kitchen cabinet.
  • Page 15 4) Hang the hood up on the screws. Insert the bottom screws. 5) Tighten the screws the rest of the way in. 6) For the extraction function, connect the exhaust outlet pipe to the collar strip. Find the screw holes on the top of the cooker hood. Tighten the bolts from inside the hood.
  • Page 16 Notice: There are 2 methods for ventilation, including ' horizontal ventilation' and ' vertical ventilation'. Please pay attention to the ventilation method when installation. 1) Horizontal ventilation: As picture A shows, please use the cover to seal the outlet on the top, then the air can be vented from back.
  • Page 17 o Before fixing the rangehood into the kitchen unit, you should connect the other end of the ducting hose to the coupling in the top of the cooker hood. Completing the installation If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters.
  • Page 18 Packing list Opening the box, you will find the following items : Description Illustration Qty. Cooker hood Cover of outlet Outlet Screw (4mm x 35mm) M4 nut M4 washer Screw (4mm x 30mm) Wall plug Extraction mode or recirculation mode? IMPORTANT: You will have to decide prior to installing your rangehood whether to use it in extraction mode or recirculation mode.
  • Page 19 Troubleshooting IMPORTANT: If your rangehood appears not to be operating properly, before contacting an authorised service agent, please refer to the checklist below. My rangehood will not start. o Check that the rangehood is connected to the power supply and whether you have selected any of the fan speeds.
  • Page 20 My rangehood is not working properly. Do not attempt to repair the appliance yourself. If the appliance is not operating correctly please contact an authorised service agent. Go to www.applico.co.nz or phone 0800 M10 HLP / 0800 610 457 to locate your closest service agent. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
  • Page 22 Imported by Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Websites www.applico.co.nz www.mitre10.co.nz Phone 0800 M10 HLP 0800 610 457...
